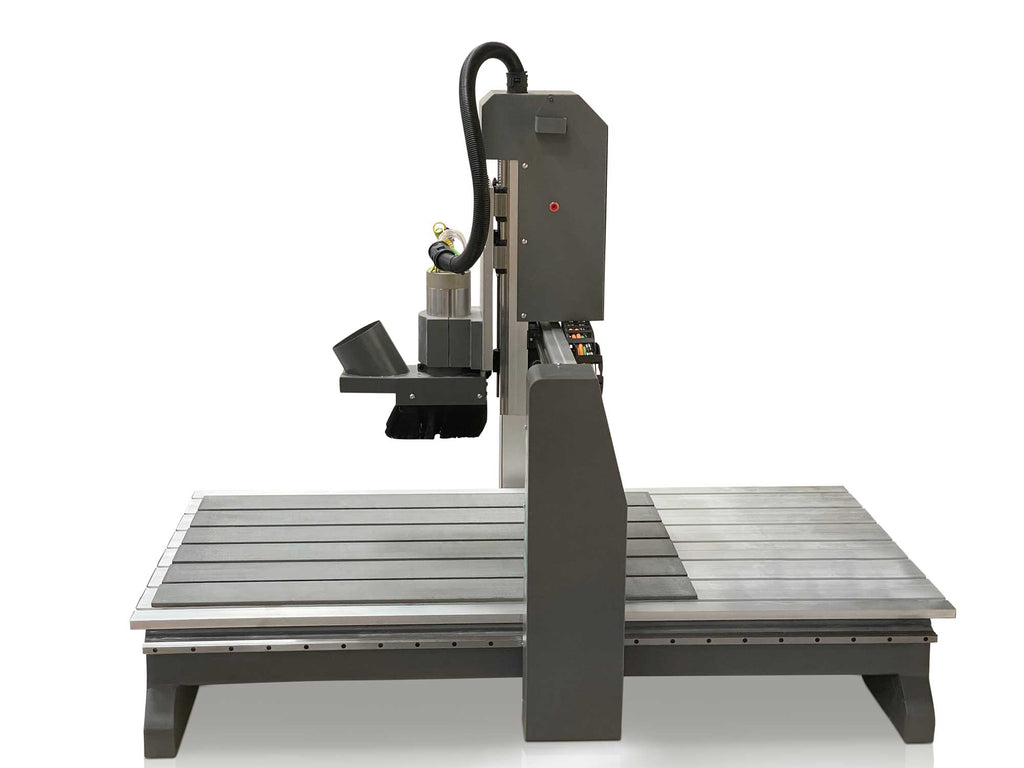

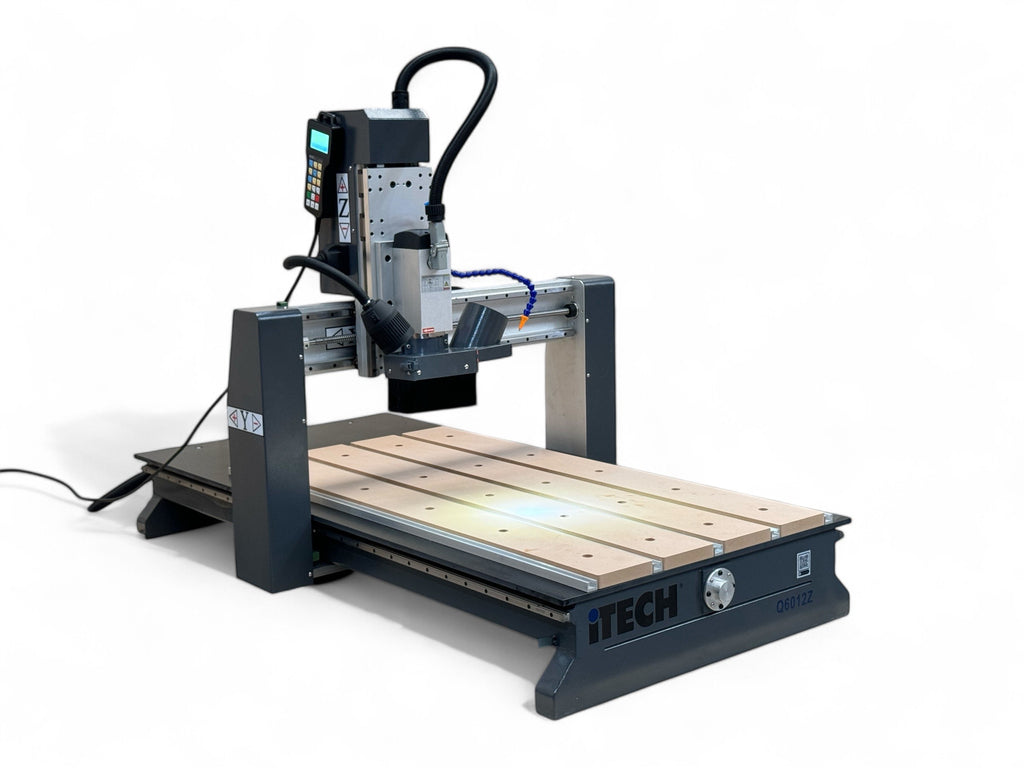

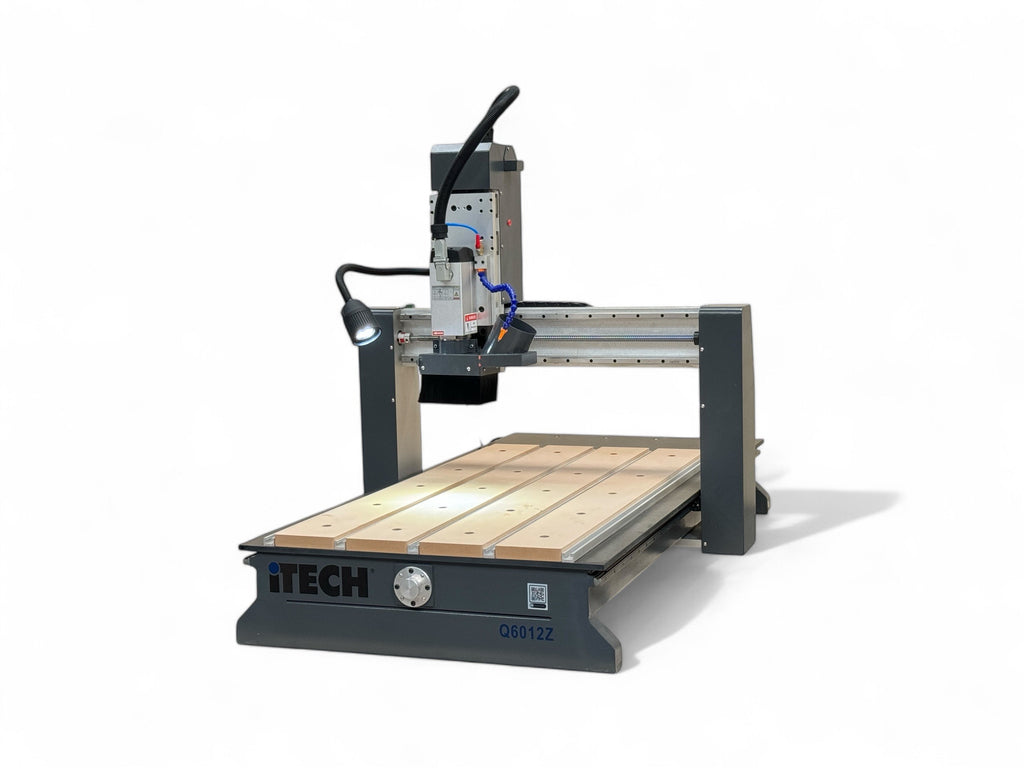

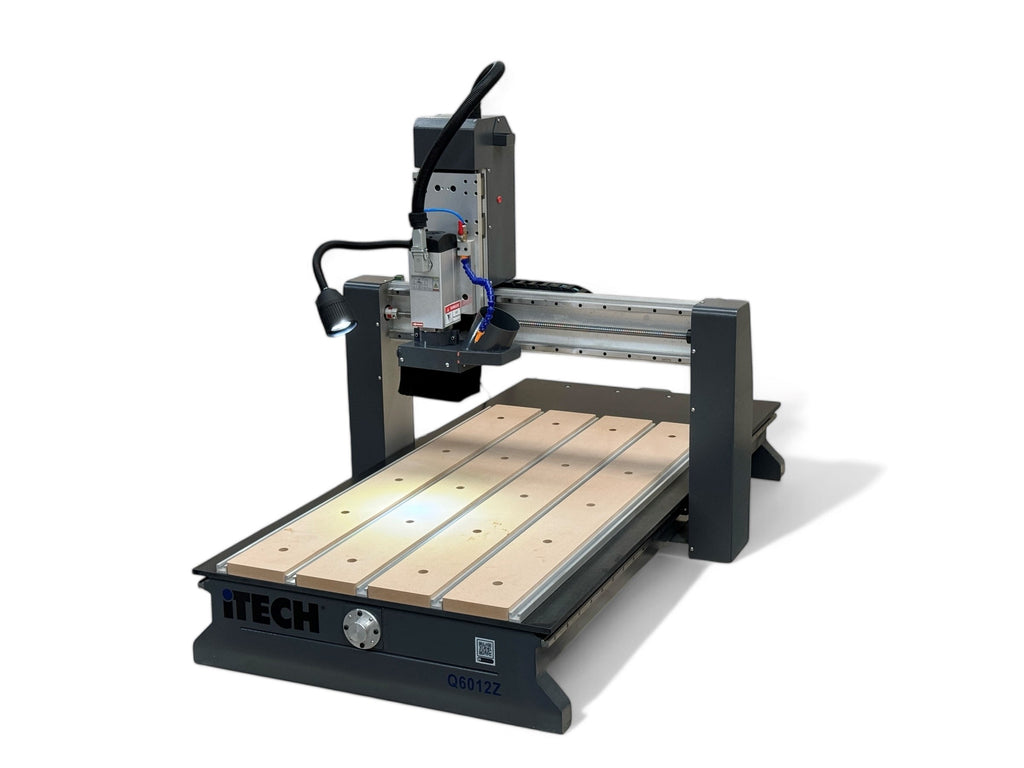

iTECH K60120Z High Z + Extra Y Desktop CNC Router

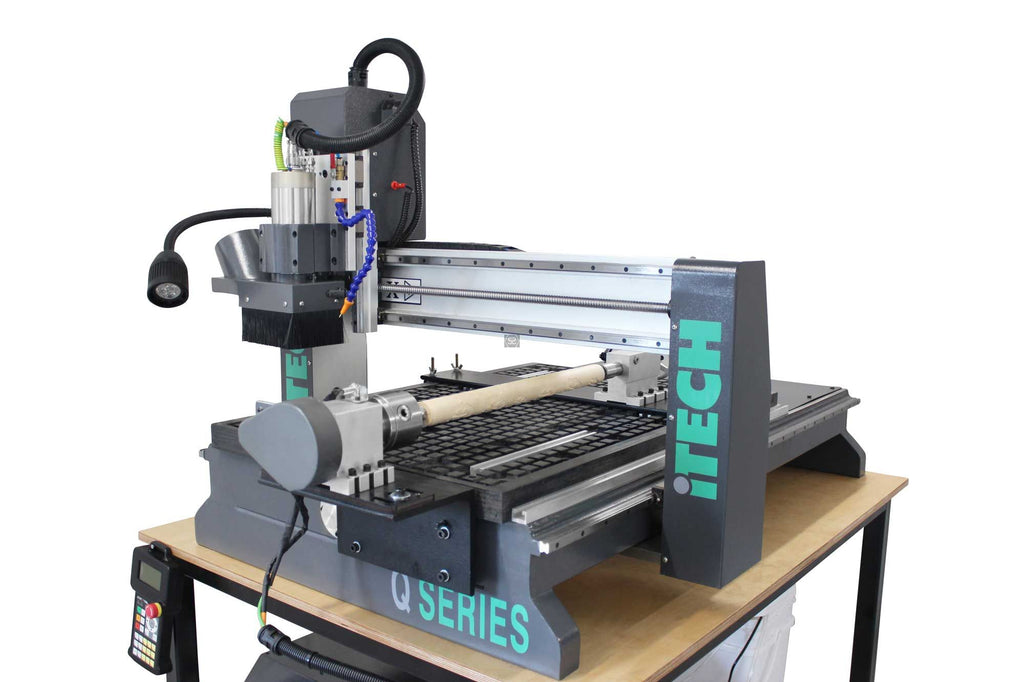

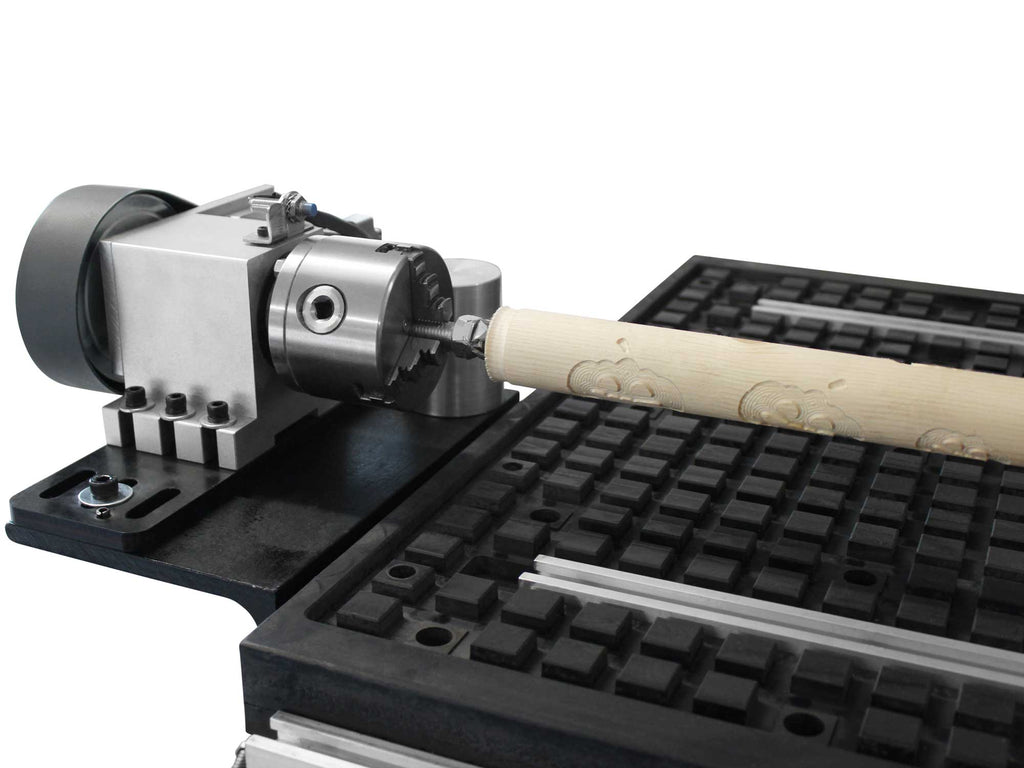

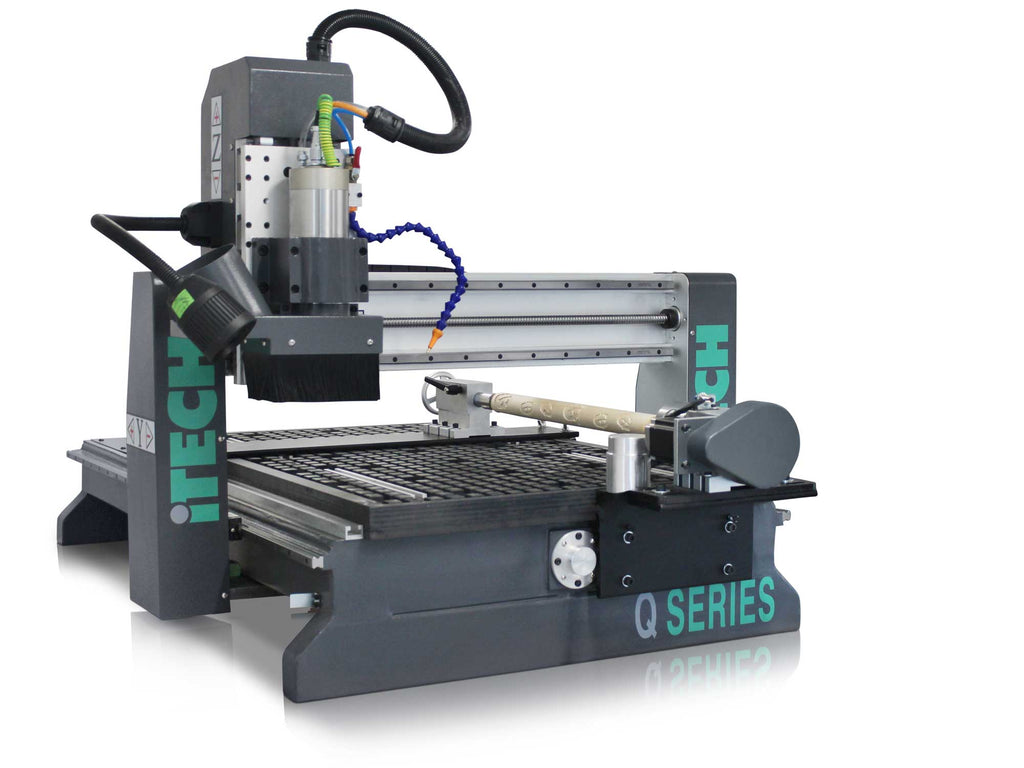

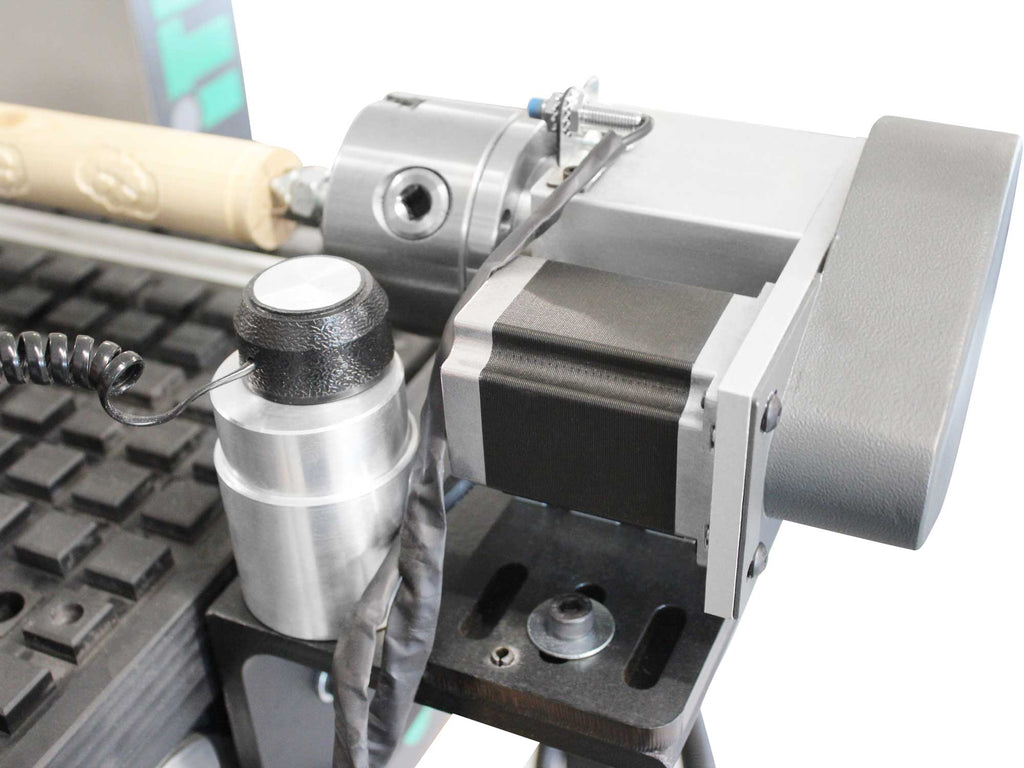

This new Q Series 'High Z' + 'Extra Y' Desktop CNC Router with has increased the Z axis to give 250mm under the gantry, it also has extra Y axis of 1250mm, with all this available space iTECH decided to offer an optional Rotary axis, enabling the swift routing of intricate spindles. The K6012 is particularly suited to larger and longer prototyping work, small batch production or advanced home workshops.

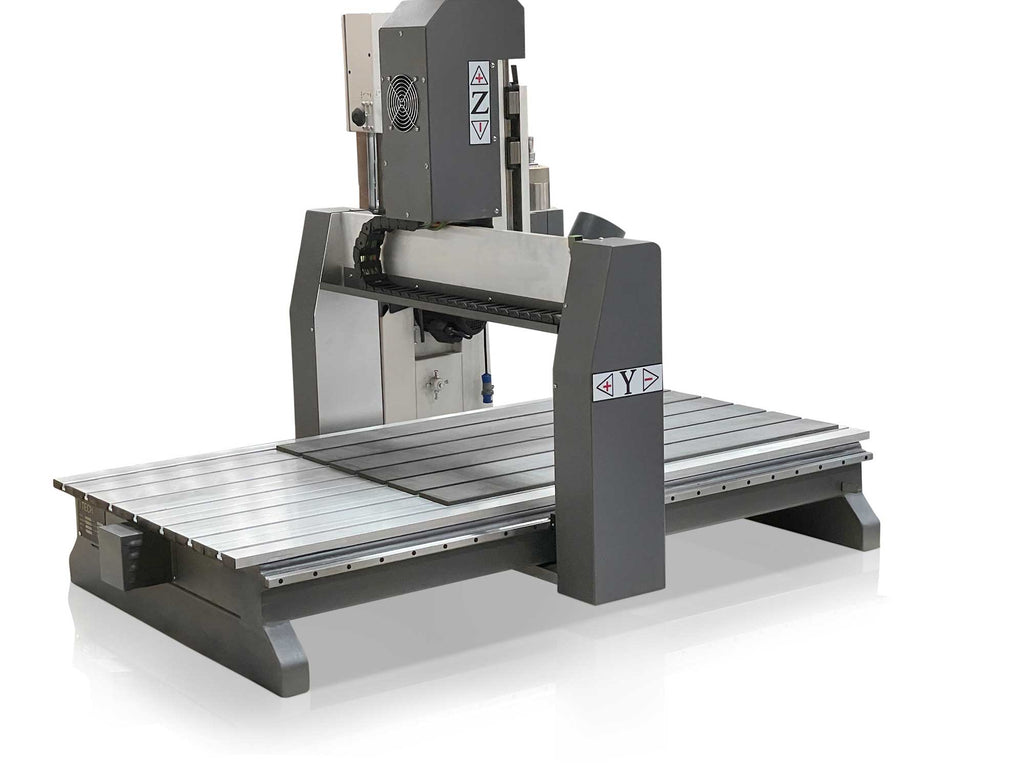

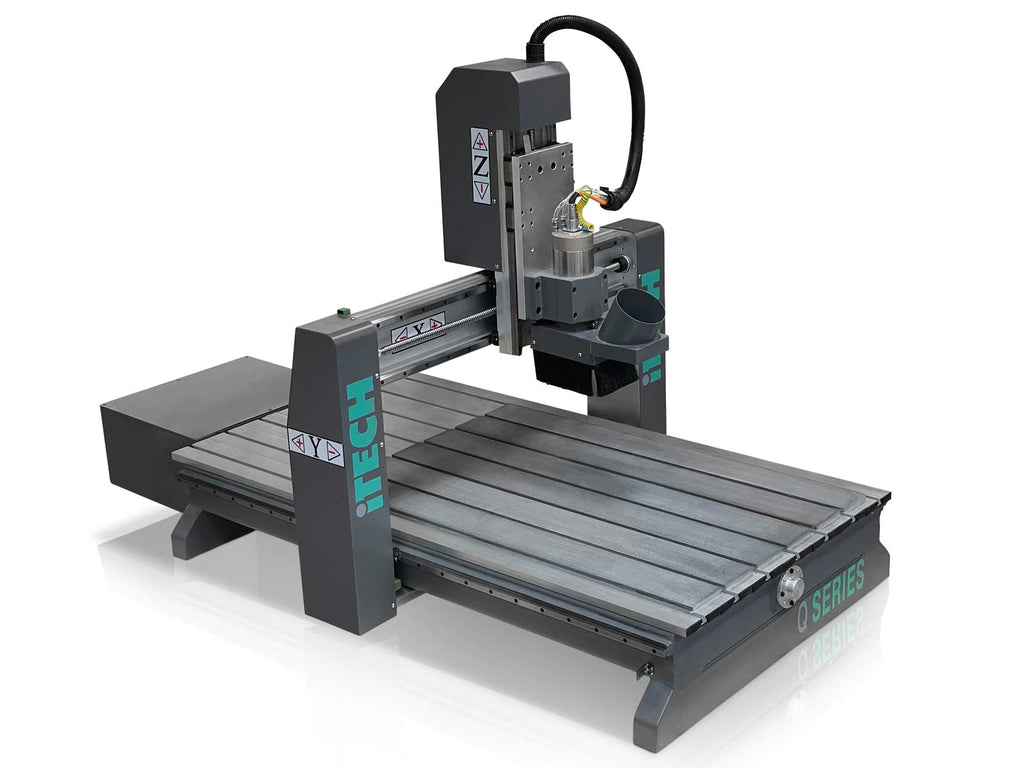

The Q series CNC routers are a space-saving professional design they are excellent starter machines with heavy duty one piece, rigid, welded steel frames. This model has the increased 250mm height between bed and gantry giving even more creative possibilities.

3D modelling from solid... yes, you can do it with the easy to use high powered Vectric V Carve Pro software that we are currently bundling in with it. Easy to Design - Easy to Produce! If you have your own software such as Fusion 360 it will work with that too (just select the GRBL post processor)

These high precision desktop CNC routers can be used for all types of materials and are not limited to wood or one application. Do your own engravings? machining foam? making musical instruments? Aluminium? Plastics? Carving?..these machines can do just it, with outstanding precision. Cutting sign lettering? Our Q series tabletop CNC routers can make it happen.

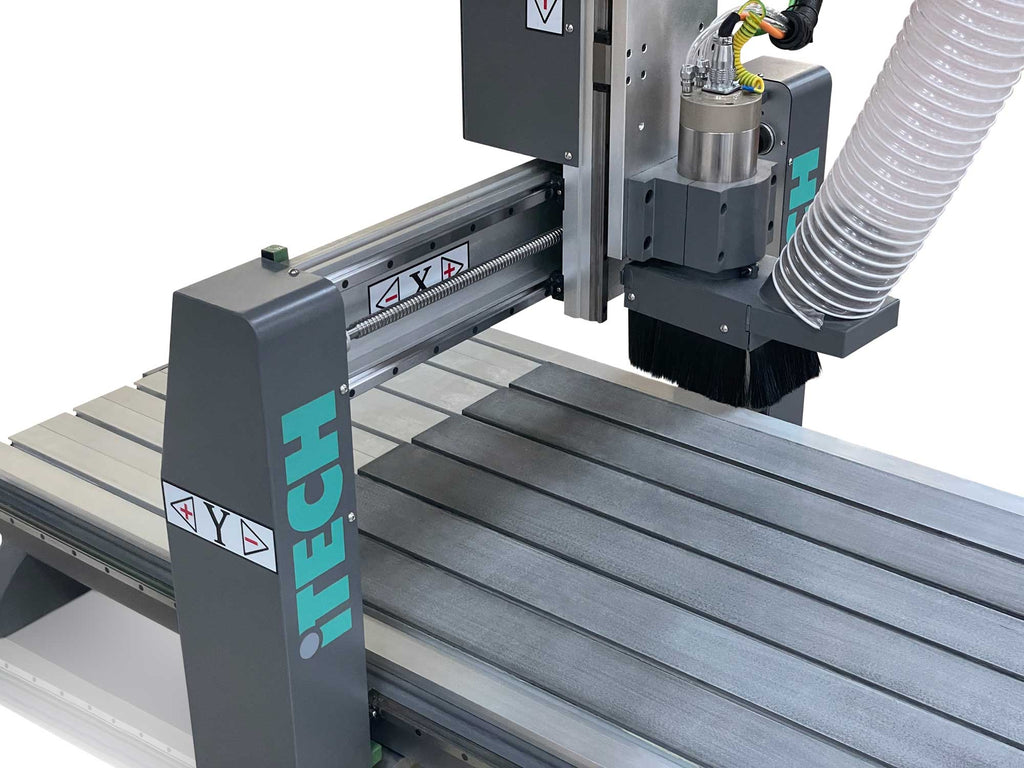

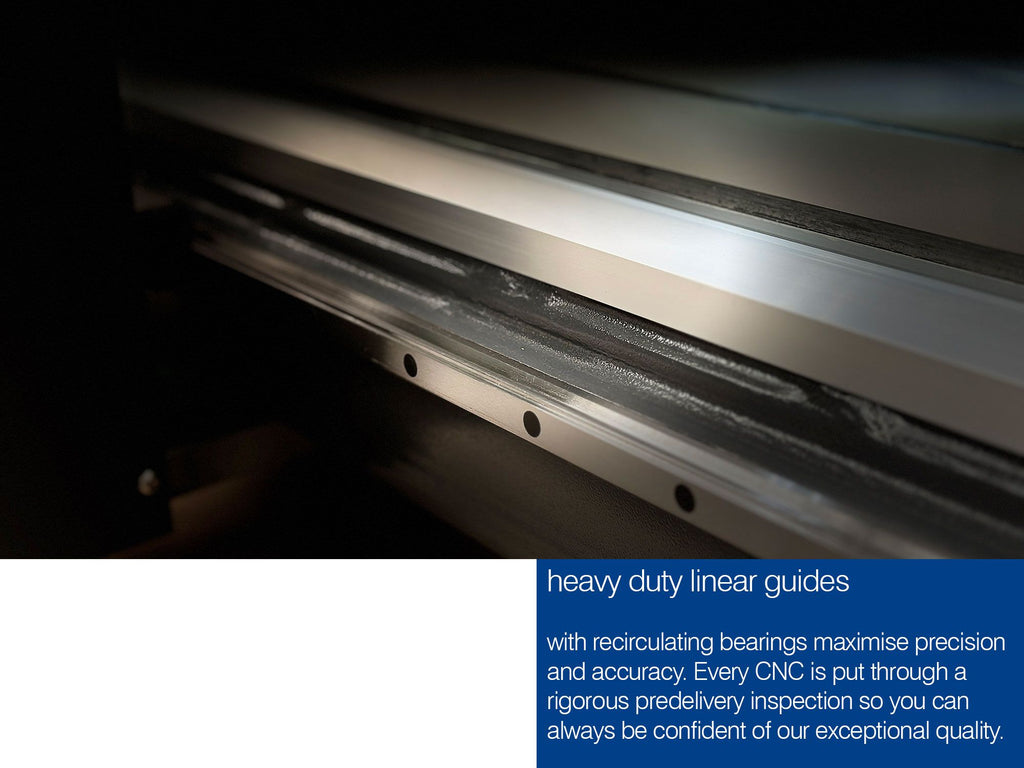

The Q series, are high quality small CNC routers that feature a welded, one-piece steel frame, double linear guides with German made lead screw drive for quick assembly, long life and accurate alignment from the start.
As standard all Q series CNC routers have a powerful, high frequency 2.2 kW [3hp] 1ph router head, which is liquid cooled, keeping the spindle at a constant temperature and maintains longevity.

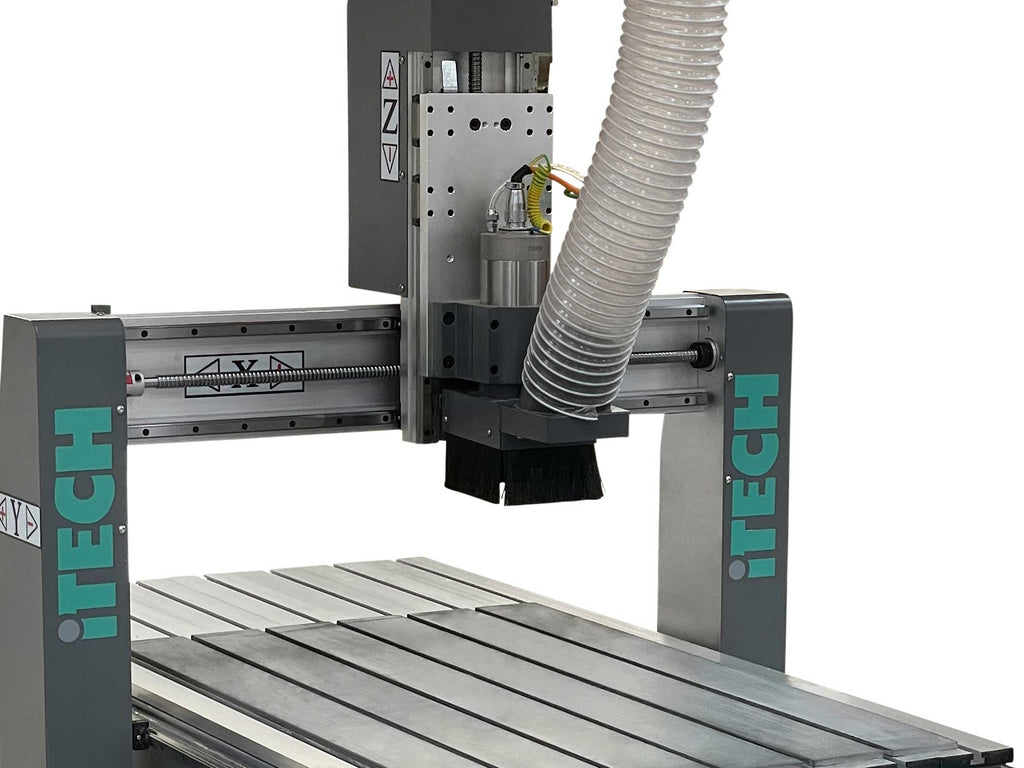

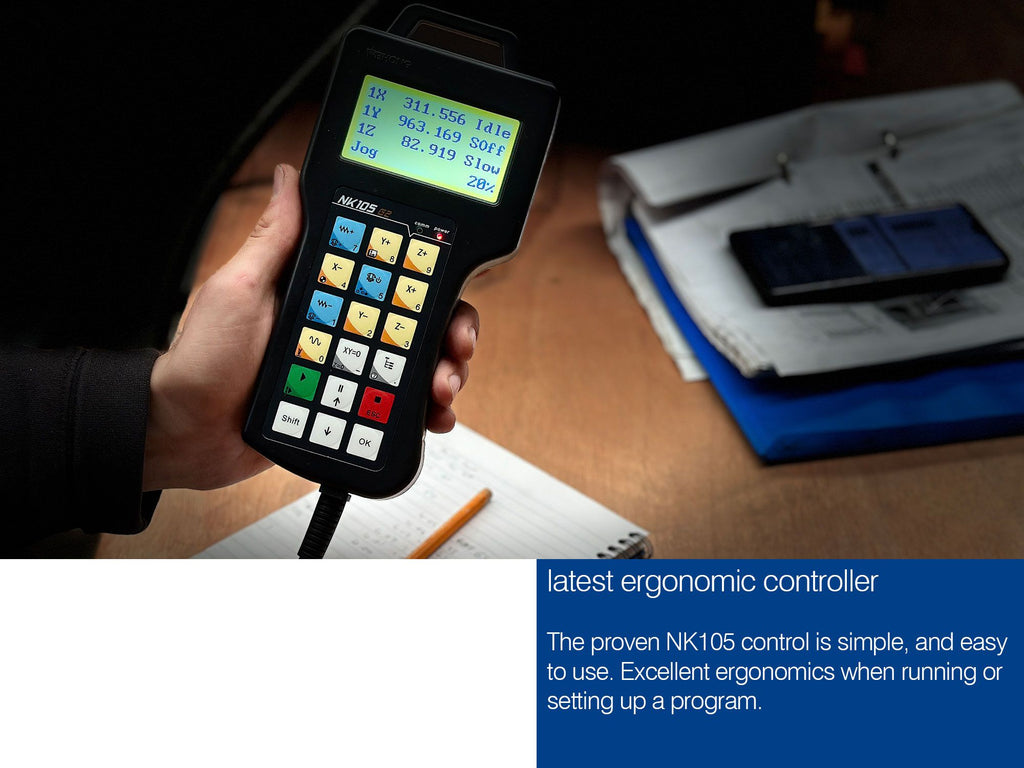

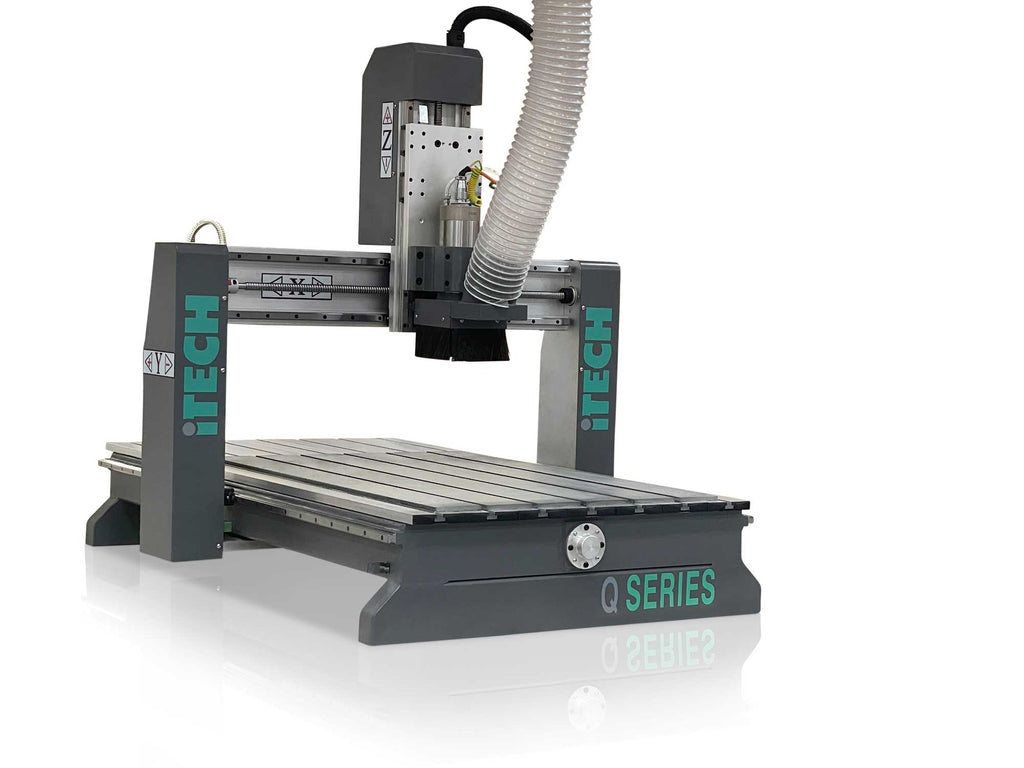

The machine has a larger than average diameter 100mm extraction port to help keep your work and workshop clean. The handheld DSP G3 pendent control screen displays the tool path and the G-code during design and production. Programming and design are Easy to use full version of Vectric V Carve Pro CAD CAM Software.

Technical Specification:
X-Y-Z axis working area   600 x 1245 x 250mm
clearance under gantry    250 mm
Machine size              990 x 1770 x 1080 mm
Repositioning resolution  0.05mm
X-Y-Z movement            Ball screw drive/Germany
Max. speed X & Y Axis     3.5 m/min
Max. speed Z Axis         1.5 m/min
Max. cutting speed        3.5 m/min
Spindle                   2.2kw Air Cooled
Spindle speed             24,000 rpm
Inverter power            2.2 kw
Dust Exhaust Connection   100 mm
Drive motors              Stepper
Working voltage           230v 1 phase 50 hz 32a
Weight                    210 kg
Command code              G code
Computer interface        USB 2.2
Collet Size               ER 25 - 2mm - 16mm
Vectric VCarve Pro        Included
Controls                  NK105G2 Handheld Pendant
Packing dimensions        1800x1000x1150mm
Comes standard with:      1/8", 6mm & 1/2" Collet in tool box

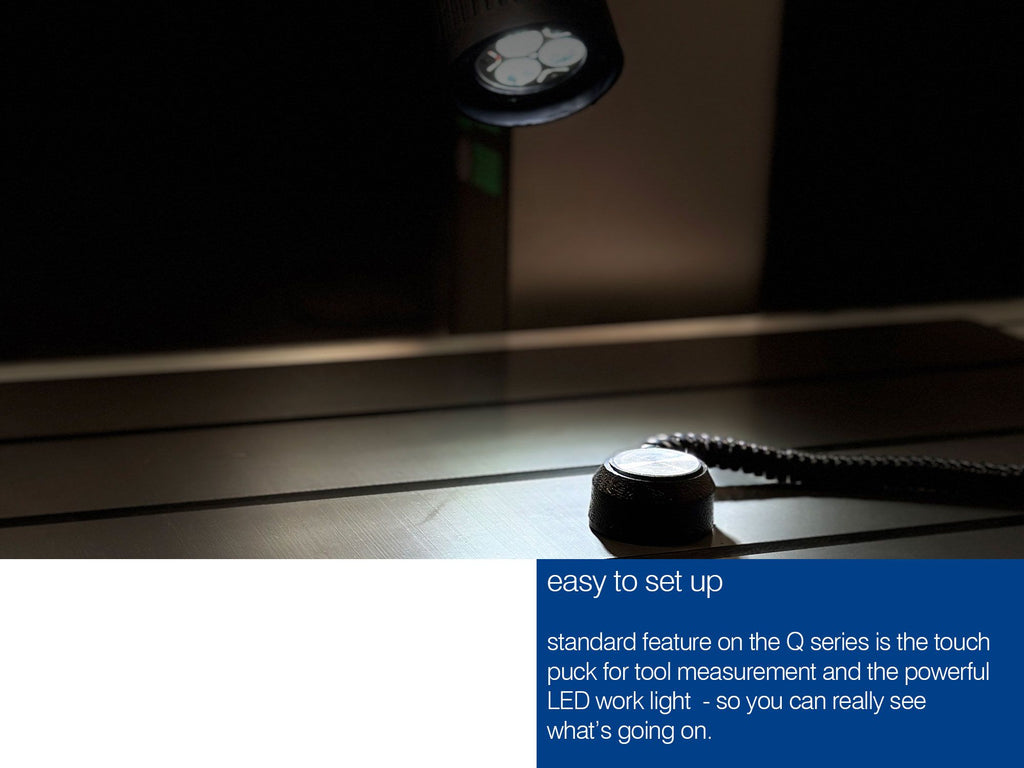

Light LED Gantry mounted  Yes

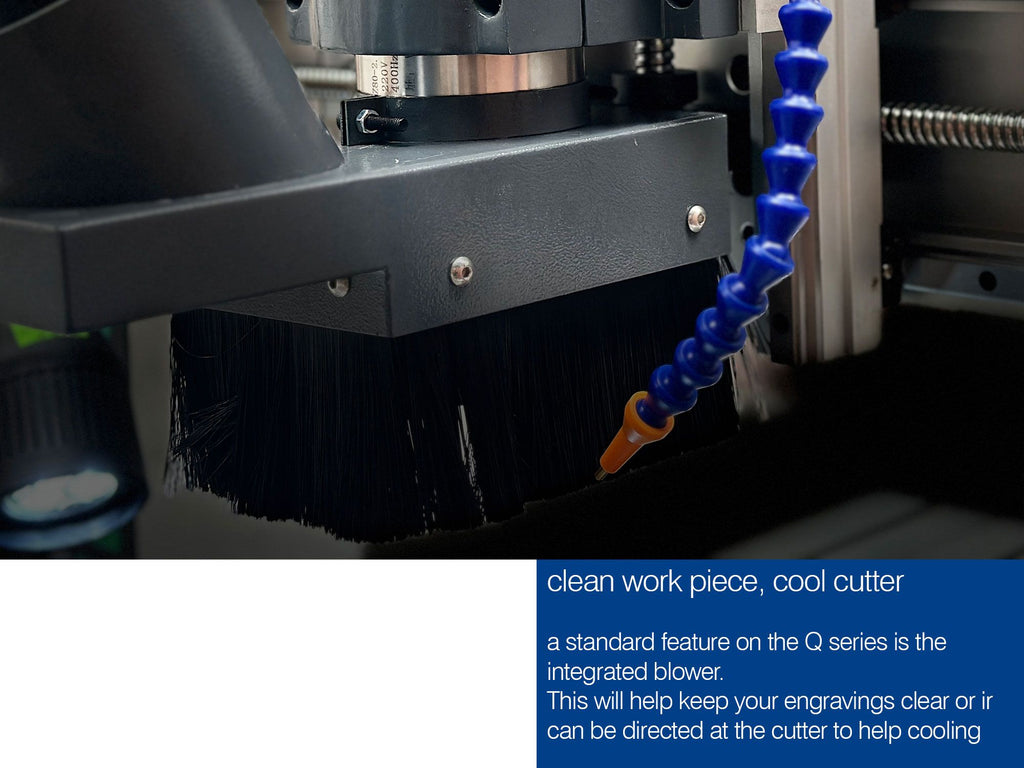

Air Blower for            Yes .
Controller                NK105G2 Handheld Controller

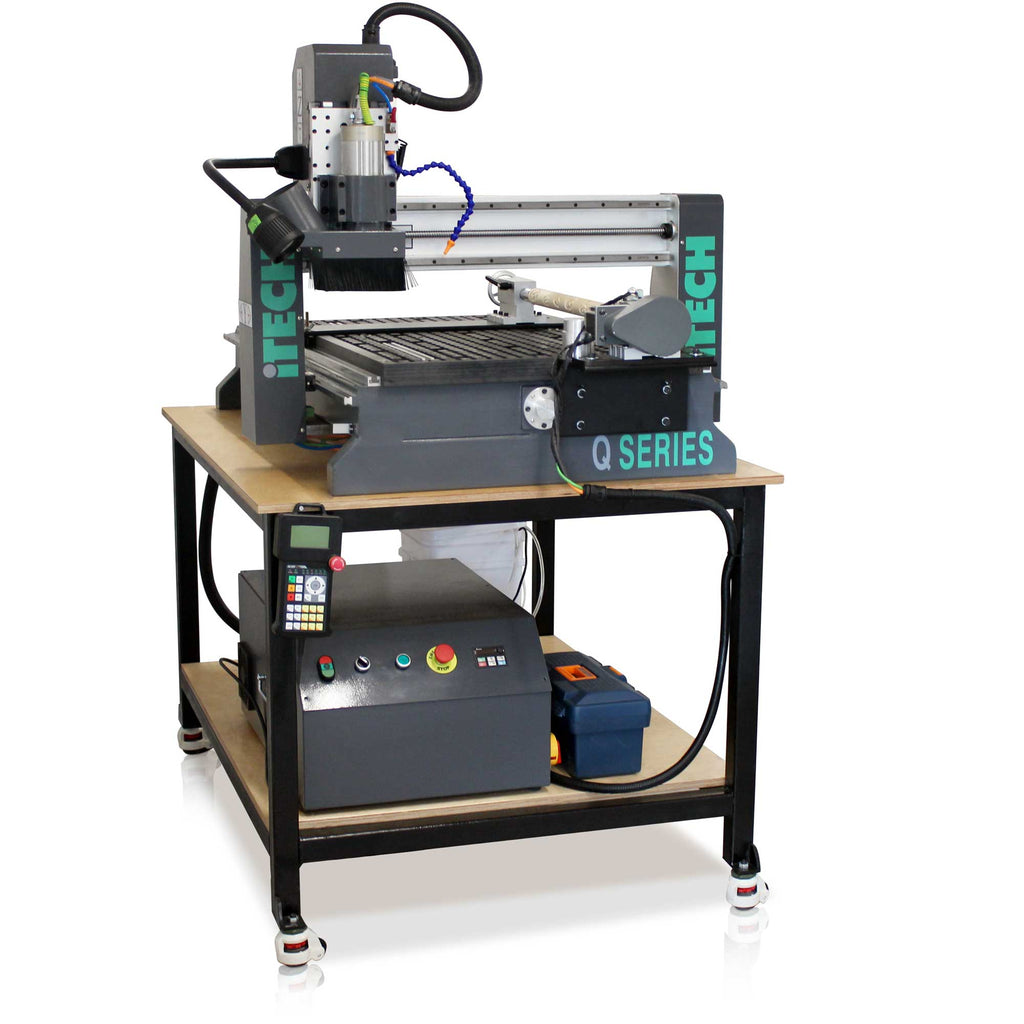

Table or Enclosure        Optional Extra.
