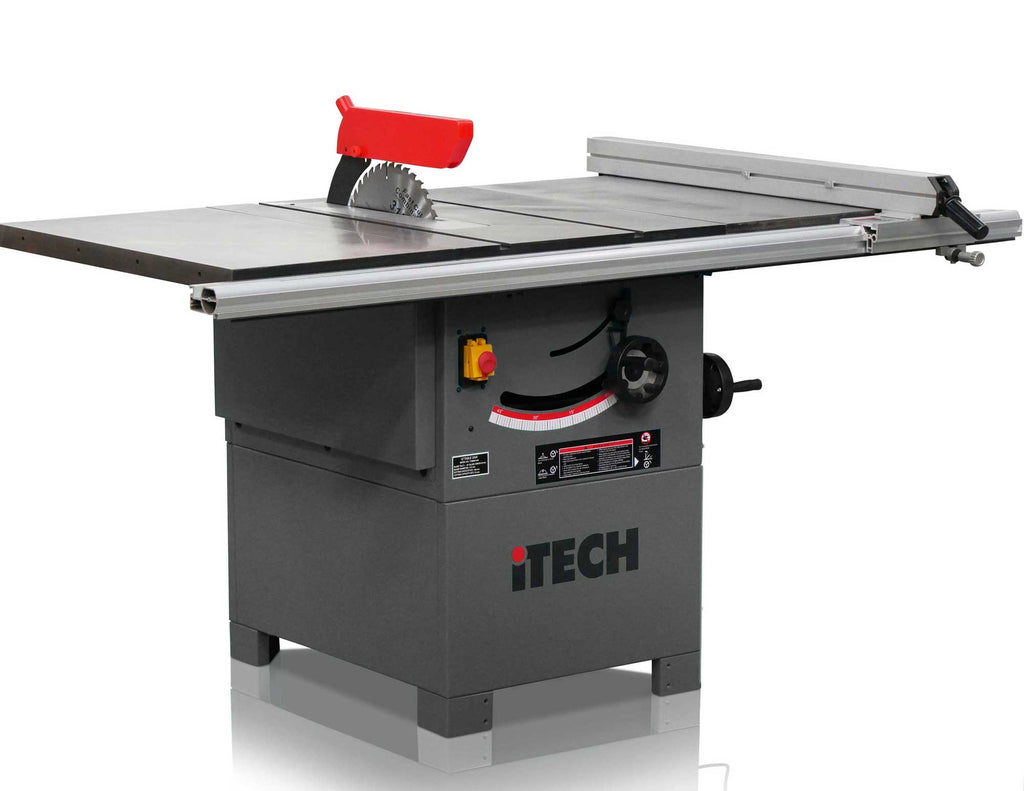

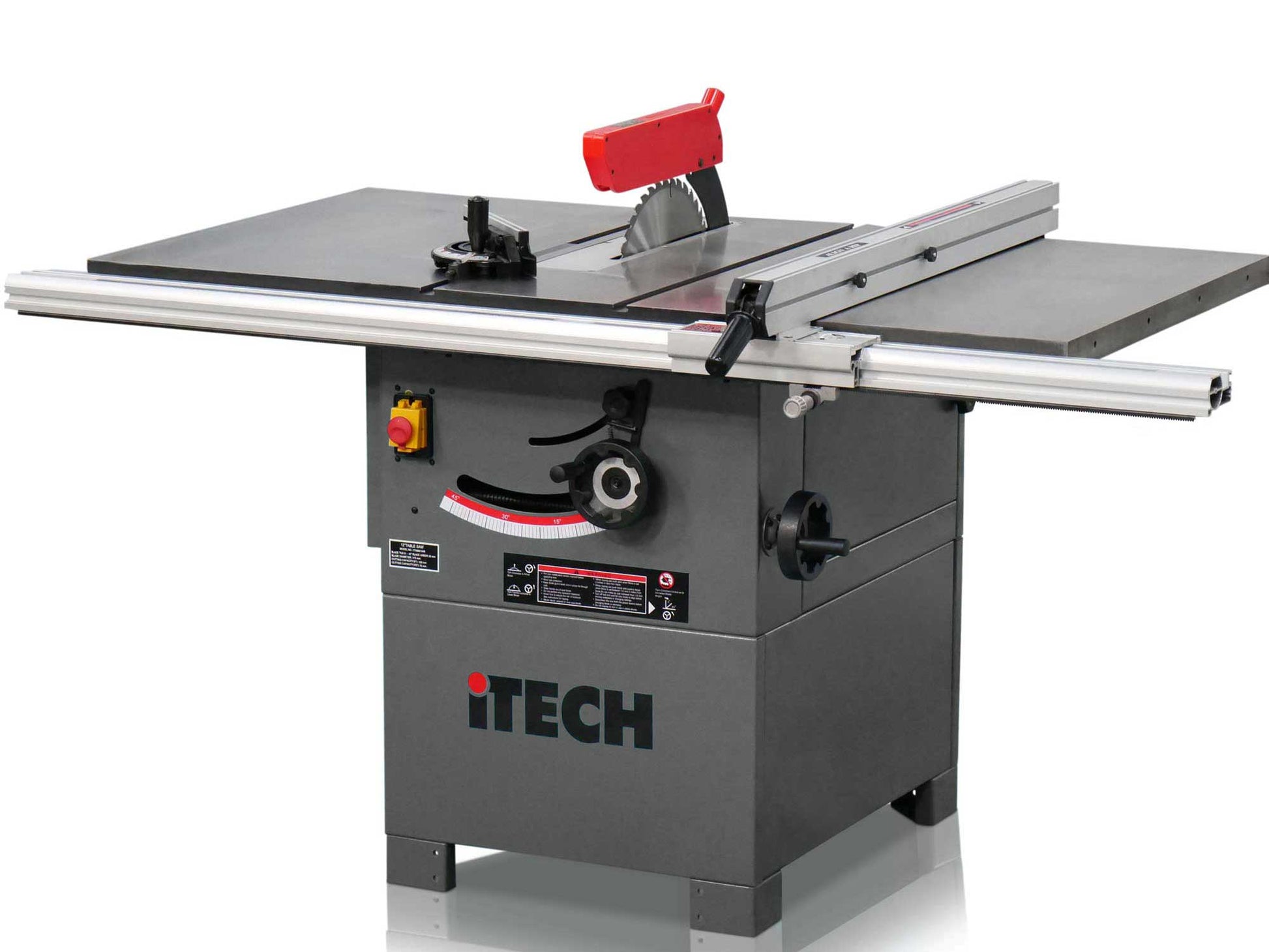

01446 315mm TABLE SAW 1ph

The iTECH 315mm Table Saw is a professional quality saw bench to cope with general workshop cutting tasks. The 01446 is big brother to the 01332, The saw is powered by a high powered, quiet running 4hp induction motor that will run reliably, day in, day out in small workshops. The saw has a large cast iron table that is precision ground and polished to offer minimal levels of friction, ensuring smooth and controllable workpiece passage.

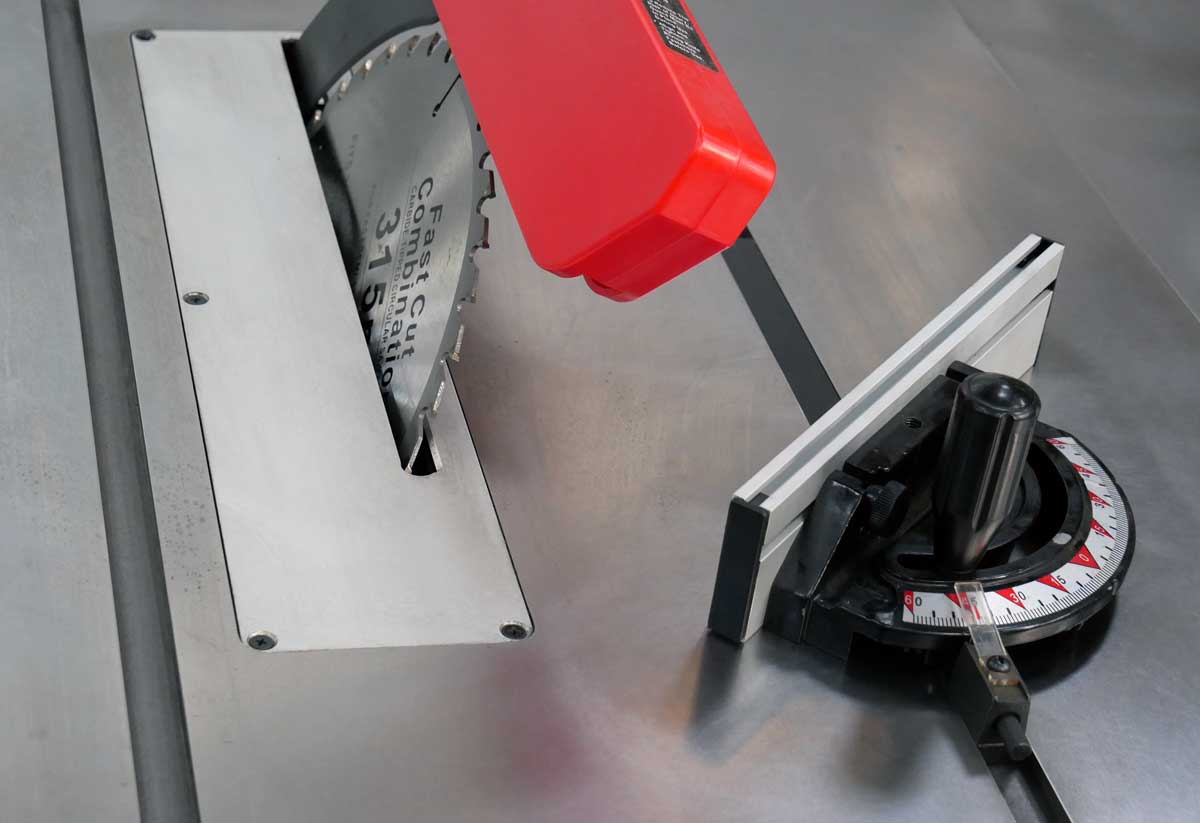

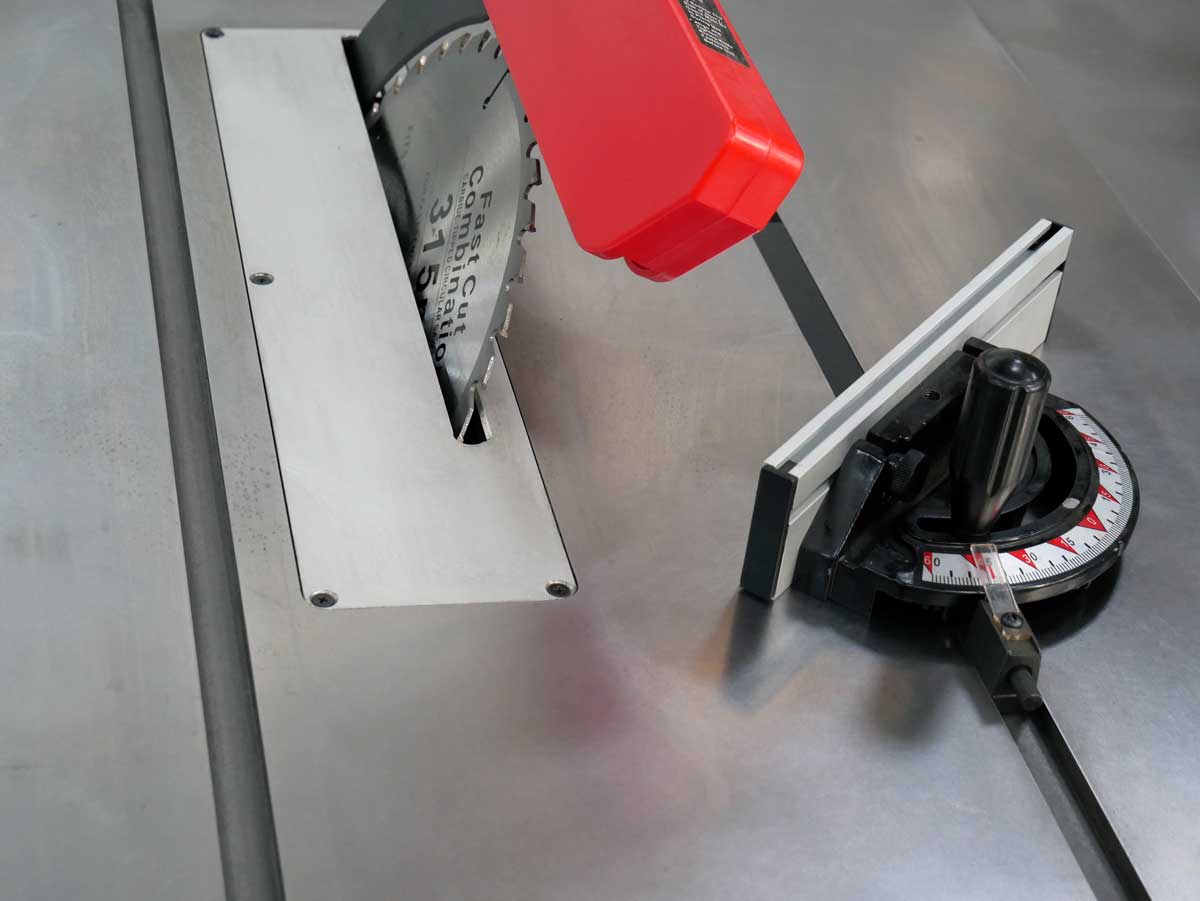

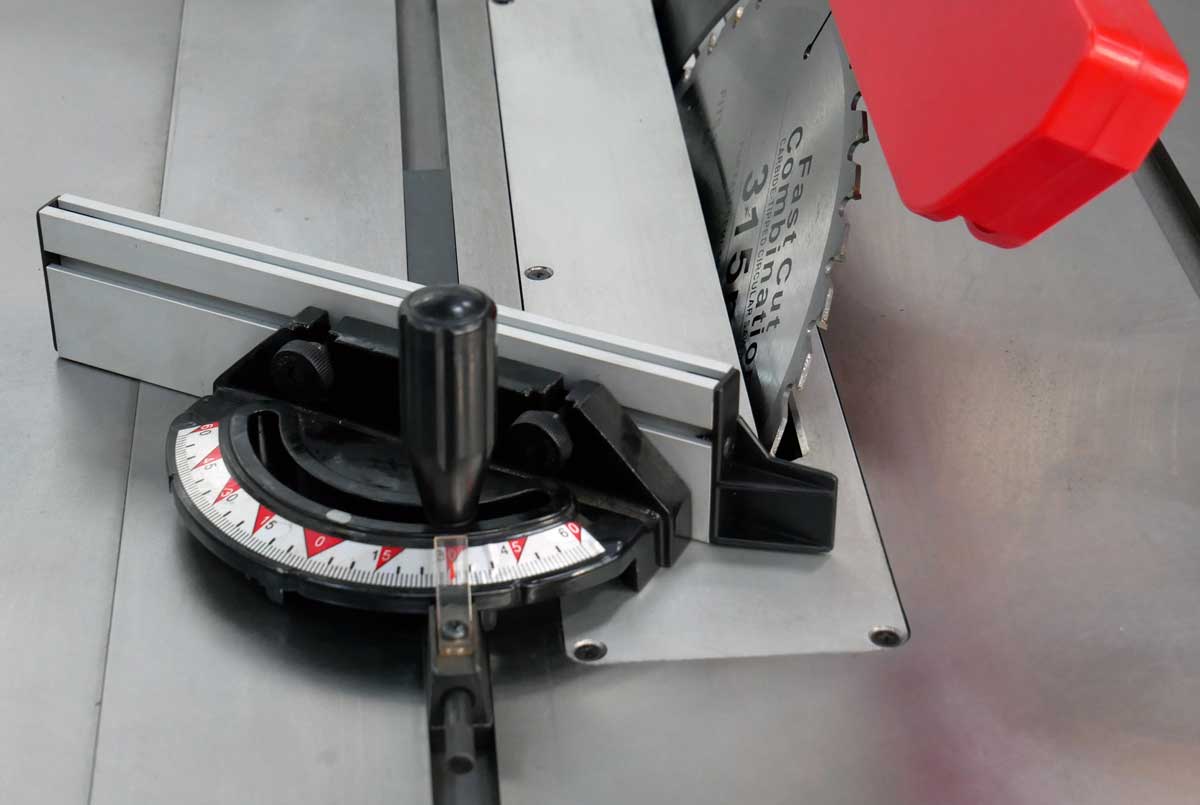

The grey iron castings absorb and dampen vibration. The table has two machined slots on either side of the blade for accepting the mitre gauge for precise angle sawing. The full-length rip fence glides freely along its graduated rail, double locks and has a cam action clamp to quickly and rigidly lock the fence in position. Two well-positioned hand wheels allow for smooth and exact blade height and tilt.

• Motor Power - 3.0 kw 4.0 hp
• Fuse rating - 16 amps (1 Phase)
• Maximum Speed no load 4000rpm
• Bore Size - 30mm
• Ripping capacity inc ext 760mm
• Blade Tilt - 0 -45 degree
• Main Table Size - 800mm (D) x 600mm (W)
• Extension Table Size - 800mm (D) x 440mm (W)
• Table Working Height - 860mm
• Cutting Capacity at 0 degree : 100mm
• Cutting Capacity at 45 degree : 80mm
• Approx extraction requirement minimum 1000m3/hour
• Packed dimensions 1 @ 83 x 73 x 63cm
•  1 @ 183 x 35 x 19cm
• Weight 195kg (212 gross)
