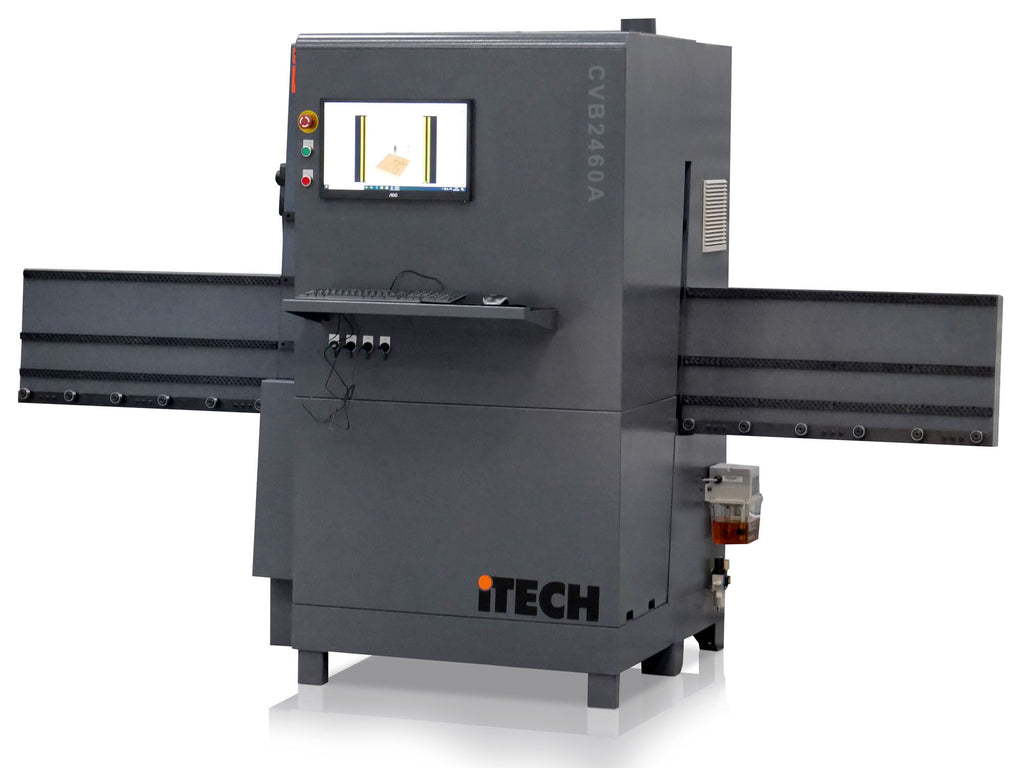

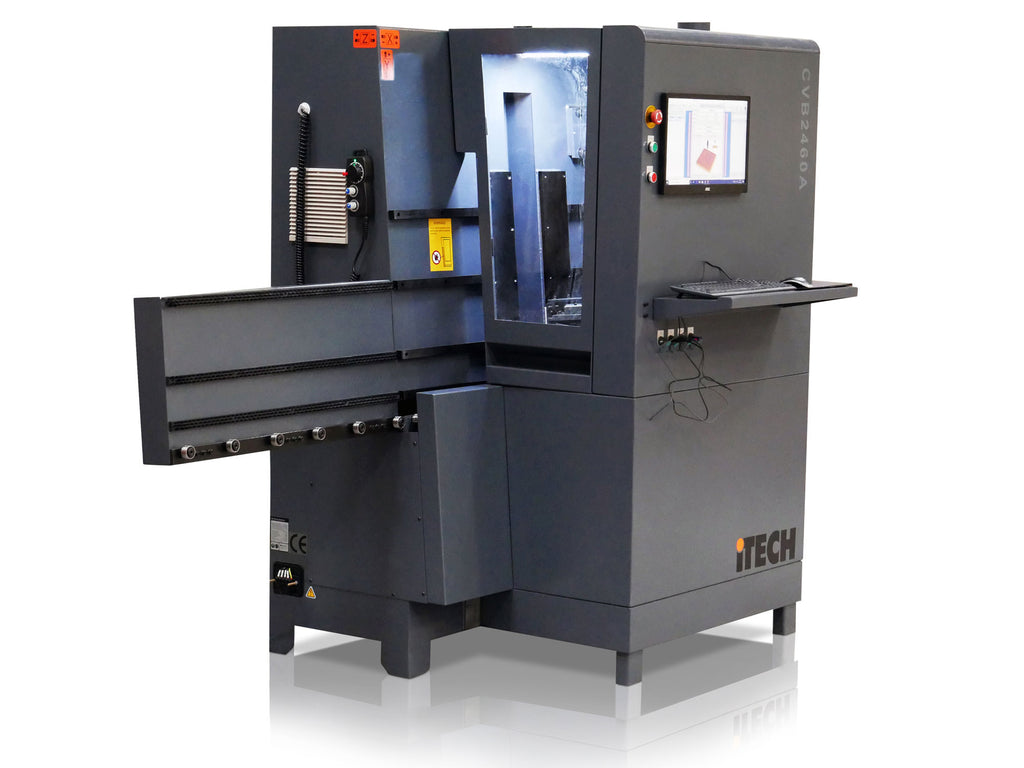

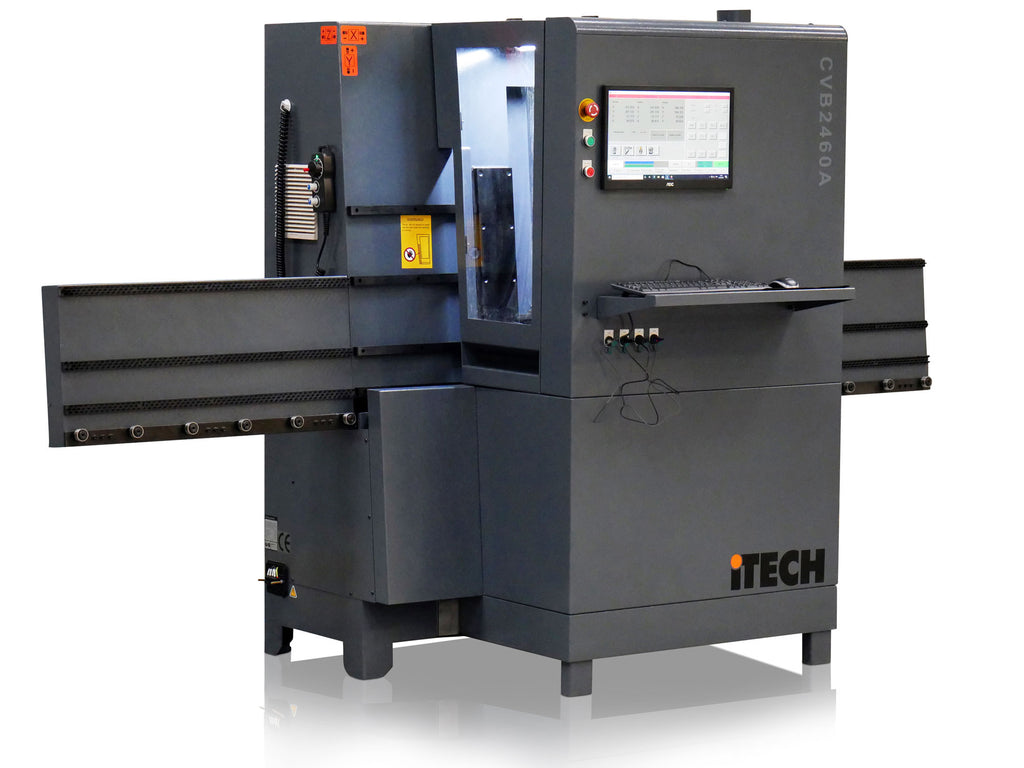

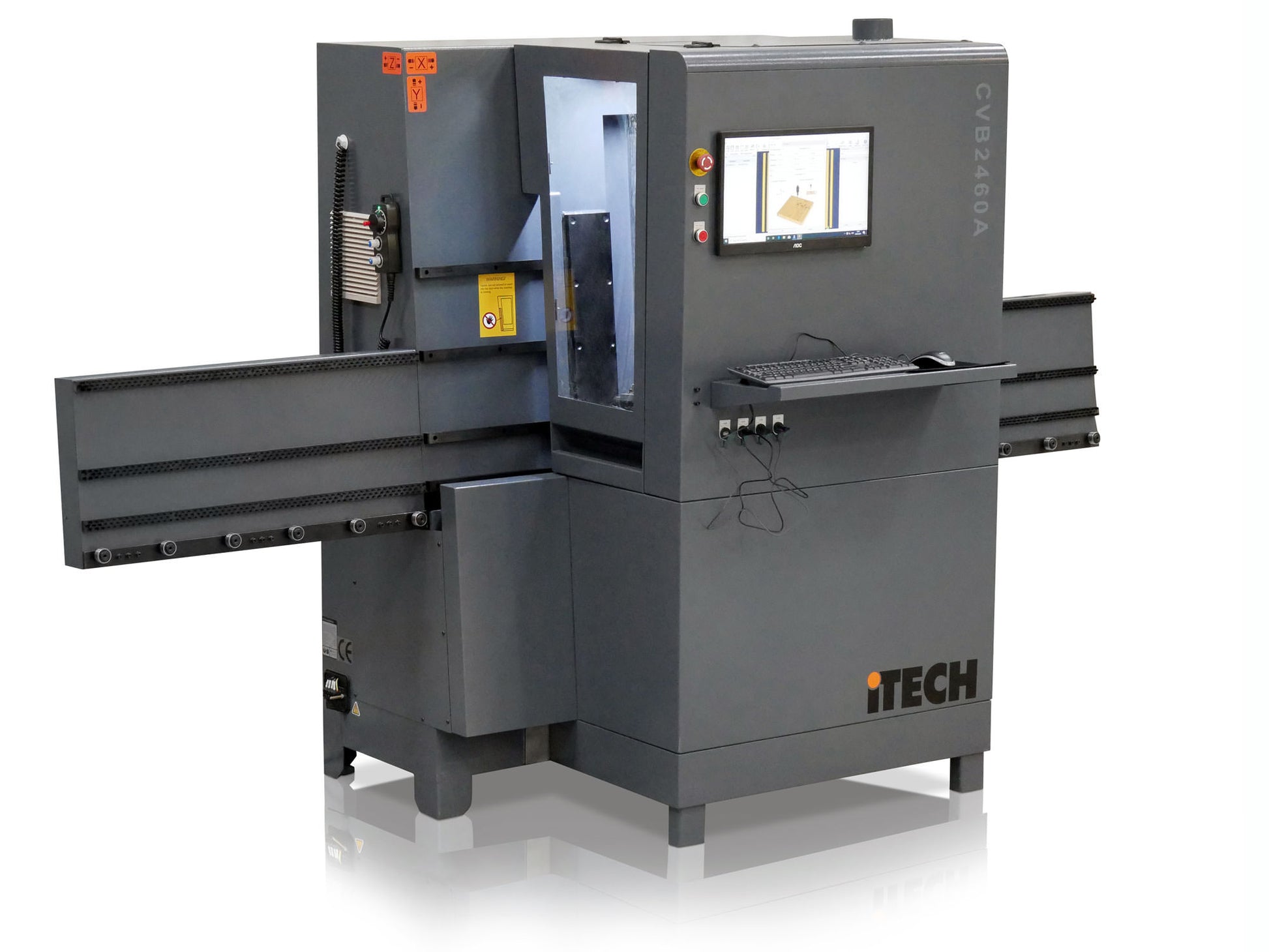

2460 CNC Drilling Machine

The 2460 vertical CNC drill is an ideal machne to sit alongside a panel saw or compact CNC nesting router. It packs a lot into a small frame, and takes up a small amount of floor space with drilling, limited routing + grooving on panels up to 2400 x 660mm. It is a good solution for small cabinet makers, just in time, small batch drilling. The 2460 is a compact machine with 4 tools that can be controlled by the intuitive graphical software. The software to enable manufacturing from the first sketch to the final panel is displayed on a large 18" monitor. All machining of a carcase parts can be carried out quickly and precisely without any adjustment work.

Features:

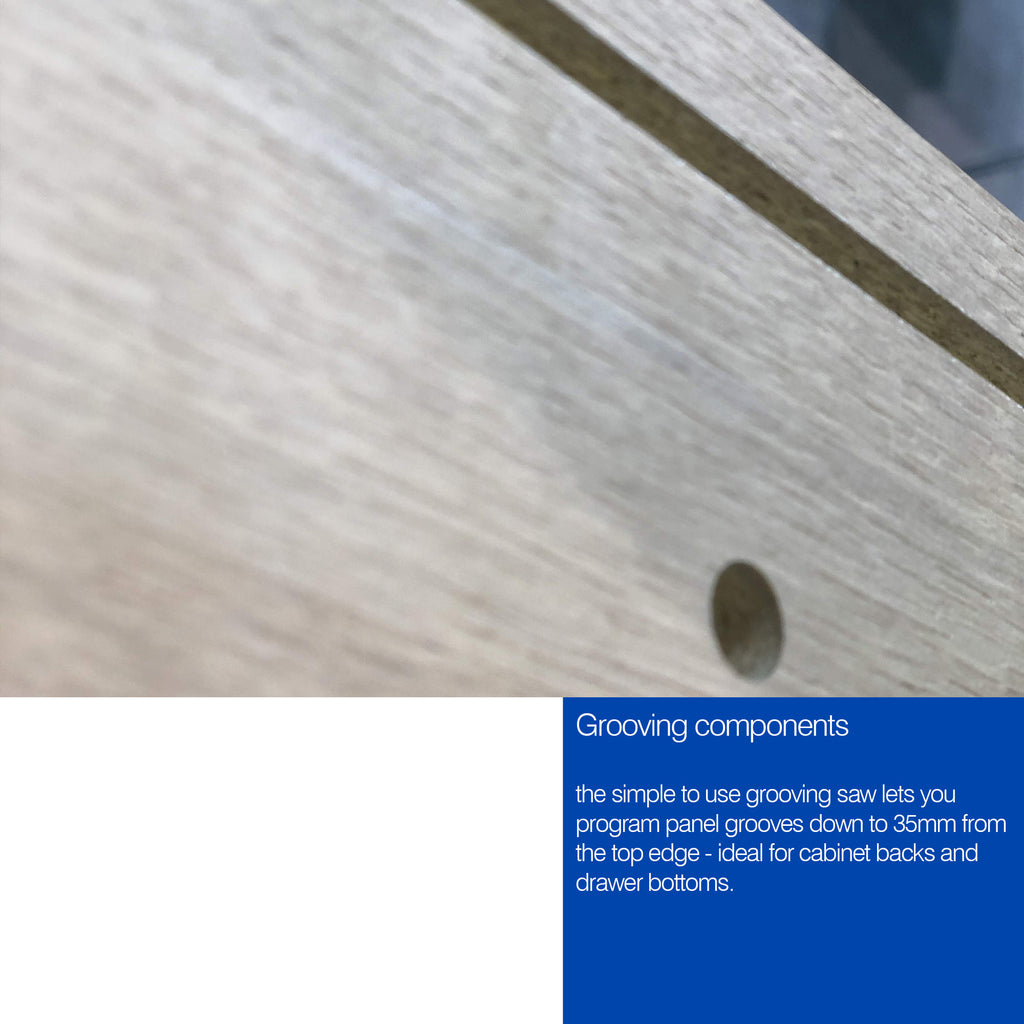

Crosshead drilling block with four horizontal spindles and a grooving saw for drilling on the top and front of a panel. Grooving saw in the X direction down to 10mm deep at the top of the panel.
Workpiece clamping via pneumatic clamp
Large cut-out in the work area also allows you to drill through holes or blind holes
The workpiece movements on the X- , Y and Z axes run on linear prismatic guides
Time and cost-saving production due to fast travel speeds of up to 50 m / min in the X and Y directions

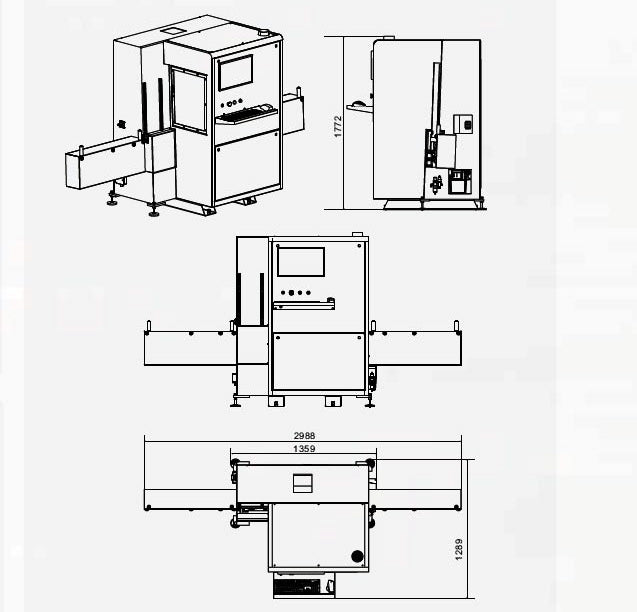

Small footprint - Compact external dimensions

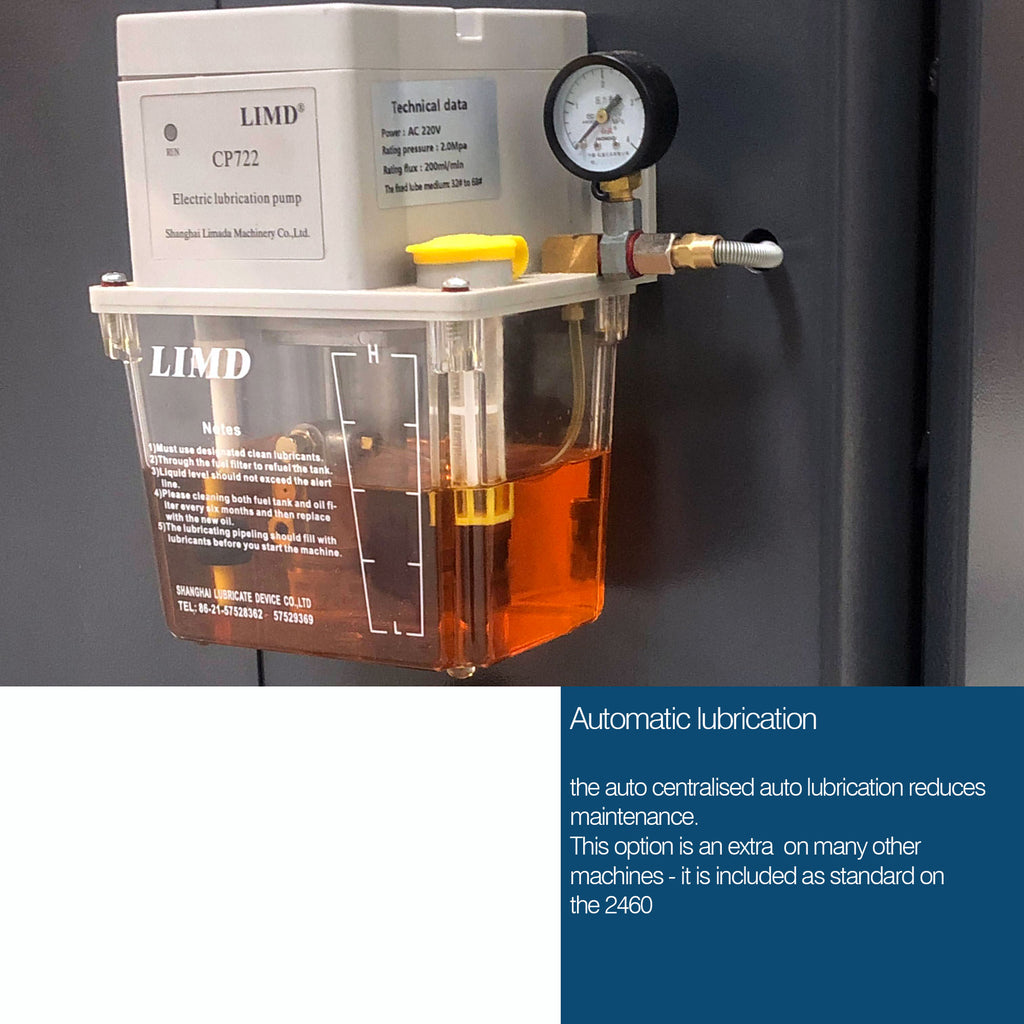

Equipped with automatic lubrication
Large 18,5" screen

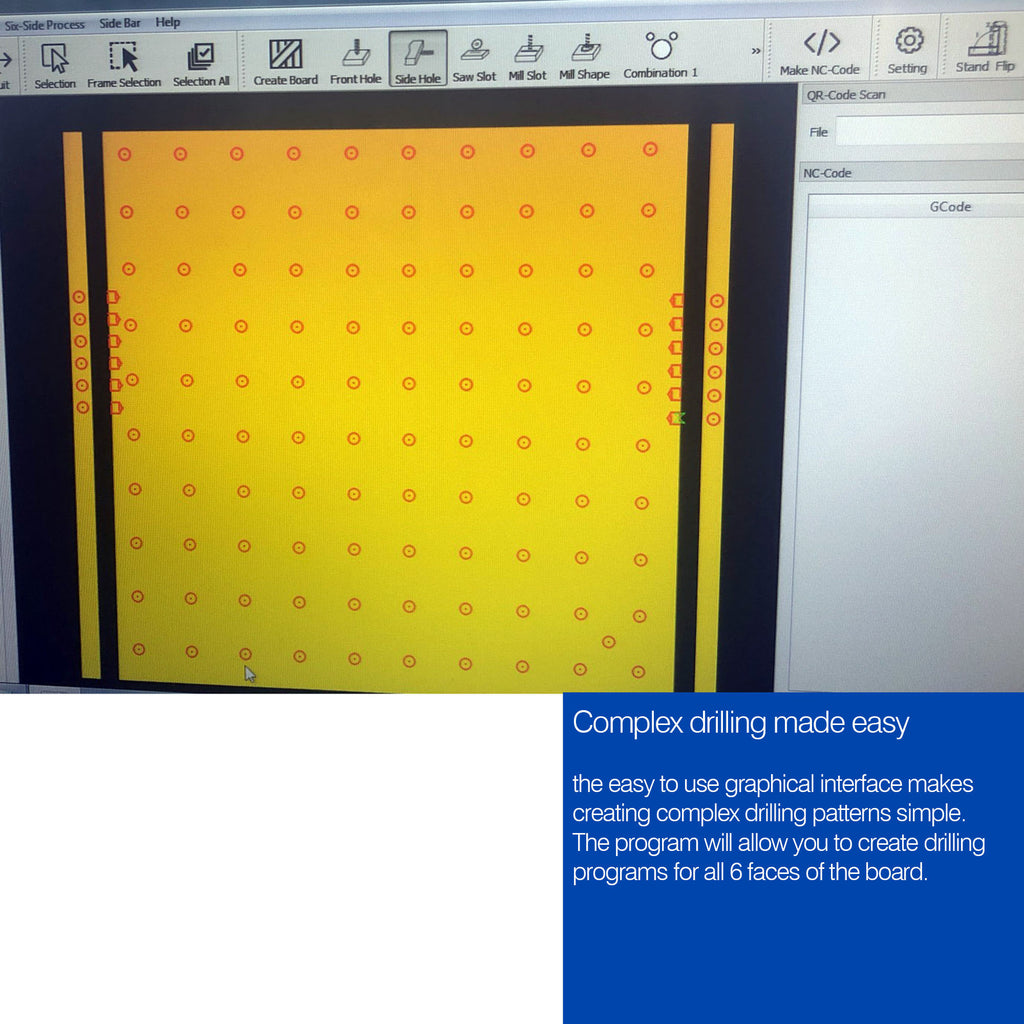

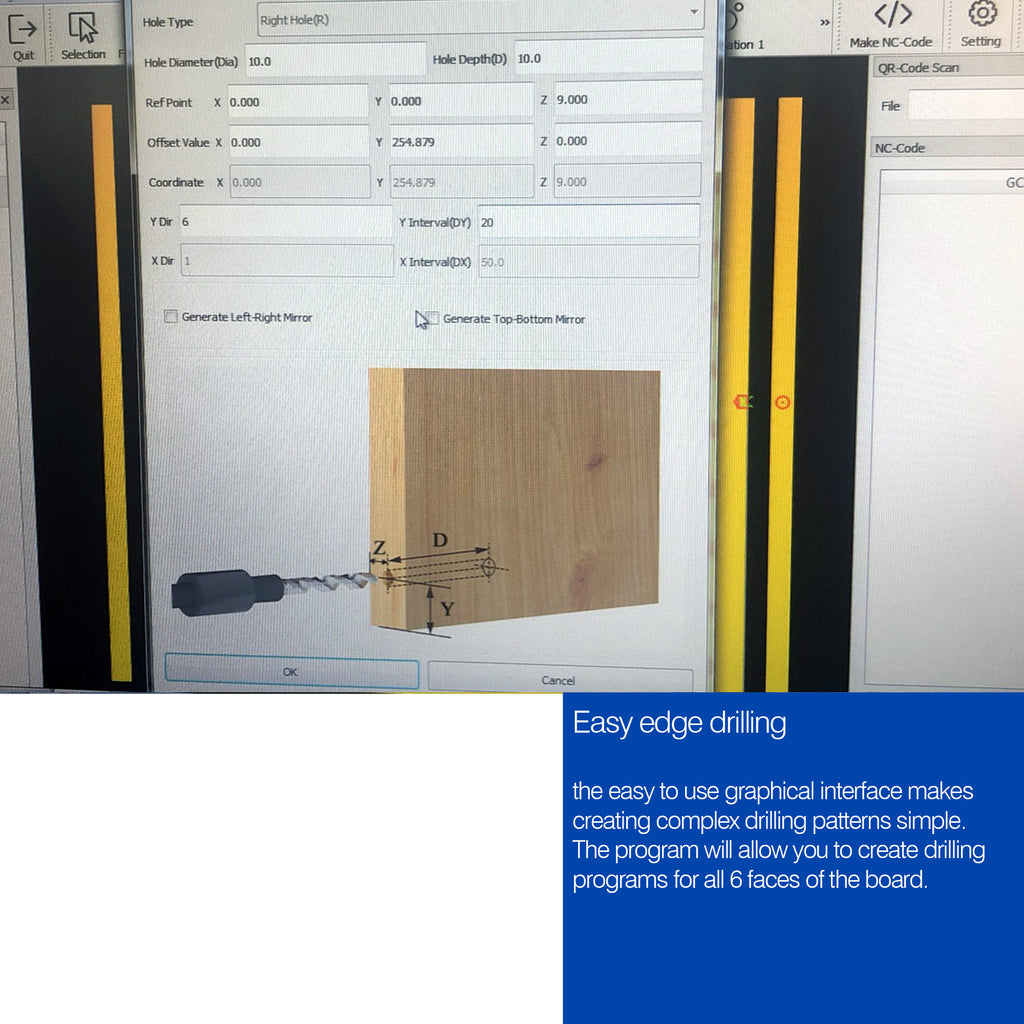

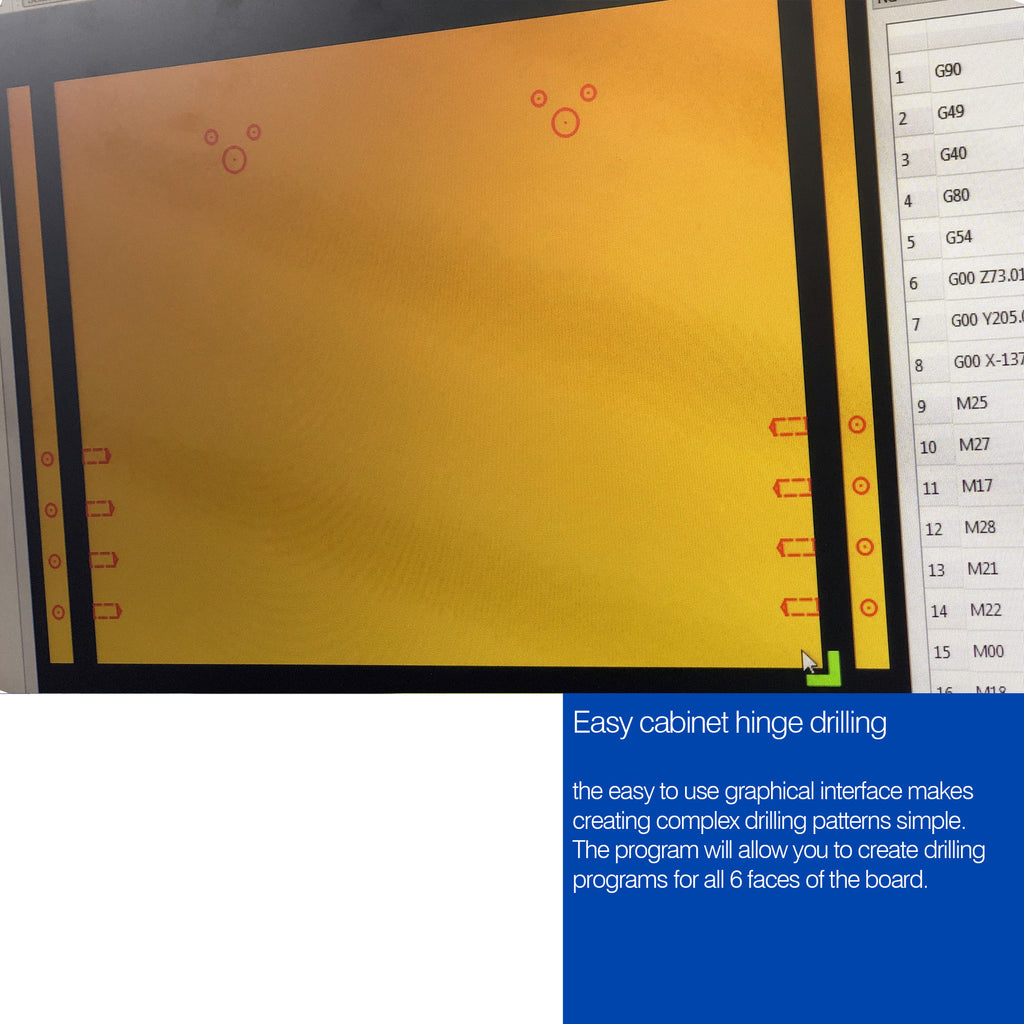

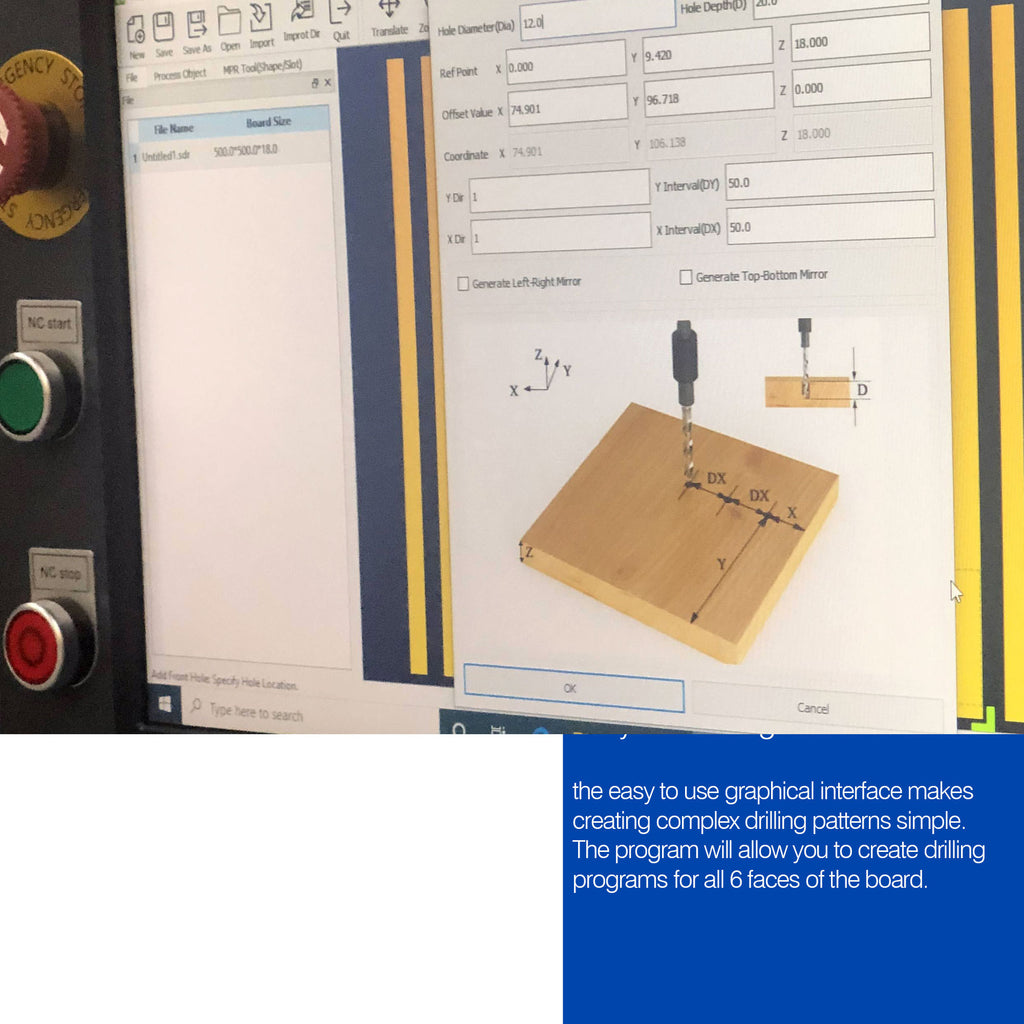

Simple and fast programming on the machine with pre-installed software

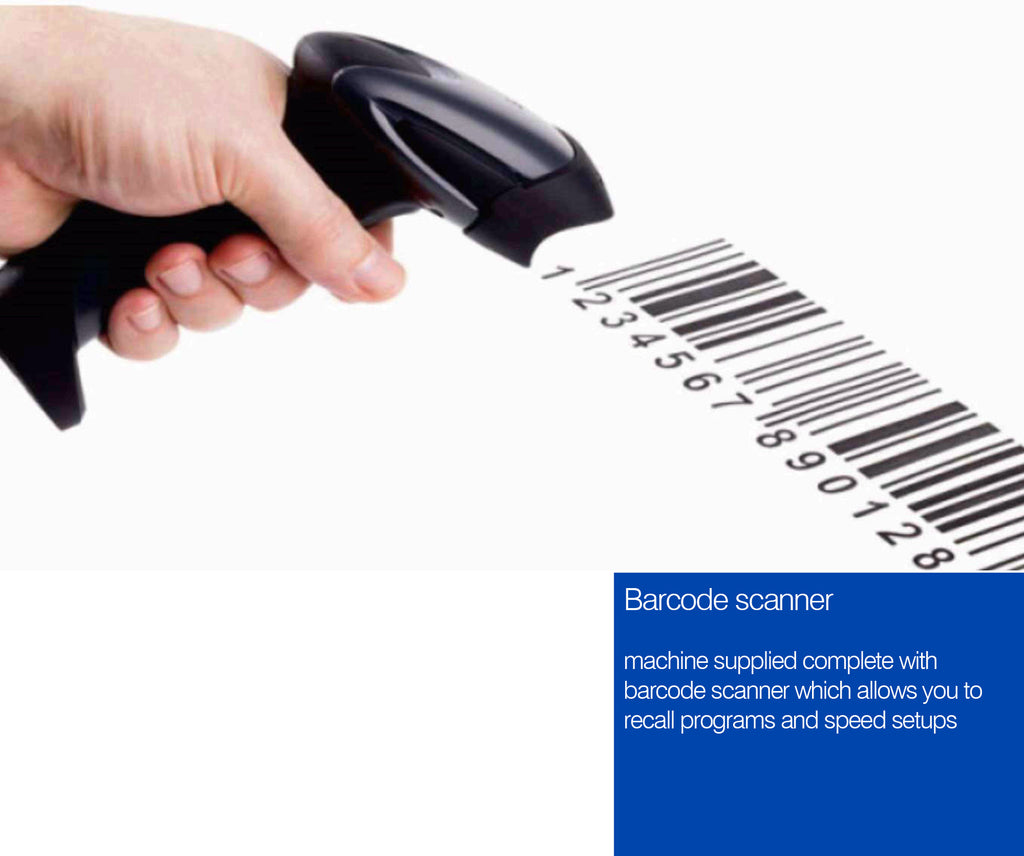

Barcode scanner included - allows you to recall the programmes automatically
Fast access Specific programs using the supplied barcode scanner

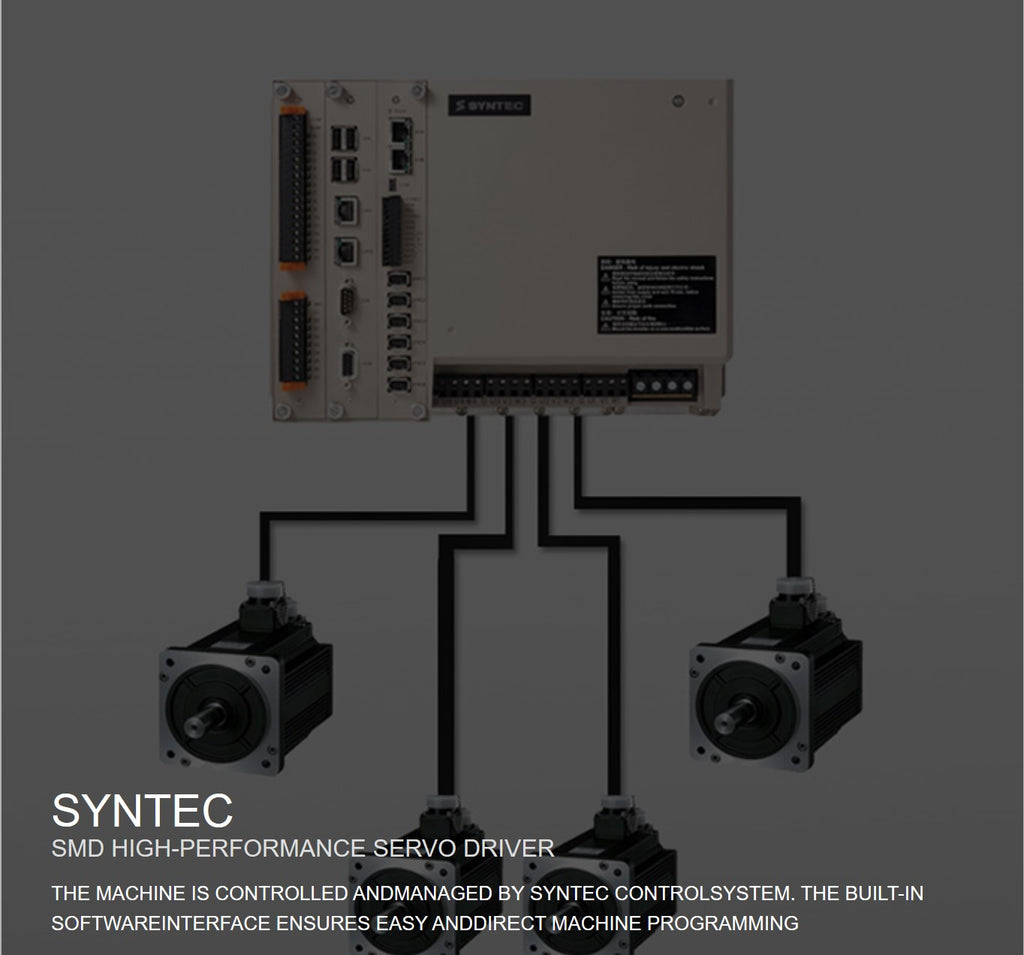

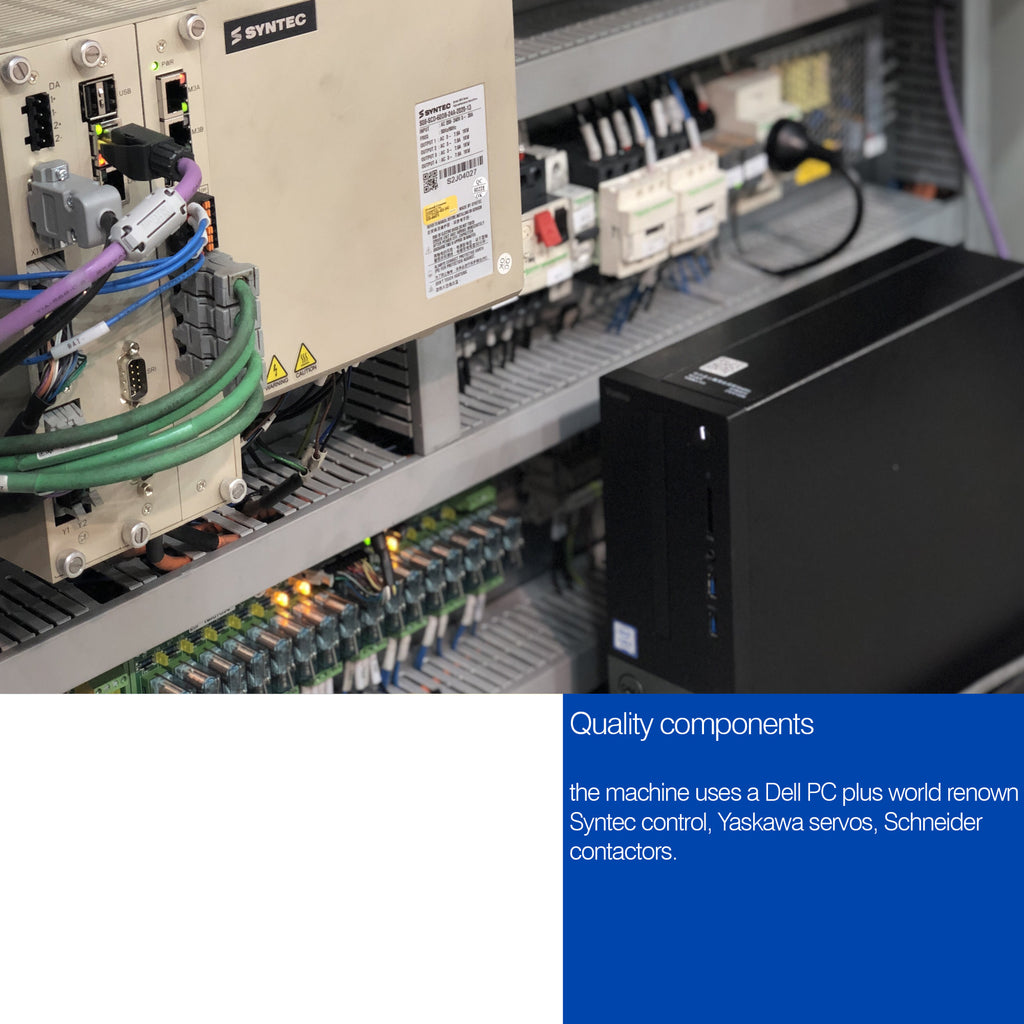

Manufactured with top quality components from Schneider, Dell, Syntec and HiWin

• Min/Max width (Y): 60/660mm
• Min/Max length (X): 200/2400mm
• Min/Max thickness (Z): 10/36mm
• Max. Depth saw blade grooving (X): 10mm
• Max. workpiece width (Y) grooving: 35mm from top
• Max. Drilling depth: 36mm
• No. of Spindles: 4
• Spindle Speeds: 4200 rpm
• Spindle motor power: 1 hp
• Integrated grooving blade: X axis
• Max. grooving blade diameter: 105 mm
• Grooving blade speed: 3300 rpm
• Max Groove length with saw blade 700mm
• Movement speed: X50-Y50-Z10 m/min
• Compress air required: 6 bar
• Dust extraction port: 100mm
• Dust extraction volume: 800m3/h
• Installed power: 3.2 kw
• Total machine weight: 800 kg
