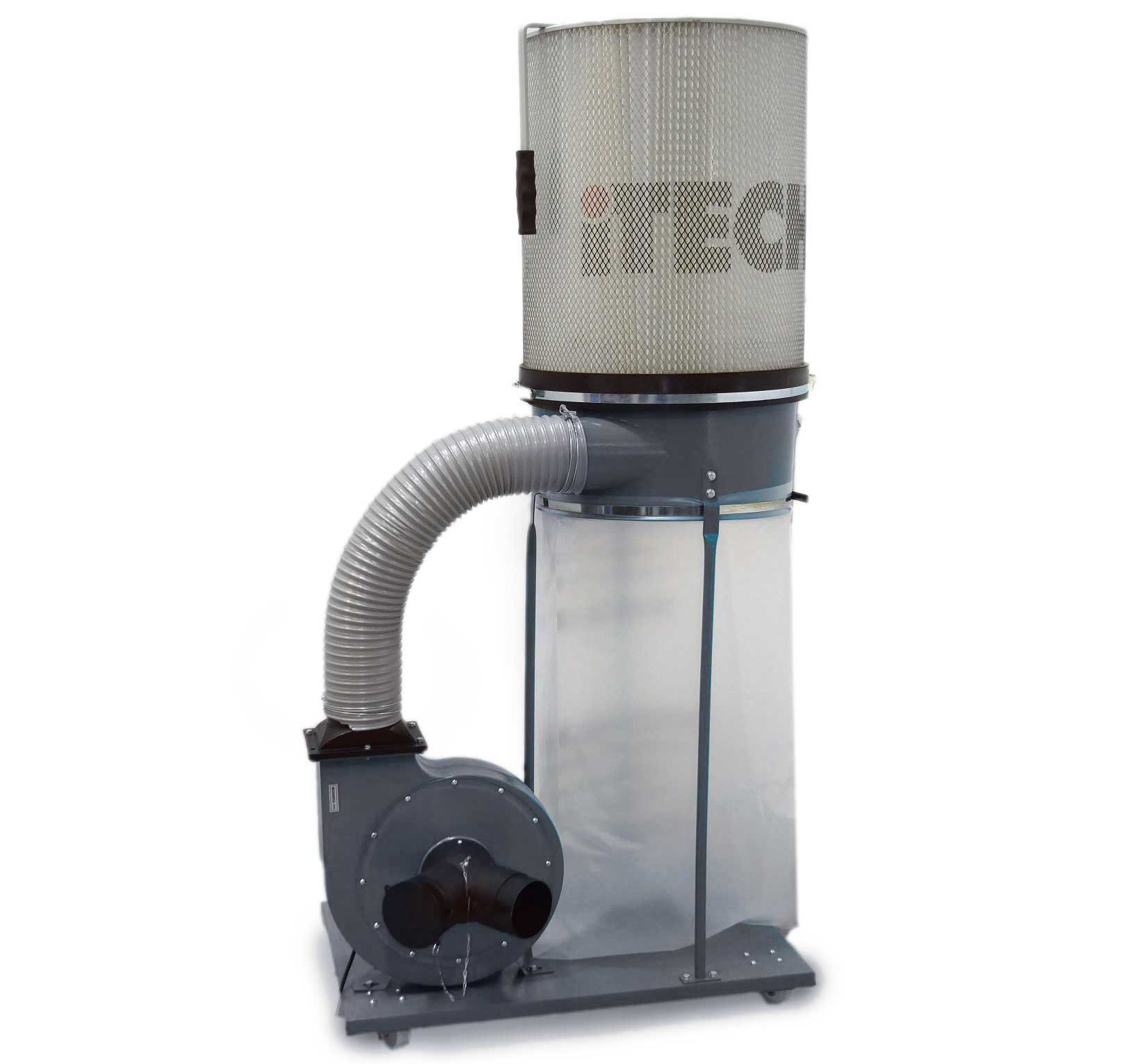

DC001 MOBILE EXTRACTOR 230V 1PH WITH FINE FILTER

iTECH DC001S with Fine Dust Cartridge Filter - a rugged extractor which is designed for small workshops. The industrial construction and quality finish sets it apart from others. It is big enough to handle a 310mm planer or many other workshop machines. The cyclone filtration system works by separating the waste from the airflow, diverting the waste into the collecting bag. The base is fitted with castors for mobility around the workshop. The 125 mm inlet is fitted with a twin branch 100mm adaptor, allowing connection to either one or two machines. Supplied complete with 1x 3m hose 100mm diameter.

Suitable for Fine Dust, Air filter canister for the iTech DC001 and DC002 dust extractors. Upgrade your iTech dust extractor to filter out fine dust caused by: Sanding, Sawing, Routing etc...

Filtration to 1 micron. Internal mounting size 500mm Diameter, Easily slips on with air tight film seal.

• Fan diameter 300mm
• Inlet diameter 125
• Inlet holes 2 x 100mm
• Air capacity 1490cfm
• Bag diameter 500mm
• Packing size 92x58x58cm
• Motor power 2hp
• [Noise level 87dB
• voltage 230v
• Overall size 92x58xH173cm
• Machines are fitted with 13a plug but for EEC usage require connection to 16a supply
