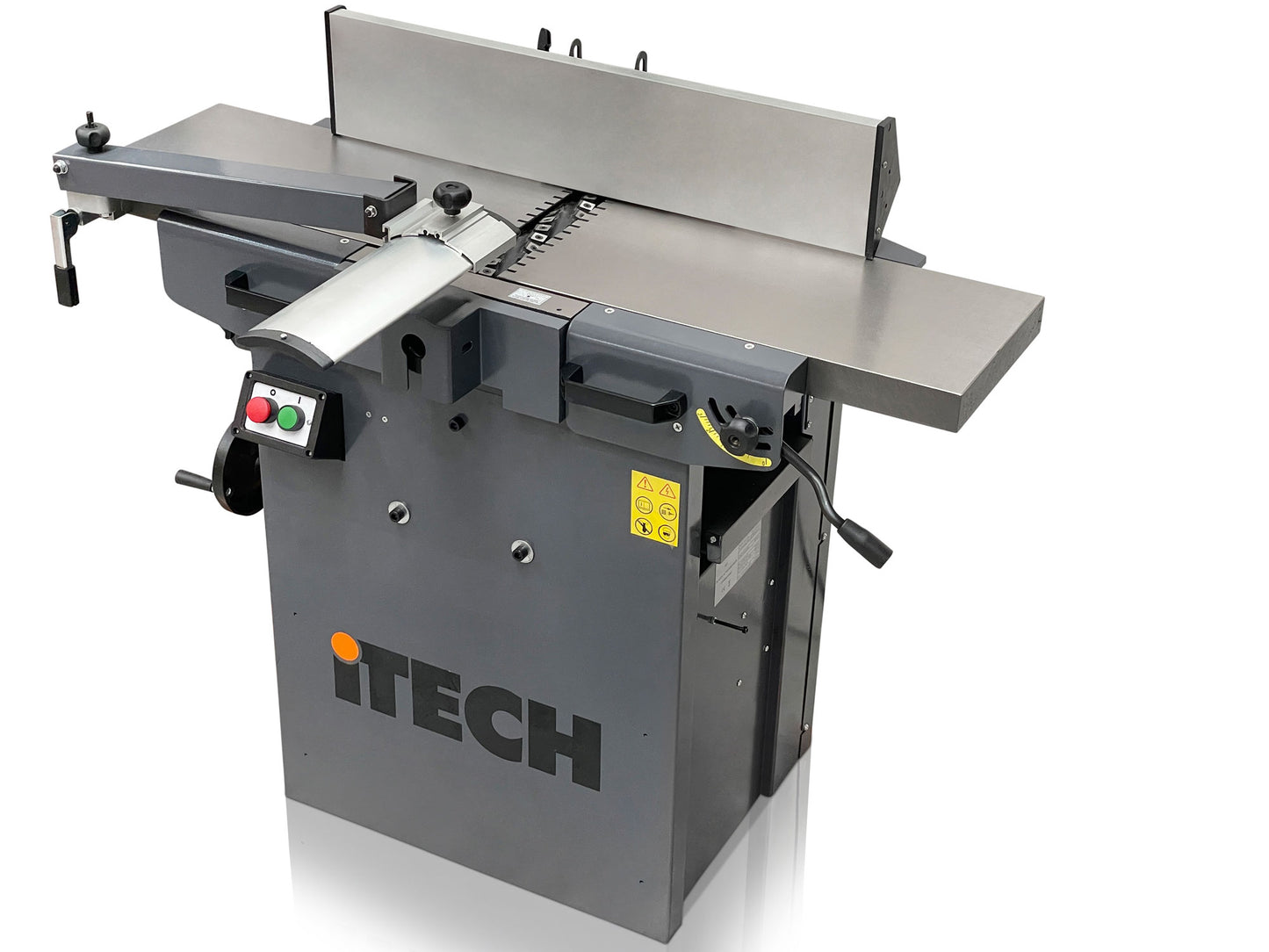

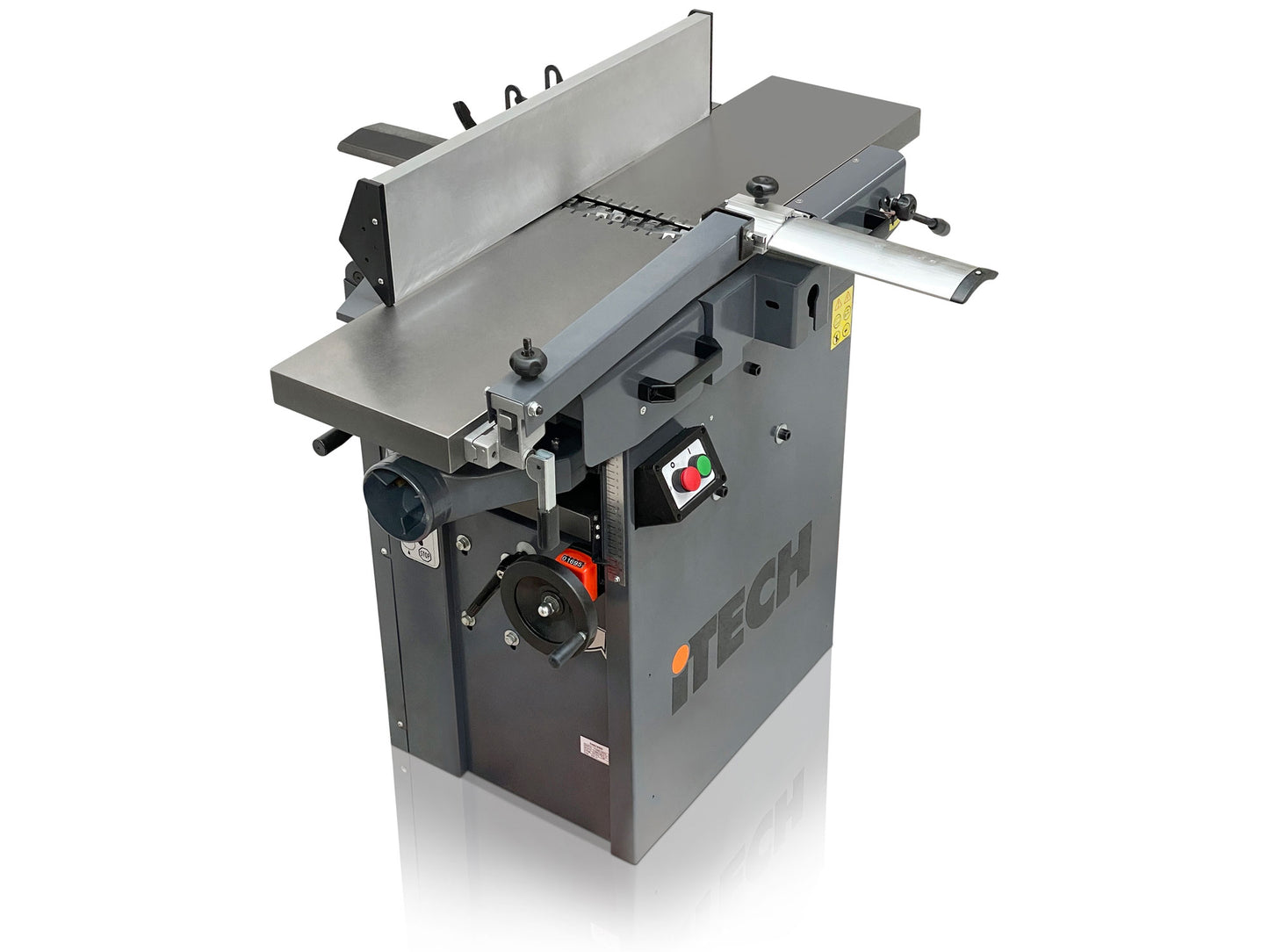

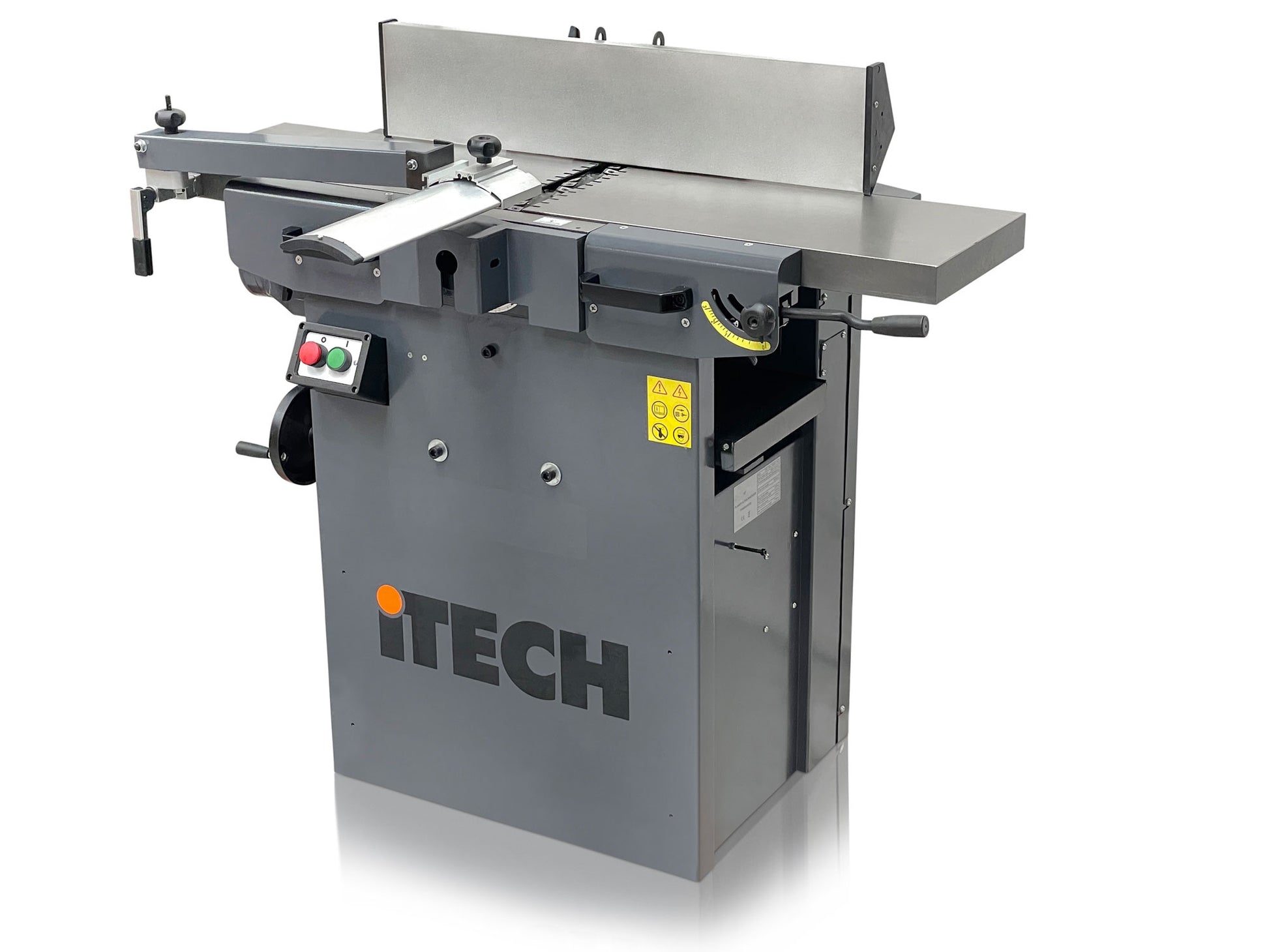

260SS PLANER THICKNESSER WITH SUPER-SPIRAL BLOCK

260SS PLANER THICKNESSER WITH SUPER-SPIRAL BLOCK

Regular price £1,850.00 GBP
Regular price Sale price £1,850.00 GBP
Sale Sold out
Shipping calculated at checkout.
This is a proven design planer & thicknesser has the latest 6-row spiral cutter block, which makes it very quiet and gives a fantastic finish on difficult grain timber (where conventional cutter blocks tend to tear the grain). It is especially suited to the small trade workshop or discerning home user. Constructed from cast iron and heavy gauge welded steel, it is robust and has some features that set it apart from the competition. The cast iron surfacing tables are heavily ribbed underneath to maintain flatness and, unusually, both tables are counterbalanced and linked to lift as one unit and have a safety stop latch to hold them securely when thicknessing. Another popular feature on this machine is the fence simplicity: no need to remove it when changing from surface planing to thicknessing.

Why Choose a Spiral Planer?
More Knives = Better finish: you will get a smoother finish with a longer life from the 4 sided solid TC cutters, More Knives = Less noise: each blade is moving less air and taking a smaller cut
More Knives = Improved efficiency each cut uses less energy
The question is, why wouldn't you go spiral?

Features:

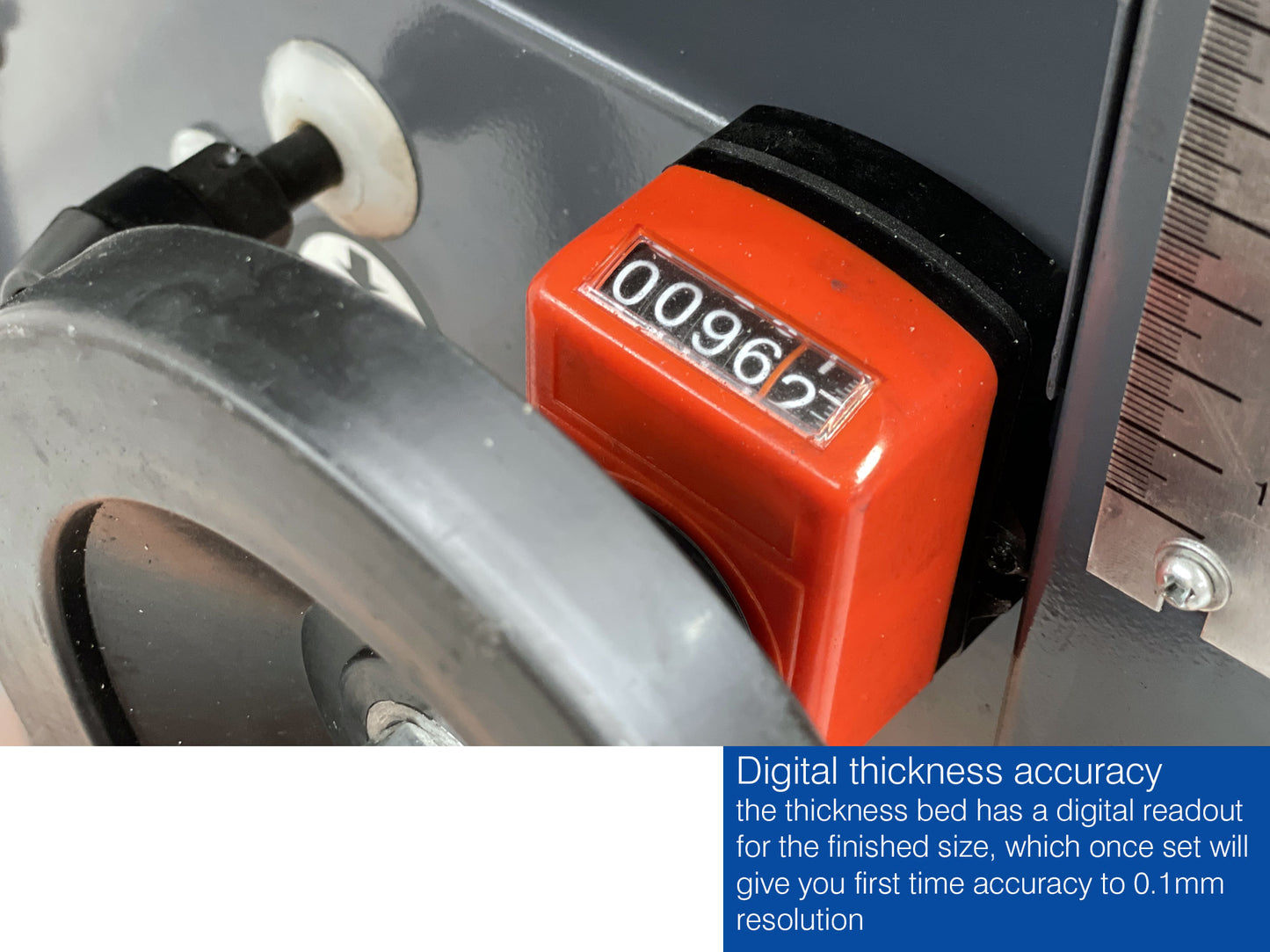

Digital read out to thicknesser table

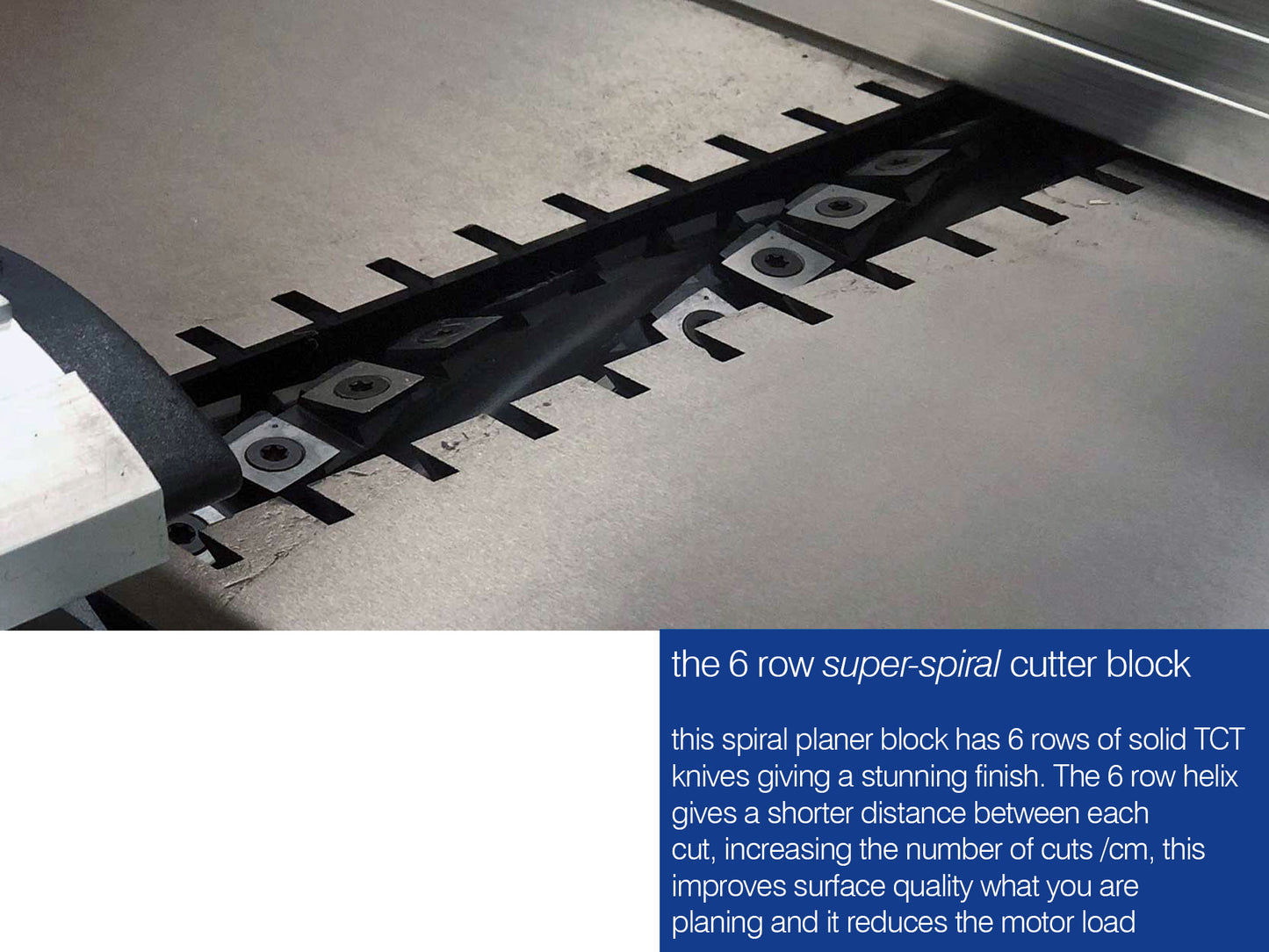

Spiral planer block with 66 Knives for Super Smooth finish
Low noise level

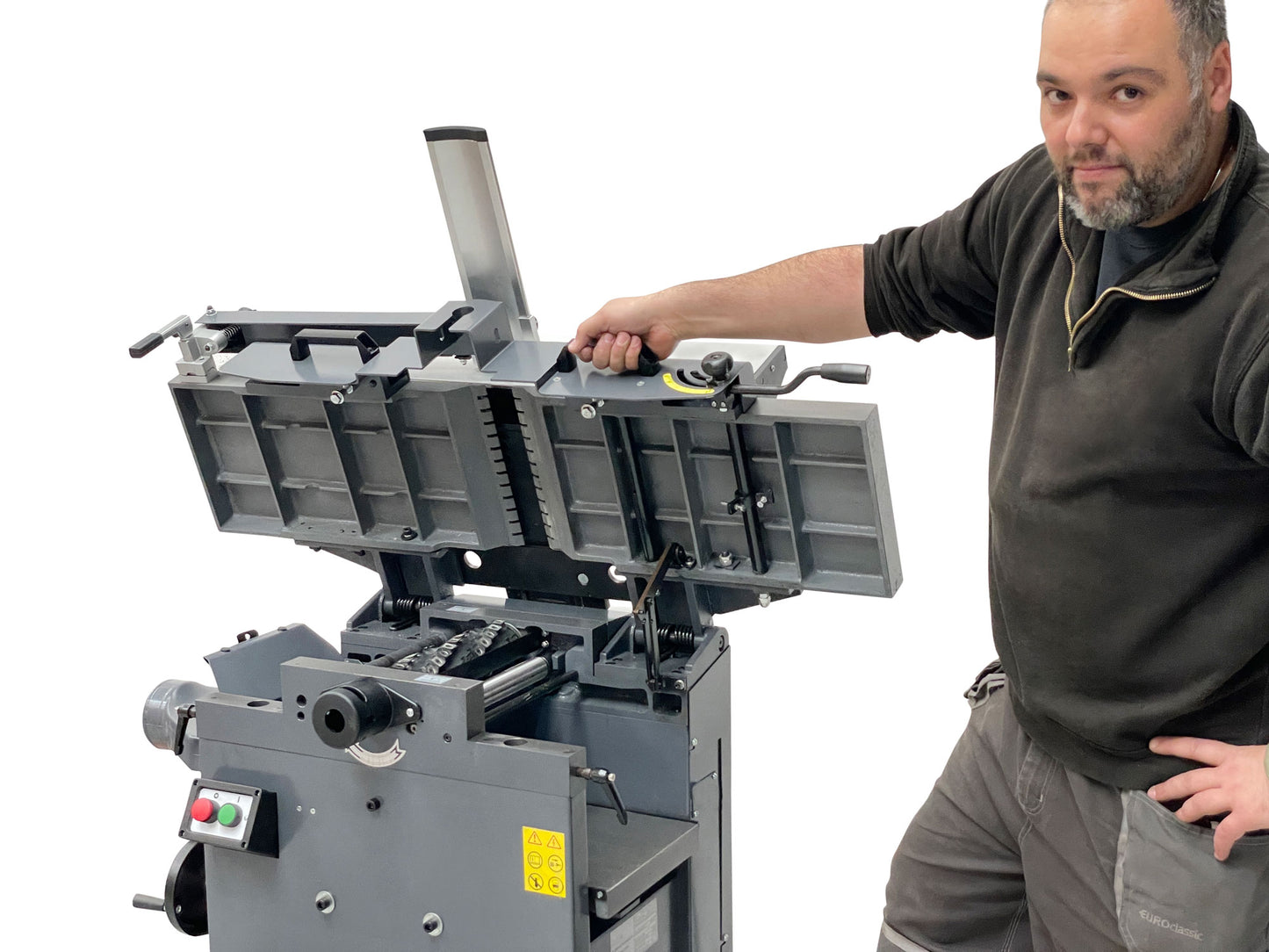

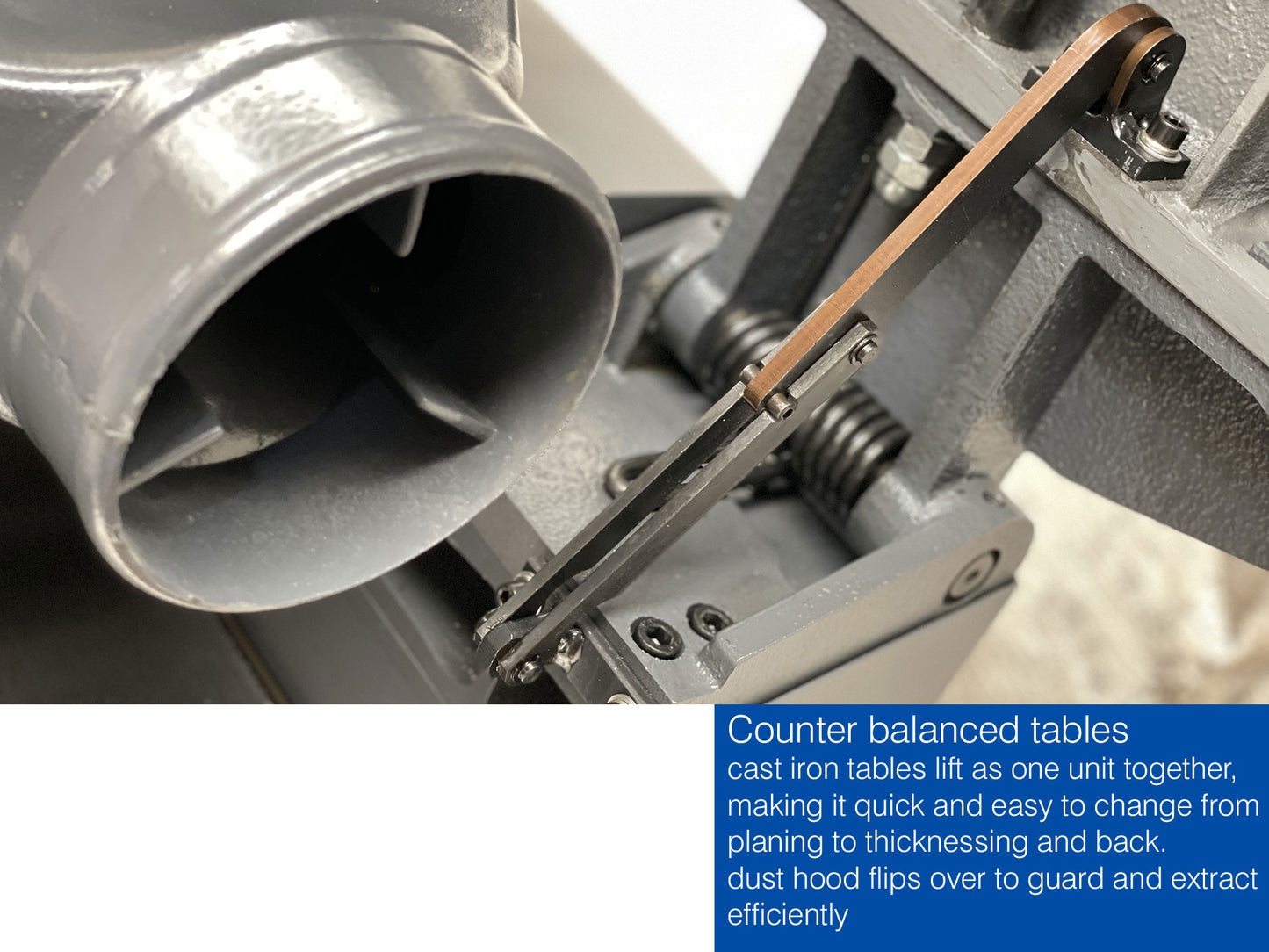

Fast change over from surface planing to thickness mode with the 'Linked Tables'

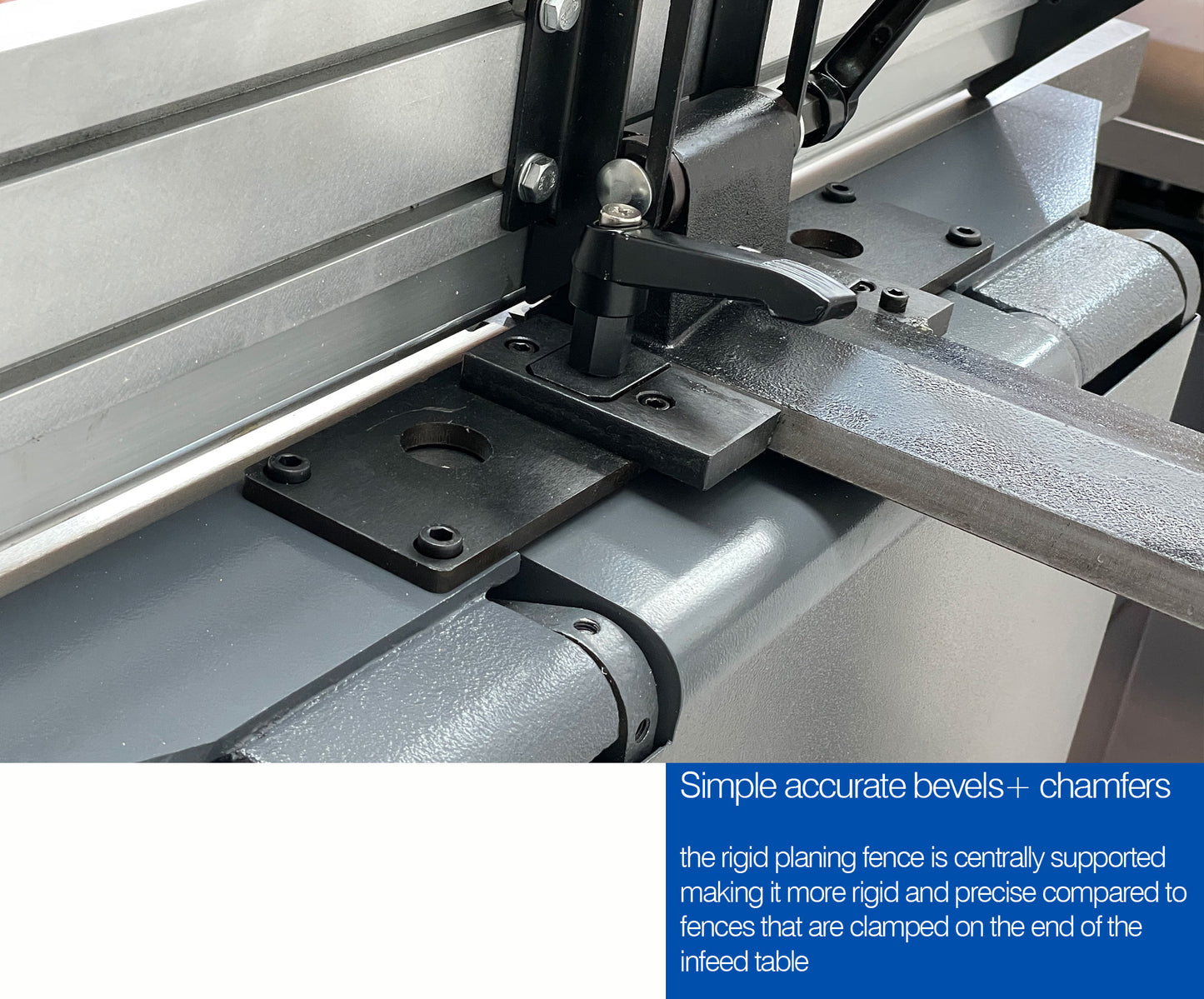

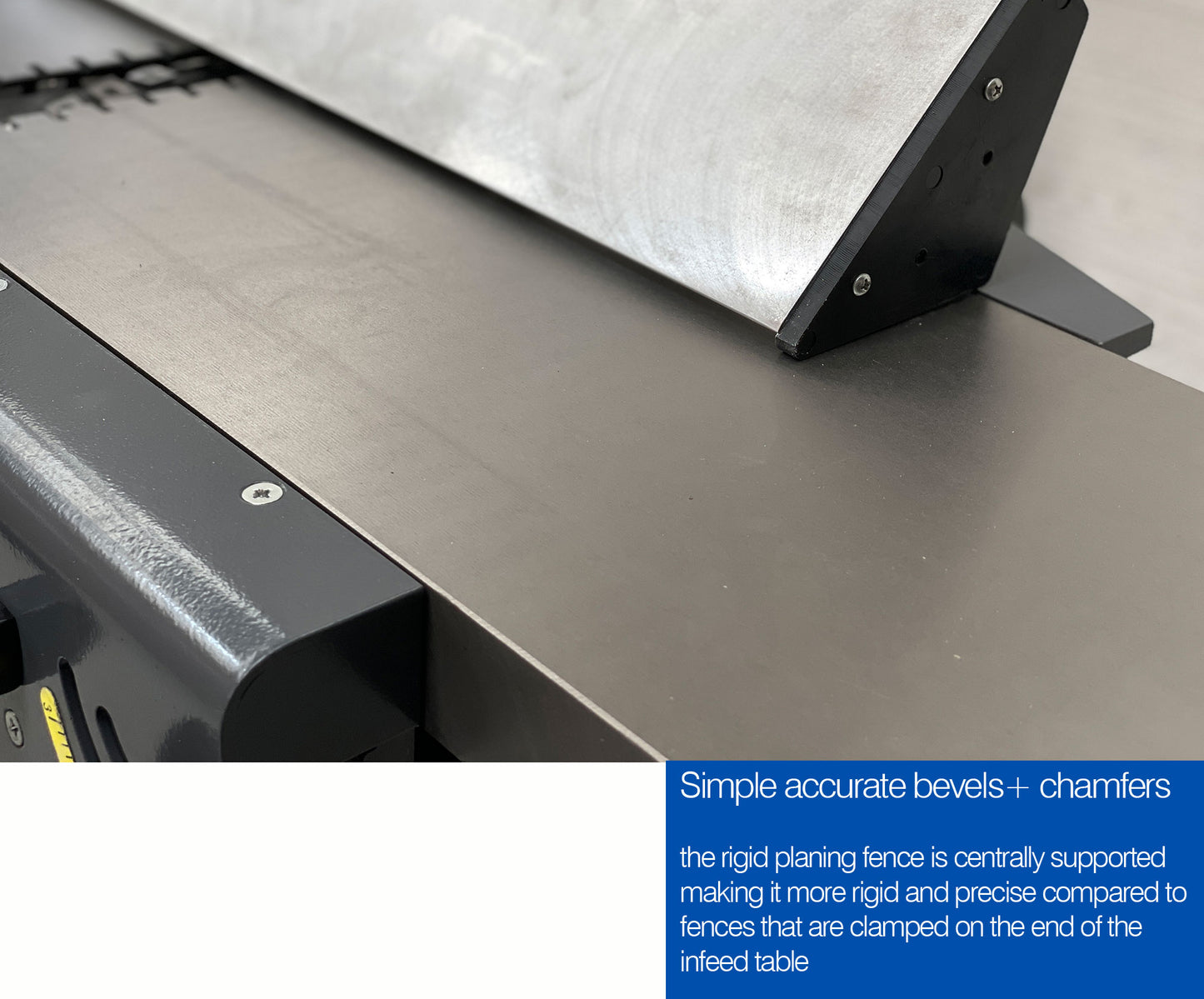

Fence Stays on the machine when swapping functions.
Every machine is PDI checked in our factory prior to delivery.
  • Planing width 250 mm
  • Table length 1050 mm
  • Thicknessing capacity 180 mm x 247 mm
  • Cutter block dia 75 mm
  • Cutter block type 6 Row Helix
  • Cutter block speed 4000 rpm
  • Feed speed 4.8 m/min
  • Motor 2.0 kw 230v 1ph 16a
  • Fence size xx x xx mm
  • Dust Connection 100 mm
  • Weight 176 kg

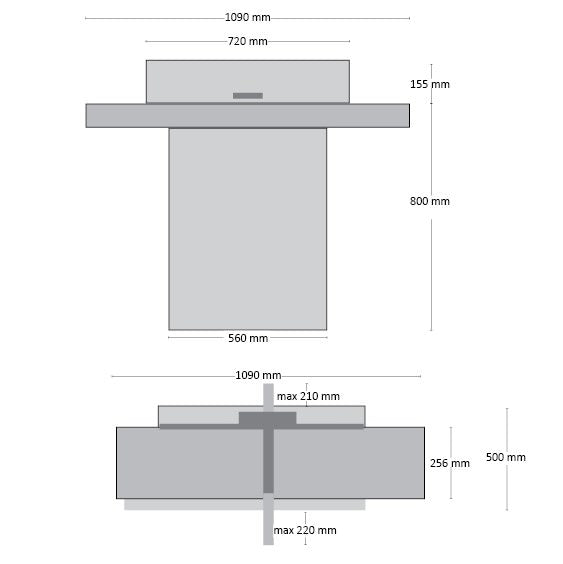

  • Overall Dimensions 1050 x 650 x mm
  • Model No : C2-260S
  • Thicknessing table size : 600 x 250mm
  • Feeding block diameter : 32mm
  • Cutting knives : Spiral (15 x 15 x 2.5mm With 150mm Rad tip TA100791) qty 66
  • Maximum cutting depth : 3mm
  • Packing size : 1,150x640x950mm
  • Net/gross weight : 176/ 214kgs
  • size of base : 570x435mm.
