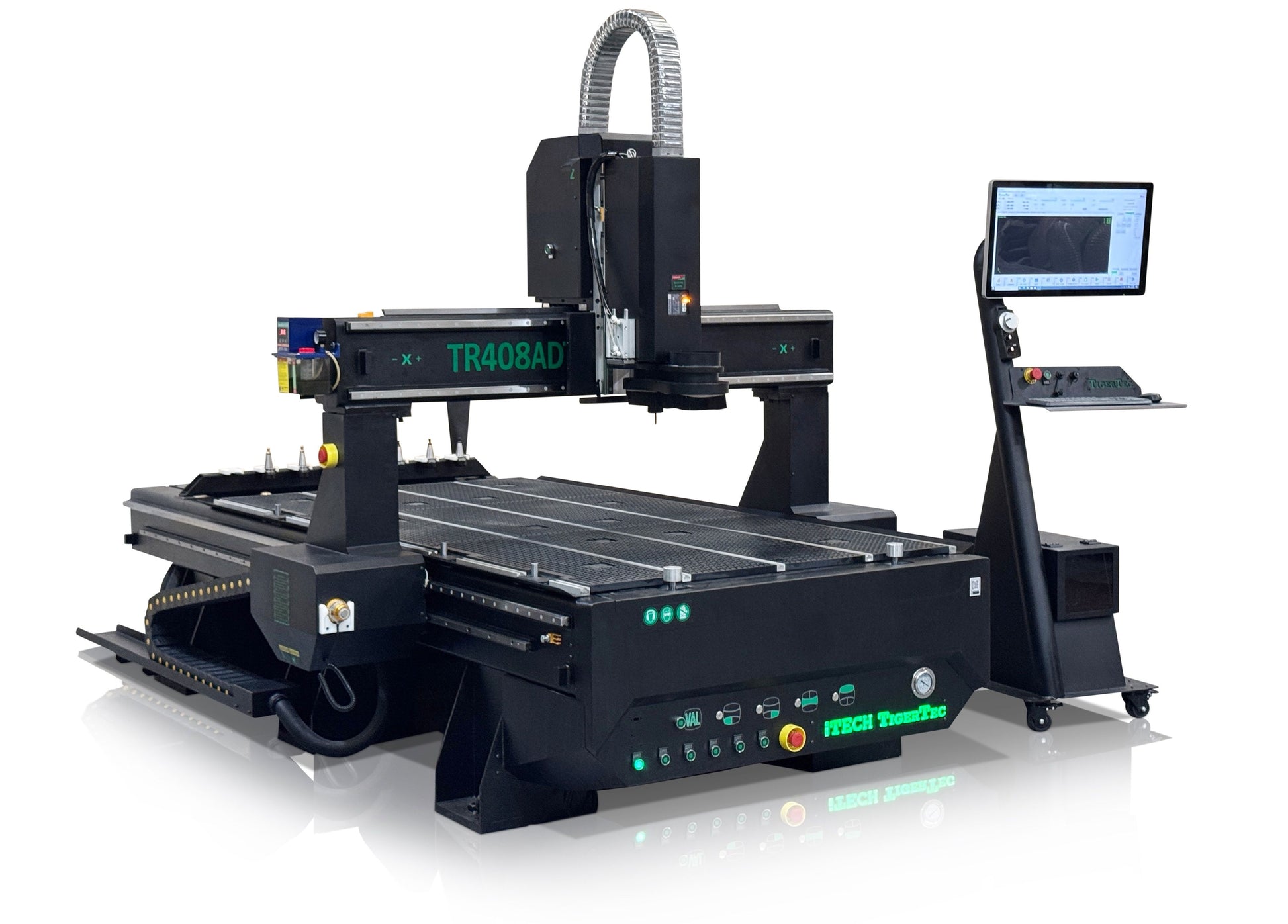

TigerTec TR408ADTCZ High Z CNC Router with PC+Tool Changer
Reliable shipping
Flexible returns

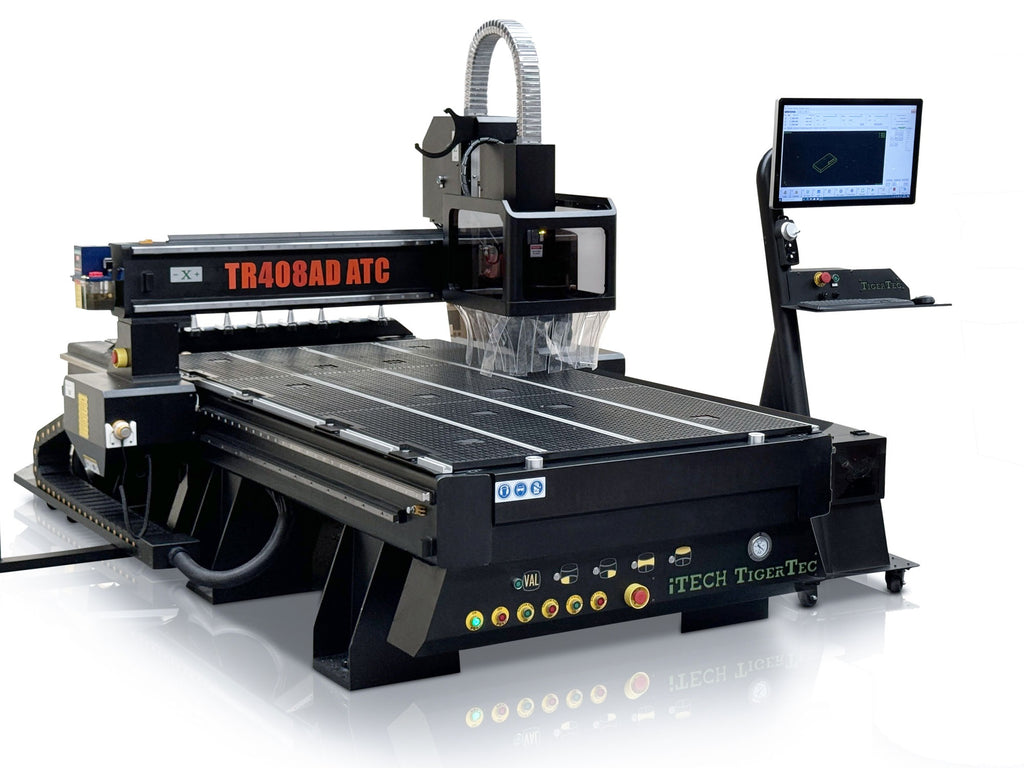

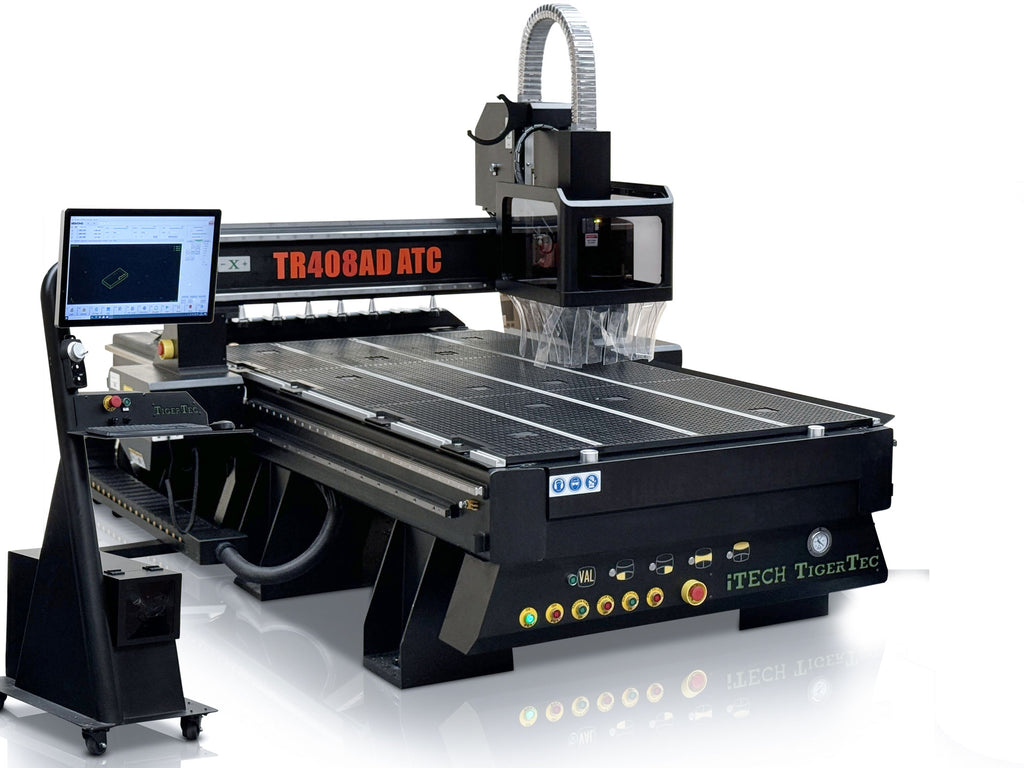

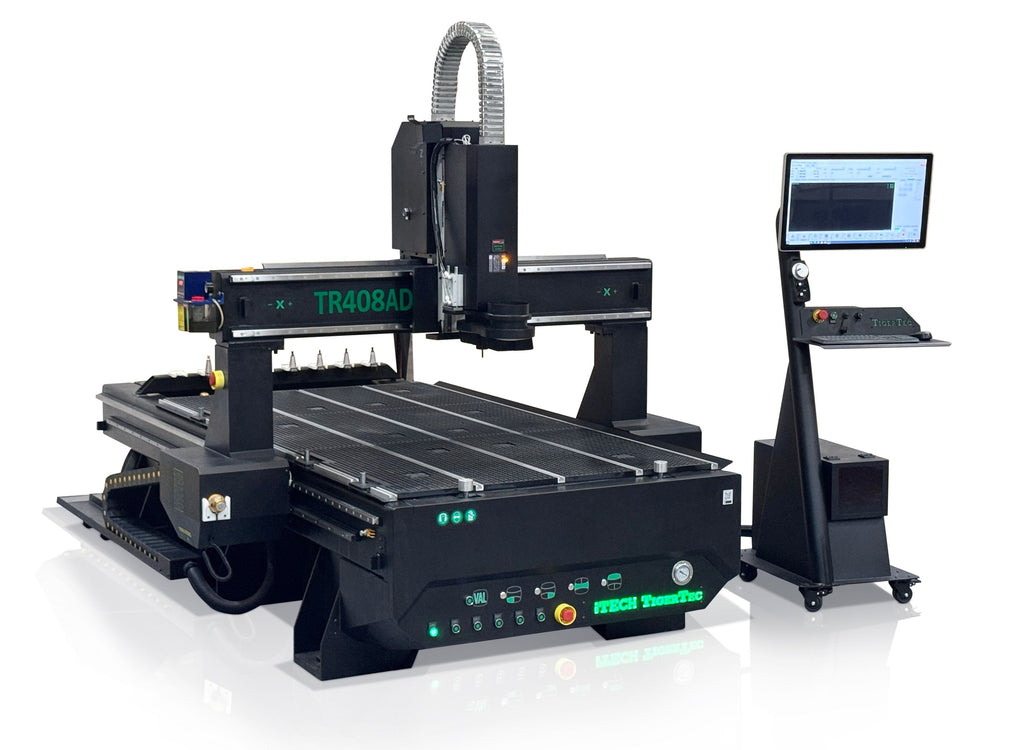

An increased Z version of the TigerTec TR408AD flat Table CNC router with auto tool changer is designed for modern workshops with flexibility in mind. Ideal for all manner of industries needing CNC speed and accuracy. This quality coupled with the bundled Vectric Software and the standalone Windows PC Controller makes for a great package for routing, cutting and nesting.
With this extra-high Z-axis version and the bundled Vectric VCarve Pro, you get an expansive maker's workspace, allowing you to work on everything from SIP panels to sculpting large 3D objects out of wood or composites. Our professionals can help you design templates and train you to work on both sides of the product for truly 3D production.

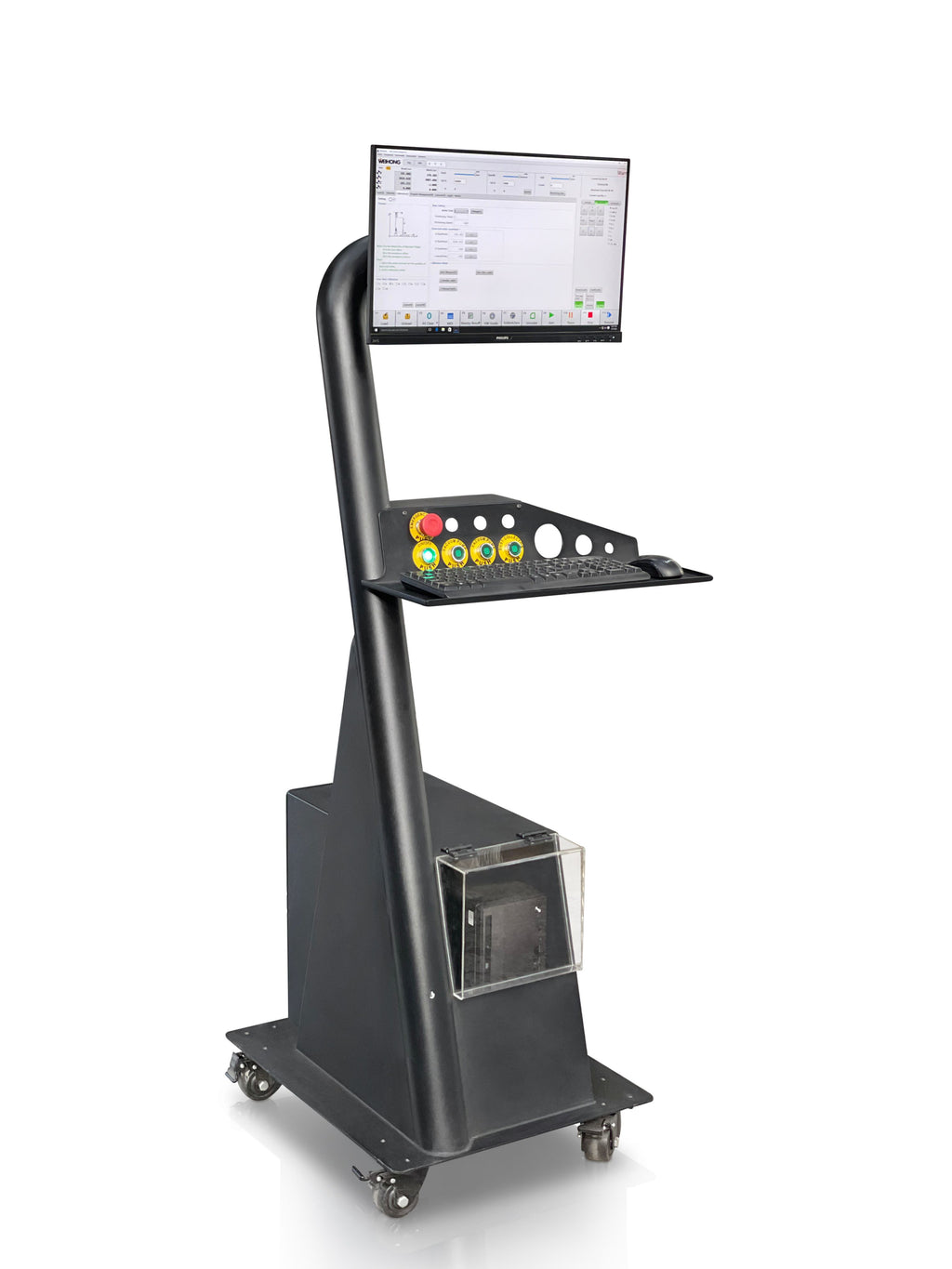

The heart of the machine is a 9kw Italian HSD router head with an easy to use Windows Pc Controller, pre-installed with NC Studio CNC Software. The controller is user-friendly for easy installation and training. Each command is very easy to read, understand and execute.
We supply the machine complete with the latest version of Vectric VCarve Pro, this can be upgraded to Aspire for more involved 3d work, The Vectric programs are easy to use and program, they are supplied with lots of clip art and can import common file formats.
VCarve includes the functionality demanded for complex work while remaining incredibly easy to use. The software is used by cabinet makers, wood workers, sign makers, prop makers, plastic fabricators, and in many other applications
We can provide as much or as little training in house as you want either in our factory or we can offer on-site training and installation.
The multifunction table is prepared for mechanical clamping as standard and is prepared with an 8 zone vacuum system for the optional vacuum pump.

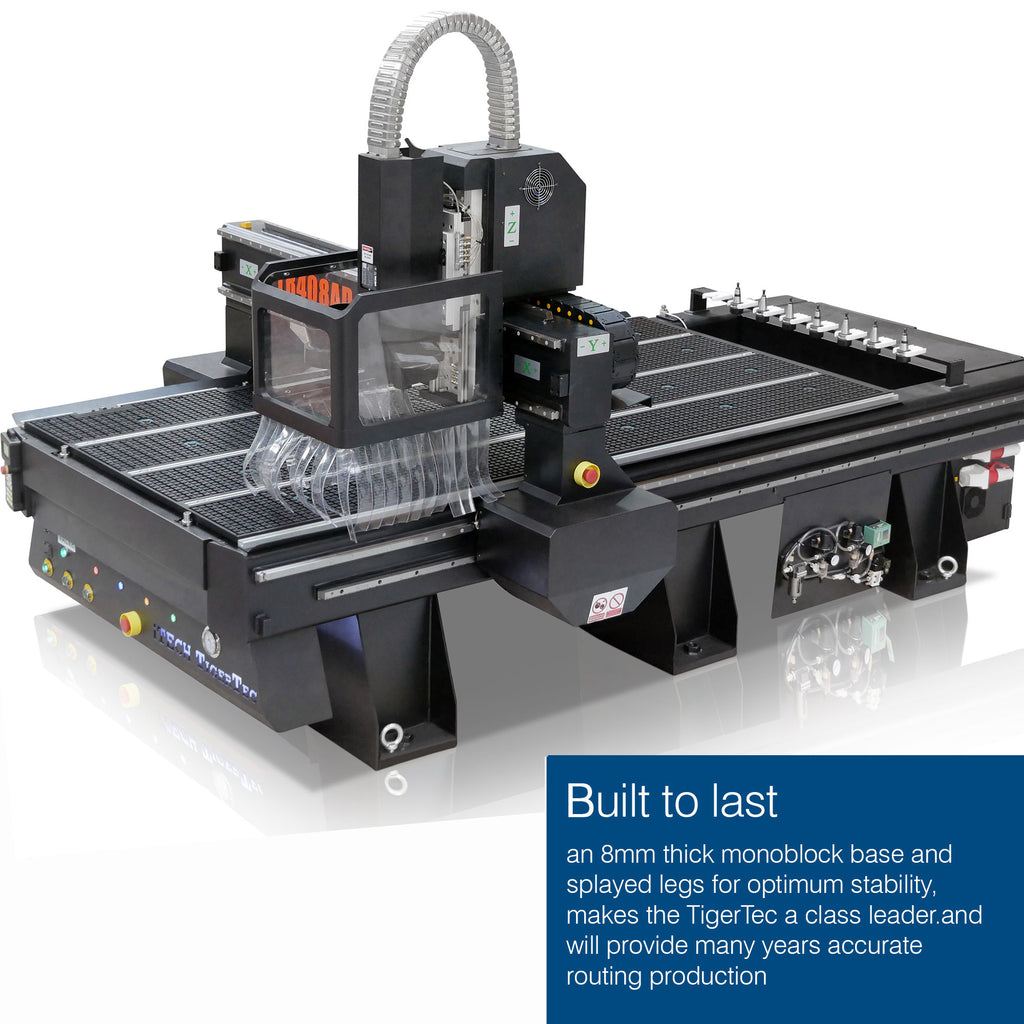

All TigerTec machines are built on a heavy 8mm thick steel base that is rectified, stress relieved then machined and ground as one piece giving unprecedented repeatability and accuracy at this price level.
The steel gantry is reinforced throughout, it is then heat treated and annealed which results in class leading accuracy. The quality control, engineering and build results in smooth, clean precision machining centre.
Applications:
Van conversions, Perspex cutting, Display work, General Woodworking, Furniture, Shopfitting, Scenery production, Sign-making, 2D and 3D Carving in woods, metals solid surface and plastics
About TigerTec
TigerTec are a Sino-American joint venture and one of the leading manufacturers in the field for compact CNC Routers manufacturing for other well-known European and American companies. All components used are from quality renowned suppliers including HSD, Siemens, Klockner, HiWin, Becker.
Class leading features:
HSD Router head
Japanese Yaskawa Servo motors
Windows PC User Interface

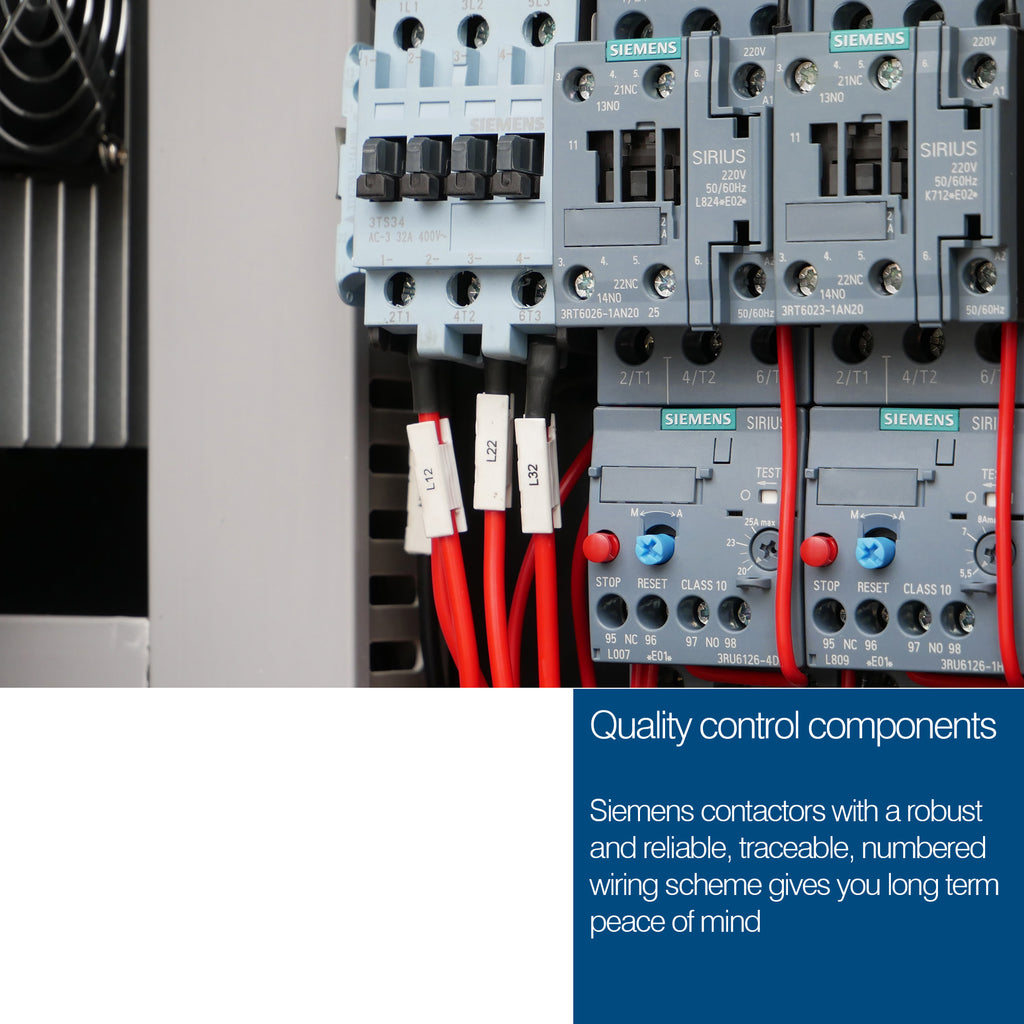

Siemens contactors
Delta inverter
Centralised adjustable lubrication
Rack & Pinion drive
THK HSR25 rails and bearings with double wipers/seals for X&Y & HSR20 Z
Multifunction table for nesting or clamps
Fully enclosed cable track
Tool length sensor
Pneumatic activation for dust hood
12 Month Parts & Labour Warranty
24 Month Parts Warranty
Latest full version of Vectric VCarve Pro software
Technical Specification:
Working area: 1300 x 2500 mm
Z Axis 400mm
Max cutting speed: 20m/min
Max moving speed: 30m/min
Control Windows PC Controller
Drive Yaskawa Servo Motors
Transmission Rack & pinion
Router head 9kw HSD ES951
Auto tool changer 8-position (requires compressed air supply)
Tools Holders included 8 pcs
Max speed 24000 rpm
Collet size ER32
Dust hood Pnuematic activation
Multifunction table: T-slot clamp or vacuum
Vacuum pump [Optional] Eurovac 250cm, Becker 250 cbm,
Light Barriers Optional
ER32 Collets Included
Weight: 2200kg
Power requirement 415V 32A with Neutral
HSD Boring Head 5+4 Optional
The router requires an Air compressor with Air Dryer (sold separately). The compressor needs to have a flow rate of 0.3 m3/min (10.5 cf/min) and a 3kw motor, these are the minimum requirements.
