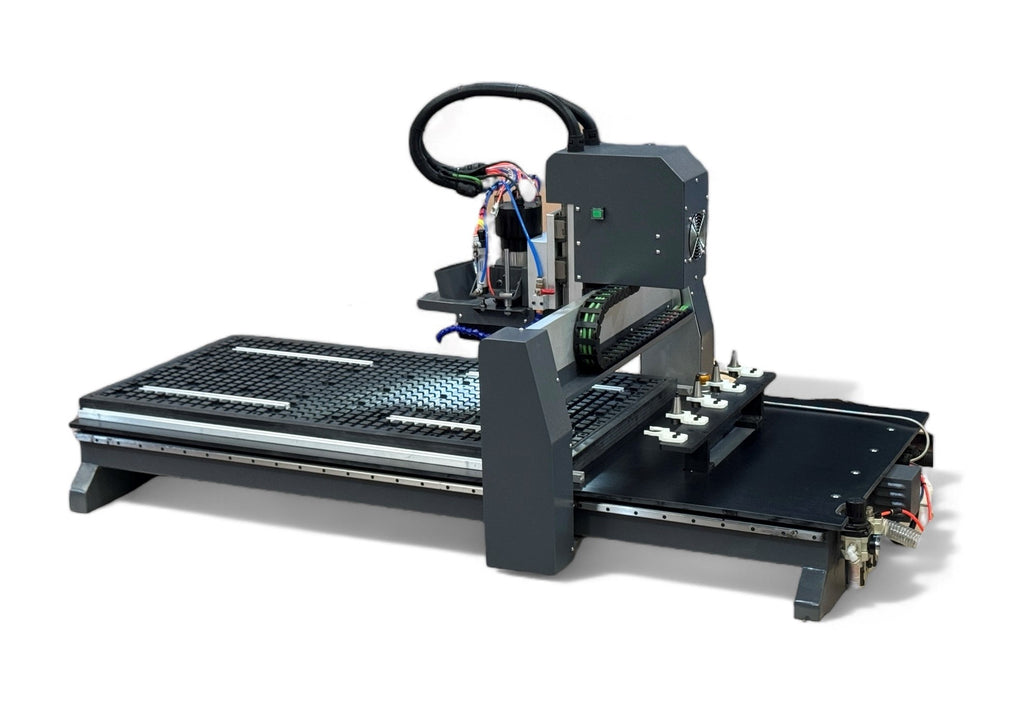

iTECH K6012 Desktop ATC CNC Router 4 Axis Xtra Z + Y

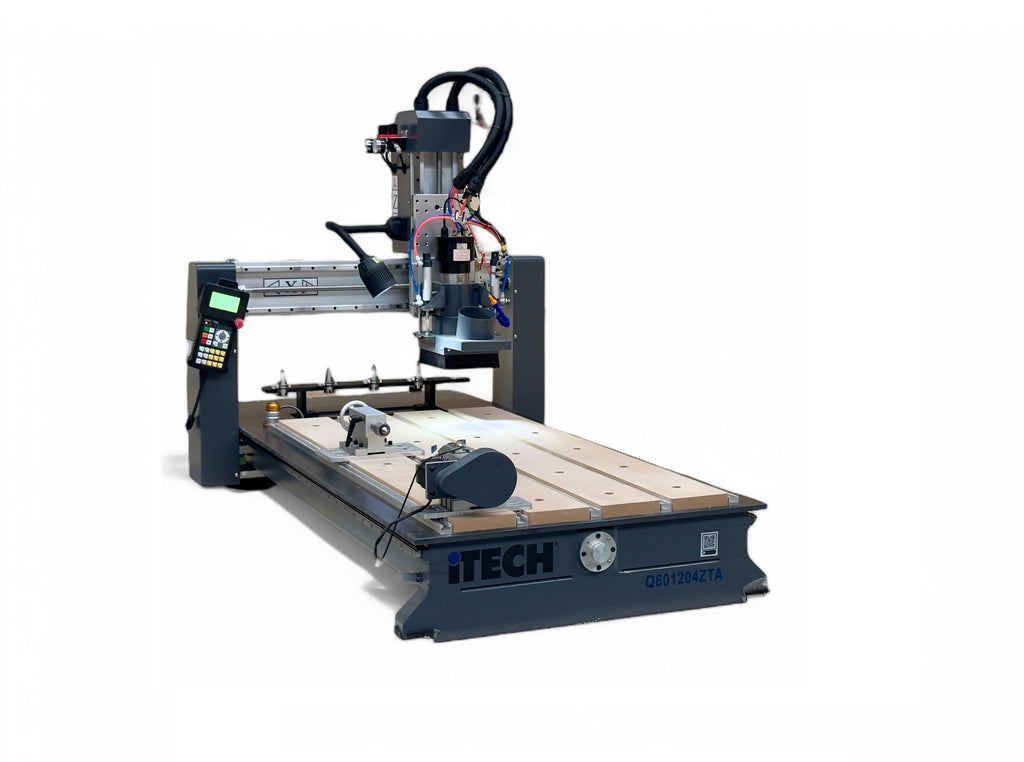

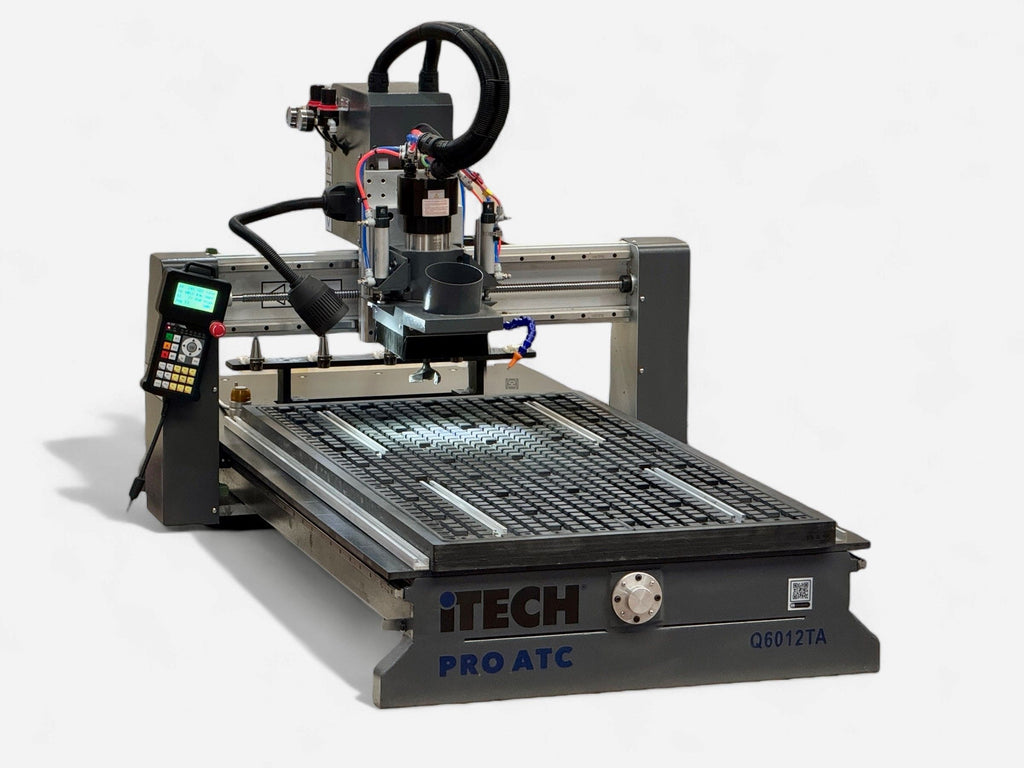

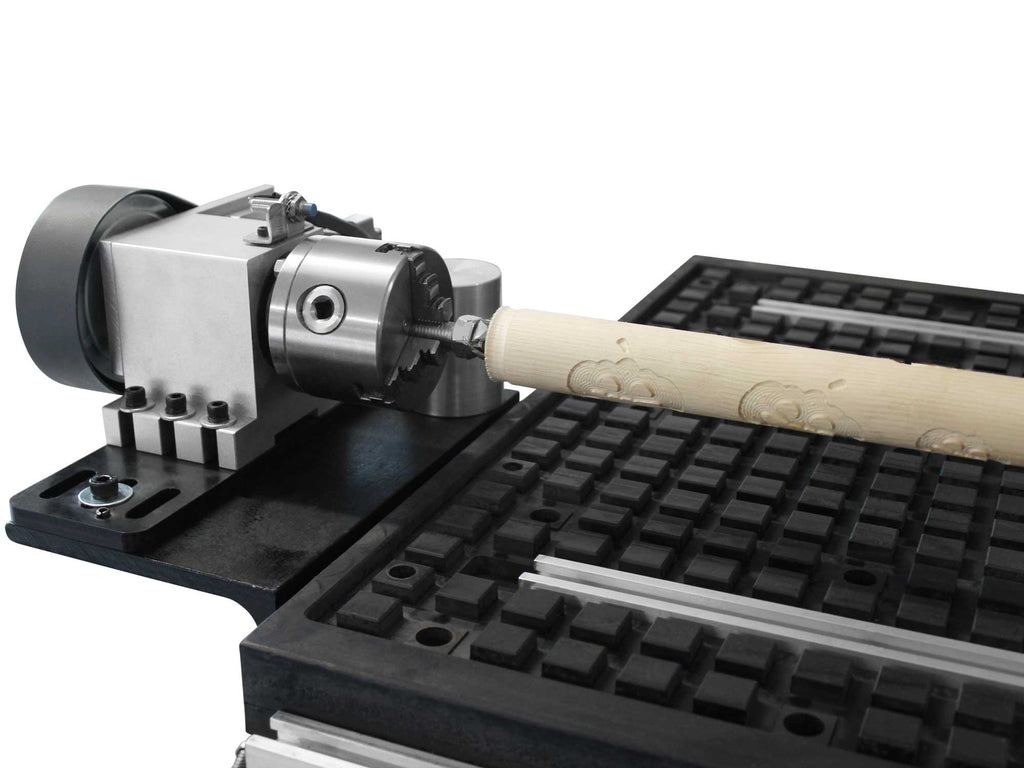

The Q Pro QUK601204 ATC Desktop CNC Router, featuring Auto Tool Change, 250mm clearance, a rotary 4th Axis, LED Light, and Air Blower, offers unlimited possibilities. Popular for prototyping, small production runs, and professional multi-material applications, our Q series desktop CNC routers are compact, affordable, and packed with features.

The Q series are mounted on heavy duty one-piece steel frames for quick assembly and accurate alignment from the start.

The machine features a 5 position ISO 20 Tool Changer + the upgraded Handheld NK105G3 controller provides ease of use and increased productivity.

These desktop CNC routers can be used for all types of non ferrous materials and aren't limited to wood or one application. Design your own engraved picture frame from wood? These machines can do just that with outstanding precision. Cutting sign lettering from plastic or aluminium? Our Q series tabletop CNC routers can make it happen.

3D modelling from solid... you can do it with the high powered Vectric V Carve Pro software that is included -

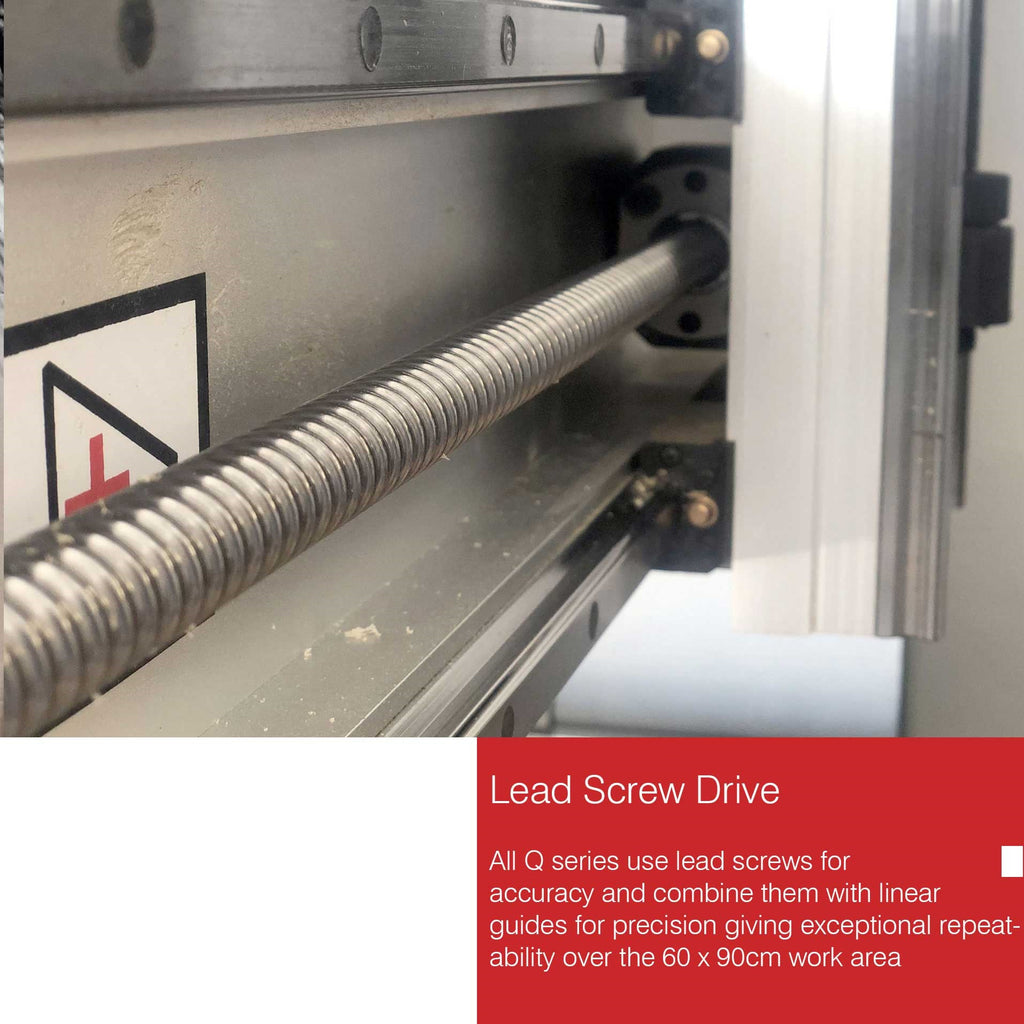

The Q series, are high quality small CNC routers that feature  a welded, one-piece steel frame, double linear guides with German made lead screw drive for quick assembly, long life and accurate alignment from the start.
As standard all Q series CNC routers have a powerful, high frequency 2.2 kW [3hp] 1ph router head, which is liquid cooled, keeping the spindle at a constant temperature and maintains longevity.

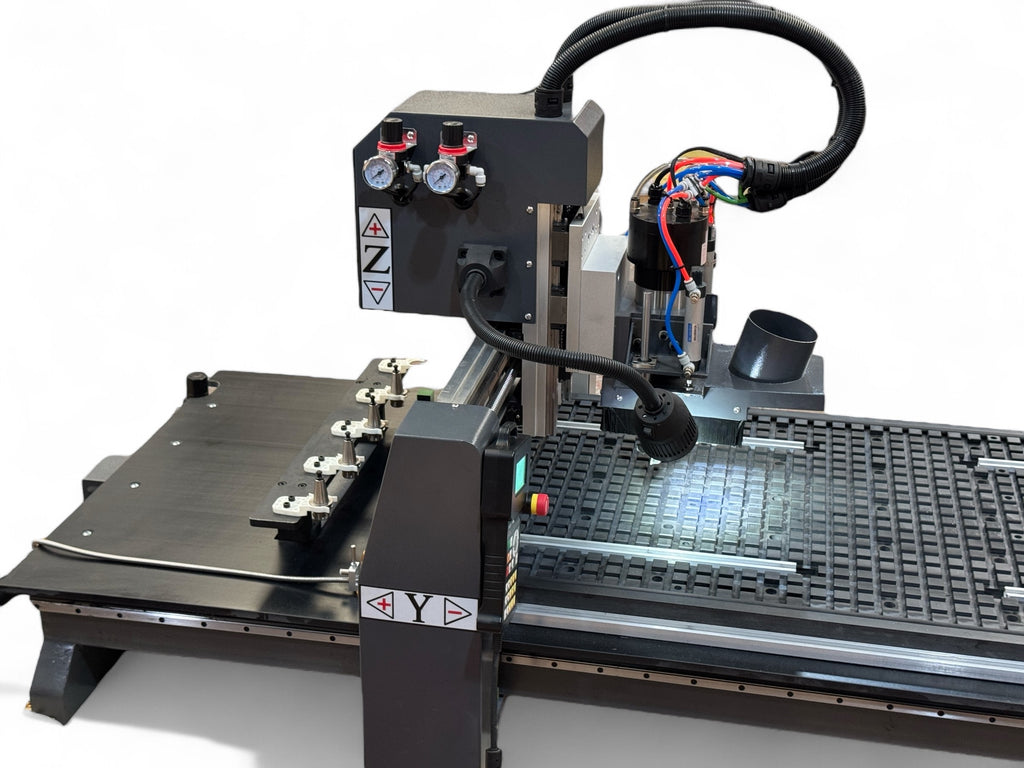

The machine has a larger than average diameter 100mm extraction port to help keep your work and workshop clean.

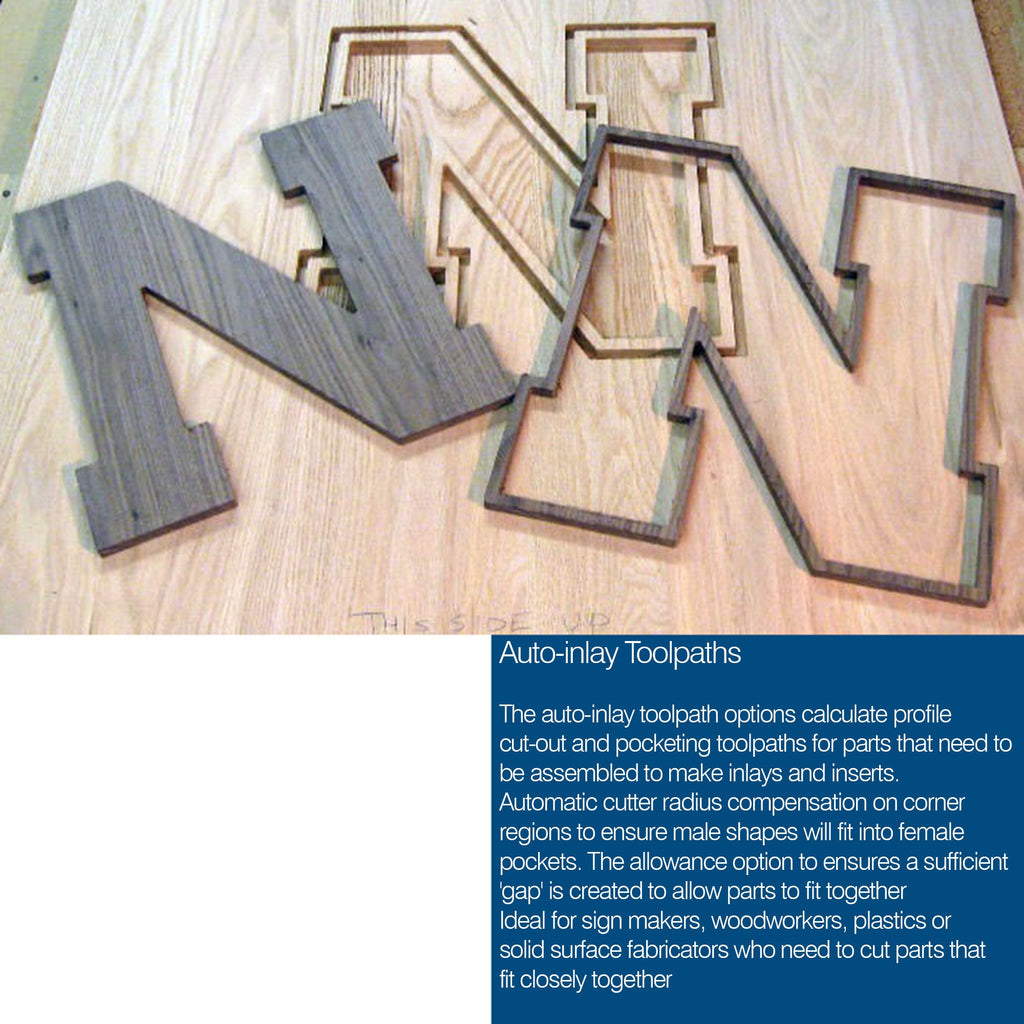

Programming and design are Easy to use full version of Vectric V Carve Pro CAD CAM Software.

Options available:

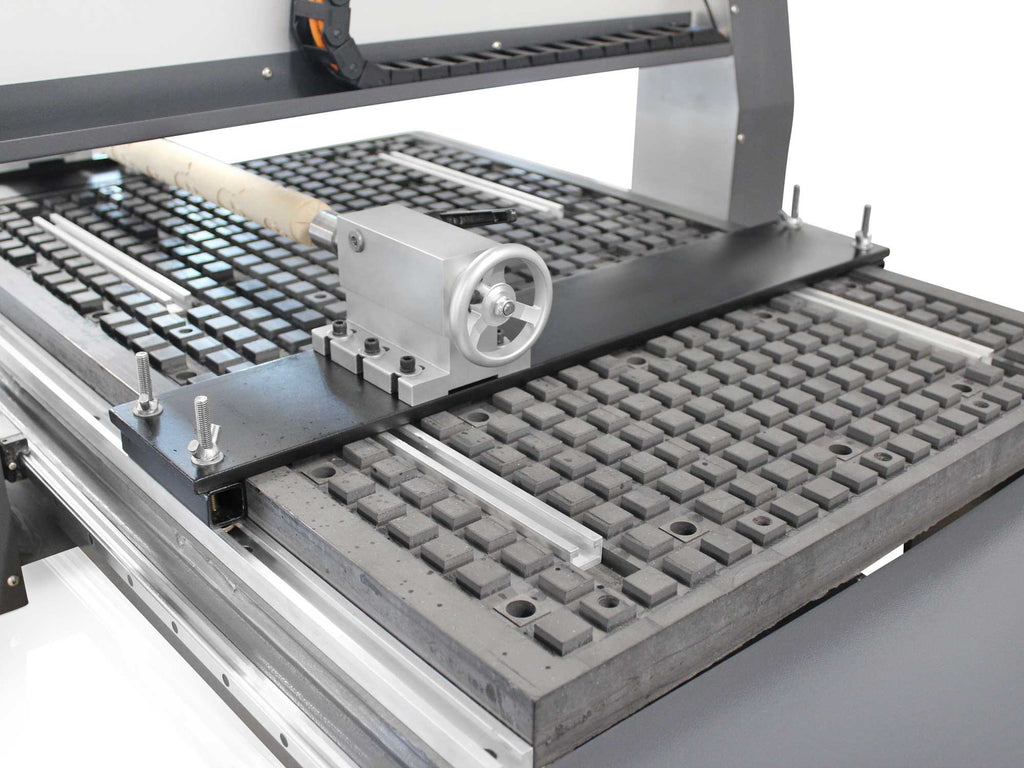

Vacuum Table
Mobile workbench
Dust Exctraction
Refrigeration unit

Technical Specification:
X-Y-Z axis working area    600 x 1200 x 250mm
Machine size
Repositioning resolution   0.05mm
X-Y-Z movement             Ball screw drive/Germany
Max. speed X & Y Axis      3.5 m/min
Max. speed Z Axis          1.5 m/min
Max. cutting speed         3.5 m/min
Spindle                    2.2kw Air Water Cooled
Spindle speed              24,000rpm
Delta Inverter power       2.2kw
Drive motors               Stepper
Tool positions:            5
Working voltage            230v 1 phase 50 hz (requires 32a supply)
Pneumatic supply required  6 Bar
Command code               G code
Packing Size               1750x1120x1200mm 300 kg
Vectric Vcarve Pro         Included
Table or Enclosure         Optional Extra
