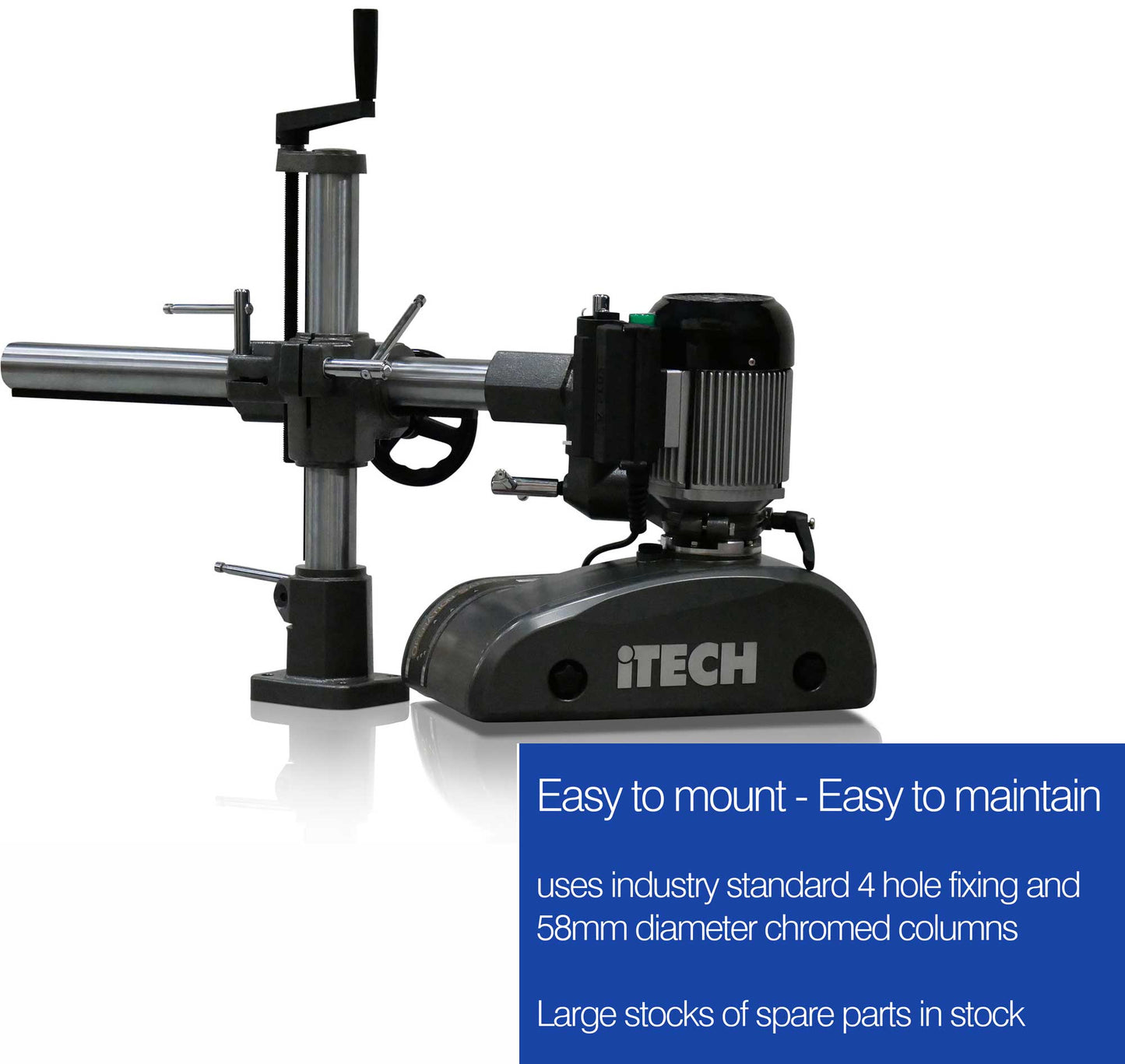

VP380 POWER FEEDER COMPLETE WITH STAND 400V 3PH

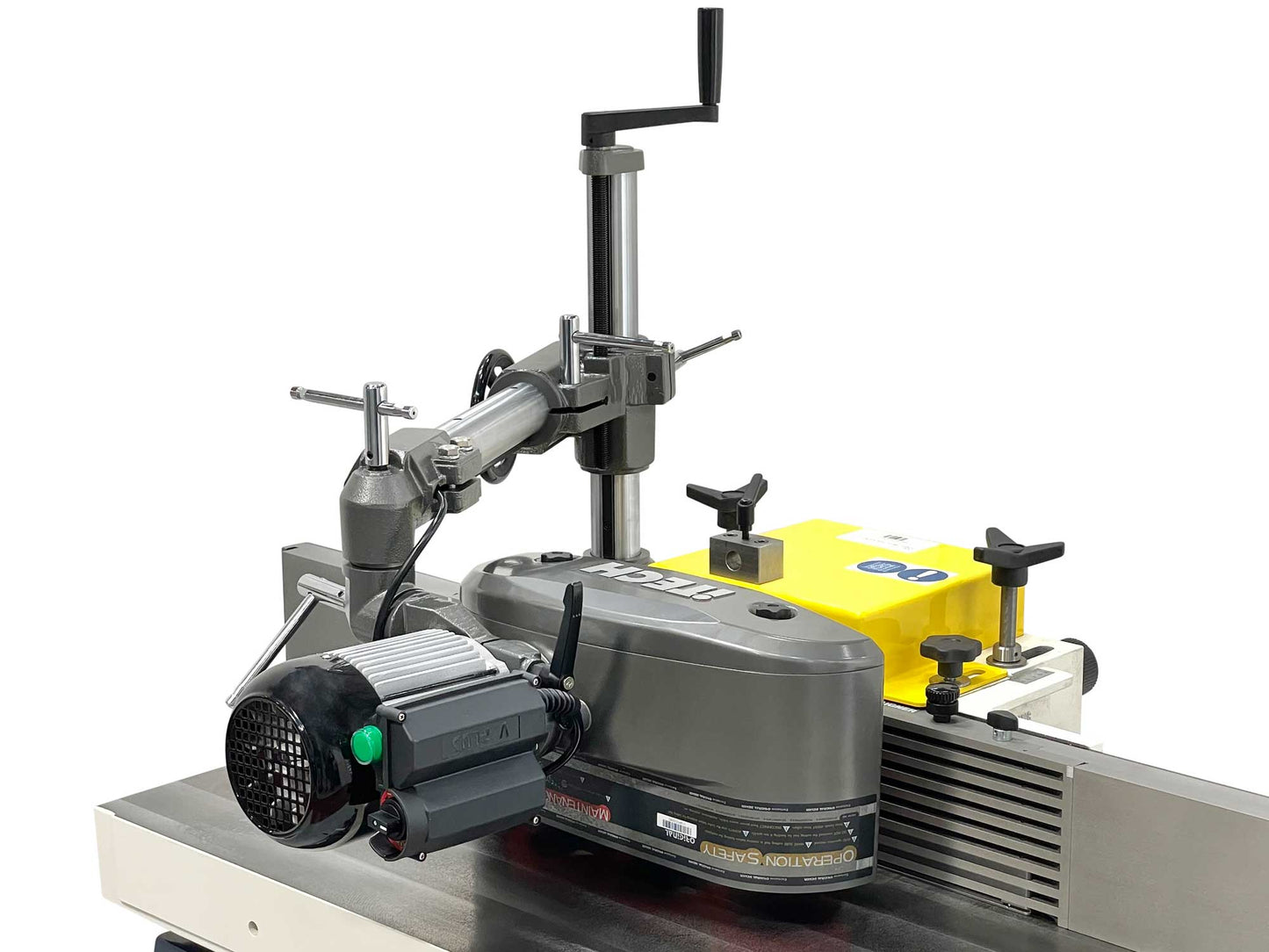

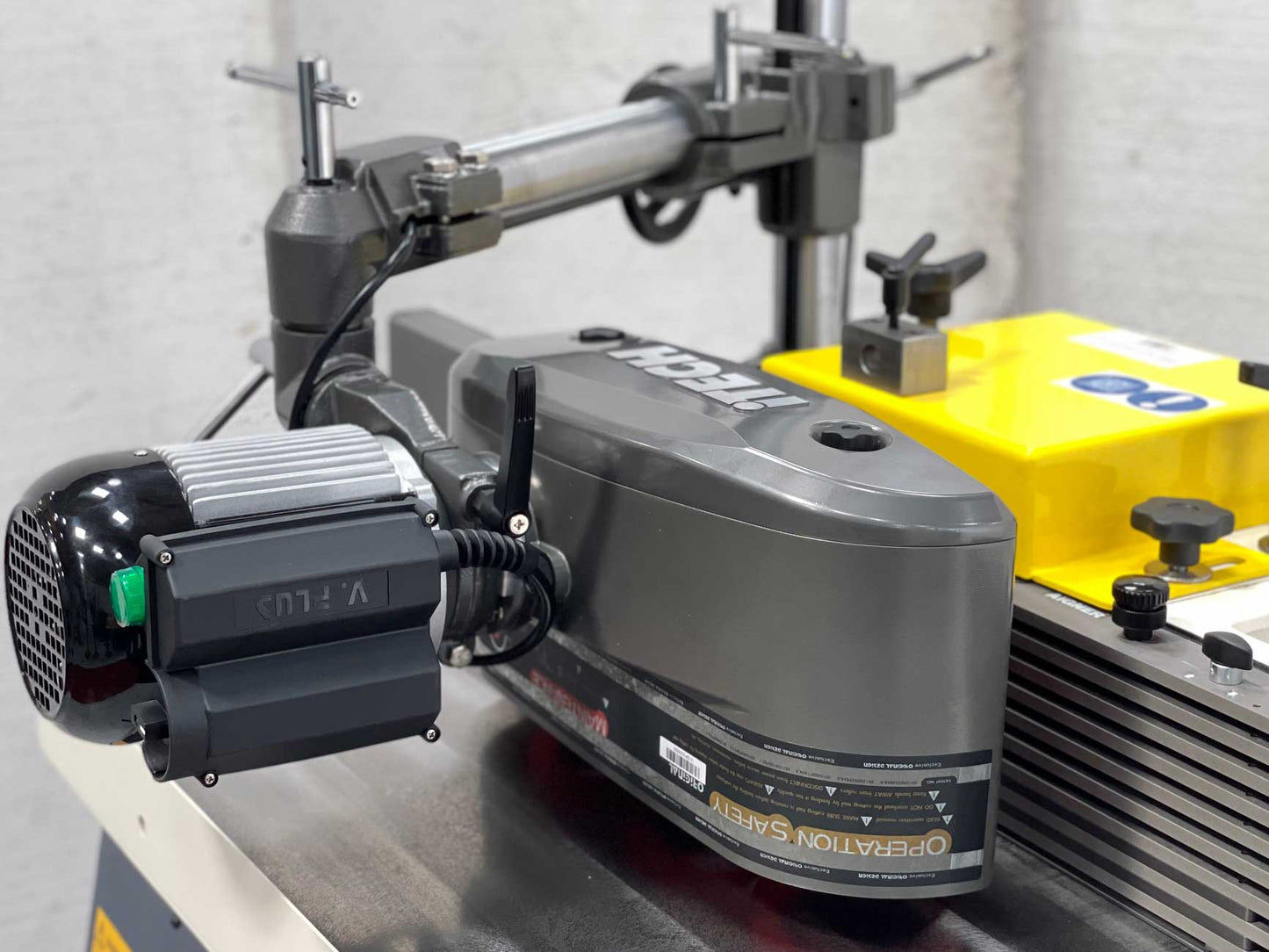

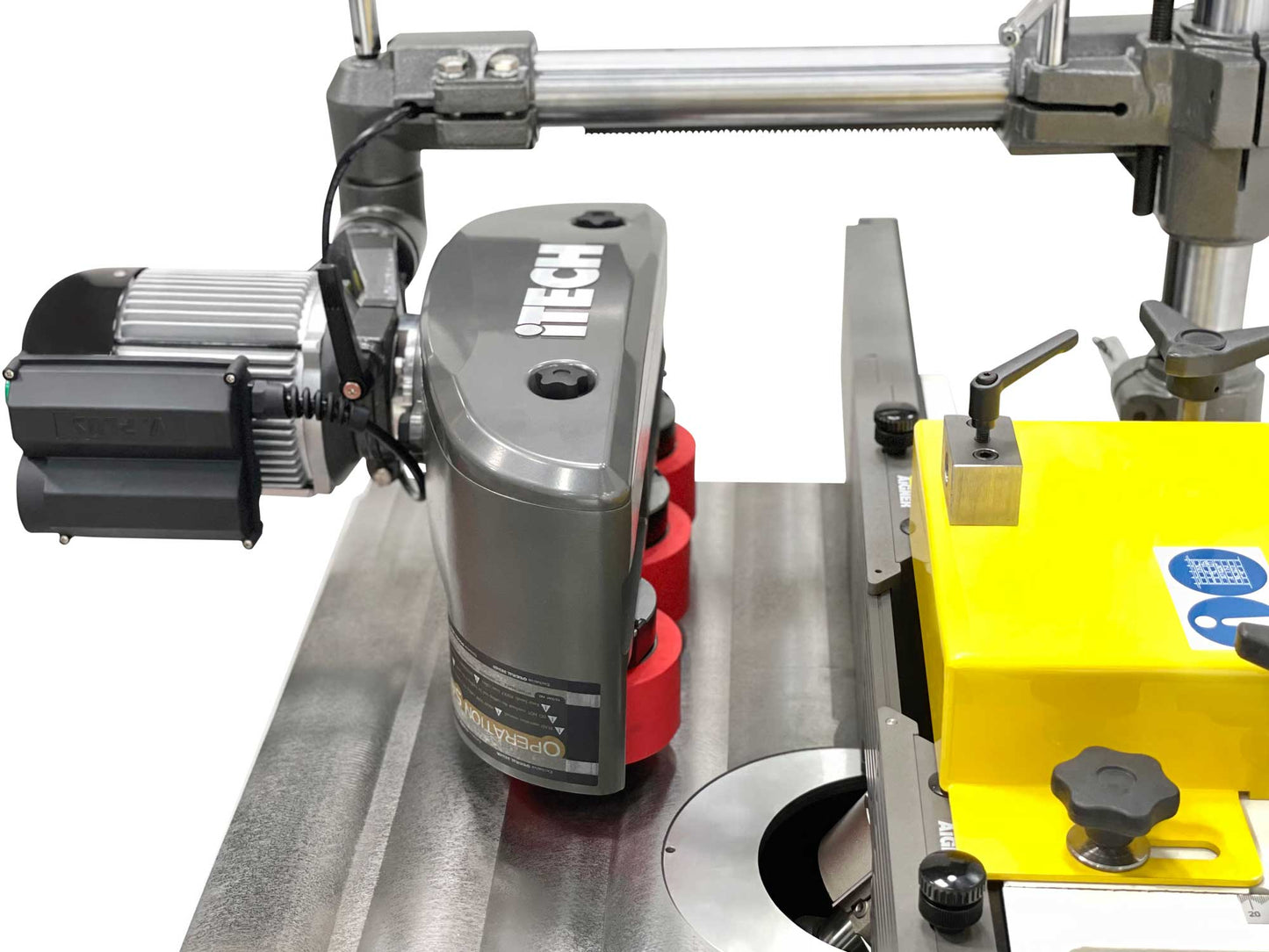

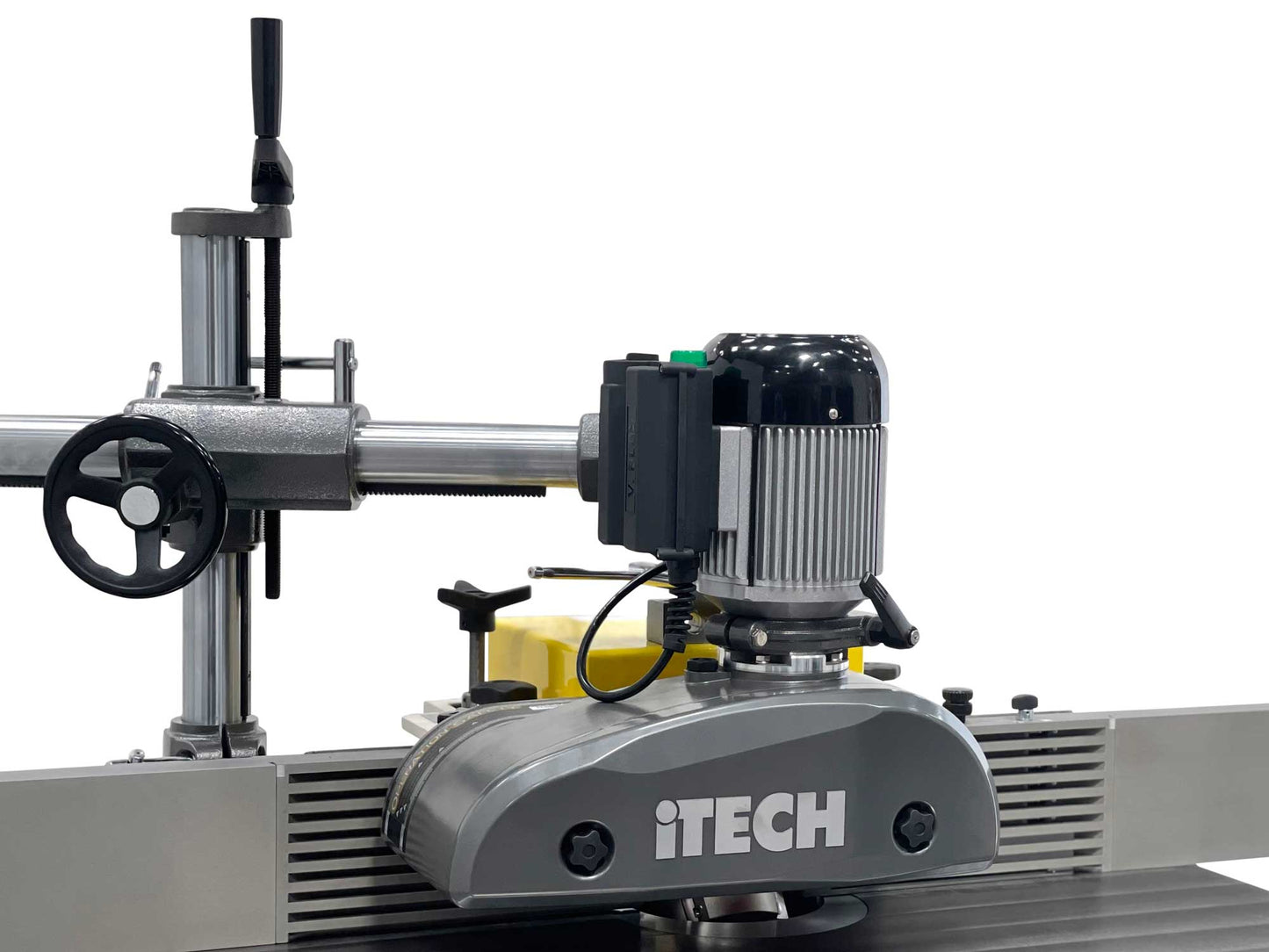

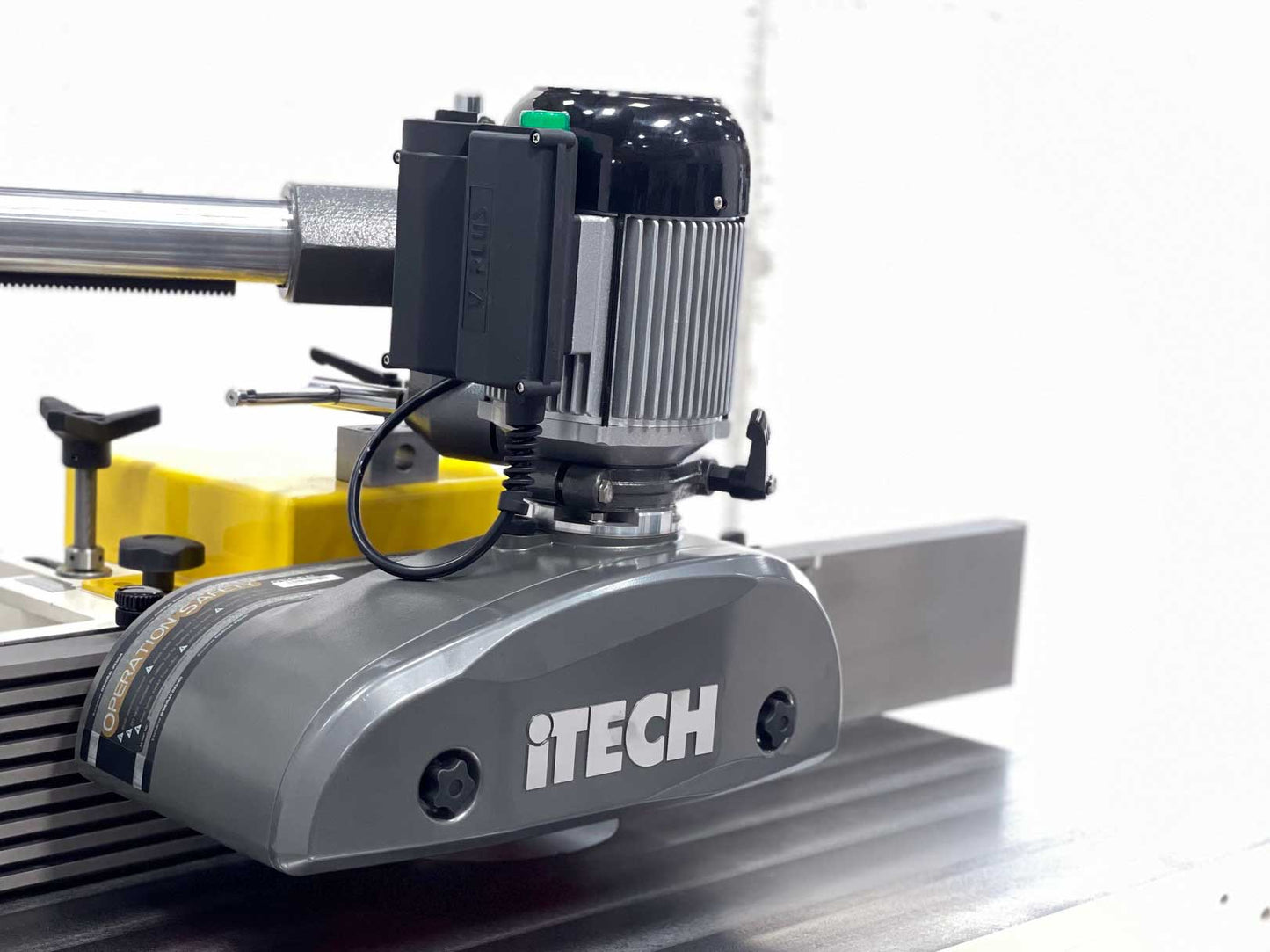

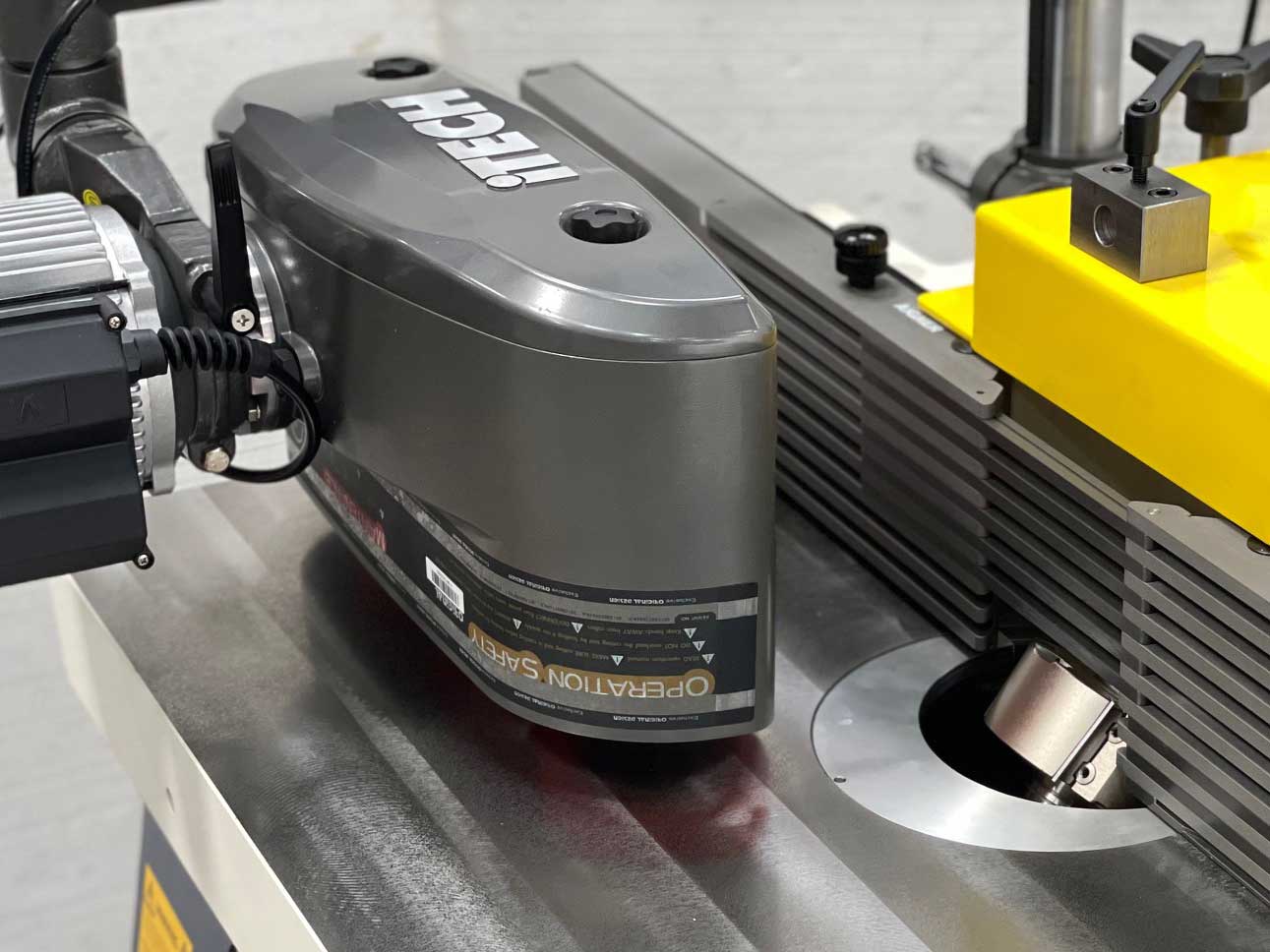

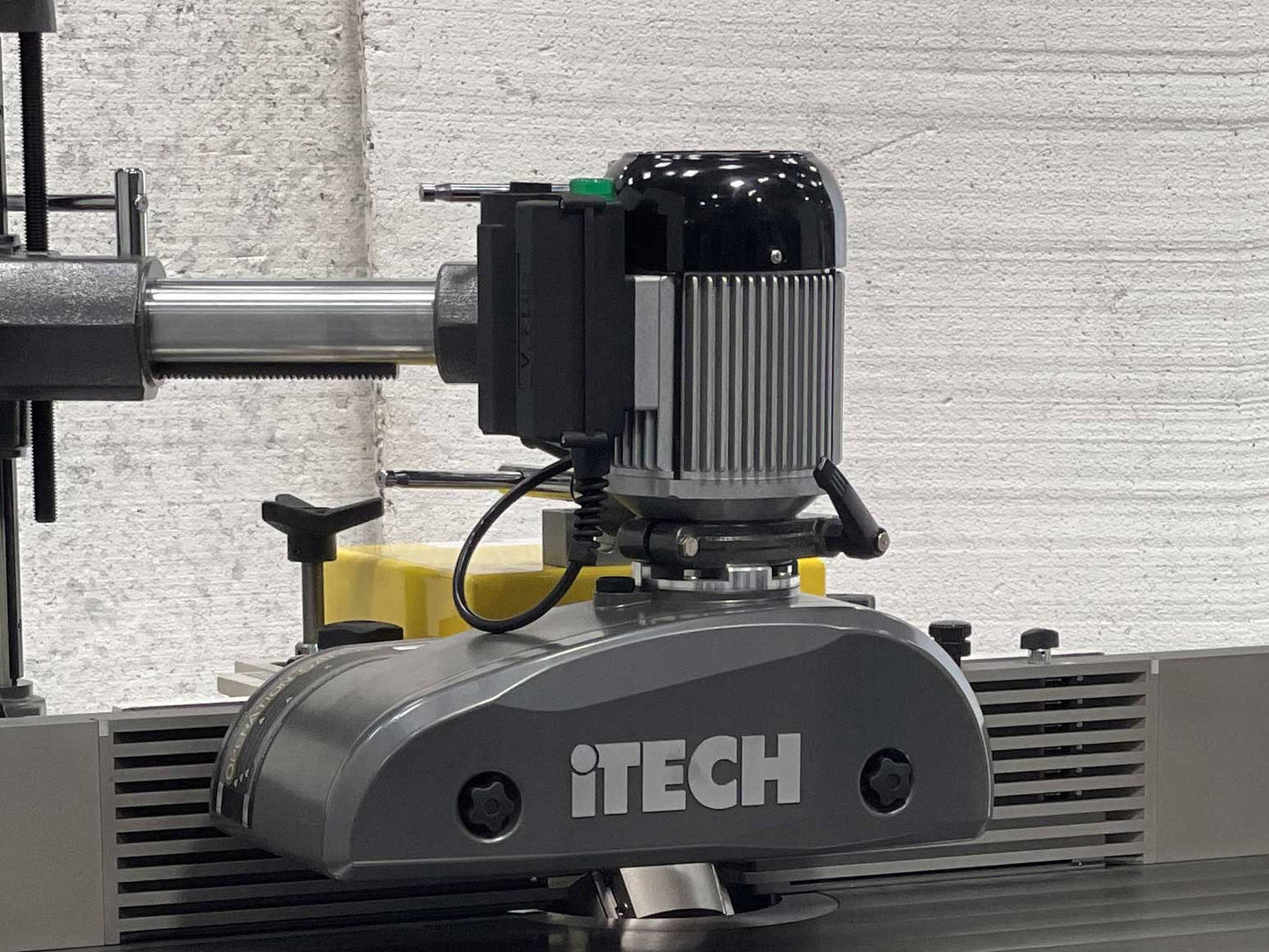

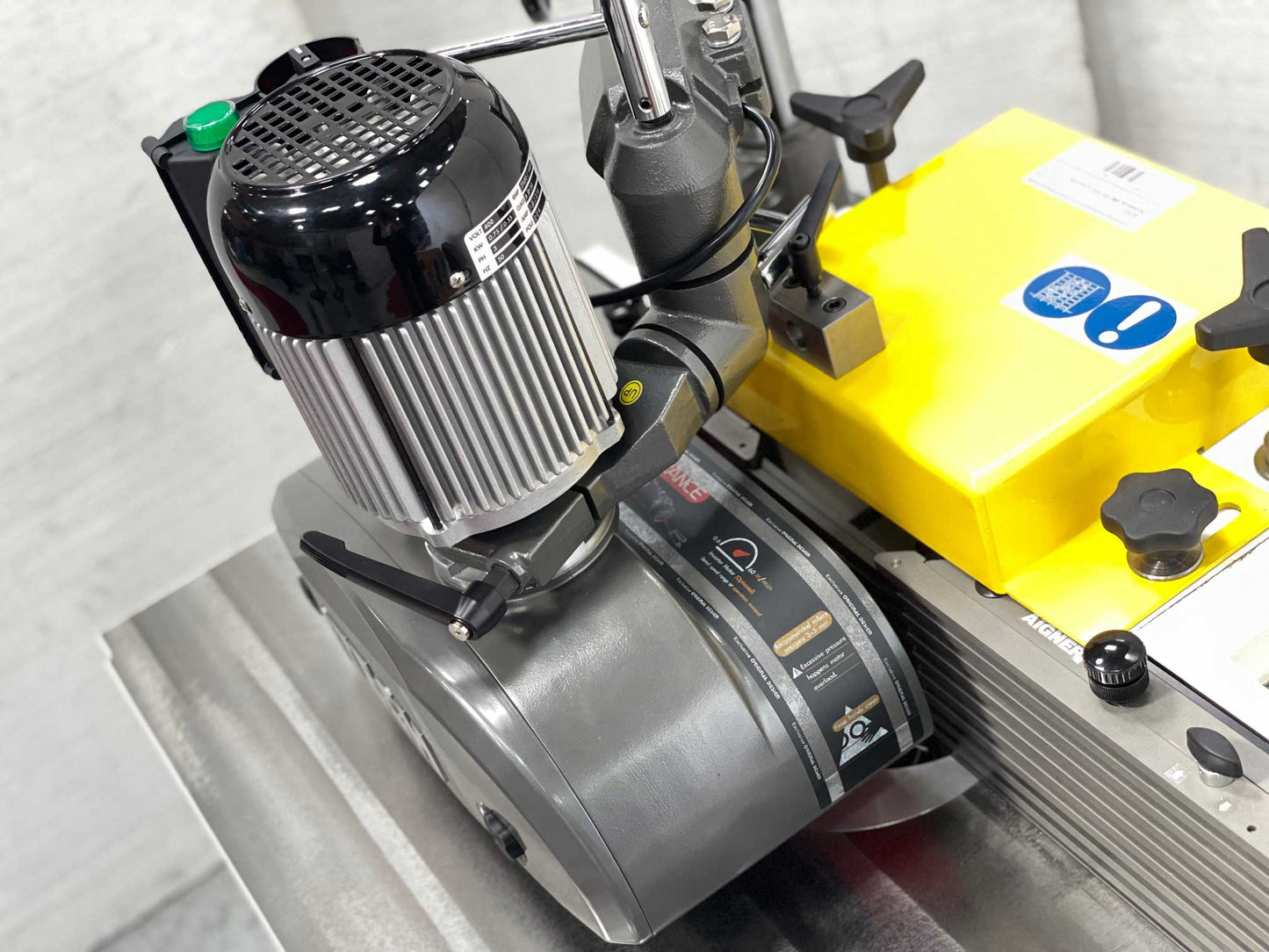

Improve spindle moulder productivity & safety with this high quality 8-speed automatic power feed unit designed for fixing to either a spindle moulders or other machines. It is supplied complete with a foot mounting stand for easy fixing & adjustment. The feed rollers are supported by spring-loaded steel hub axles for longevity.

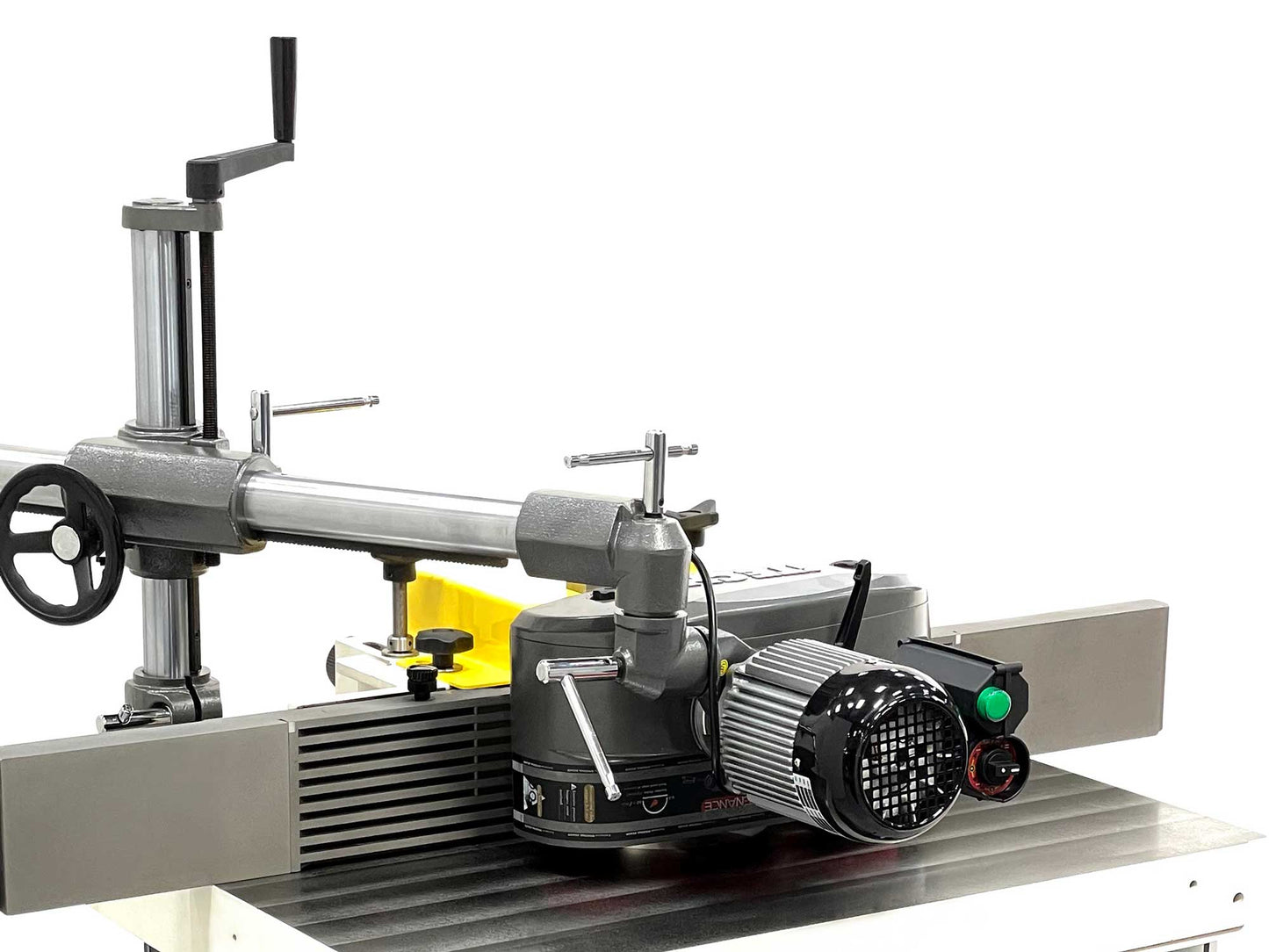

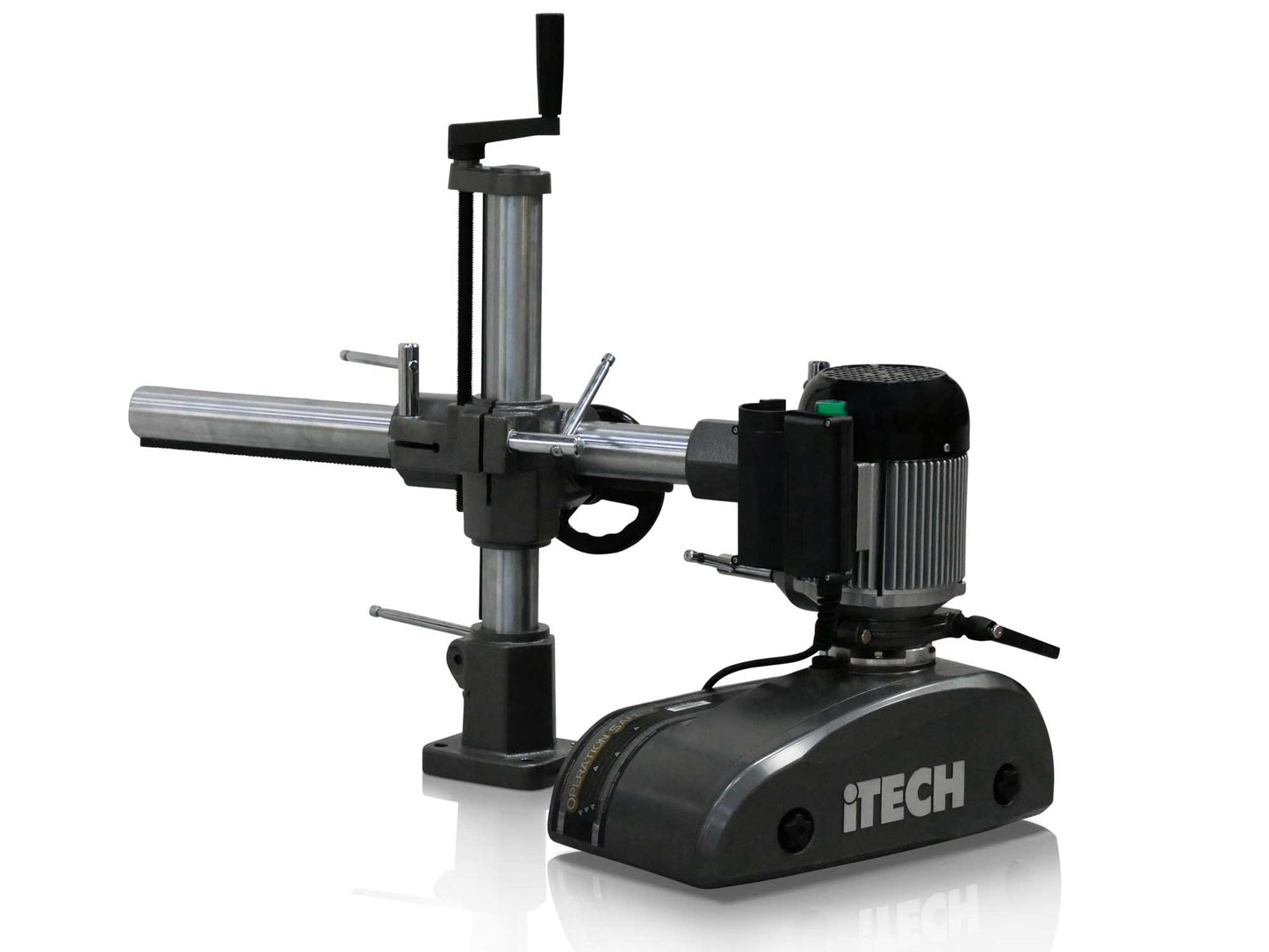

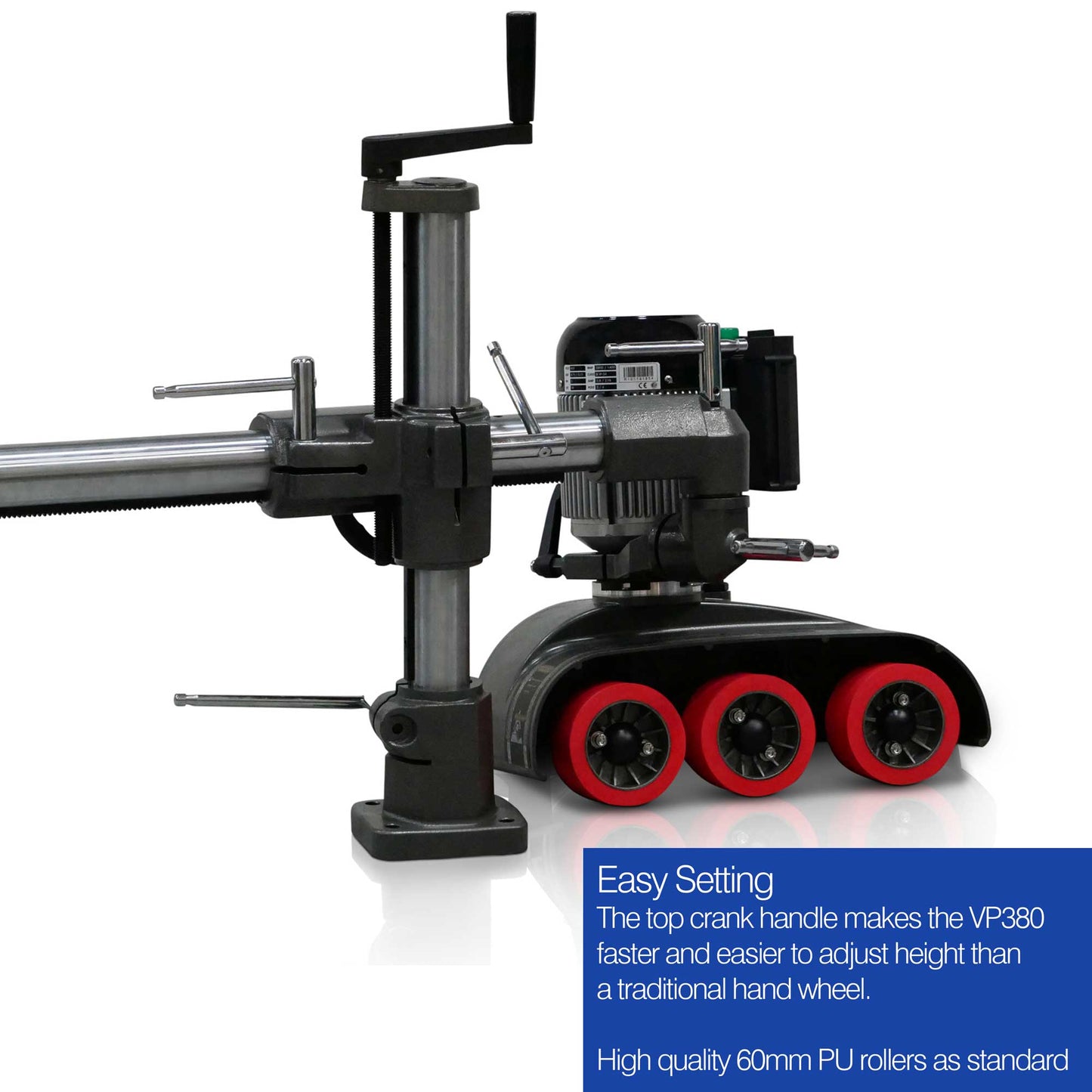

The stand uses a crank handle which gives more torque making it easier and faster to raise, lower and position the unit than the traditional wheel handles used on other feeders. The improved universal stand allows the head to be angled to either give fence pressure or downward pressure. All threads and racks are blacked to prevent corrosion. The column and arms are hard chrome finished preventing corrosion too.
Maximum height of workpiece under rollers 300mm

Recommended Gear Oil: MOBIL Mobilgear 630, Shell/Omala 150 BP, Energol GR-XP 150, or equivalents, 150 ml for each feeder.

• Number of feed roller: 3
• Number of feed speeds: 8
• Forwards + Reverse YES

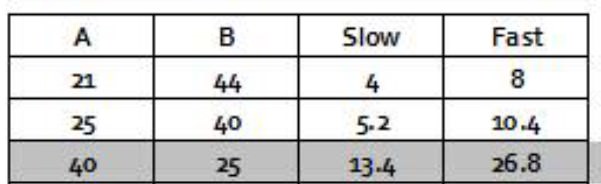

• Range of feed speed: 4/5/8/11/14/18/27/36 m/min
• Minimum feed length 280 mm
• Reverse Yes

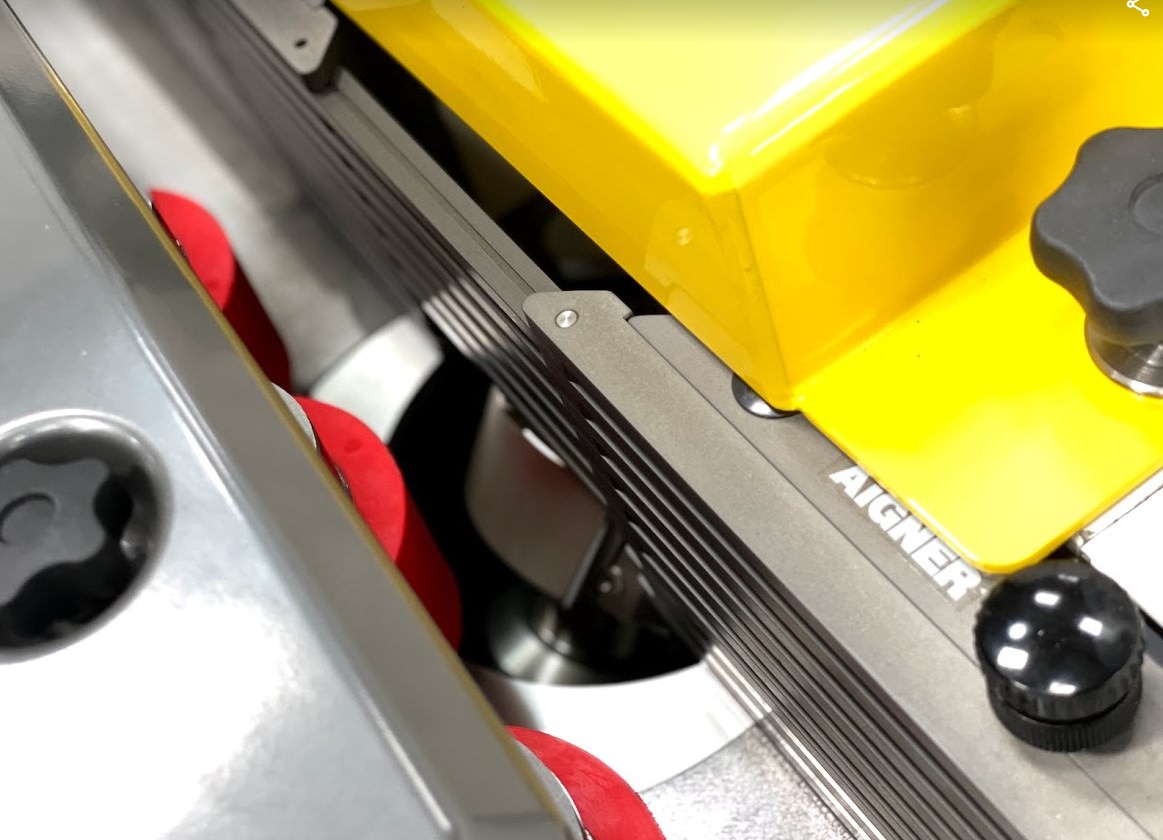

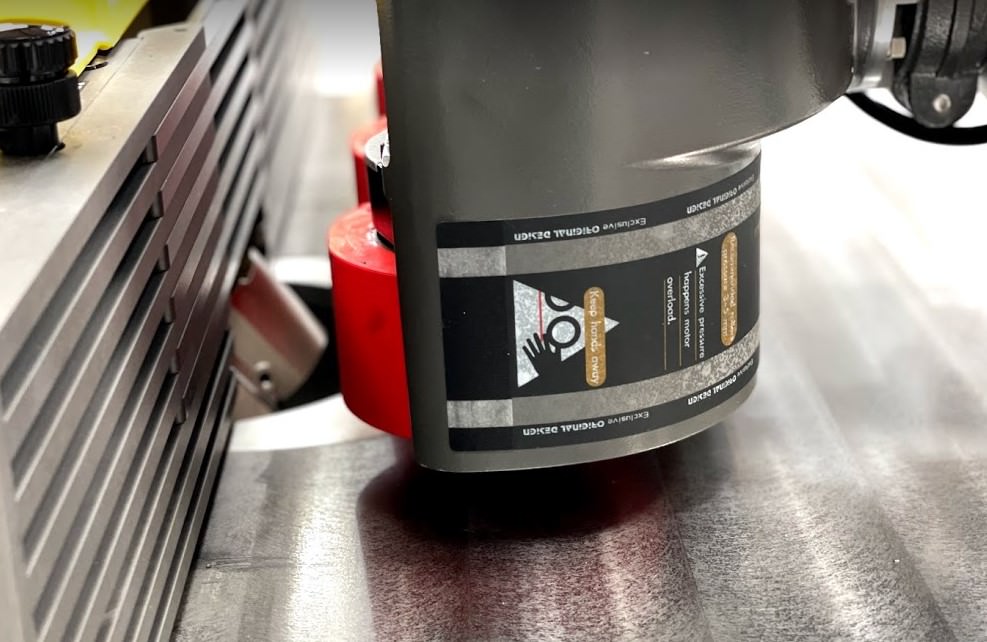

• Roller size: 120mm x 60 mm
• Roller Travel 27 mm
• Motor: 1.0 hp 3 ph
• Housing Die Cast Aluminium
• Column Diameter 58 mm
• Net/gross weight body: 30/32 kg
• stand: 35/37 kg
• Packing size: body: 705x325x537 mm
• stand: 750x320x300 mm
• Shaft size 58 mm
