TigerTec TR710 CNC Router Jumbo Sheet 3300x2100
TigerTec TR710 CNC Router Jumbo Sheet 3300x2100
Regular price
£50,000.00 GBP
Regular price
Sale price
£50,000.00 GBP
Unit price
per

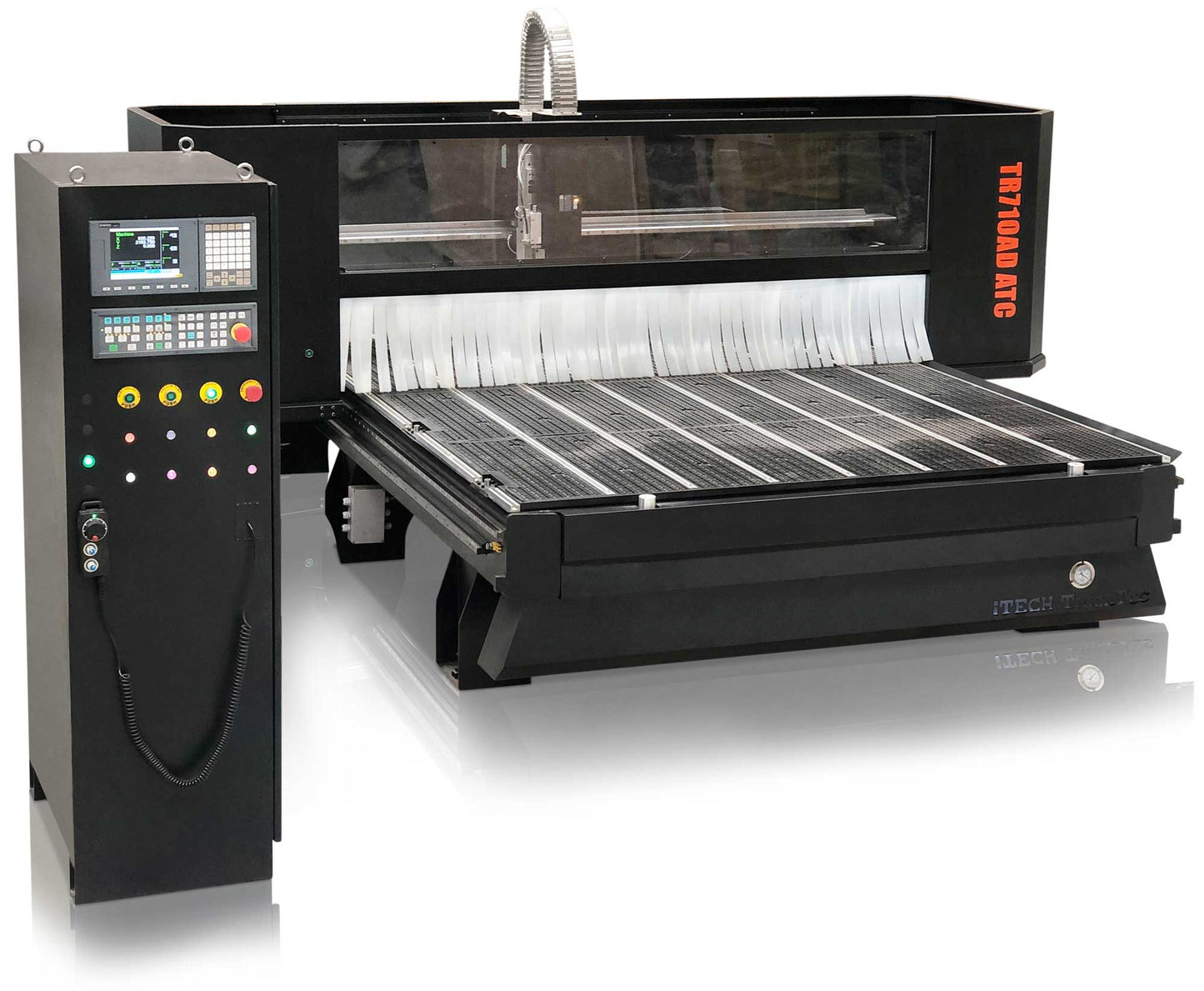

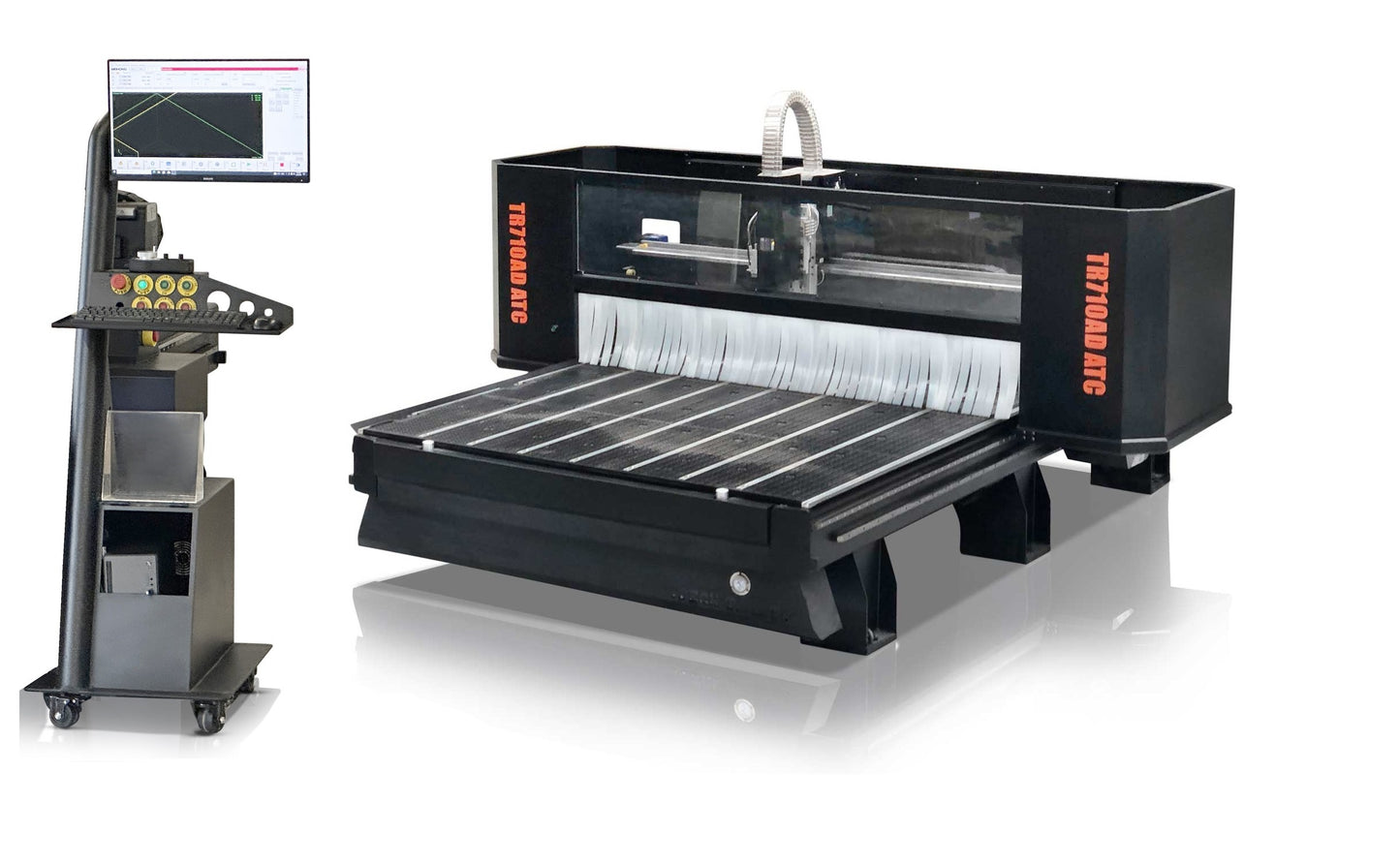

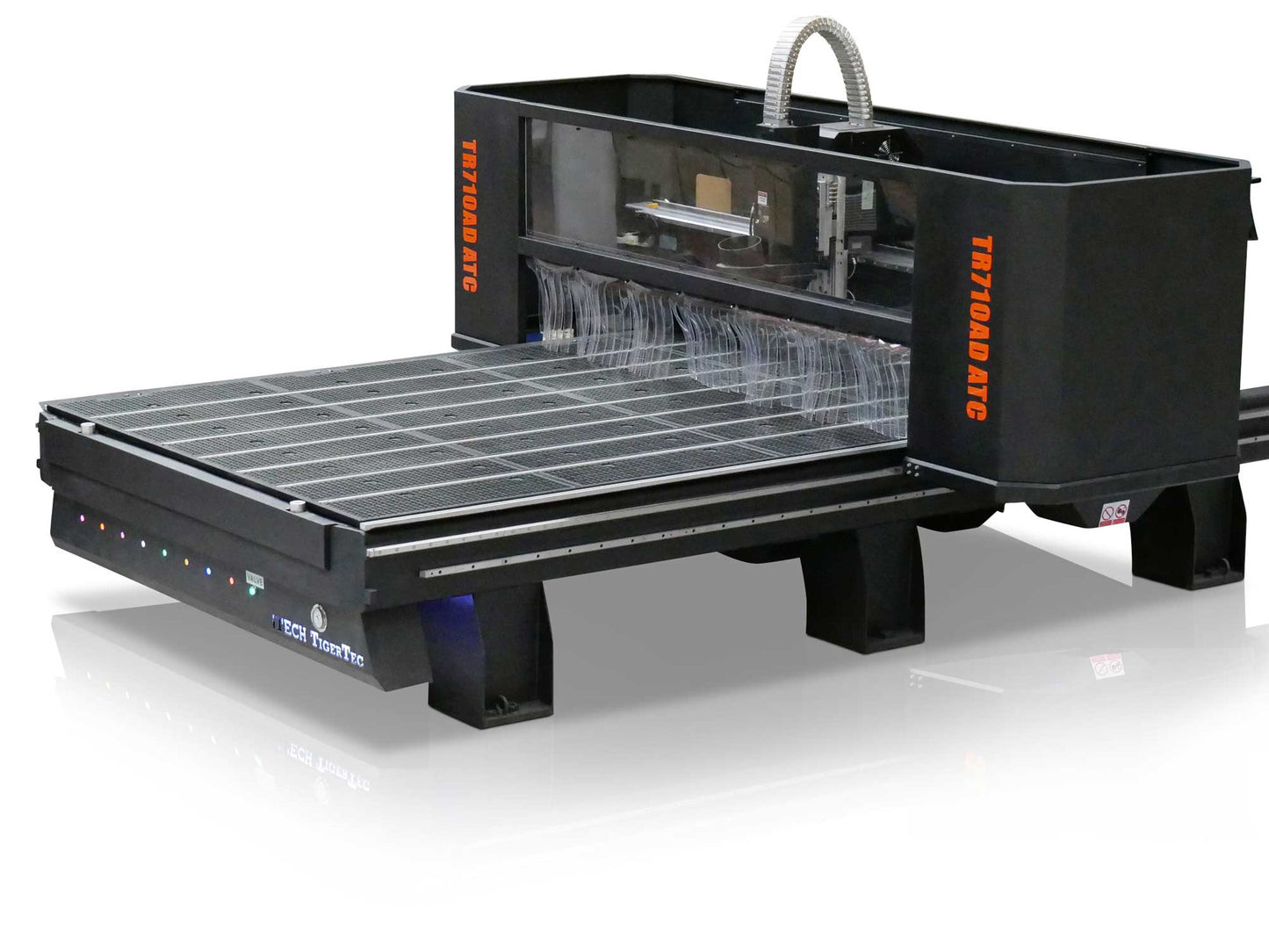

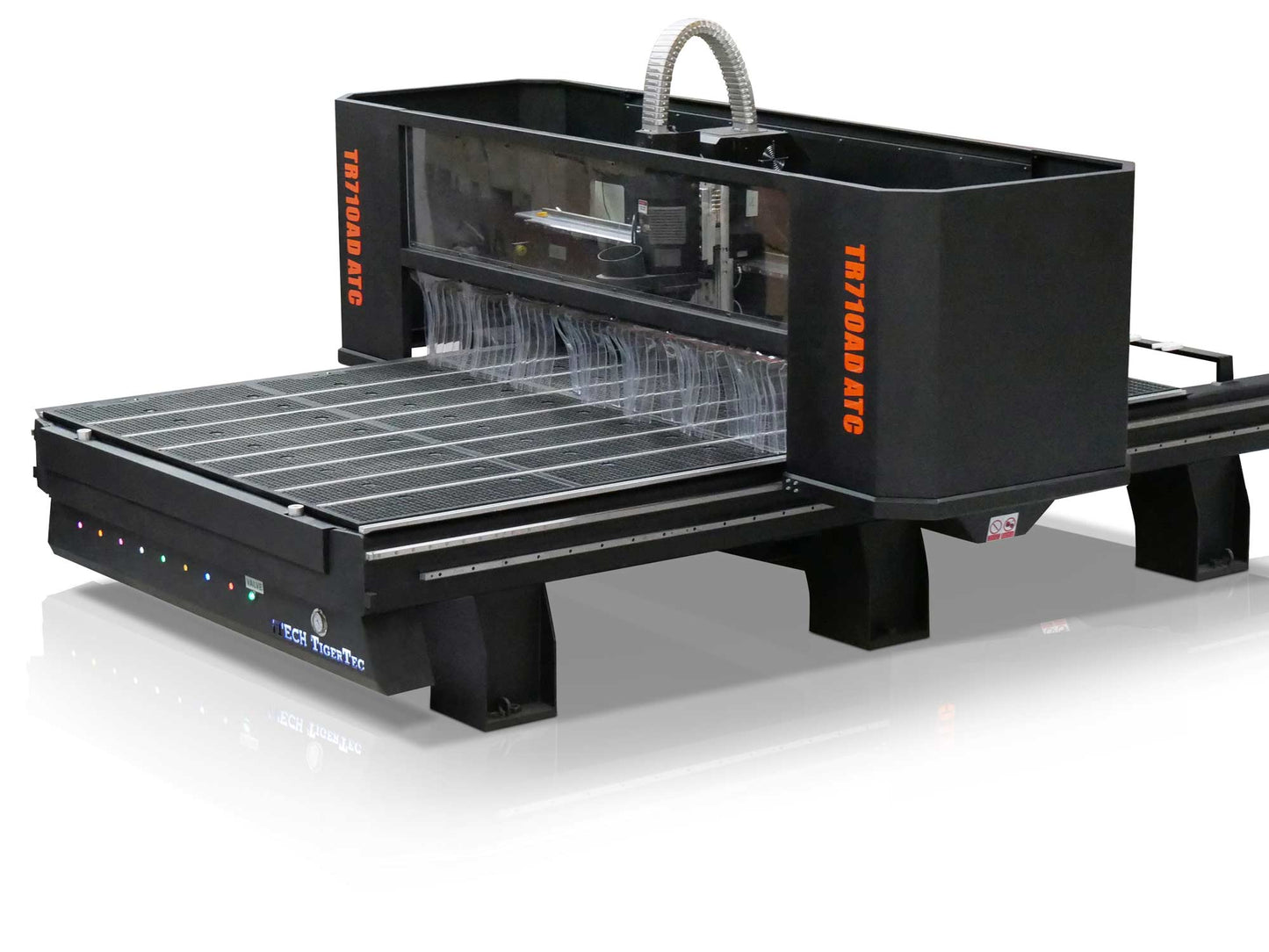

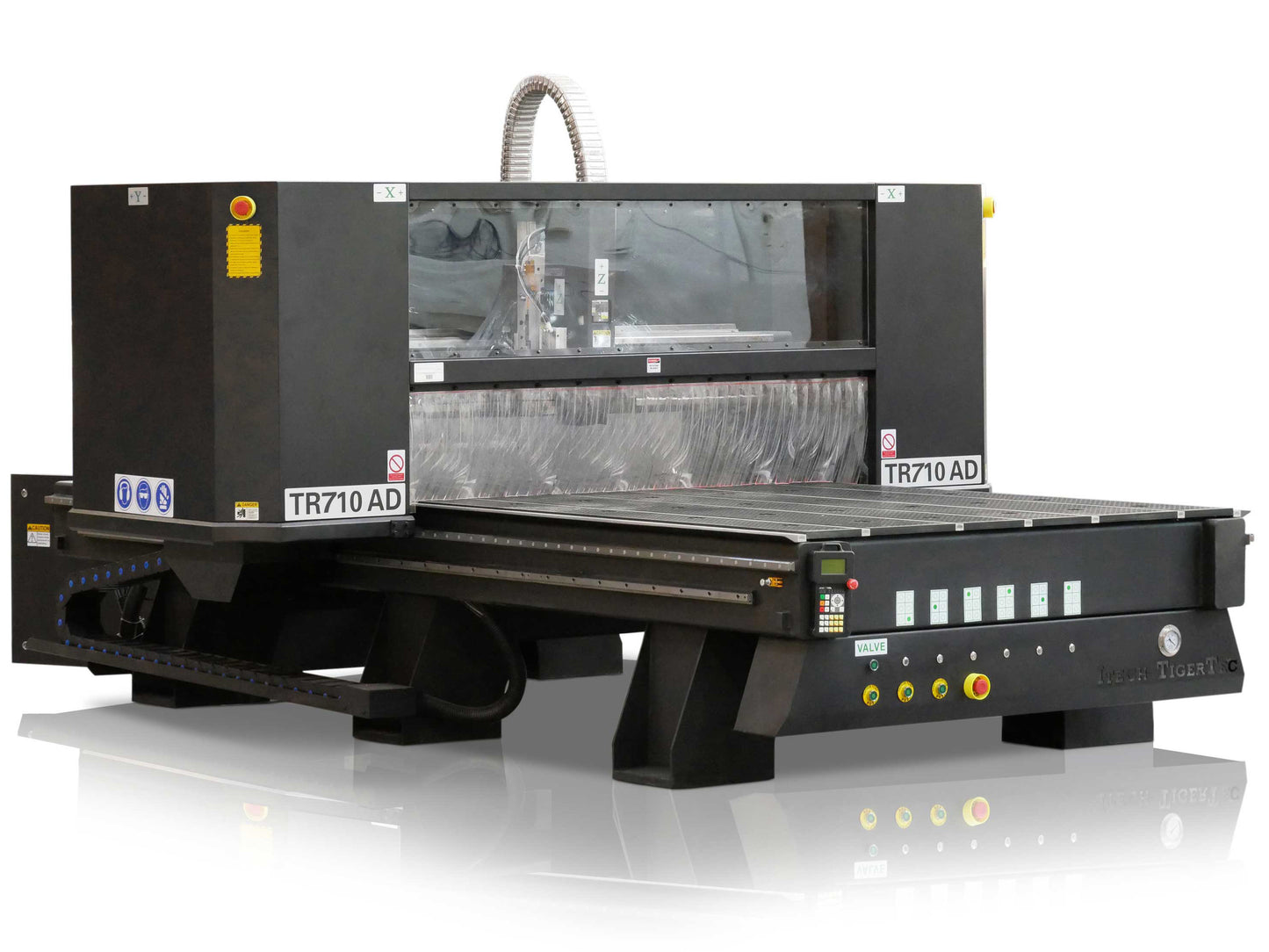

The TigerTec TR710ADTC is a flat Table CNC router with auto tool changer. It is designed for modern workshops who want a larger format compact CNC router with flexibility in mind. They are ideal for all manner of industries needing CNC speed and accuracy. This quality coupled with the bundled Vectric Software makes for a great package for routing, cutting and nesting.

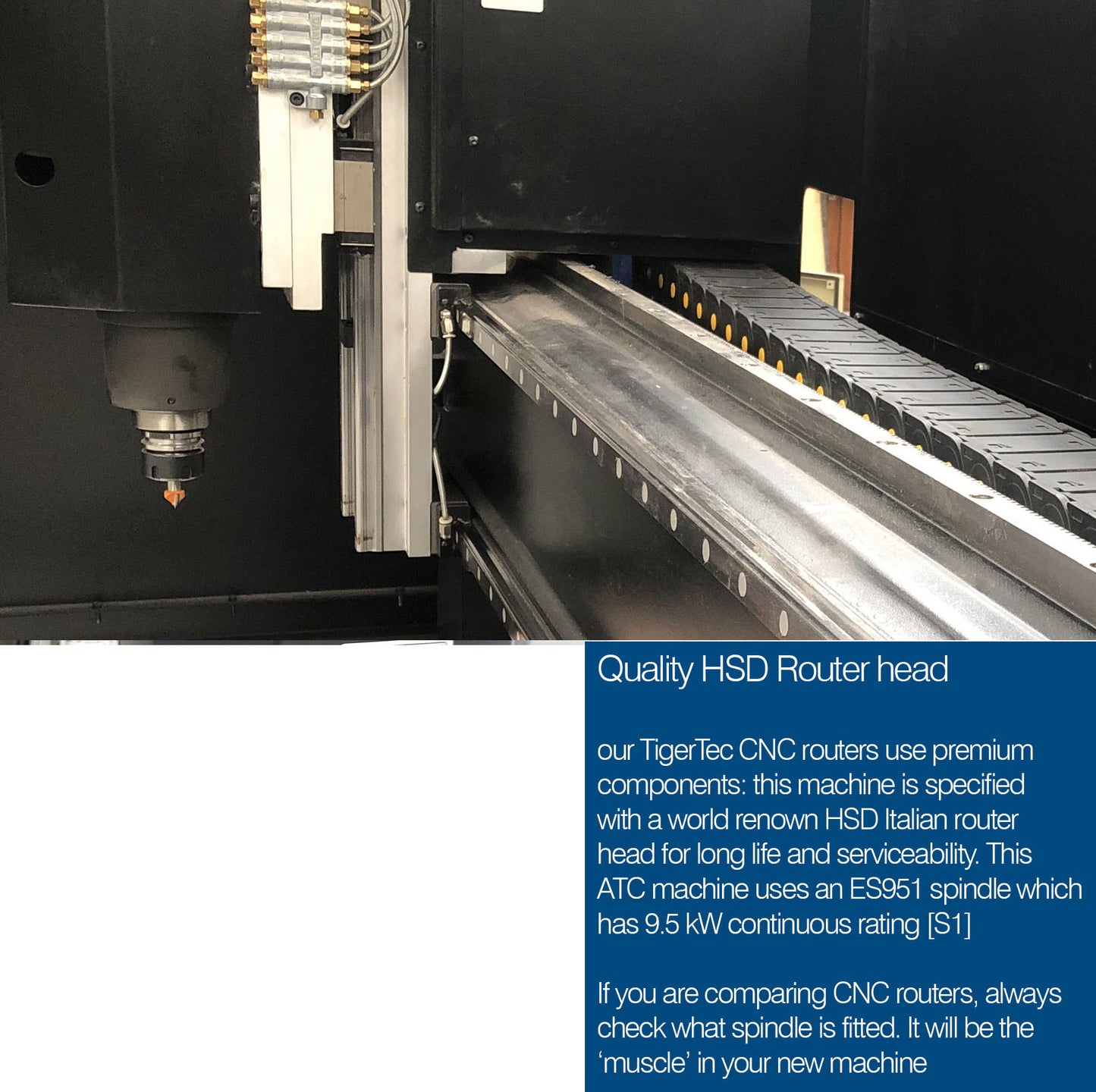

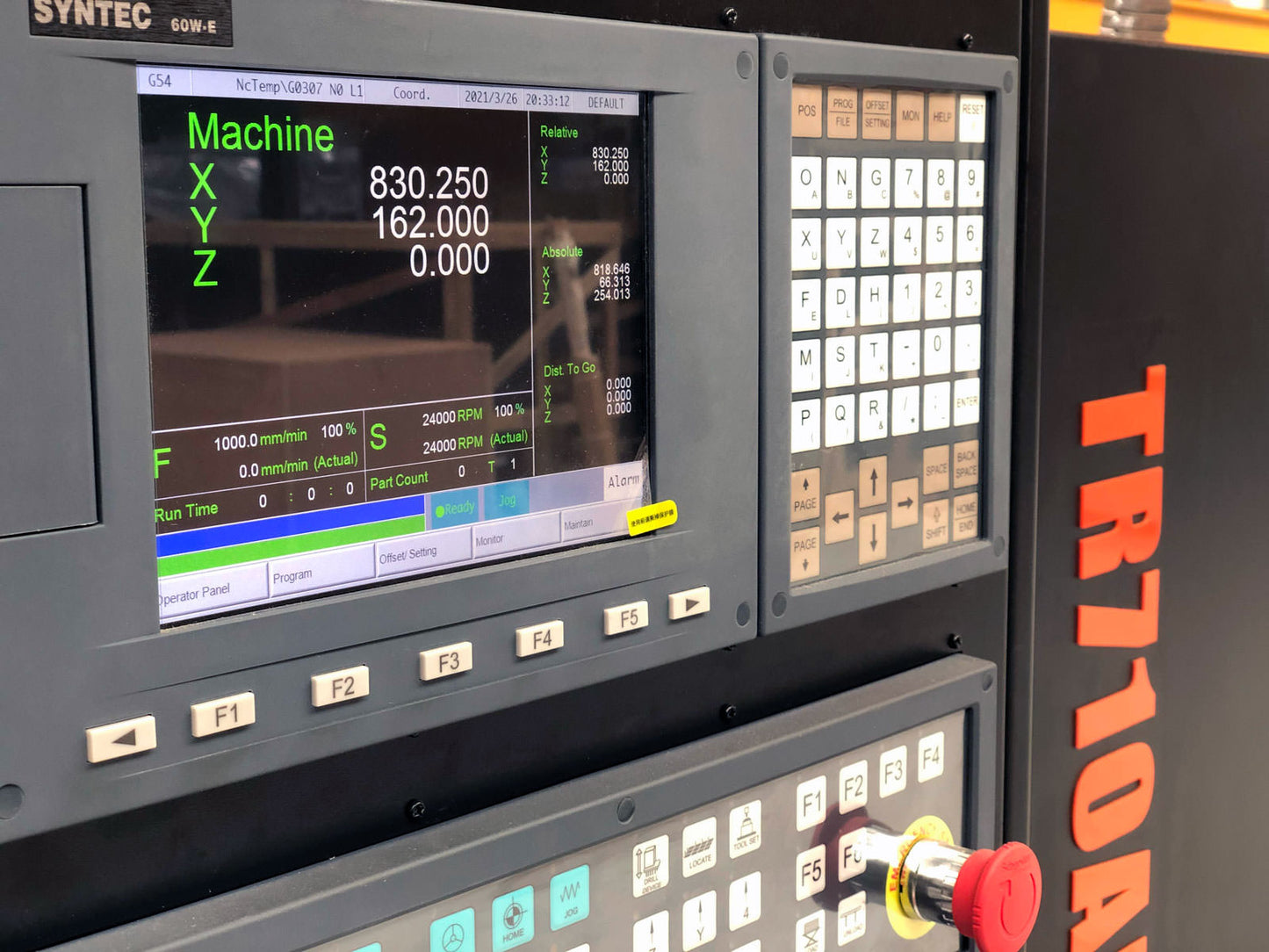

The heart of the machine is a 9.5kw Italian HSD router head with an easy to use DSP Hand-held Control. The controller is user-friendly for easy installation and training. Each command is very easy to read, understand, and execute.
We supply the machine complete with the latest version of Vectric VCarve Pro, which is easy to use and program, it is supplied with lots of clipart and can import common file formats.

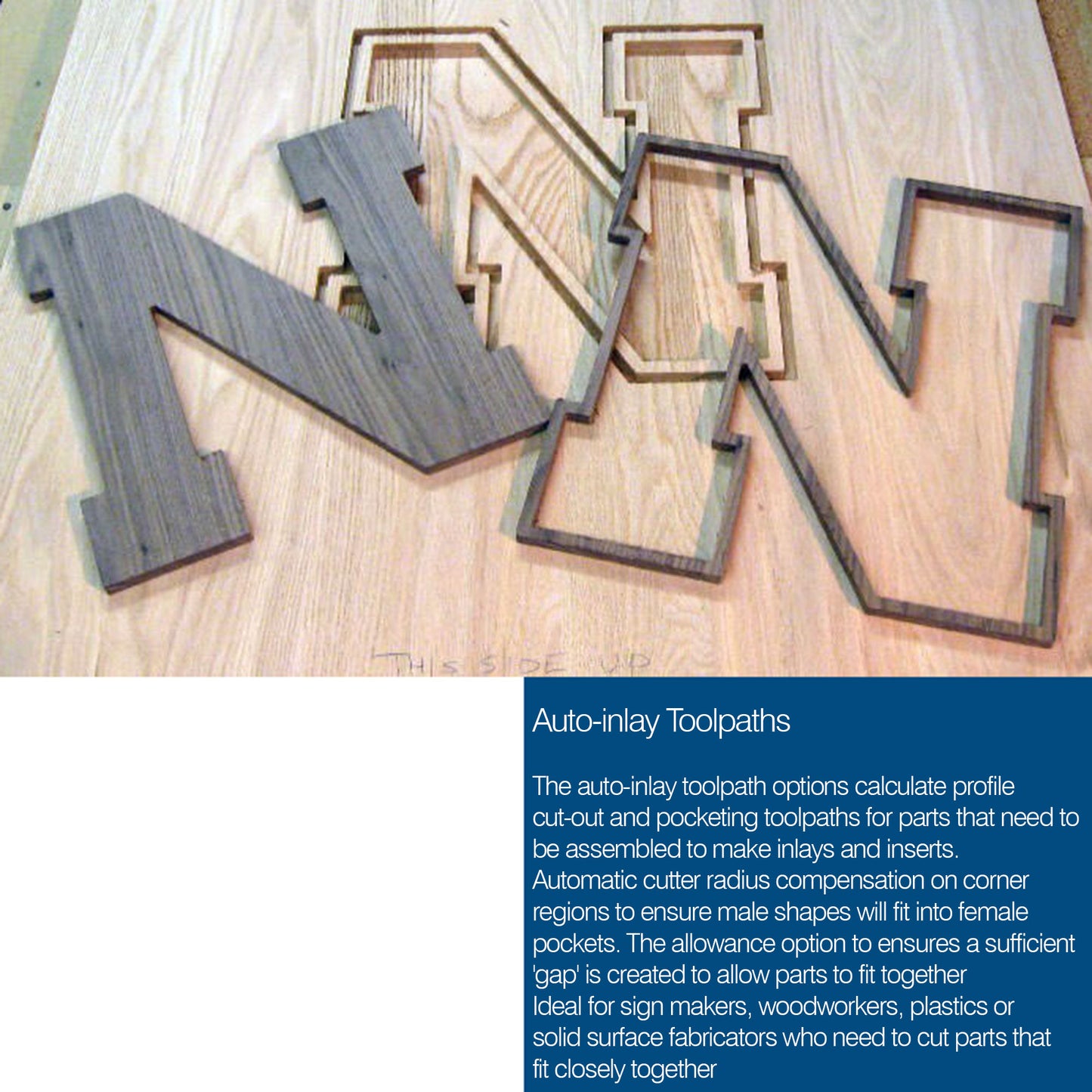

VCarve includes the functionality demanded for complex work while remaining incredibly easy to use. The software is used by cabinet makers, wood workers, sign makers, prop makers, plastic fabricators, and in many other applications
We can provide as much or as little training inhouse as you want either in our factory or we can offer on-site training and installation.

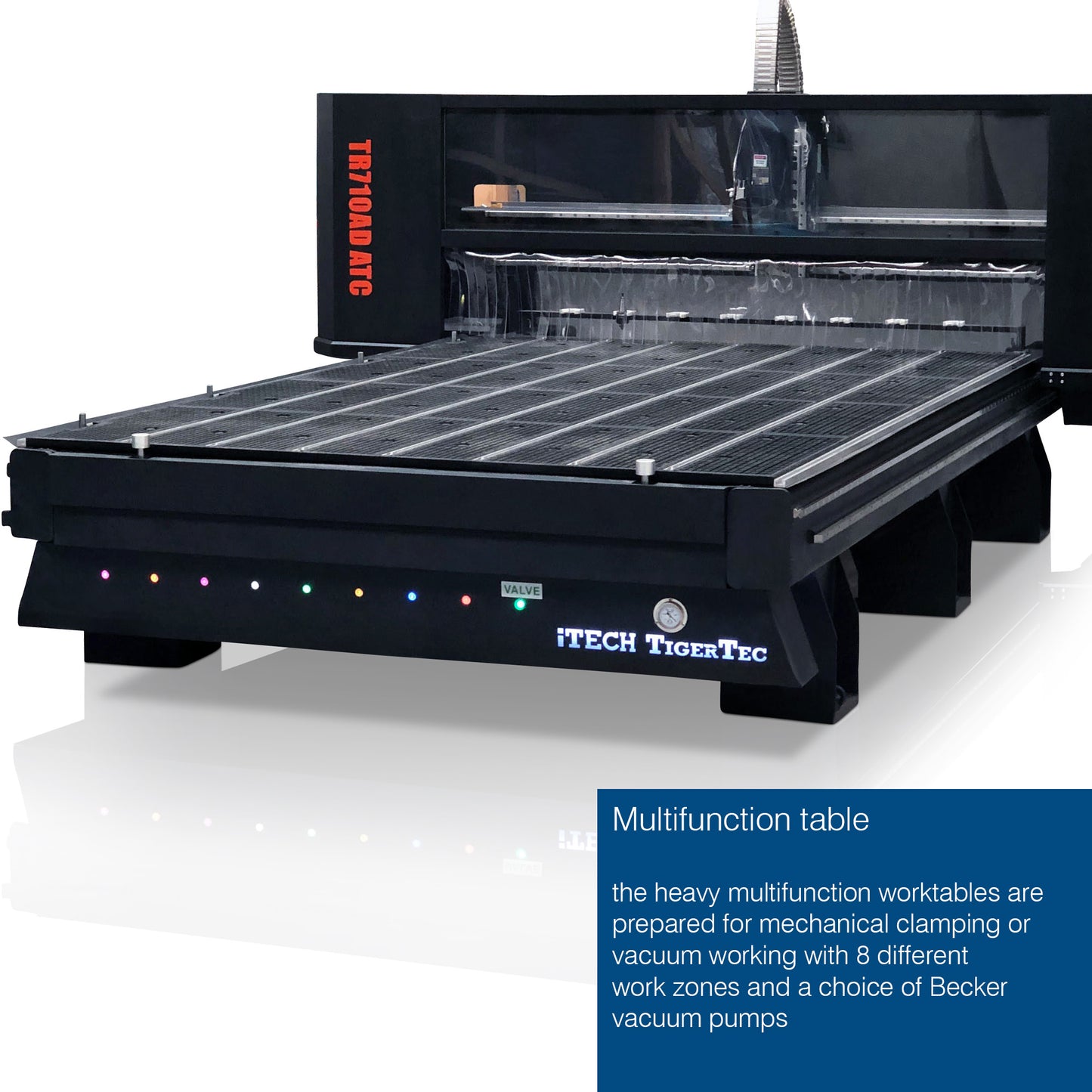

The multifunction table is prepared for mechanical clamping as standard and is prepared with an 8 zone vacuum system for the optional vacuum pump.

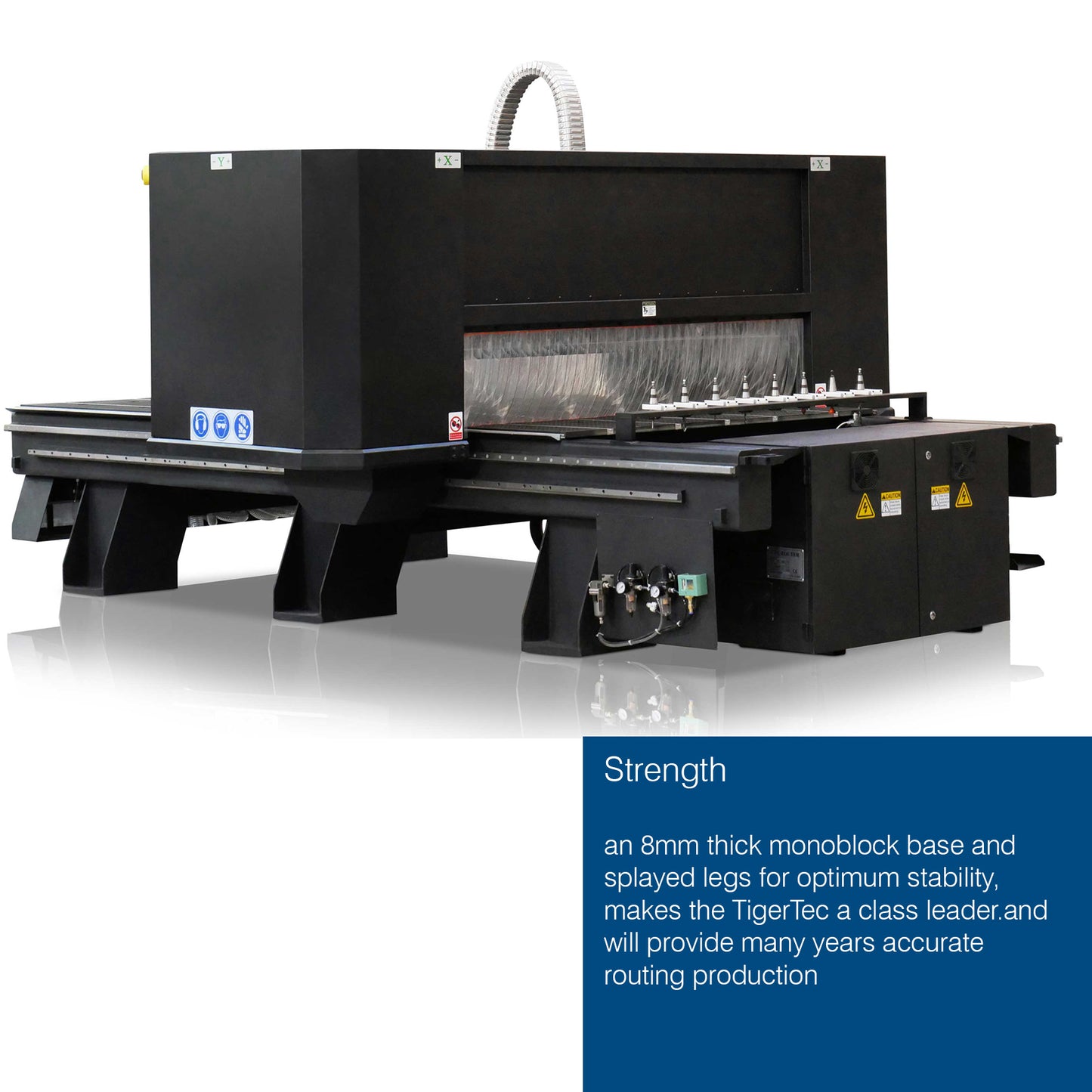

All TigerTec machines are built on a heavy 8mm thick steel base that is rectified, stress relieved, then machined and ground as one piece giving unprecedented repeatability and accuracy at this price level.
The steel gantry is reinforced throughout, it is then heat treated and annealed which results in class leading accuracy. The quality control, engineering and build results in smooth, clean precision machining centre.
Applications:
Exhibition Stands, General Woodworking, Furniture, Shopfitting, Scenery production, Sign-making, 2D and 3D Carving in woods, metals solid surface and plastics
12 Month Parts & Labour Warranty
24 Month Parts Warranty
Technical Specification:
Axis Travel: 2100 x 3300 mm
Z Axis 200mm
Router head motor 9.5kw HSD ES951
Auto Tool Changer 8 Positions
Tool holder ISO 30
Max cutting speed: 20m/min
Max moving speed: 30m/min
Included 8 Tools Holders
Twin Servo drive system, with Shimpo planetary reducer

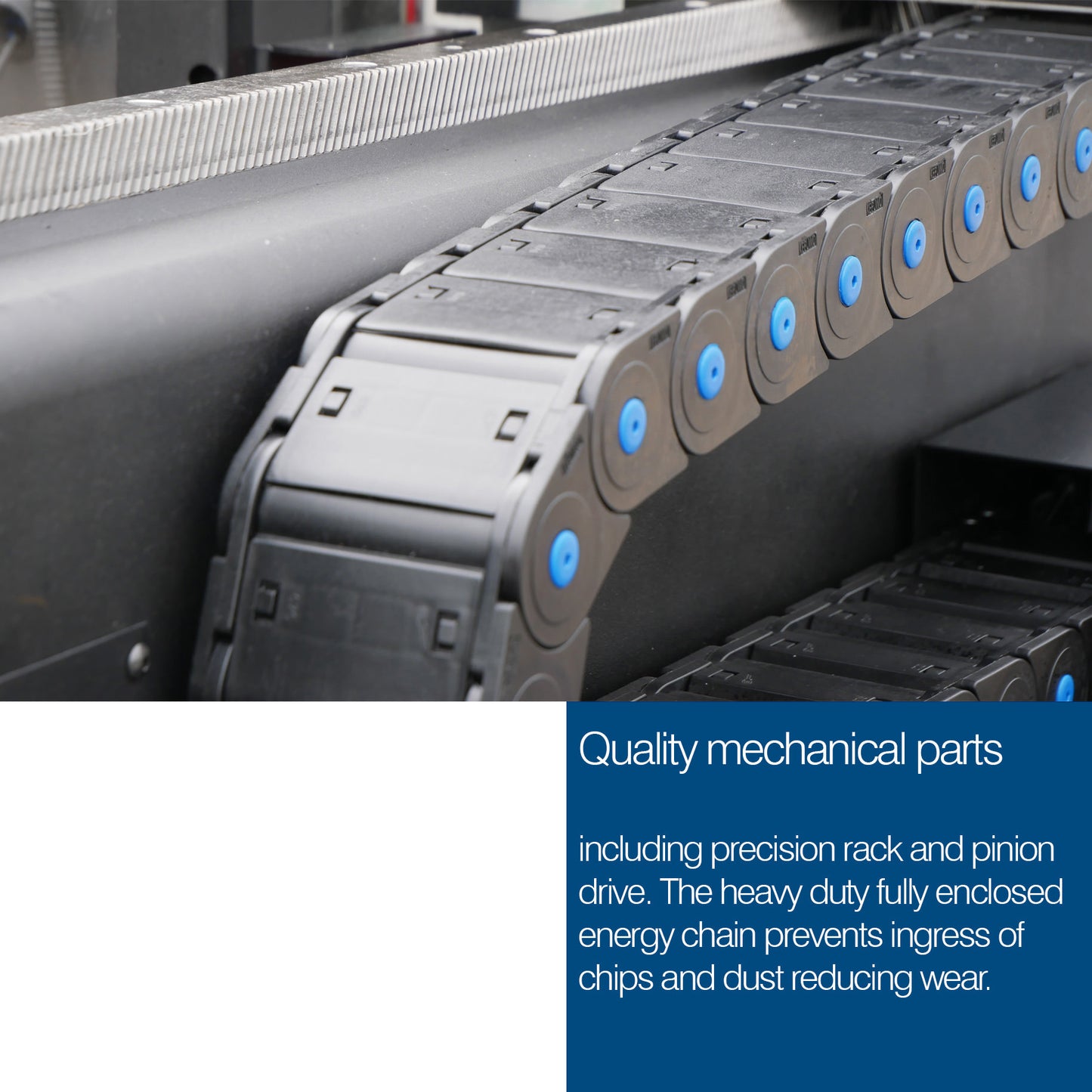

Transmission Rack + Pinion
Pneumatic activation for dust hood
Dust outlet dia. 150mm
Includes Tool length sensor
Bakelite Multifunction T-slot and vacuum table
Delta inverter
THK HSR25 rails and bearings with double wipers/seals for X&Y, HSR20
for z-axis with double wipers/seals
Accuracy 0.05mm
Frame thickness 8mm
SERVO motor on X/Y/Z axis
Power requirement 415V 63A
footprint 3600 x 4600mm
ER32 Collets included 2 pcs 1/2", 2 pcs 3/8", 2 pcs 1/4", 2 pcs 1/8"
Vacuum pump Optional 250 cbm
Light Barriers Optional
The router requires an Air compressor with Air Dryer (sold separately). The compressor needs to have a flow rate of 0.3 m3/min (10.5 cf/min) and a 3kw motor, these are the minimum requirements.
The heart of the machine is a 9.5kw Italian HSD router head with an easy to use DSP Hand-held Control. The controller is user-friendly for easy installation and training. Each command is very easy to read, understand, and execute.
We supply the machine complete with the latest version of Vectric VCarve Pro, which is easy to use and program, it is supplied with lots of clipart and can import common file formats.
VCarve includes the functionality demanded for complex work while remaining incredibly easy to use. The software is used by cabinet makers, wood workers, sign makers, prop makers, plastic fabricators, and in many other applications
We can provide as much or as little training inhouse as you want either in our factory or we can offer on-site training and installation.
The multifunction table is prepared for mechanical clamping as standard and is prepared with an 8 zone vacuum system for the optional vacuum pump.
All TigerTec machines are built on a heavy 8mm thick steel base that is rectified, stress relieved, then machined and ground as one piece giving unprecedented repeatability and accuracy at this price level.
The steel gantry is reinforced throughout, it is then heat treated and annealed which results in class leading accuracy. The quality control, engineering and build results in smooth, clean precision machining centre.
Applications:
Exhibition Stands, General Woodworking, Furniture, Shopfitting, Scenery production, Sign-making, 2D and 3D Carving in woods, metals solid surface and plastics
12 Month Parts & Labour Warranty
24 Month Parts Warranty
Technical Specification:
Axis Travel: 2100 x 3300 mm
Z Axis 200mm
Router head motor 9.5kw HSD ES951
Auto Tool Changer 8 Positions
Tool holder ISO 30
Max cutting speed: 20m/min
Max moving speed: 30m/min
Included 8 Tools Holders
Twin Servo drive system, with Shimpo planetary reducer
Transmission Rack + Pinion
Pneumatic activation for dust hood
Dust outlet dia. 150mm
Includes Tool length sensor
Bakelite Multifunction T-slot and vacuum table
Delta inverter
THK HSR25 rails and bearings with double wipers/seals for X&Y, HSR20
for z-axis with double wipers/seals
Accuracy 0.05mm
Frame thickness 8mm
SERVO motor on X/Y/Z axis
Power requirement 415V 63A
footprint 3600 x 4600mm
ER32 Collets included 2 pcs 1/2", 2 pcs 3/8", 2 pcs 1/4", 2 pcs 1/8"
Vacuum pump Optional 250 cbm
Light Barriers Optional
The router requires an Air compressor with Air Dryer (sold separately). The compressor needs to have a flow rate of 0.3 m3/min (10.5 cf/min) and a 3kw motor, these are the minimum requirements.
