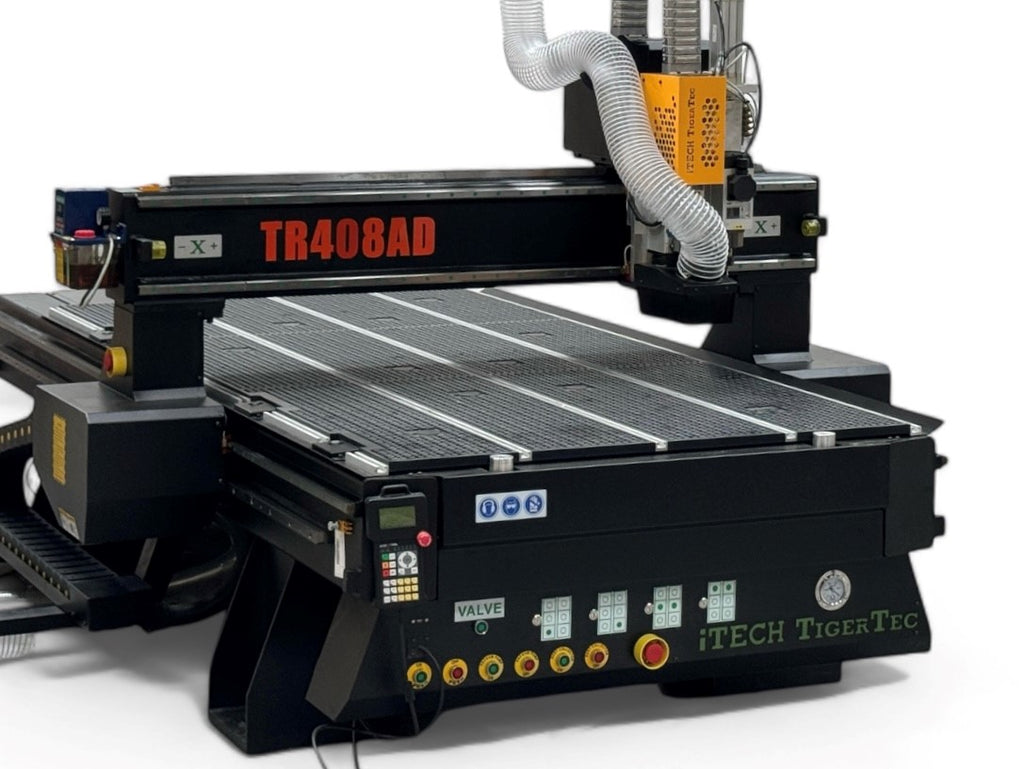

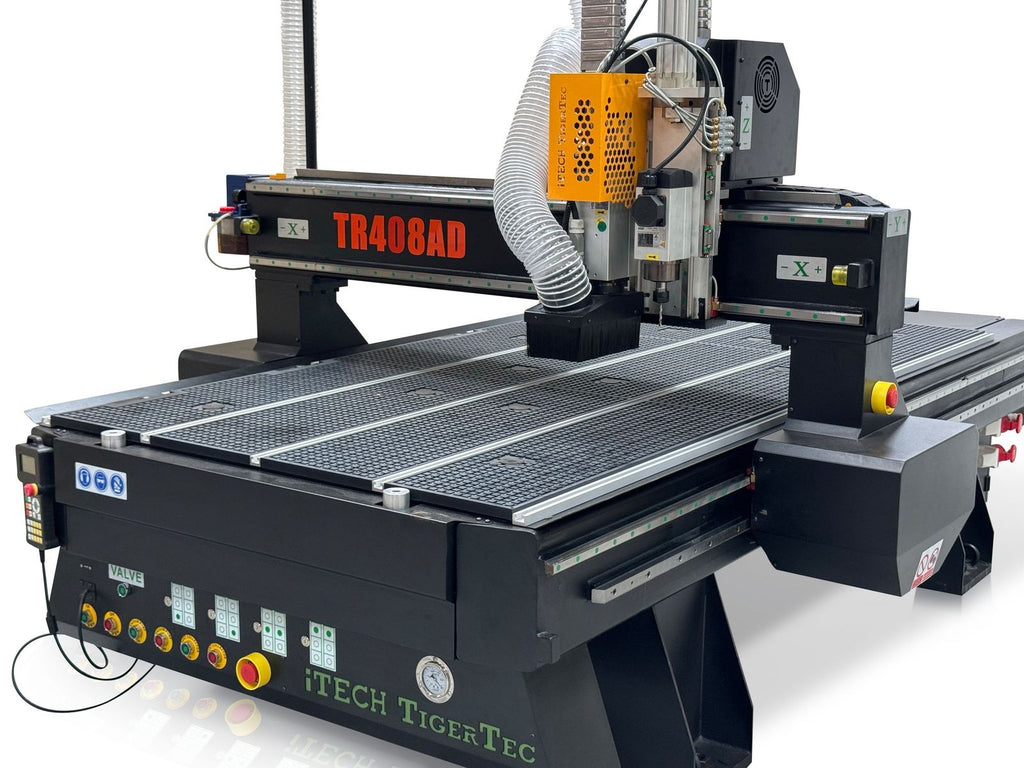

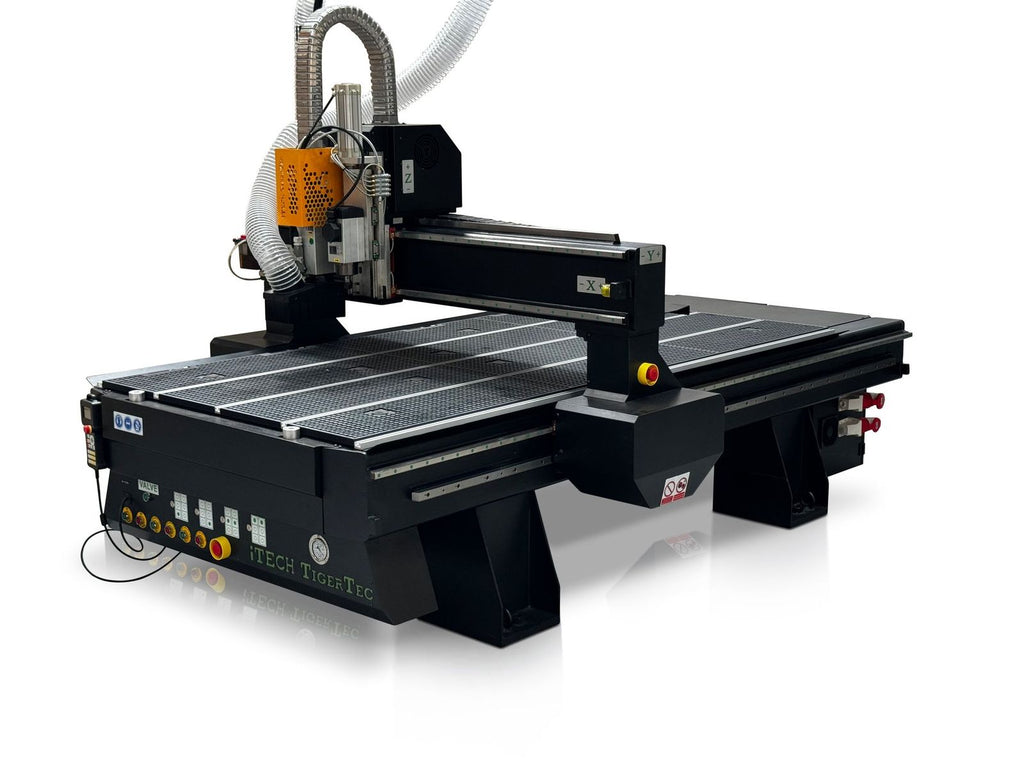

TIGERTEC TR408AD 8x4 CNC Router with Drilling

The TigerTec TR408AD 8x4 Flat Table CNC router is designed for modern workshops with flexibility in mind. They are ideal for all manner of industries needing CNC speed and accuracy. The TigerTec is set apart from other machines at this level using top quality components and manufacturing techniques, coupled with the latest version Vectric VCarve Pro software makes this an unbeatable package.

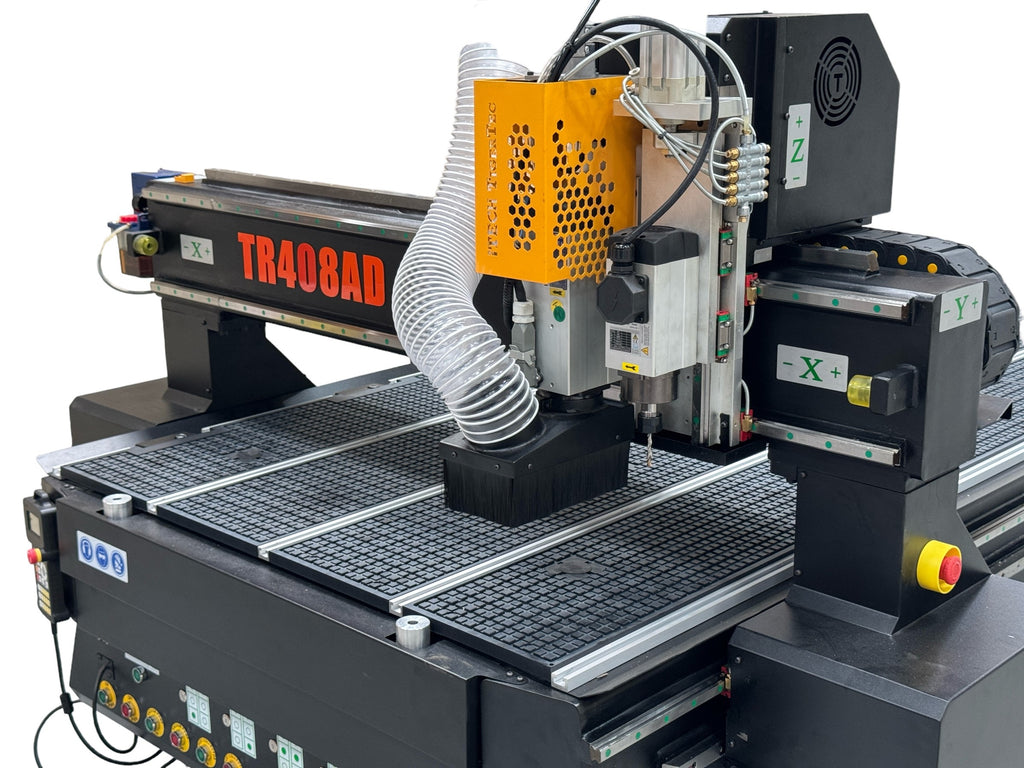

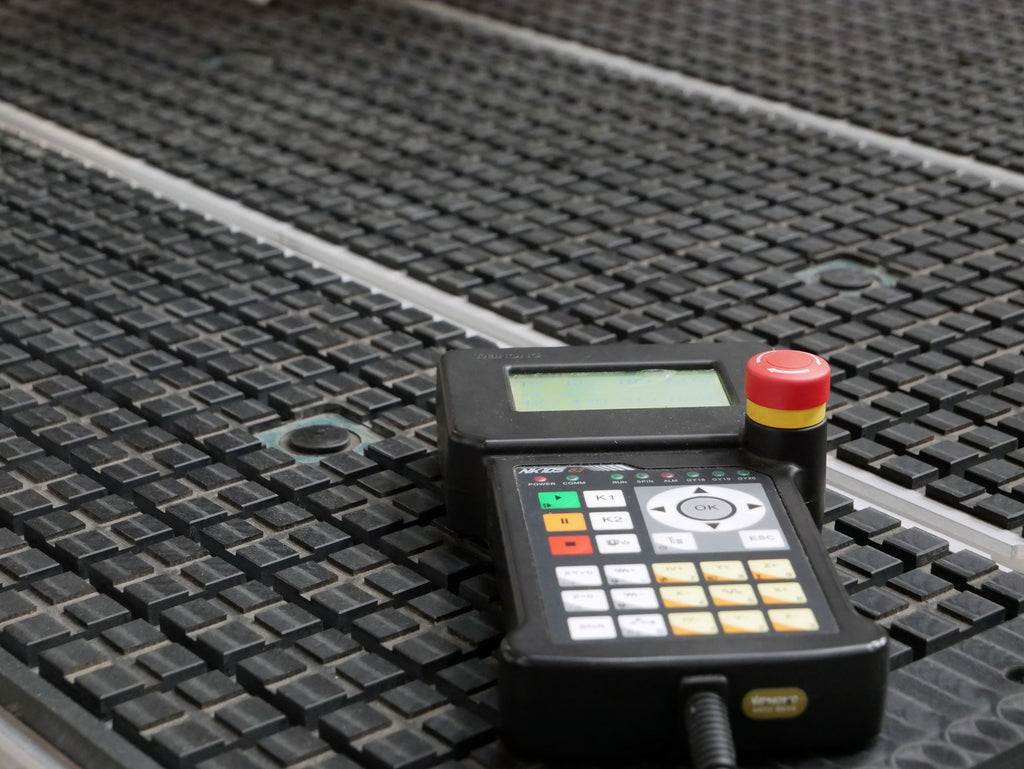

The heart of the machine is an Italian HSD [Biesse] router head which can peak at 9.78 hp [S6]. Control is with an easy to use DSP hand-held mobile. The controller is user-friendly for easy installation and training. Each command is very easy to read, understand, and execute.

We supply the machine complete with the latest version of Vectric V-Carve Pro.

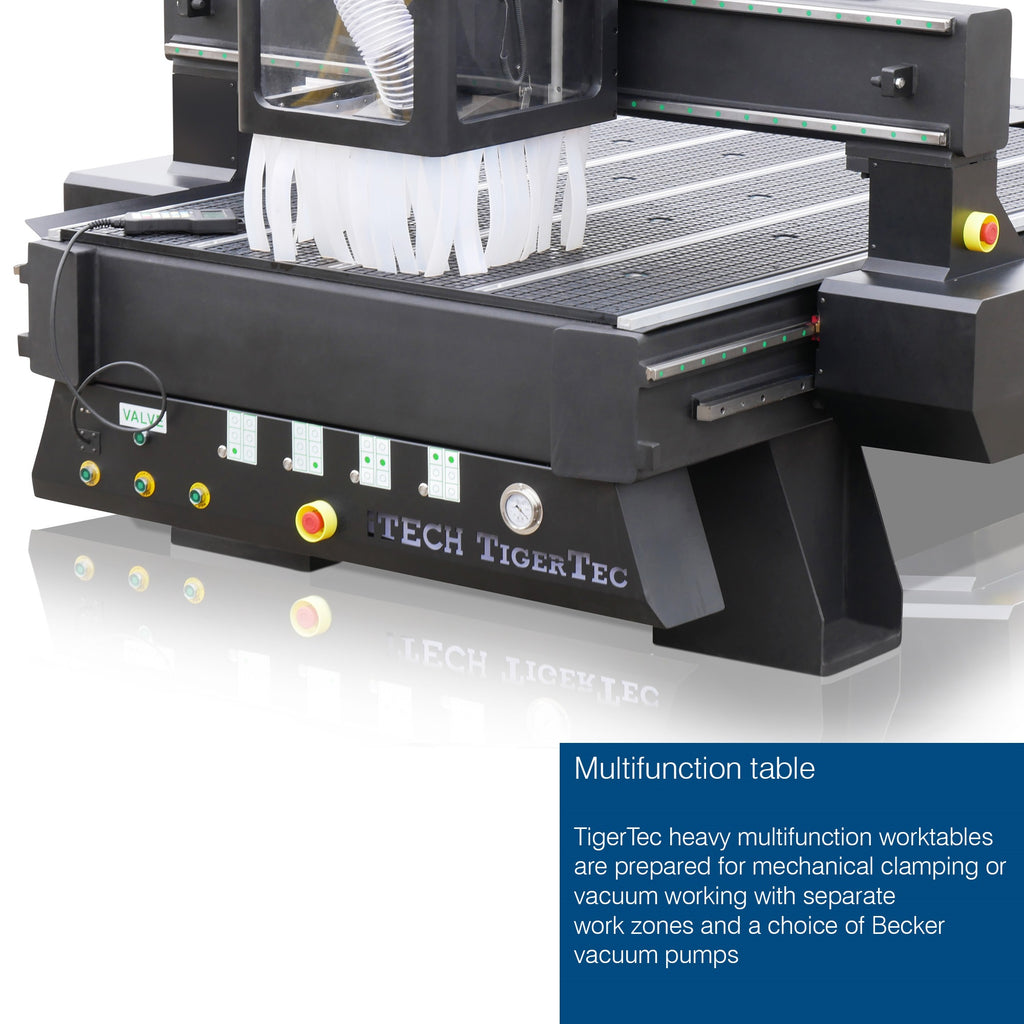

The multifunction table is prepared for mechanical clamping as standard and is prepared with an 8 zone vacuum system for the optional vacuum pump.

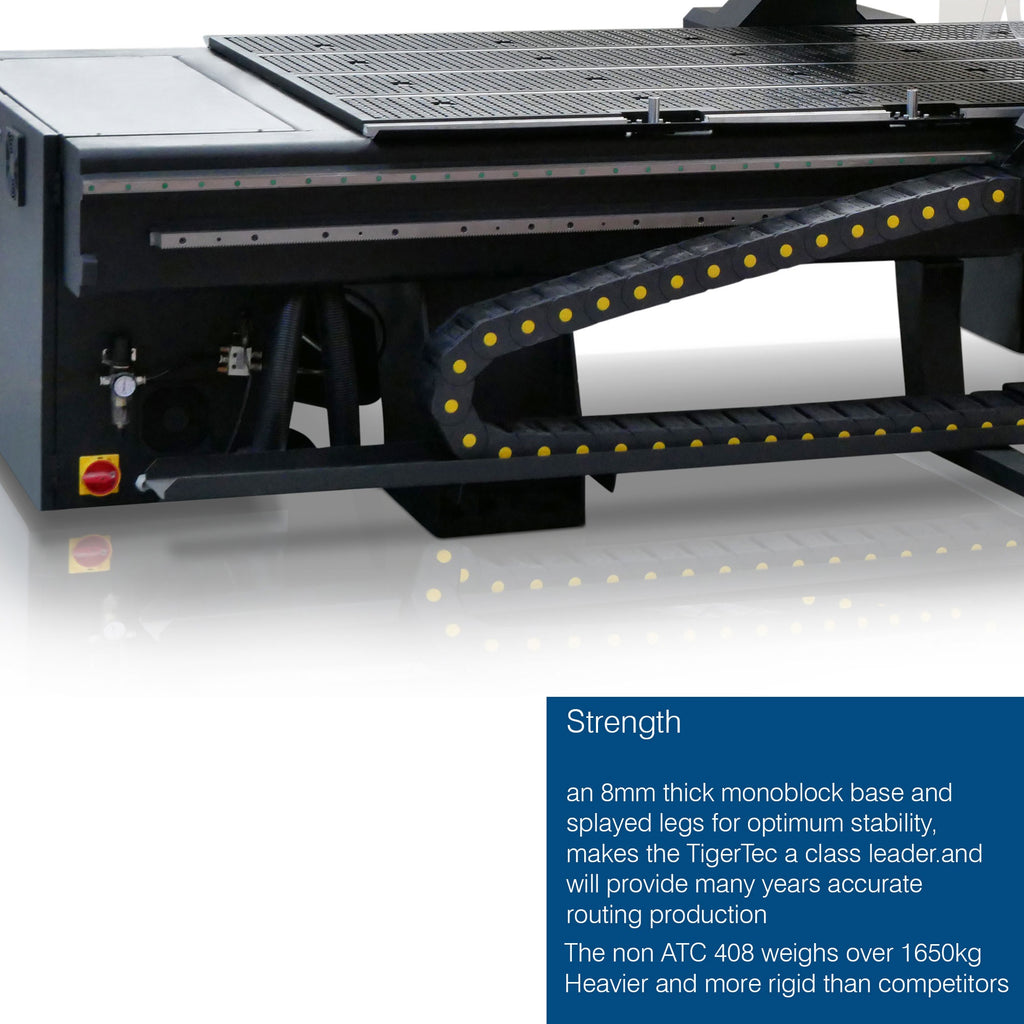

All TigerTec machines are built on a heavy 8mm thick steel base that is rectified, stress relieved, then machined and ground as one piece giving unprecedented repeatability and accuracy at this price level.
The steel gantry is reinforced throughout, it is then heat treated and annealed which results in class leading accuracy. The quality control, engineering and build results in smooth, clean precision machining centre.

Class leading features:
HSD Router head

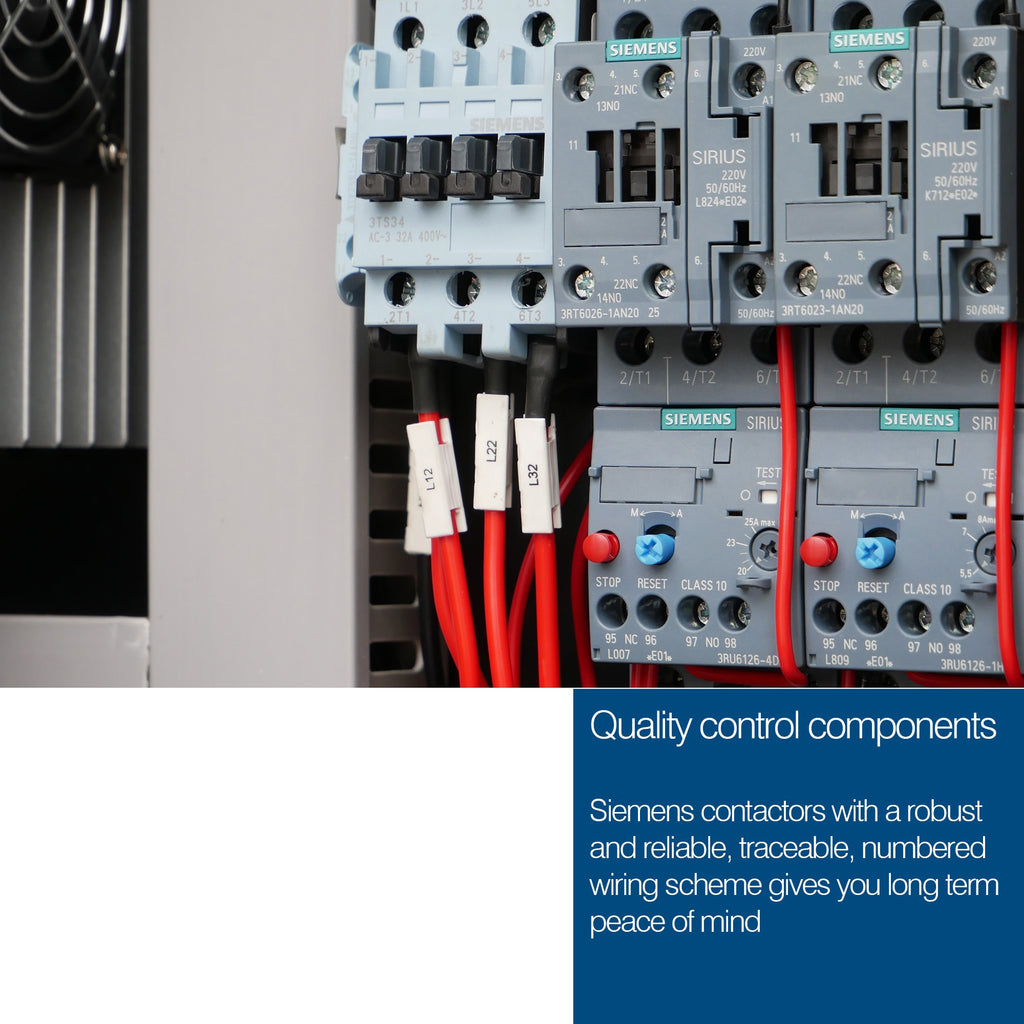

Siemens contactors
Delta inverter
Centralised lubrication
Rack & Pinion drive
HiWin HG20 linear guides for 3 axes
Multifunction table for nesting or clamps
Auto Machine Lubrication

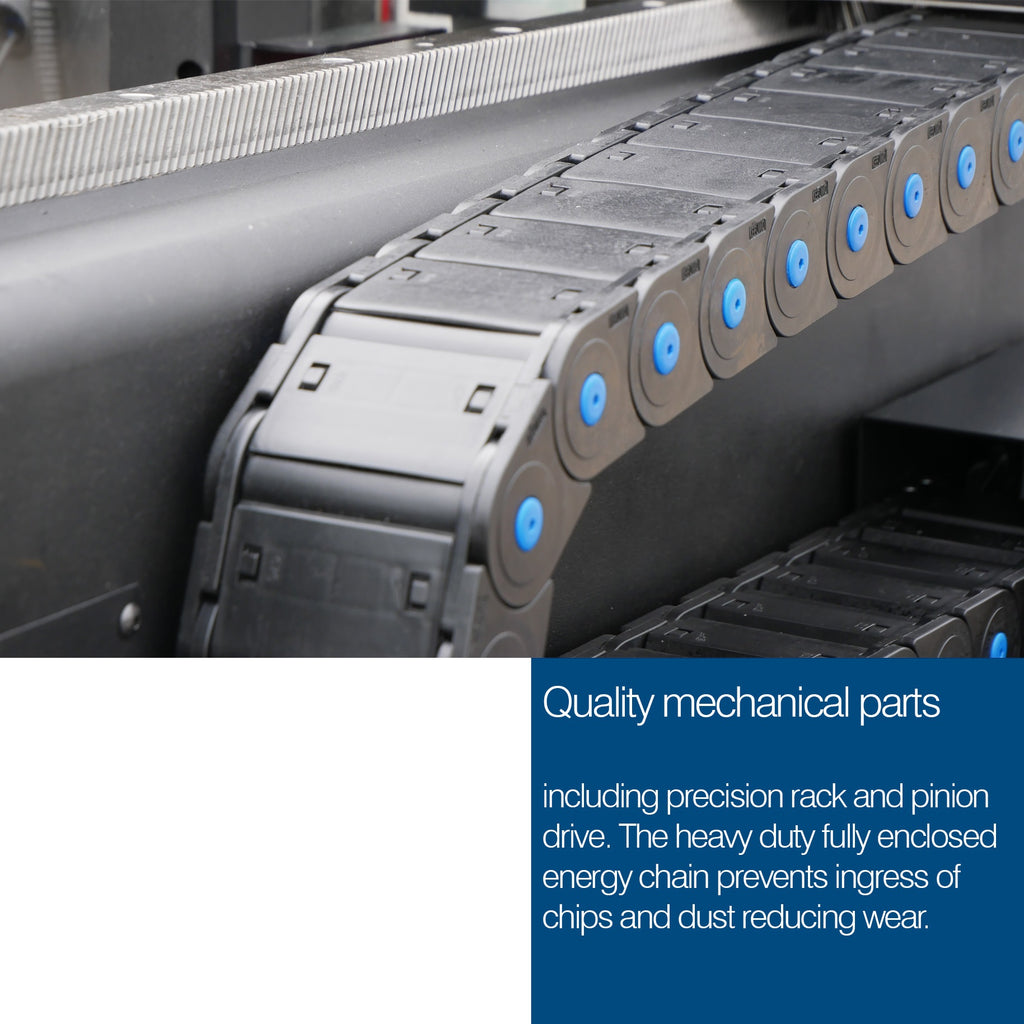

Fully enclosed cable track
24 Month Parts Warranty
Latest full version of Vectric VCarve Pro software

Technical specification:
Working size:1240X2460X200MM
Cutting speed: 10m/min
Z axis: 200mm
Controller: NK105 G3
Drive motors: Stepper driving system+plantary reducer
Transmission: Rack pinion
Main spindle:  HSD Air Spindle 6.0Kw Italy

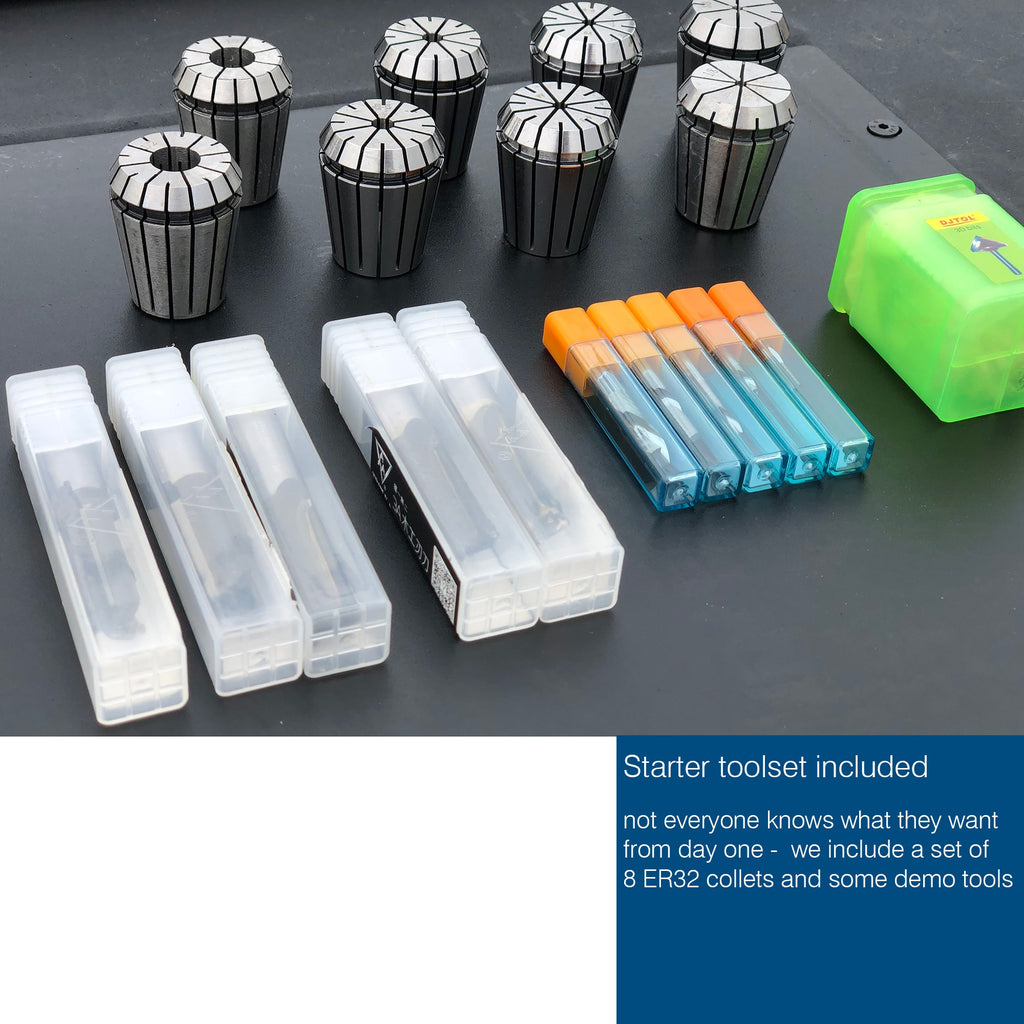

Collet: ER32
Drilling spindle:HSD 1.5kw
With dust collector hood

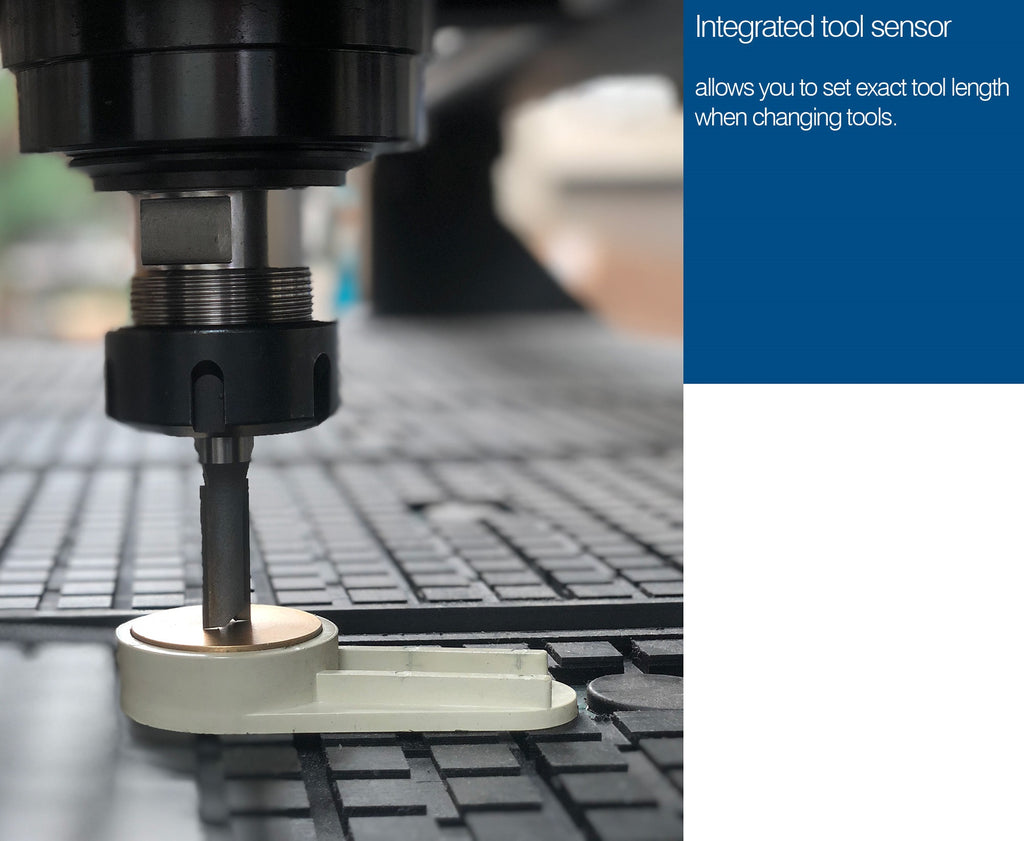

With tool sensor
With Tslot and vacuum table
Delta inverter
Auto Machine Lubrication : Yes
Painting: Sand polishing and powder coating
Hiwin linear rail: HG20 for Y X and Z axis
Electronics from : Siemens and Schneider etc.
Power cables: Igus Germany.
All mechinical parts machined by CNC machine tools
Working size:1240X2460X200MM
