T1000S SPINDLE MOULDER WITH SLIDING TABLE 400V 3PH

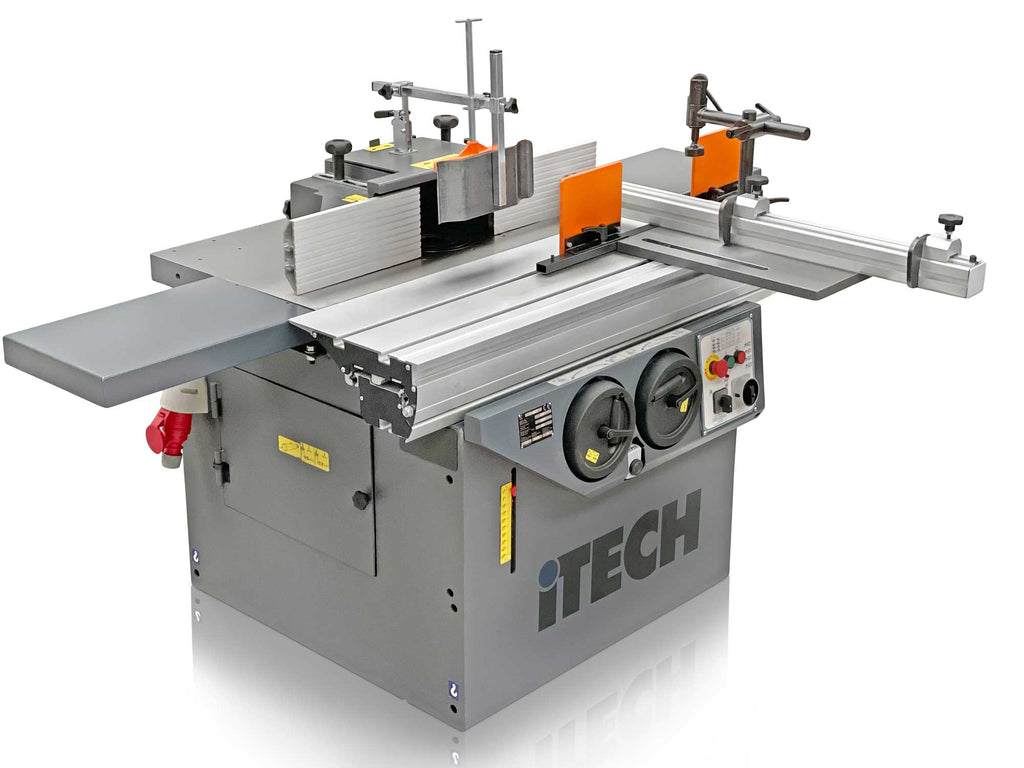

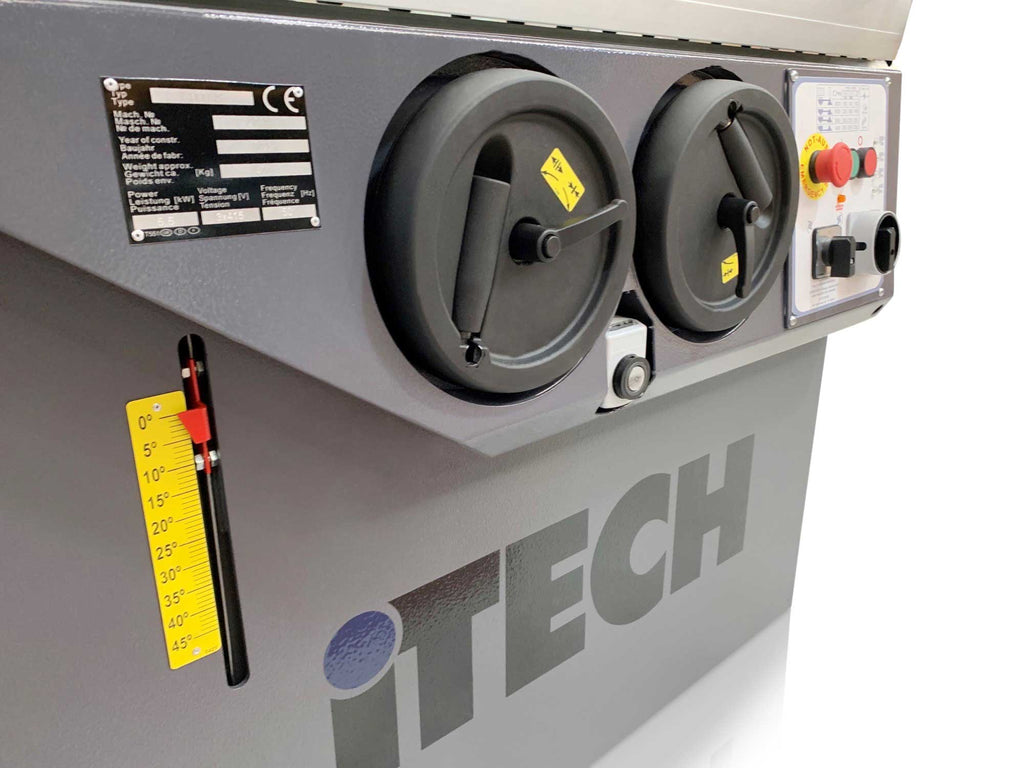

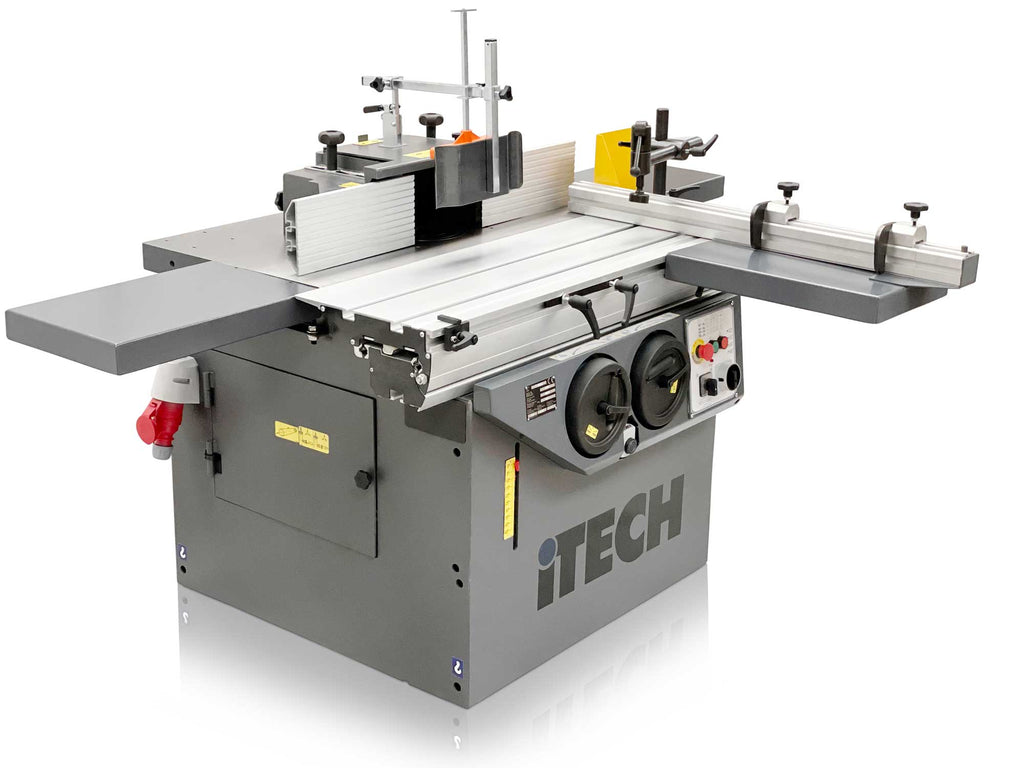

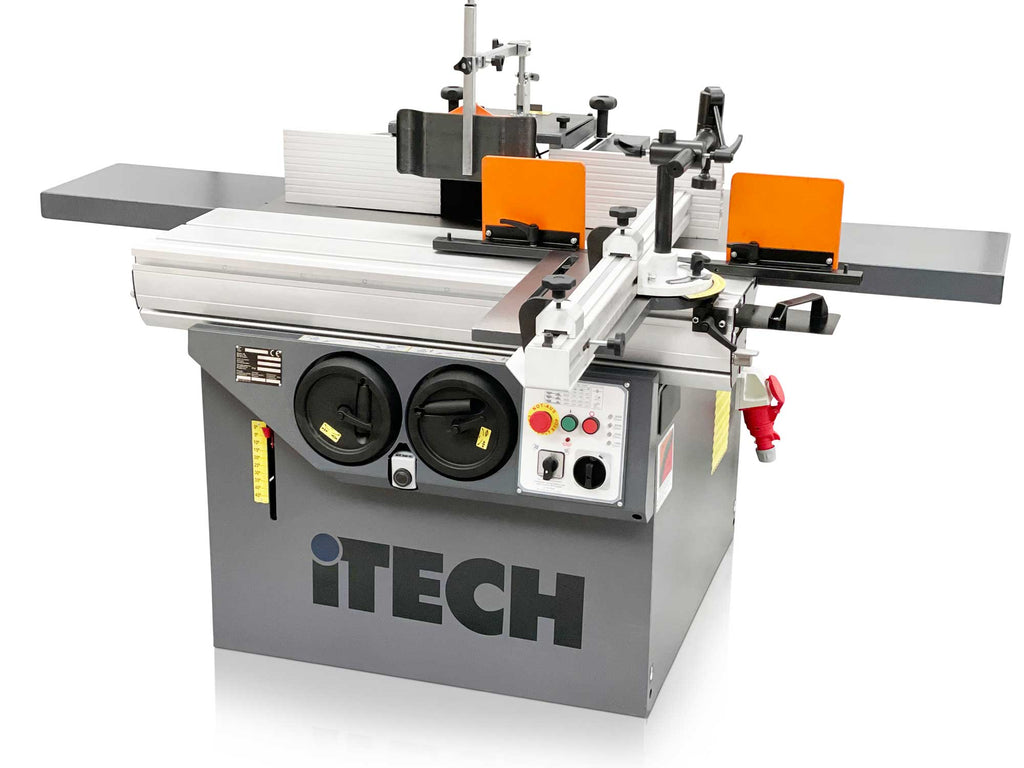

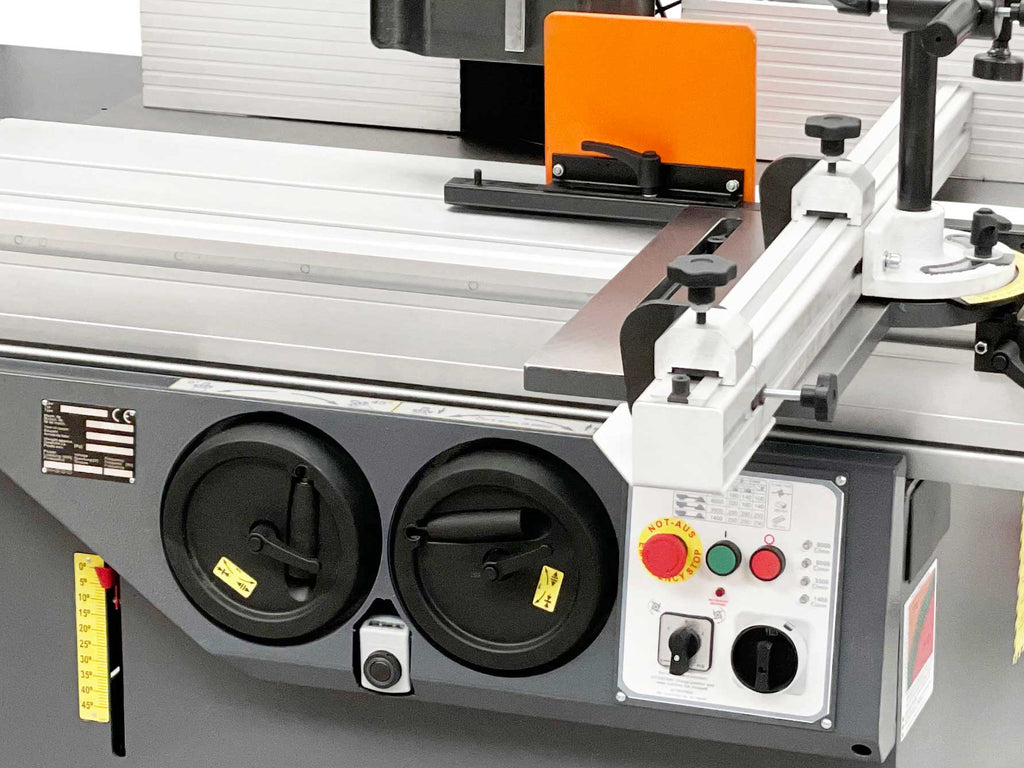

The iTECH T1000S spindle moulder is ideal for trade workshops that want a flexible moulding centre that can also be used for tenoning. It is a heavy-duty compact spindle moulder with big features including an integrated sliding table, and extensions to give better support. Ergonomically sound with both adjustments for tilt, rise and fall wheels on the front of the machine allow for easy adjustment from 0 degrees to 90 degrees. The machine has a digital readout for accurate setting, a powerful 7.5hp motor and reverse rotation.

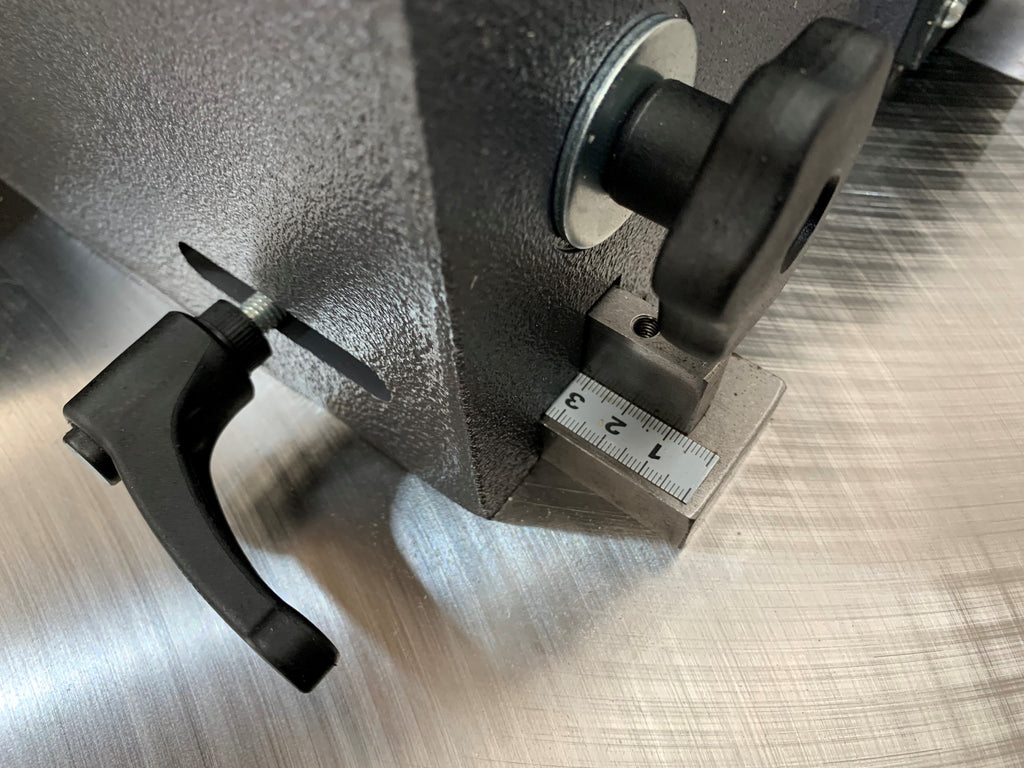

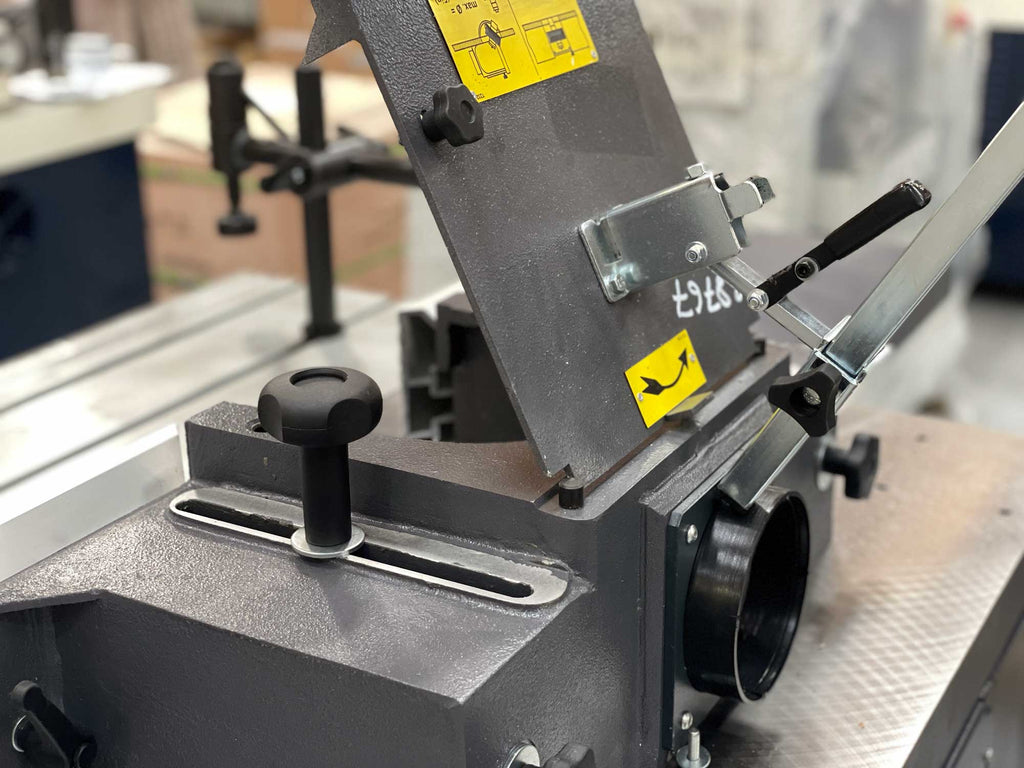

The hinged guard is micro-adjustable and gives easy access for set-up changes - the top cover of the guard can be tilted upwards for tool replacement.

• Motor Power 5,5kw 7.5 hp 3ph
• Sliding table dimensions 1150 x 350 mm
• Main Table dimensions 1000 x 550 mm
• Table extensions each side: 500 x 320 mm
• Shaft diameter ¥ 30 mm

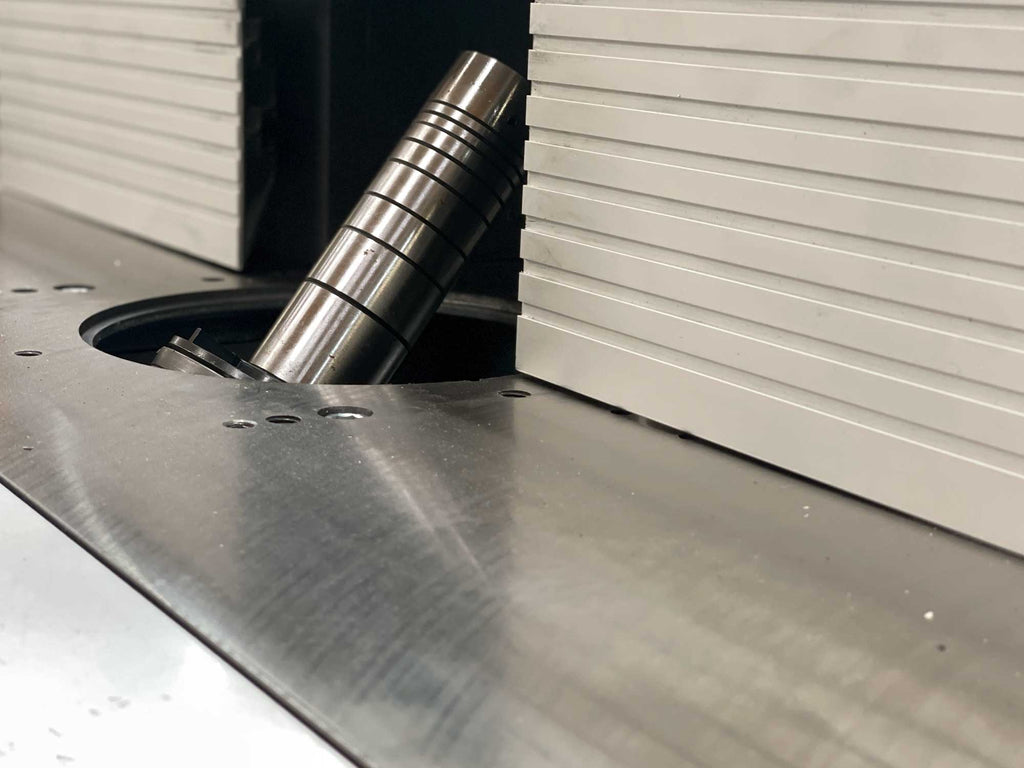

• Shaft Tilts 90 degrees / 45 degrees
• Height adjustment of spindle 150 mm
• Useable Spindle length 125 mm
• Max tool dia: ¥ 250 mm
• Table opening 180 mm
• Spindle speeds 1400 / 3500 / 6000 / 8000 rpm
