PS400 3200mm SLIDING TABLE PANEL SAW
PS400 3200mm SLIDING TABLE PANEL SAW

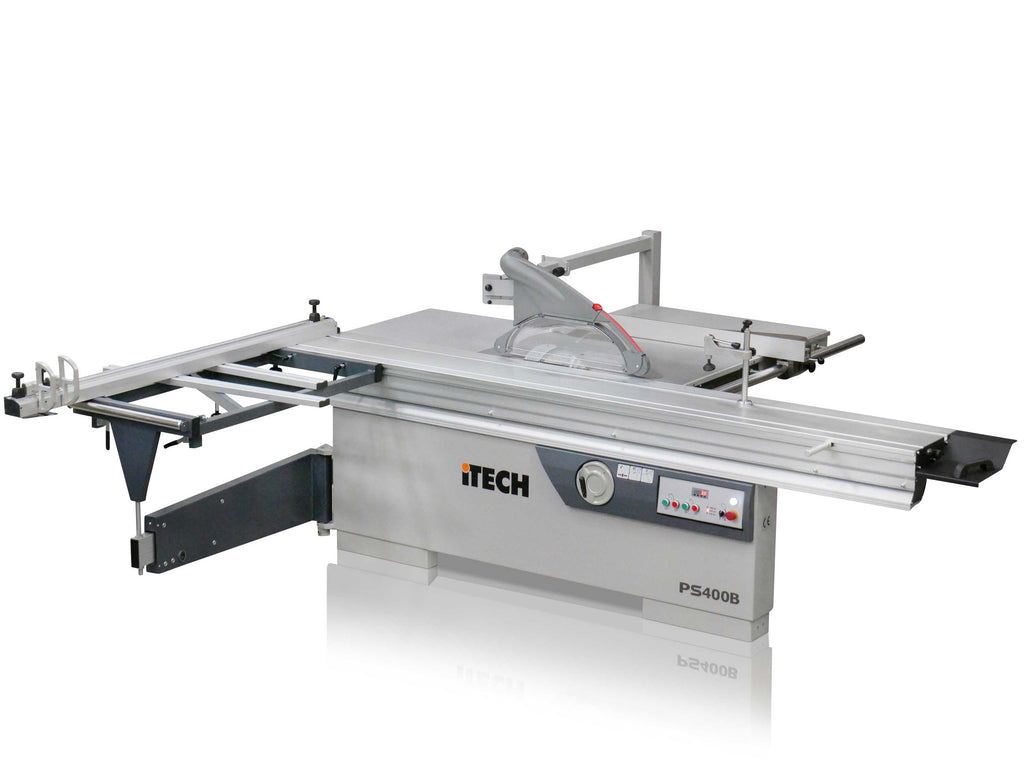

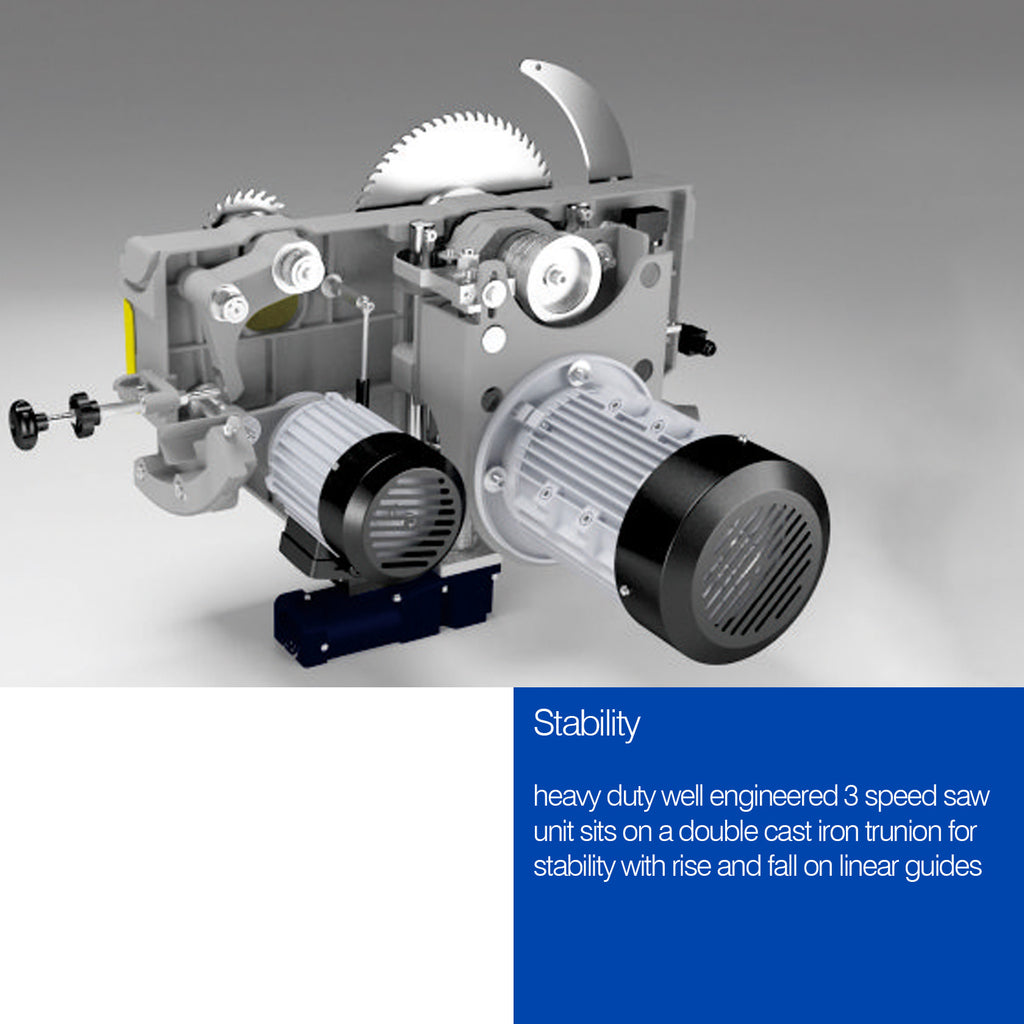

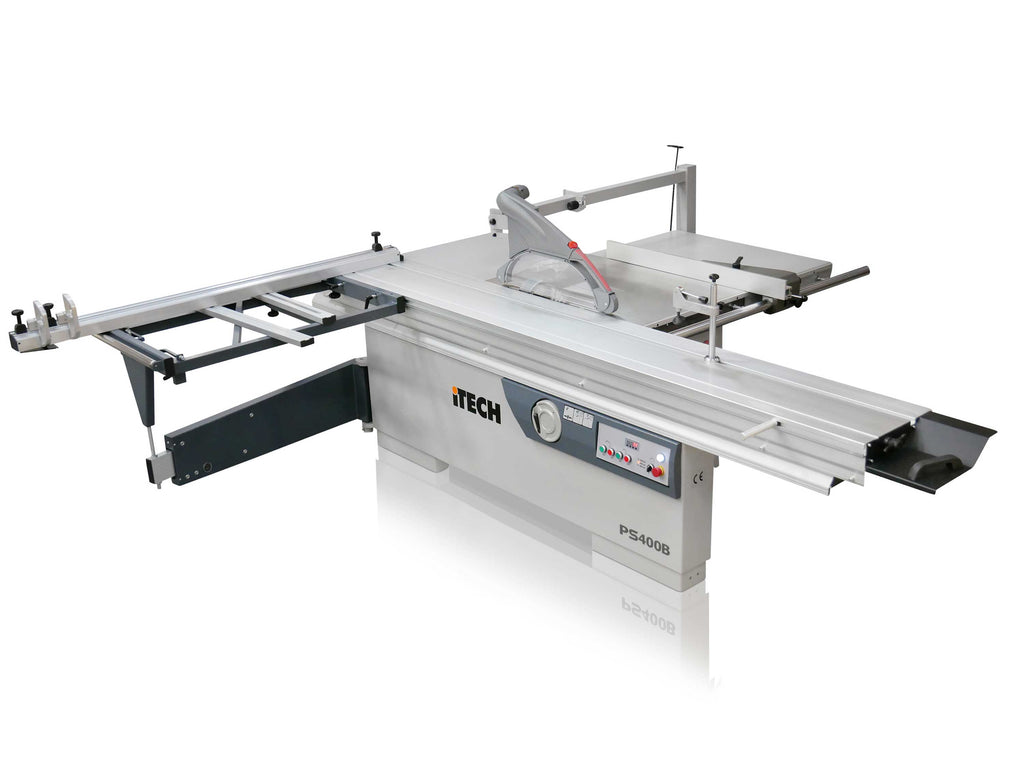

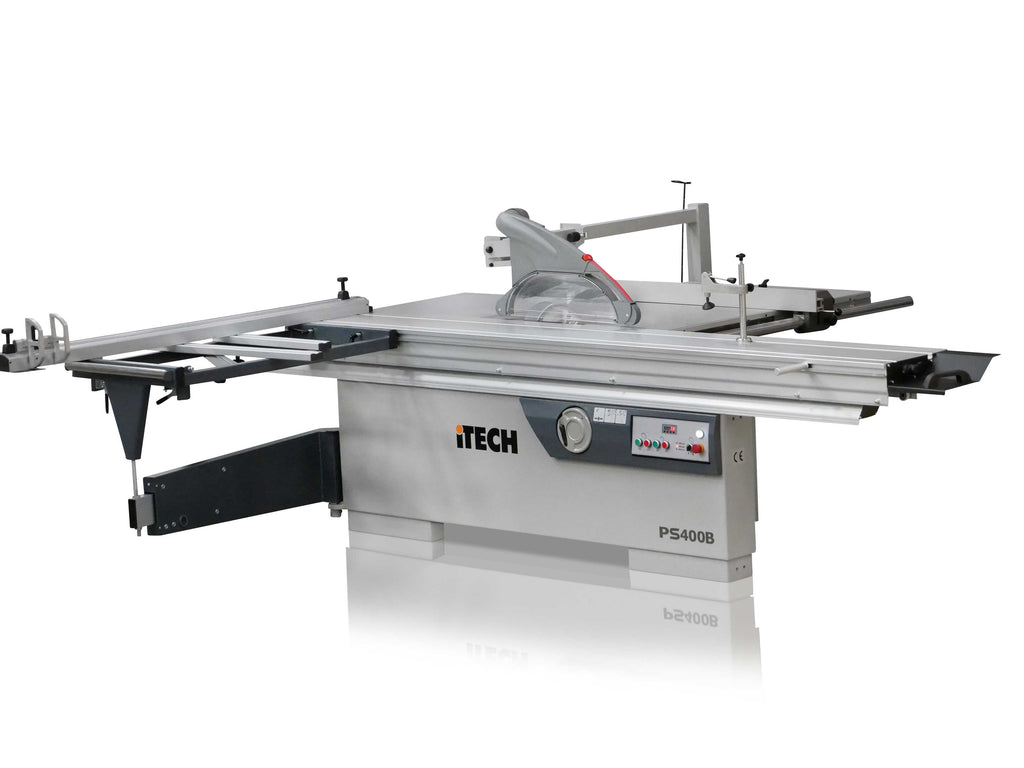

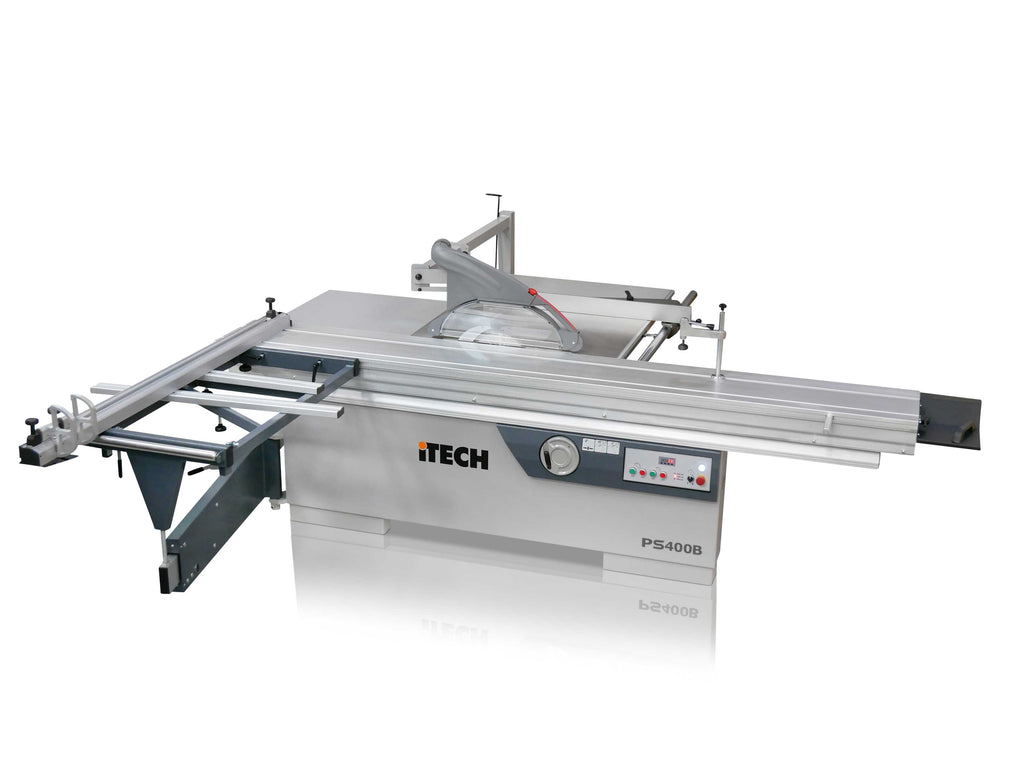

The iTECH PS400 Panel saw is a proven heavy-duty sliding table saw with a tilting blade for professional workshops. The perfect answer for easy and accurate cutting of panels and solid wood up to 125mm thick and 3200mm long. Everything about the machine shows its quality. The Italian design is manufactured around an ultra-rigid double trunion that sets new standards for machines at this price level.

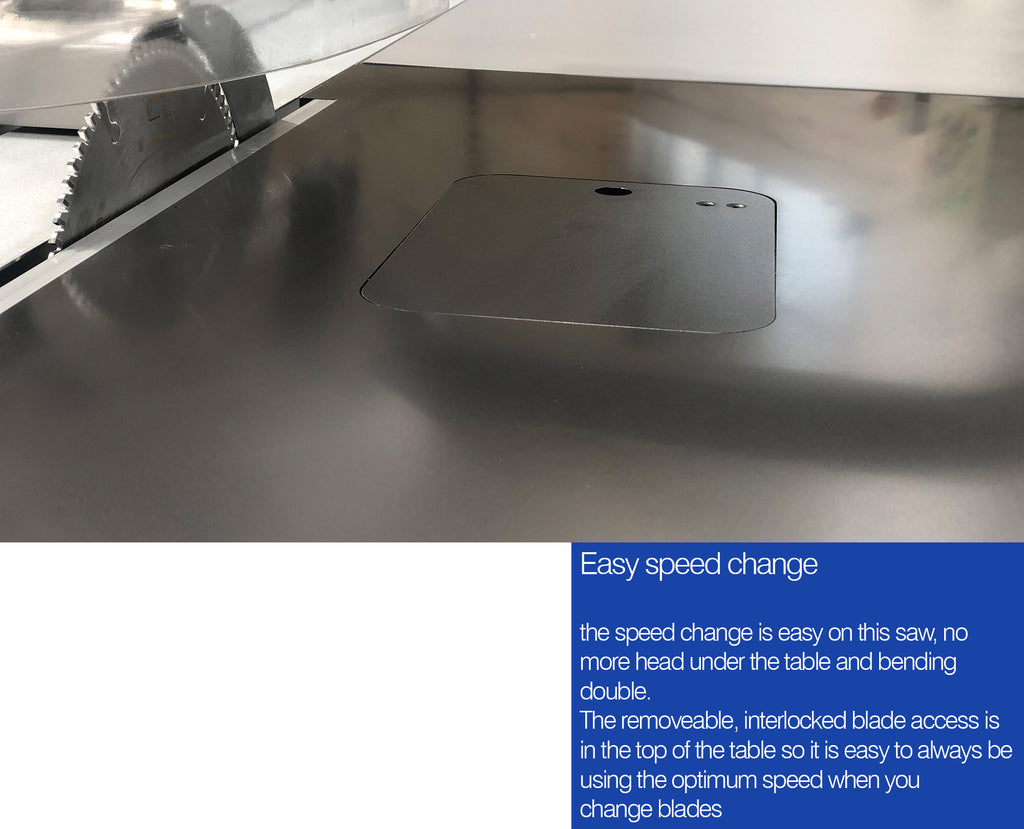

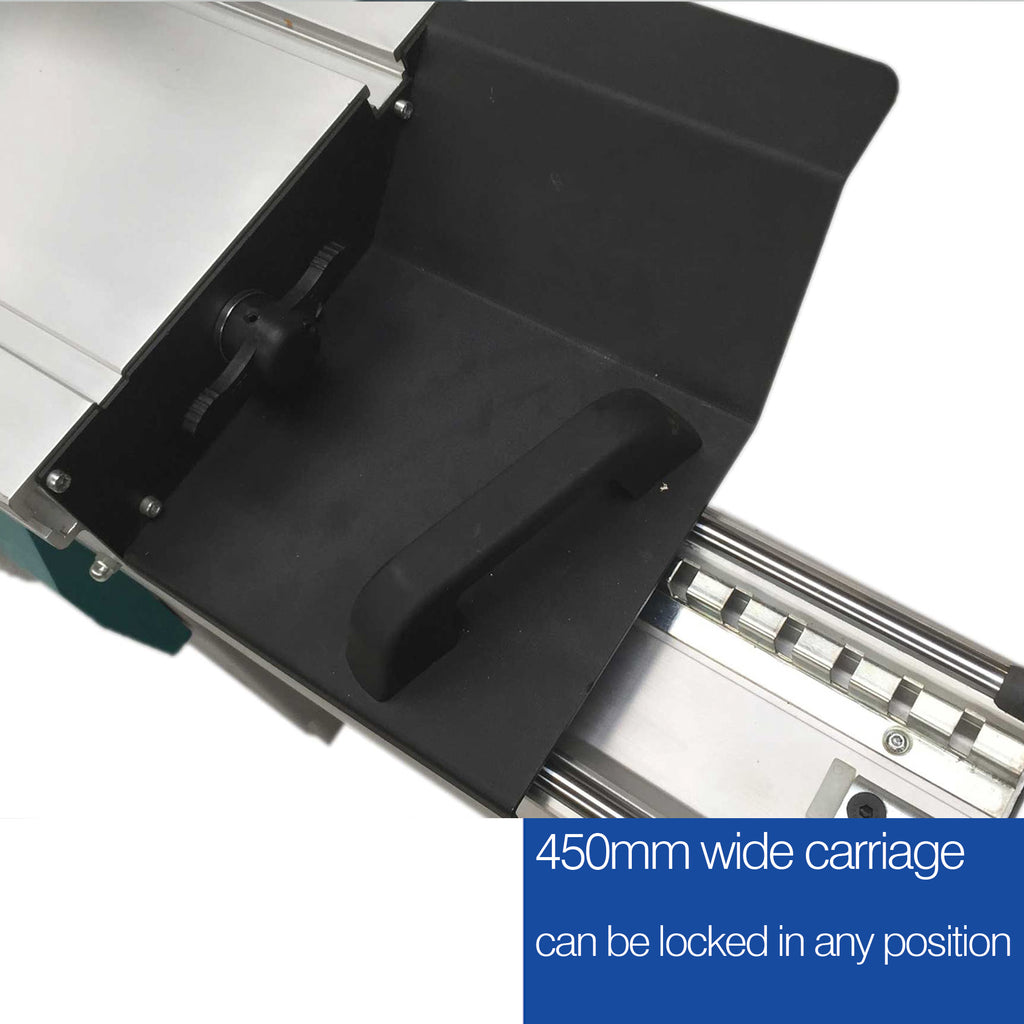

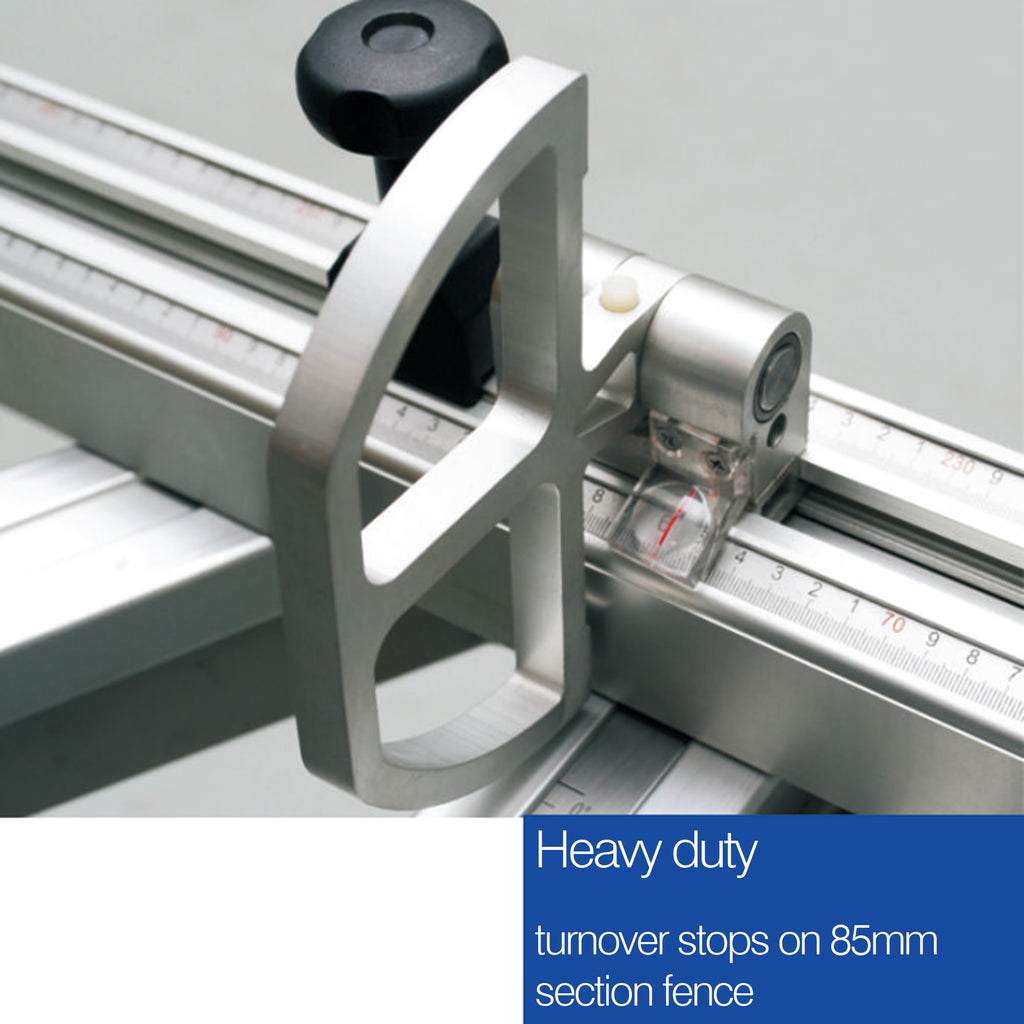

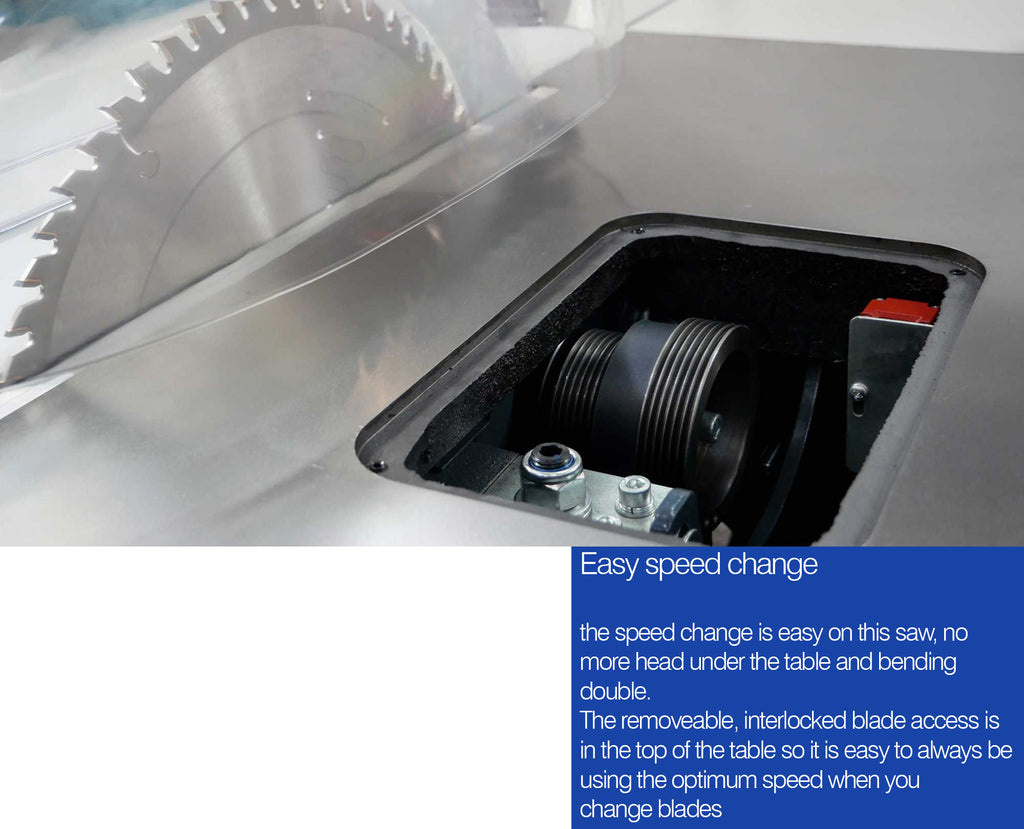

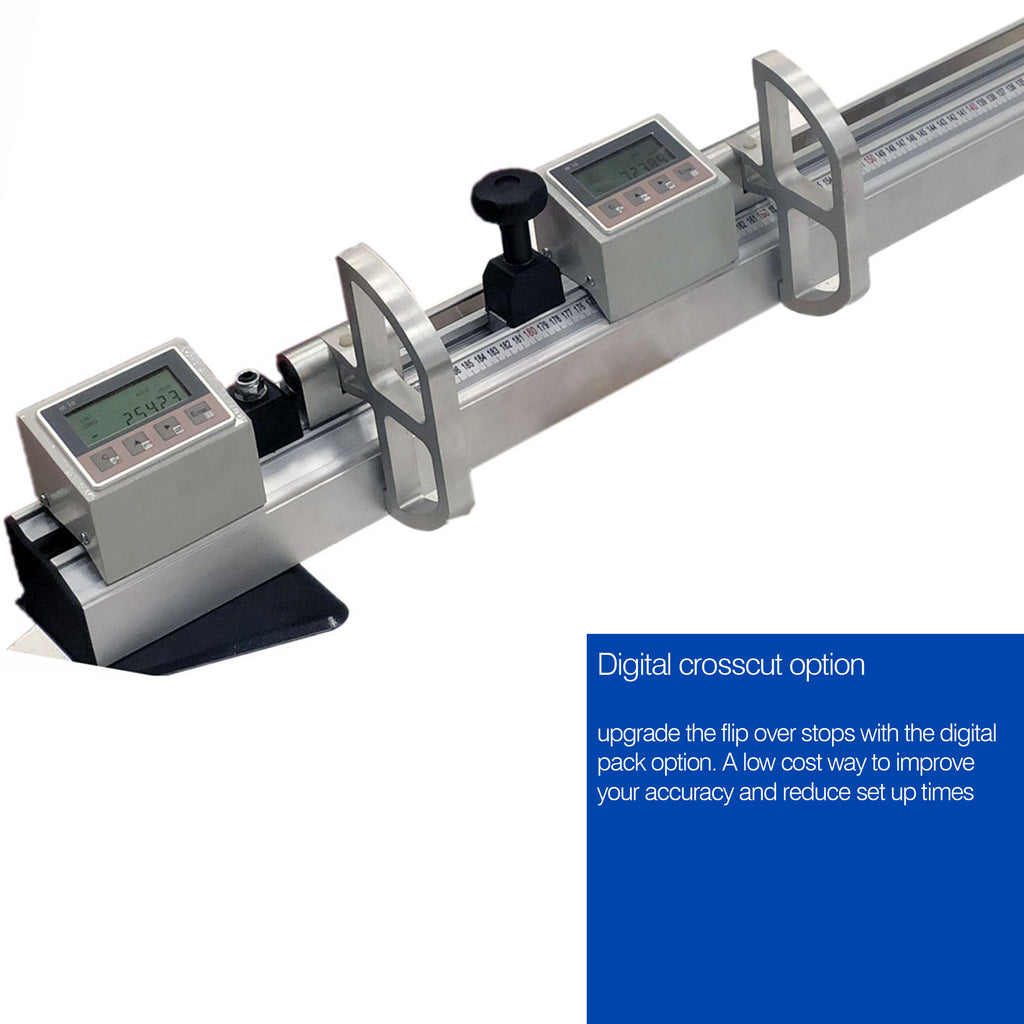

The extremely rigid and smooth running aluminium sliding table is 430mm wide for excellent support. It can lock in any position and will give reliable accuracy in a busy commercial environment. The 400mm main blade can be used for deep and rip cuts and has a scoring unit to stop breaking out, powered by independent motors. The PS400 has an easy speed change from the top of the table so you no longer have to get your head under or inside the machine. The chunky 85mm section crosscut fence can be angled for mitres and is fitted with two heavy-duty flip over stops and extending panel support. The fence can be upgraded to electronic digital versions for faster higher precision accuracy.
- Length of Sliding Table :3200 mm
- Sawblade diameter :400 mm
- Max Depth of cut at 90 deg :125 mm
- Max Depth of cut at 45 deg :85 mm
- Blade to Rip Fence :1250 mm
- Sawblade arbor :30 mm
- Blade Speeds : 3 4000rpm
- Motor Power :5.5kW 7.5hp
- Scoring Saw :D=120mm x d=20mm
- Dust Connection Dia. :100 + 60 mm
- Dust Extraction Air Flow : m3/min
- Weight of machine :820/940 kg

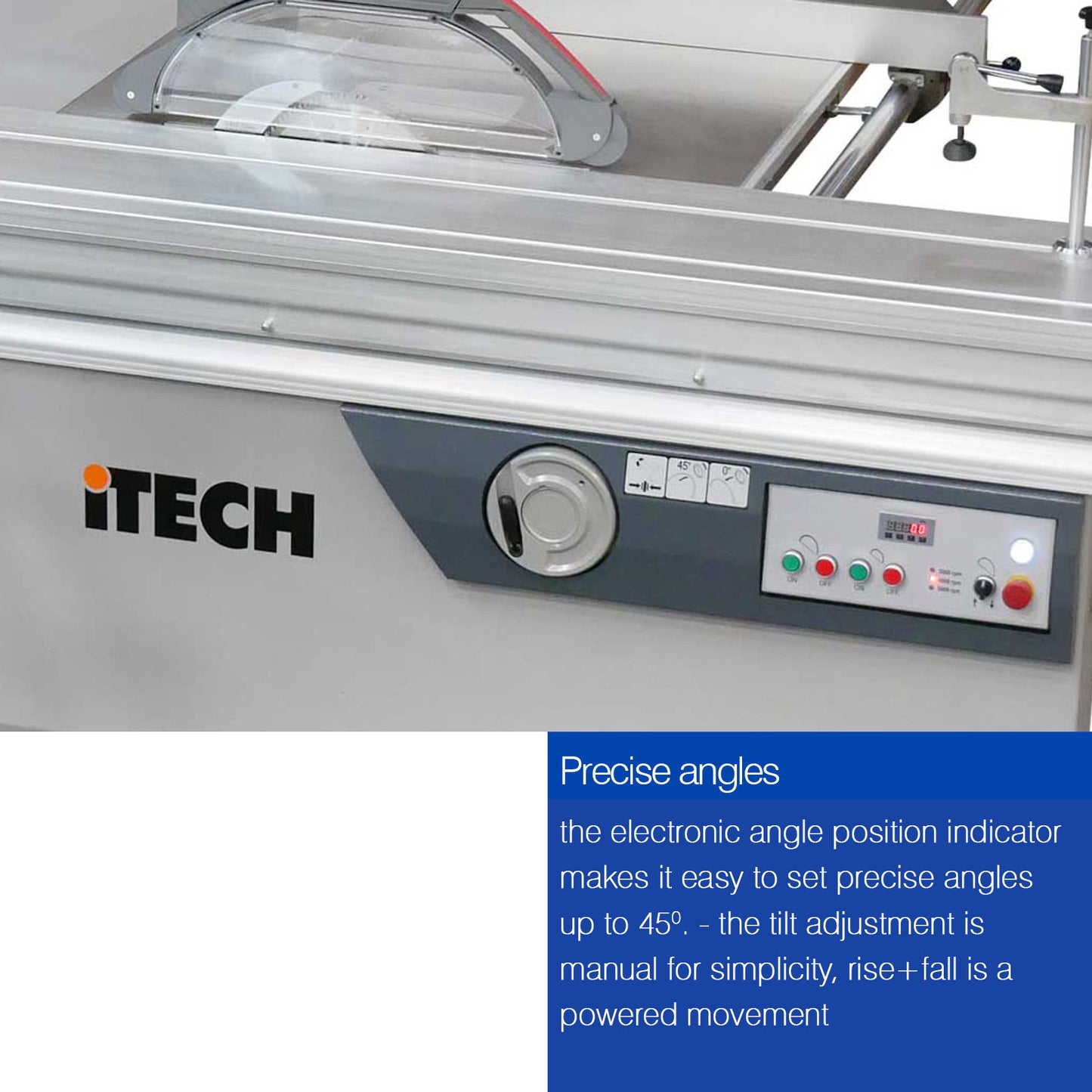

- Blade Tilt 0-45 degrees
- Sliding Beam Size 3200x430mm
- Length of Rip Fence 1100mm
- Overhead Guard Included
- Work Clamp Included
- Saw Blades Option
- Shipping Dims 3240xx1150x1150/3500x470x300mm
- Sizes if crated 2300*1300*1160mm, 768KG
- 3560*505*280mm, 165KG
- 3 Phase 400v with neutral supply required
