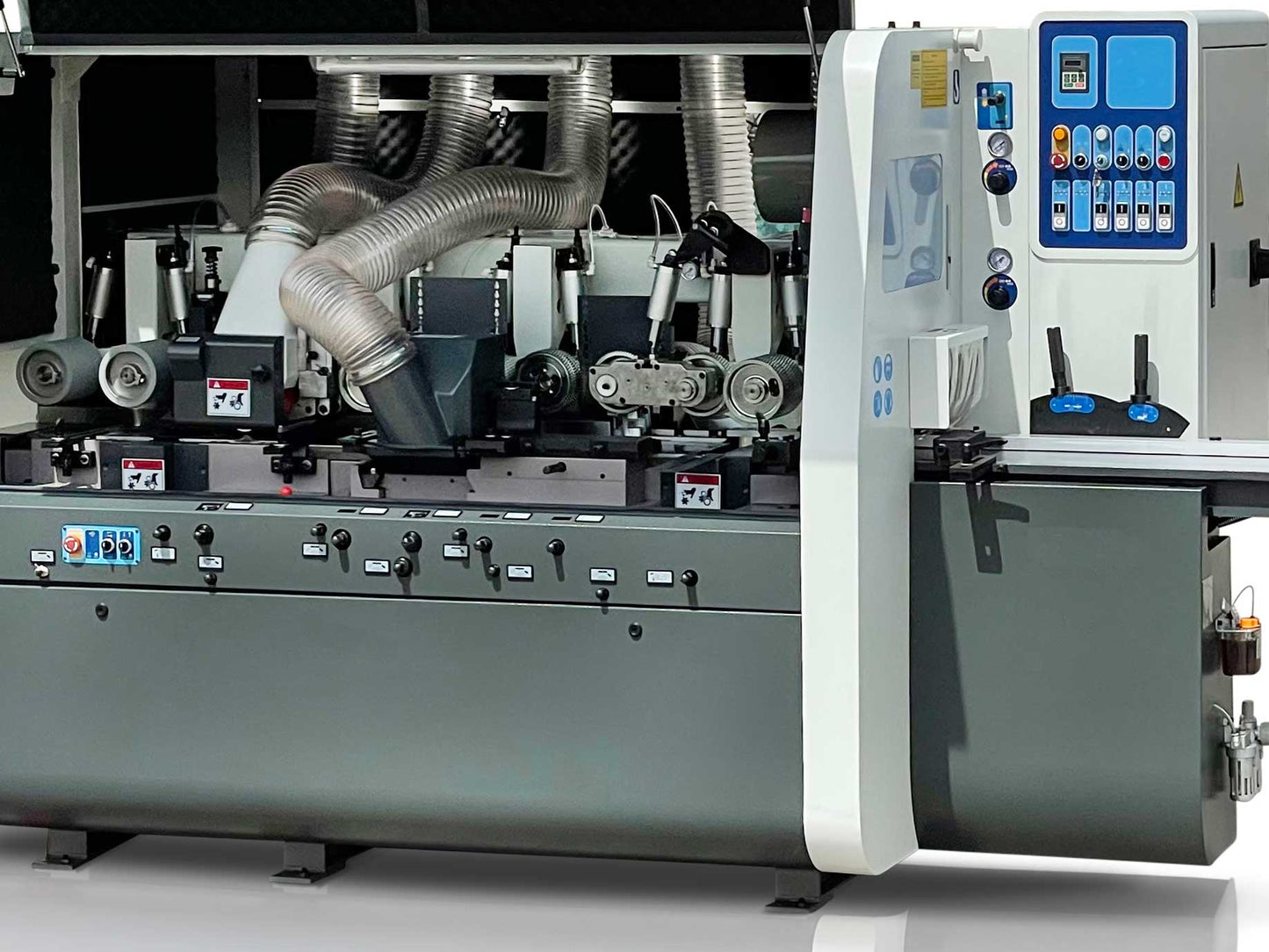

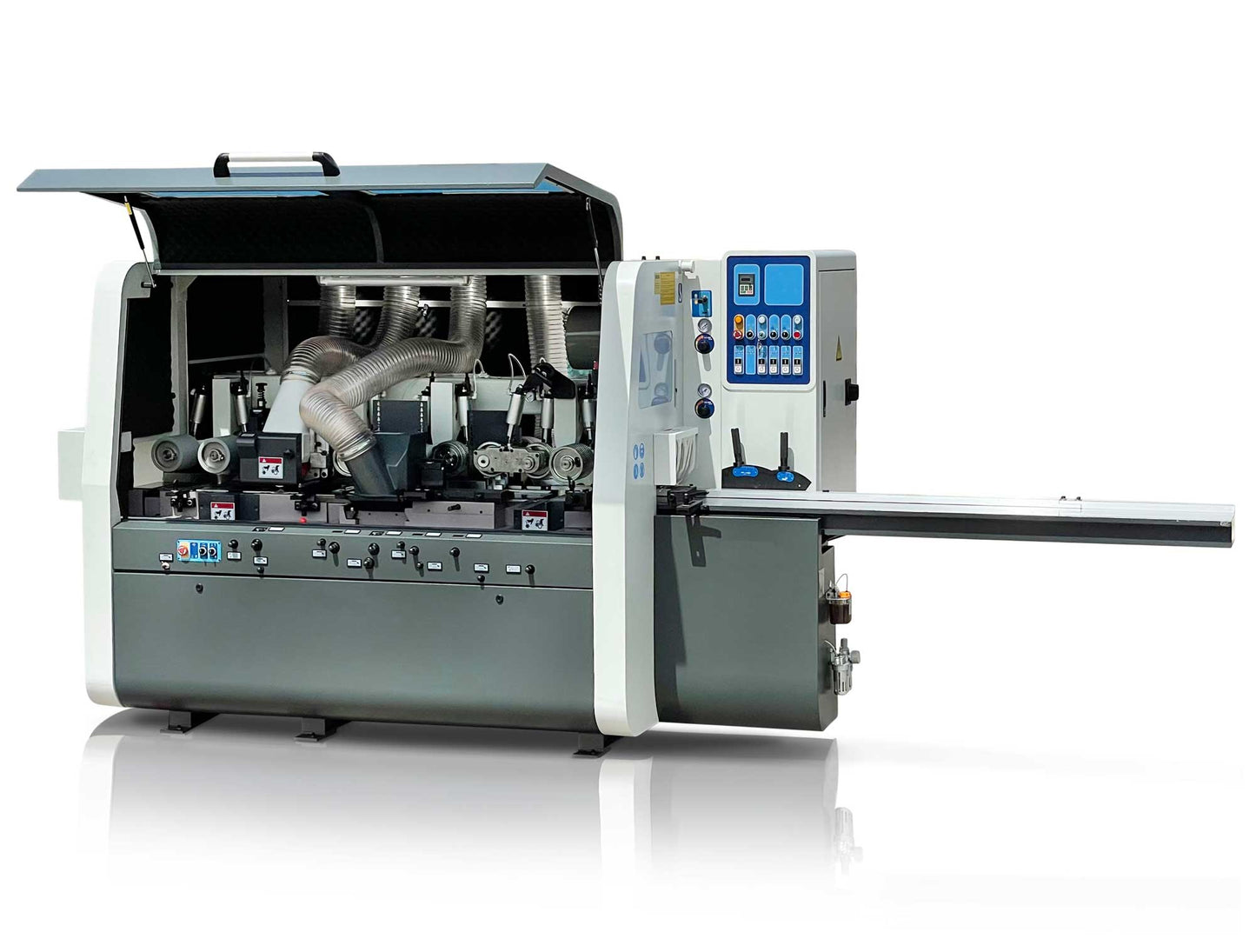

VHM 523 5 Head Planer + Moulding Machine

Whether you produce Planed timber, complicated or simple profile mouldings at high production rate the iTECH VHM 523 throughfeed planer/moulder offers unbeatable accuracy and productivity The cast iron construction has been designed and engineered to meet industry requirements for high production and fine surface finish.

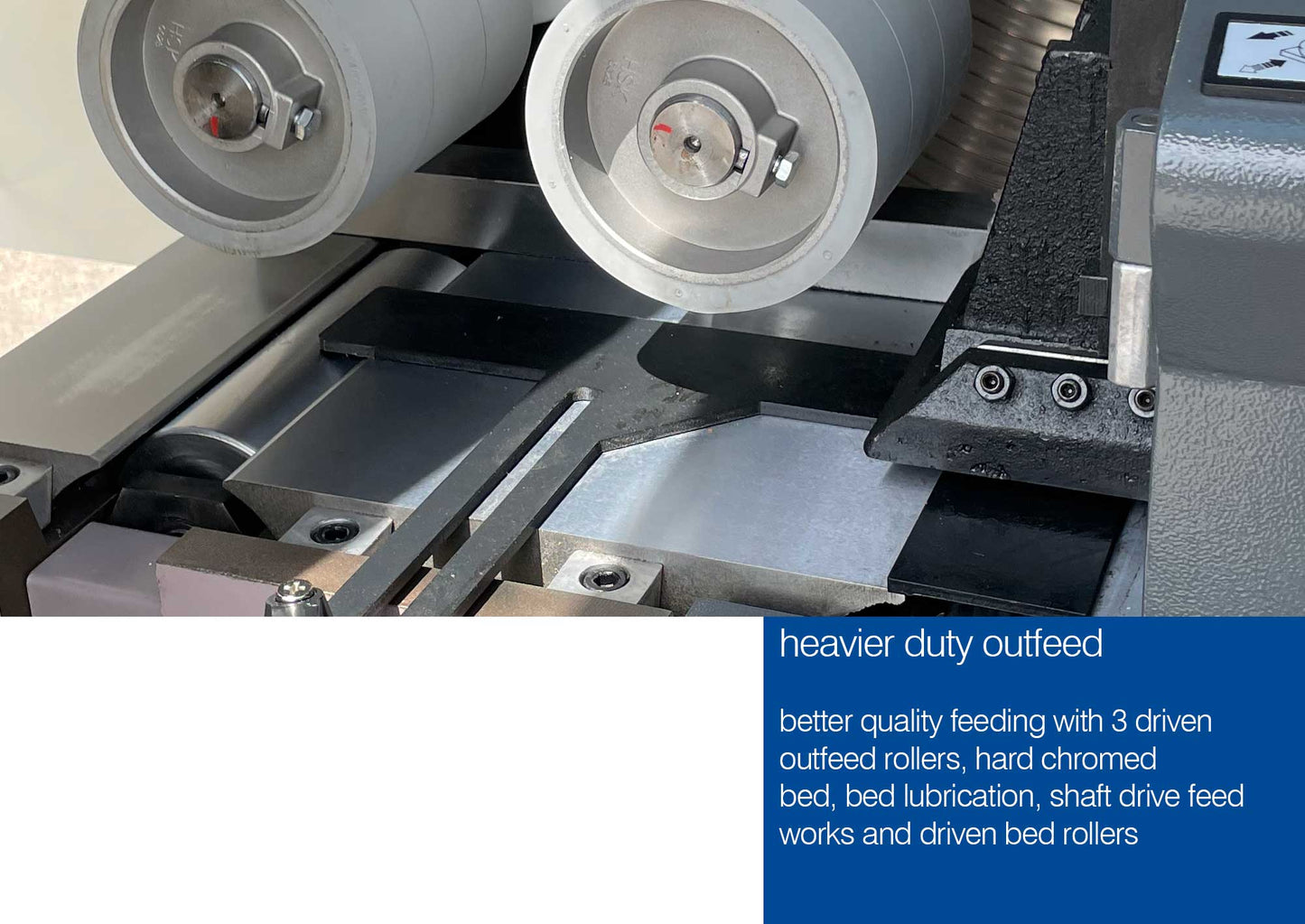

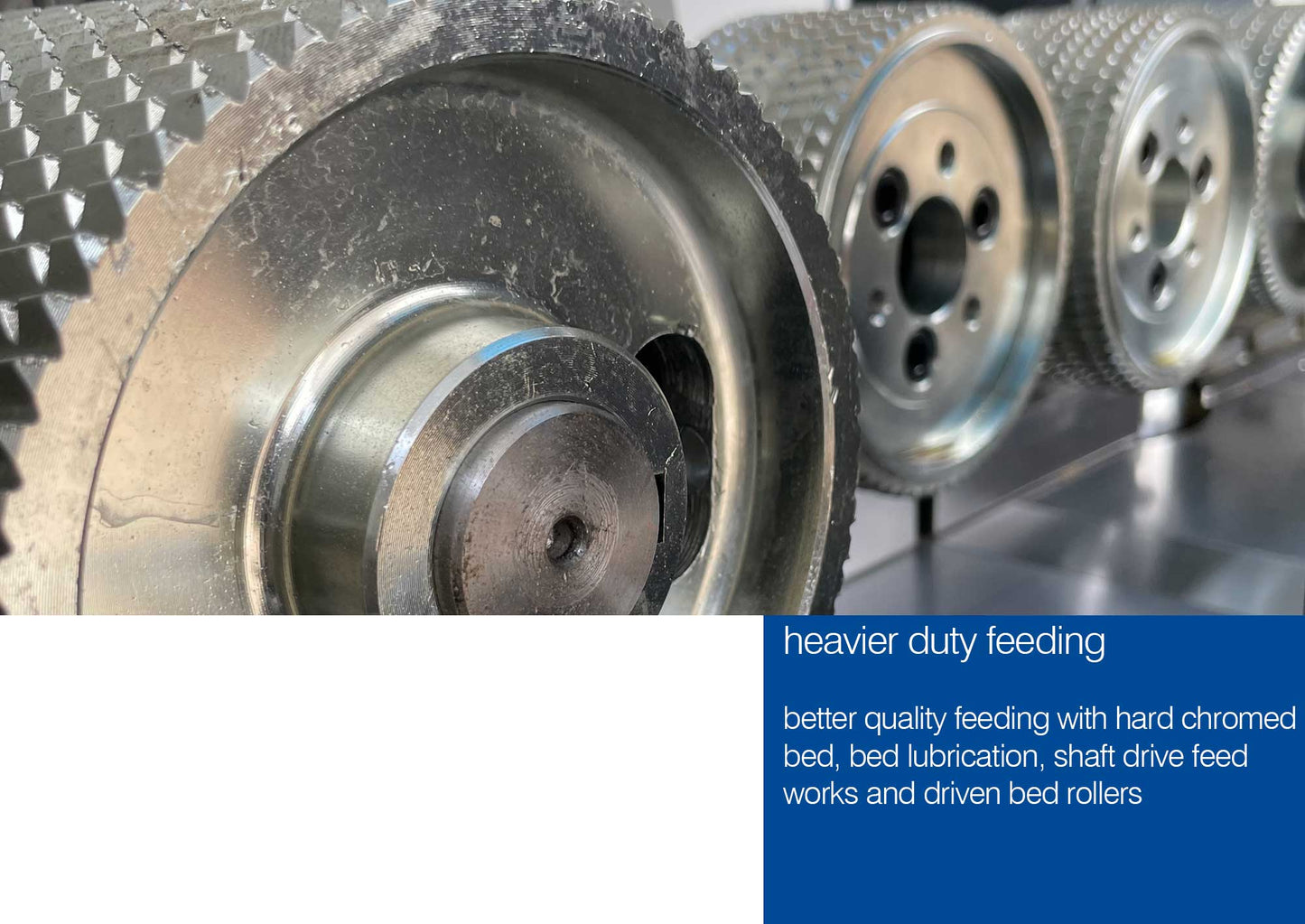

The iTECH VHM-523 offers unparalleled performance, heavy duty construction for maximum stabilty with centralised air pressure regulation for the entire pneumatic system allowing sectional pressure adjustments including powered infeed and outfeed table rollers for greater feeding efficiency.

Chrome plated tables as standard and a 2500mm infeed table for increased straightening ability, all spindles are fitted with the latest heavy duty spiral knife blocks for increased material removal and superior planing finish at reduced noise levels and lower power consumption.

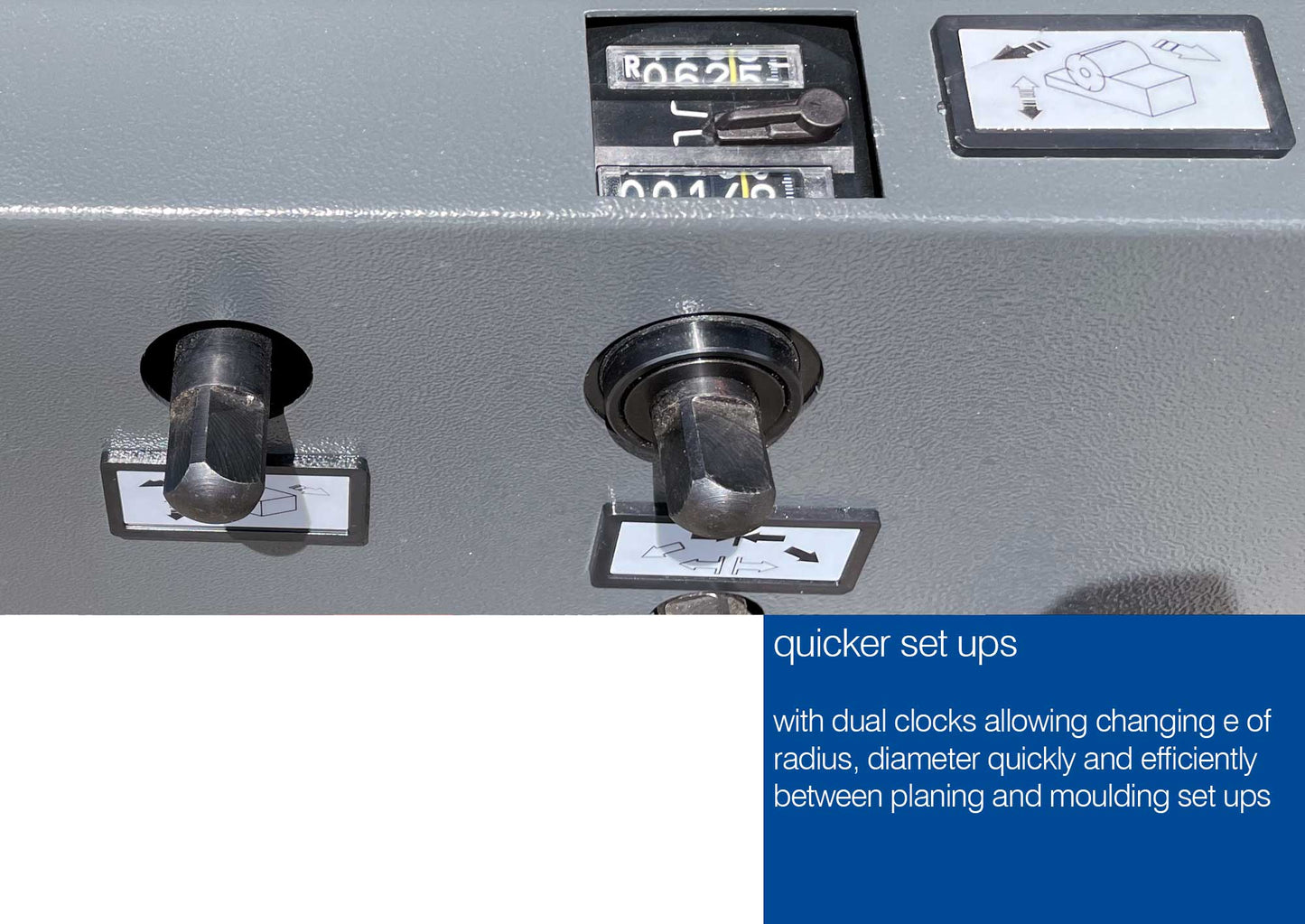

The Left and Top spindles have dual Siko position indicators making the task of changing from planing to moulding much easier for the operator and reduced downtime between tool changes.

• Width capacity 25 - 230 mm
• Thickness capacity 8 - 150 mm
• Infeed table length 2500mm
• Feed speed 6 - 36 m/min

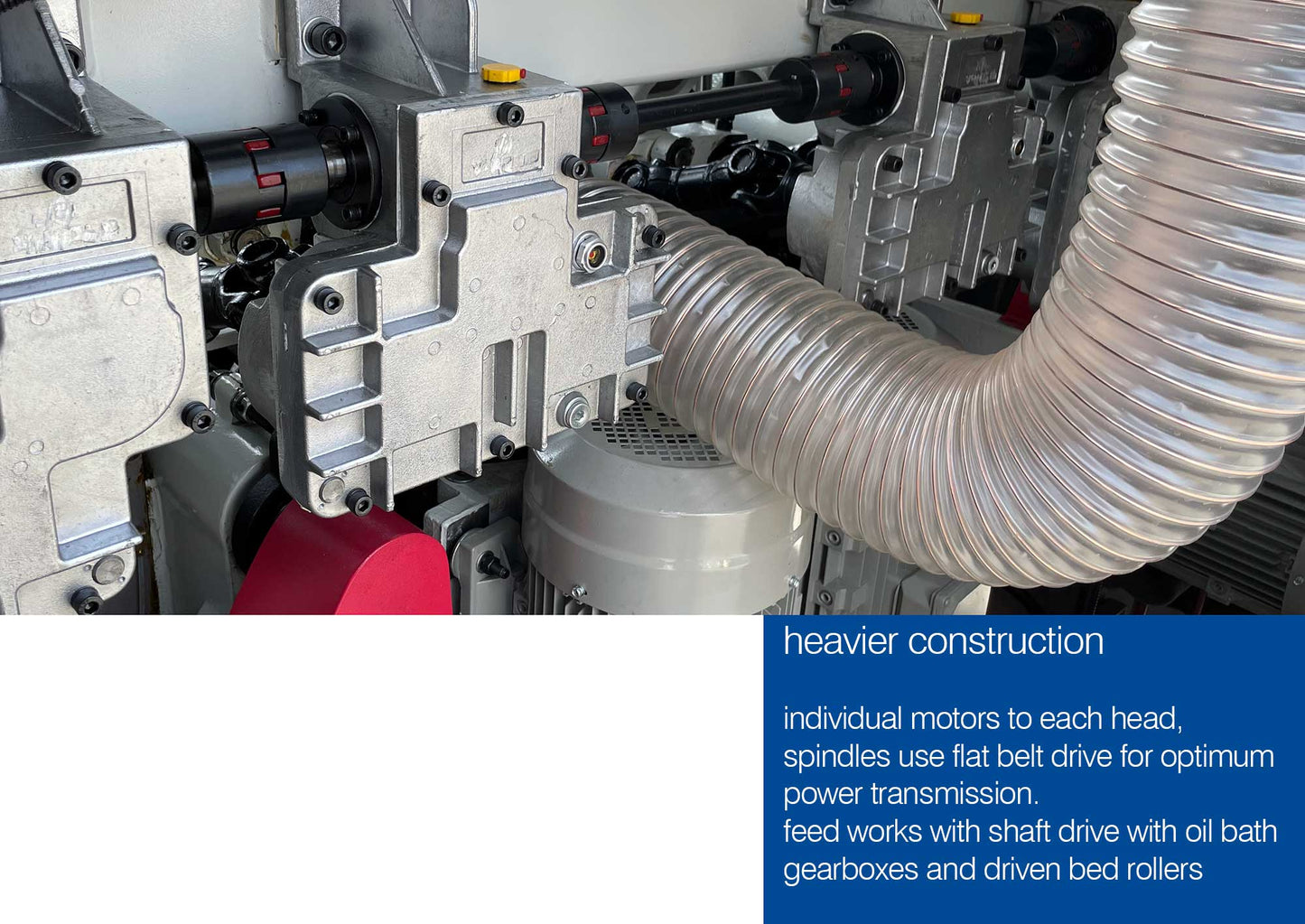

• Independent motors
• Bottom Head 7.5kw / 10 HP
• Right Head 7.5kw / 10 HP
• Left Head 7.5kw / 10 HP
• Top Head 11kw / 15 HP
• 2nd Bottom Head 7.5kw / 10 HP
• Beam elevation motor 0.75kw / 1HP
• Feed motor 5.5kw / 7.5 HP
• Total power 47kw
• Bottom head cutting dia 125mm
• Right head cutting dia 125 - 180 mm
• Left head cutting dia 125 - 180 mm
• Top head cutting dia 125 - 180 mm
• 2nd Bottom head cutting dia 125 - 200 mm
• Feed wheel dia 140 mm
• Dust Outlet dia 140 mm
• O/A Dimensions 4100 x 1620 x 1860 mm
• Weight 3100 kg
