ITECH TE|S TENONER WITH SCRIBING
ITECH TE|S TENONER WITH SCRIBING

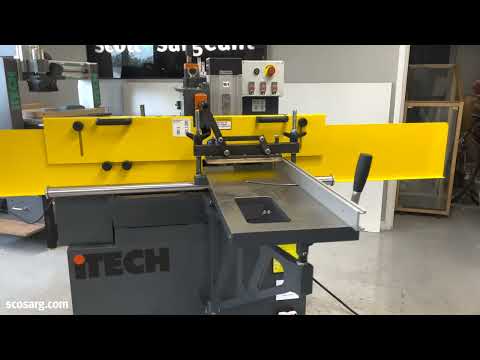

The iTECH TE|S 3 Head Tenoner and scribing machine is a new addition to our range. The proven design for small to medium joinery companies with an extra heavy large base for improved stability. This creates a strong, yet compact tenoning machine. It has three heads: each head is independently adjustable to allow you to produce either square shouldered tenons, offset tenons, scribed or mitred tenons. The main heads have Siko digital readouts with 0.1mm resolution allowing you to make tenons quickly and accurately.
Profiled scribe cutters and limitors can be fitted into the 'combi' tenon heads. the third head is supplied complete with an additional scribe block allowing the rapid production of square shoulders or double scribed joints, storm proof or offset tenons. Discs can also be used within the scope of the diameter and clamping.
This is an ideal machine for small to medium workshops making windows, doors or kitchen furniture; it is compact, accurate and easy to use. The table folds down to save space when not in use.
- Max Length of Tenon Single Pass 155mm
- Max Length of Tenon Two Passes 205mm
- Dust Extraction Outlet 2 x 150mm
- Horizontal Adjustment Scribing Head 30mm
- Horizontal Adjustment Top Block ±32mm
- Main Cutter Heads 2, 175 x 60mm. 1, 125 x 60mm
- Nett Weight 490kg
- Overall L x W x H 132 x 102 x 156 cm
- Motor Power 3 x 2.2kW 415v 3ph
- Scribing Head Shaft Diameter 75 x 30mm
- Table Size 800 x 310mm
- Timber Cap Height Fence @ 45 130mm
- Timber Cap Width Fence @ 45 195mm
- Timber Cap Width Fence @ 90 310mm
- Vertical Adjustment Bottom Block 0-60mm
- Vertical Adjustment Scribing Head 95mm
- Vertical Adjustment Top Block 0-100mm
