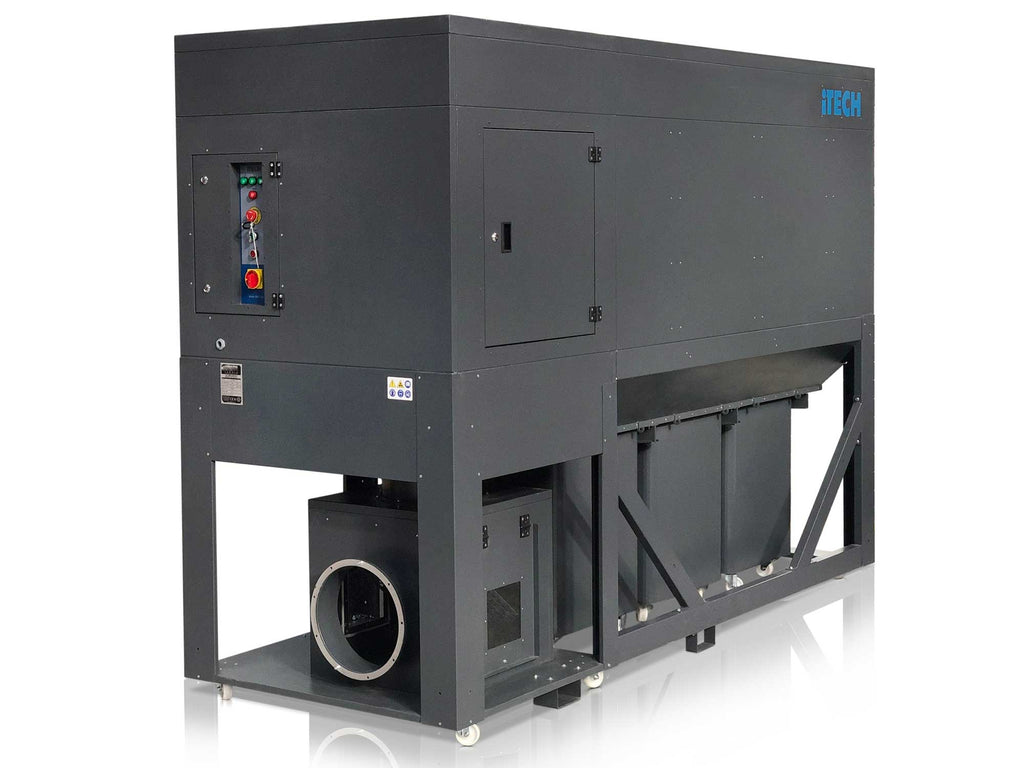

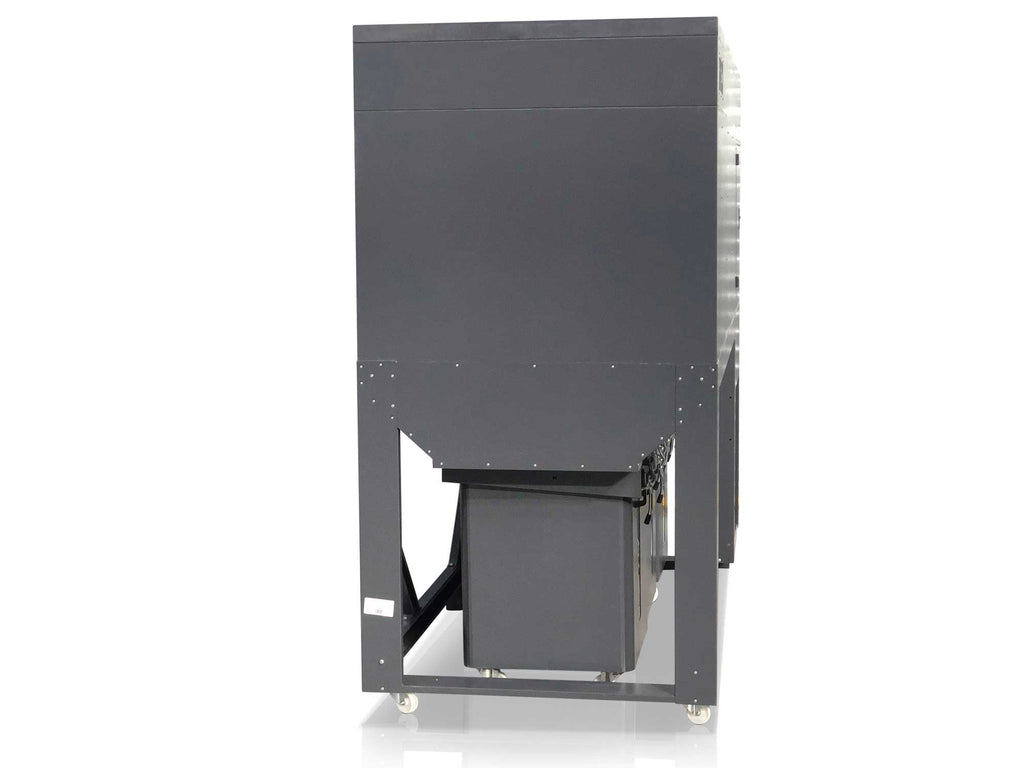

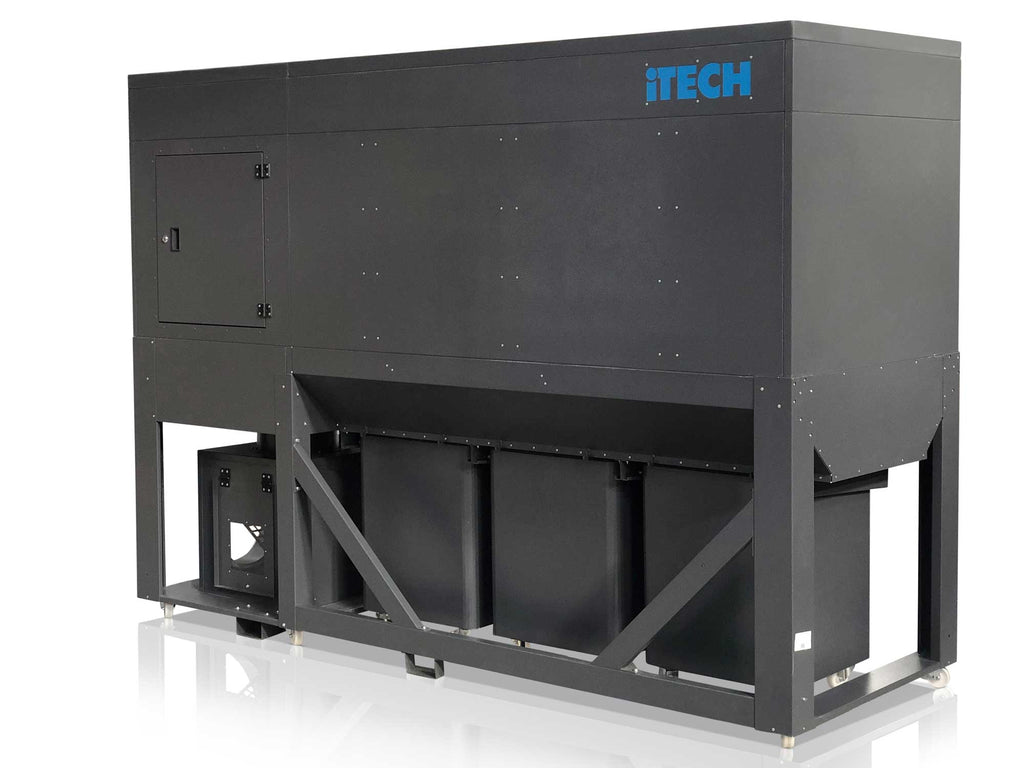

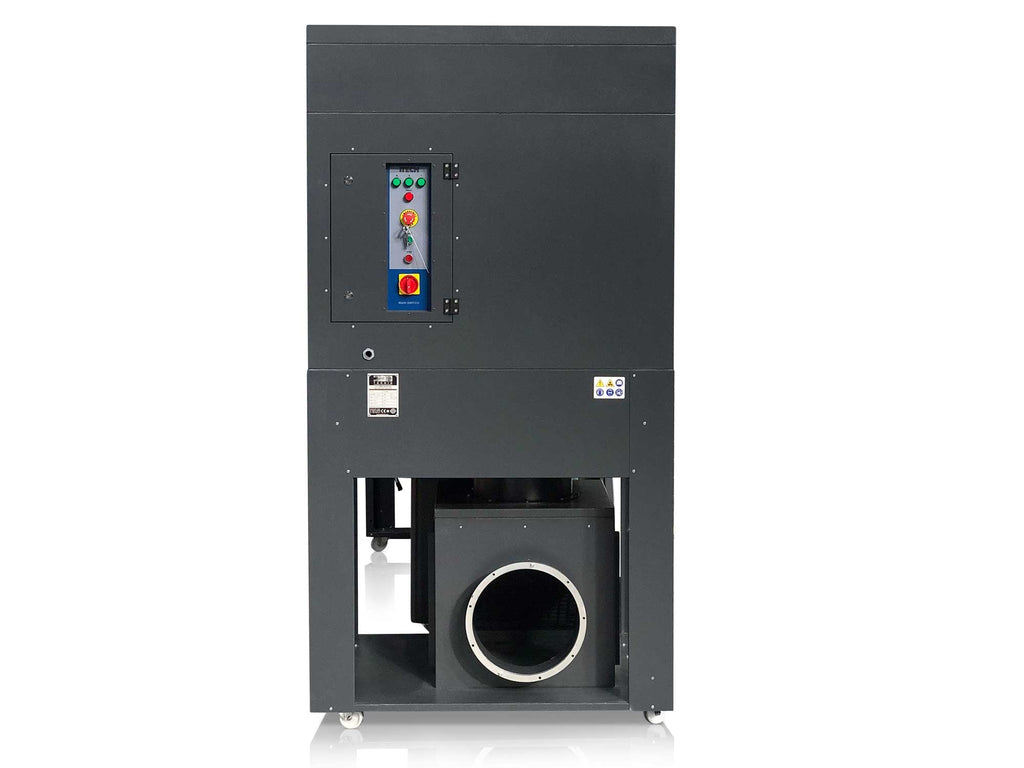

STK10000 ENCLOSED FINE DUST EXTRACTOR 11kw WITH 3 BINS

The STK10000 is a solid 3 bin Multi Filter Extractor for large shavings and fine dust - ideal for compact CNC Routers panel saws or sanders. It has a 350mm inlet with upto 10000 m3/hr airflow. The unit incorporates a trap for pieces over 25 x 25 mm entering and protecting the fan from accidental damage.

Totally enclosed body is made from 1.2 mm thick sheet steel, powder coated and has a trouble free system of cleaning/shaking the filters with the possibility (automatic or manual switching) on the integrated starter + control box. The 350mm inlet makes the very suitable for a built-in system giving high airflow volume, ideal for larger systems.
Metal motor balanced dynamically to reduce noise level.

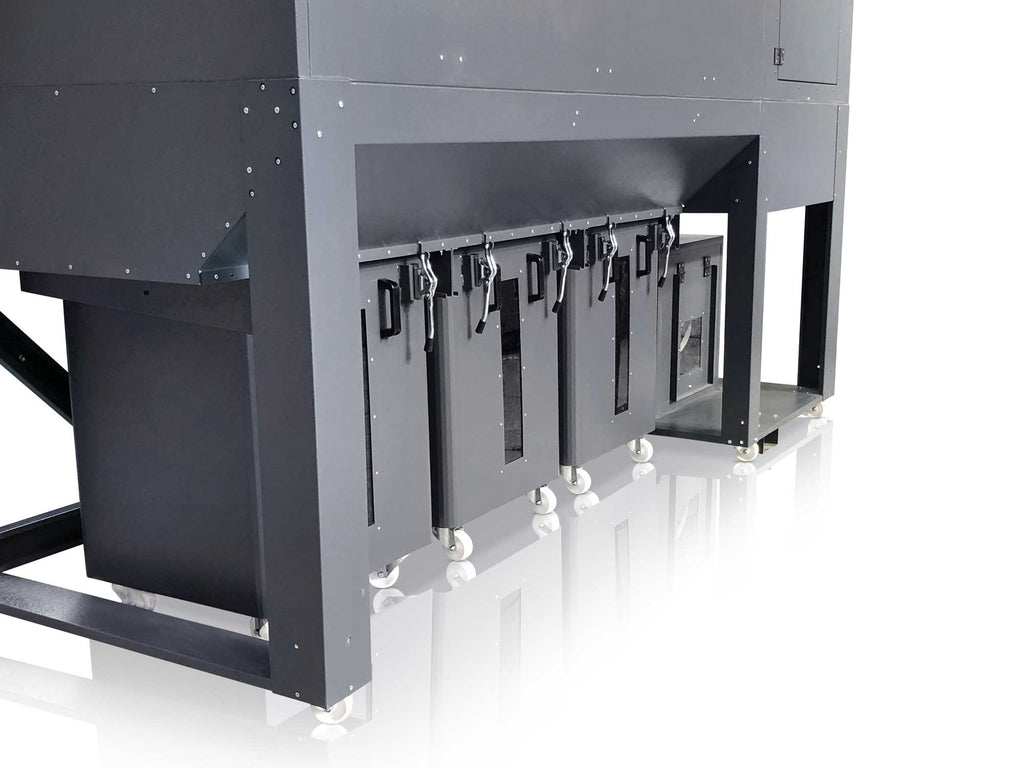

Each drum has easy release handles for quick access and visual windows for checking dust level.
Supplied with complete Polyester Filters (5Micron)
This unit comes on a castor wheel base for easy movement and corner leg plates for location.
NB- 40 AMP 415v 3phase supply required. A cowl for air return can be supplied if the unit is to be sited outside

• Motor Power 11Kw 15hp / 400v / 50Hz
