STK6500 ENCLOSED FINE DUST EXTRACTOR 7.5KW WITH 2 BINS

STK6500 ENCLOSED FINE DUST EXTRACTOR 7.5KW WITH 2 BINS

£5,400.00

Reliable shipping

Flexible returns

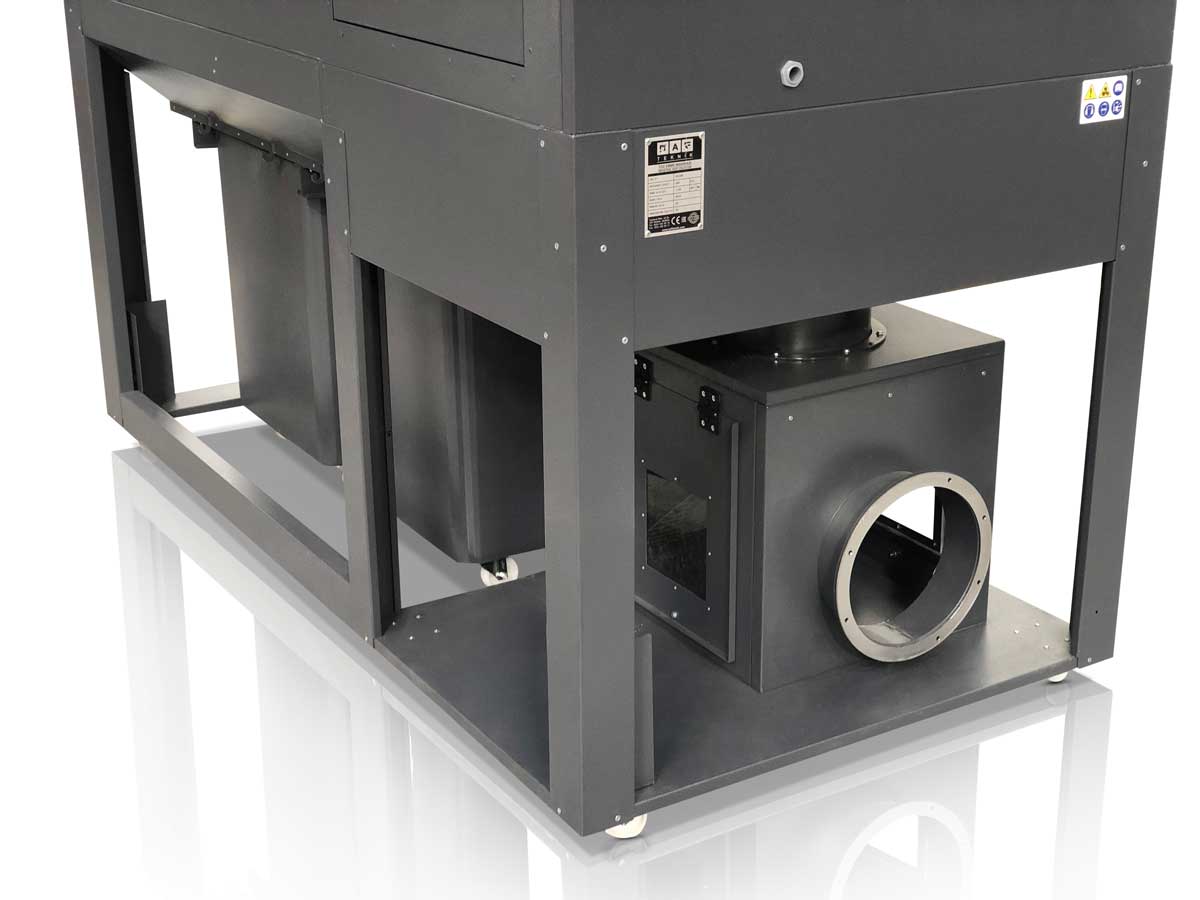

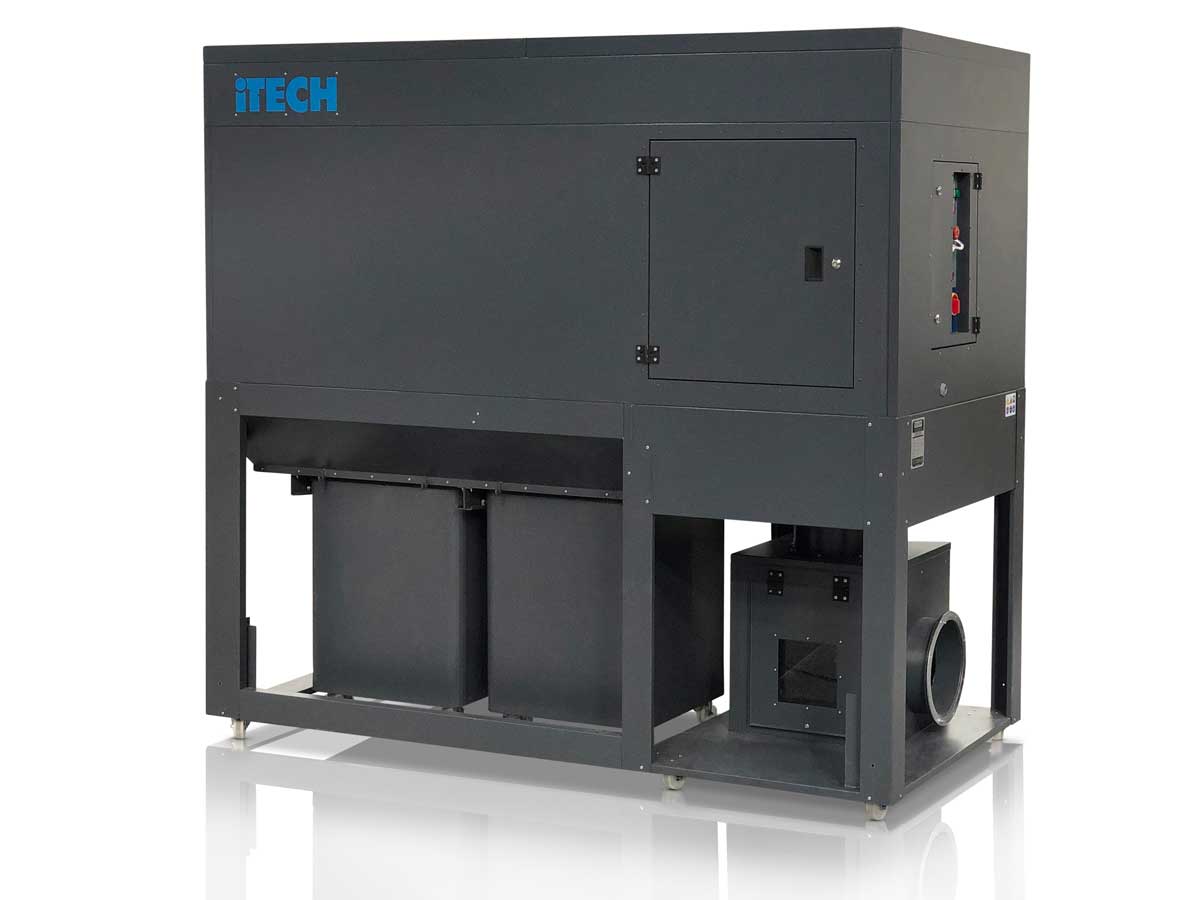

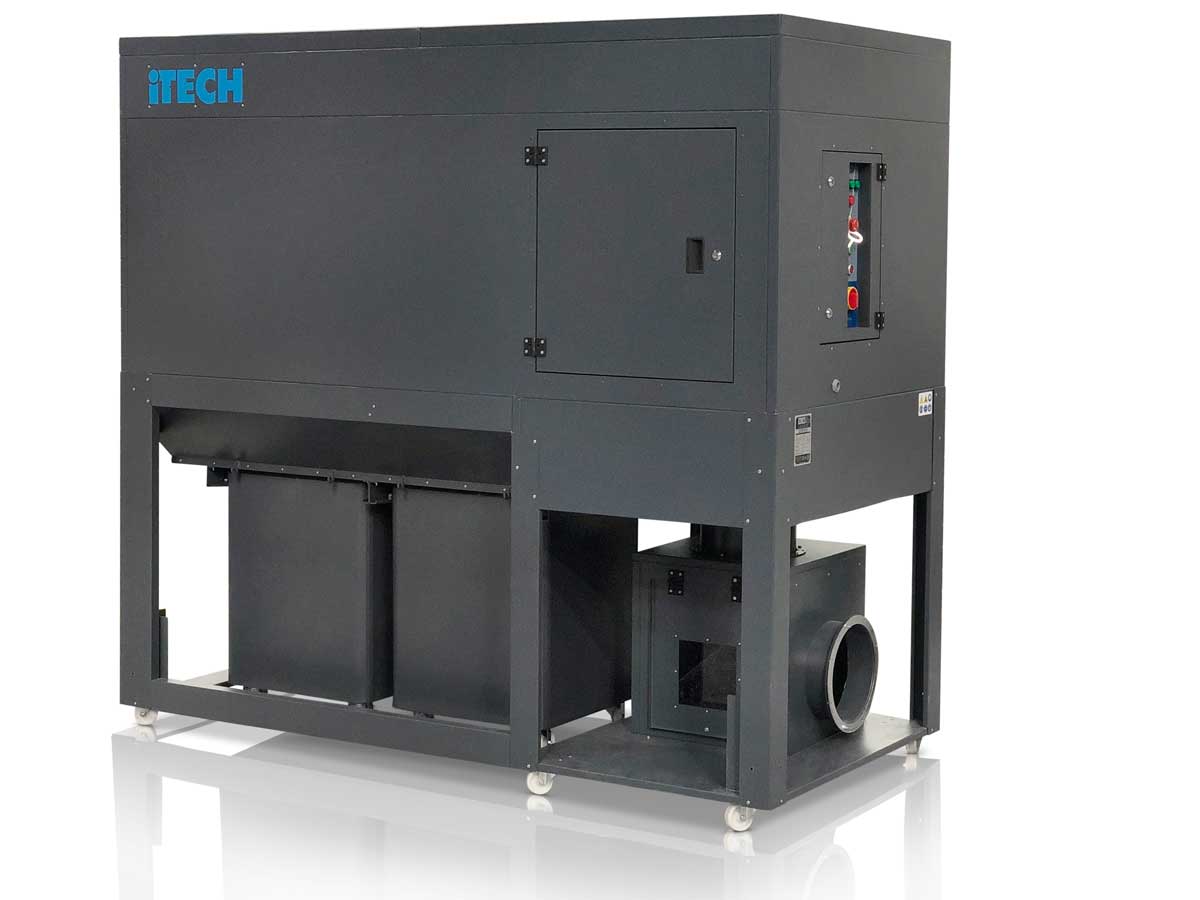

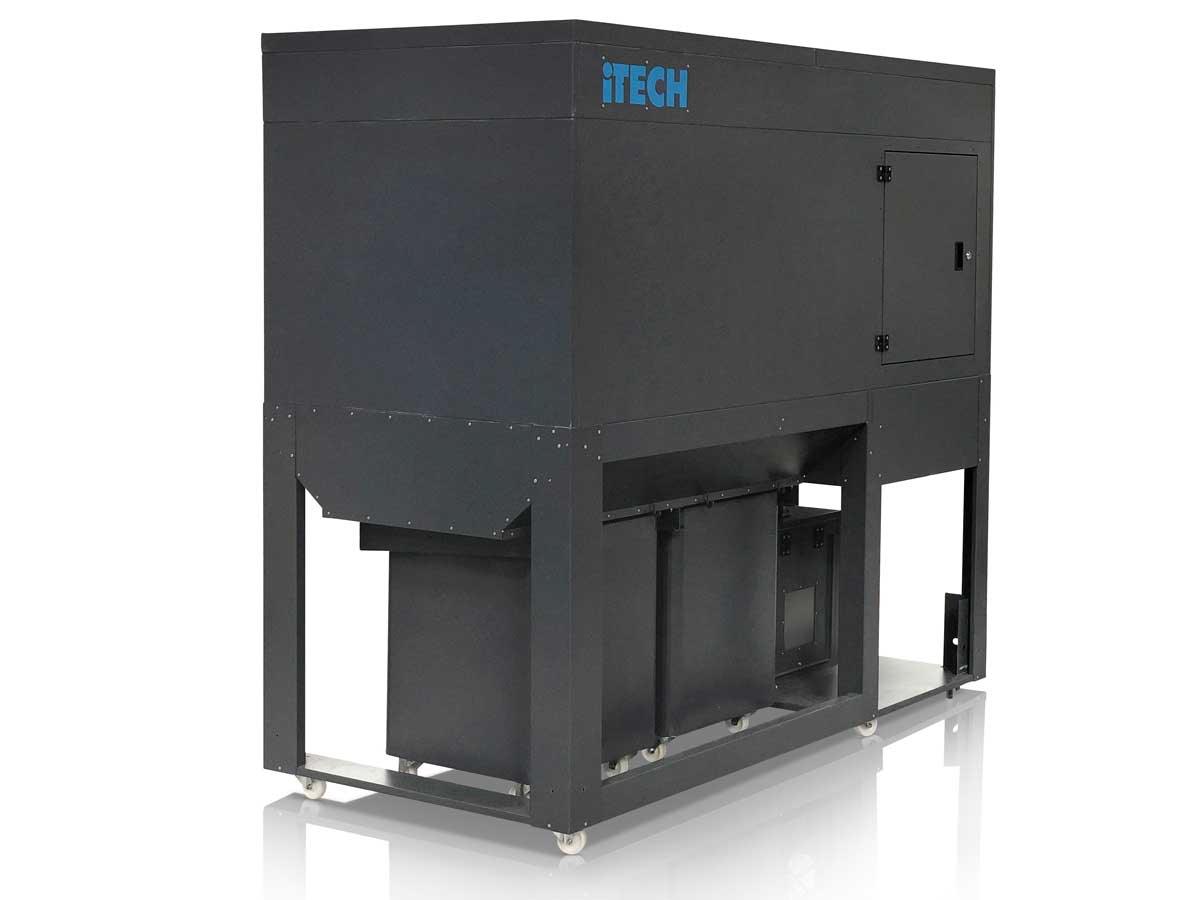

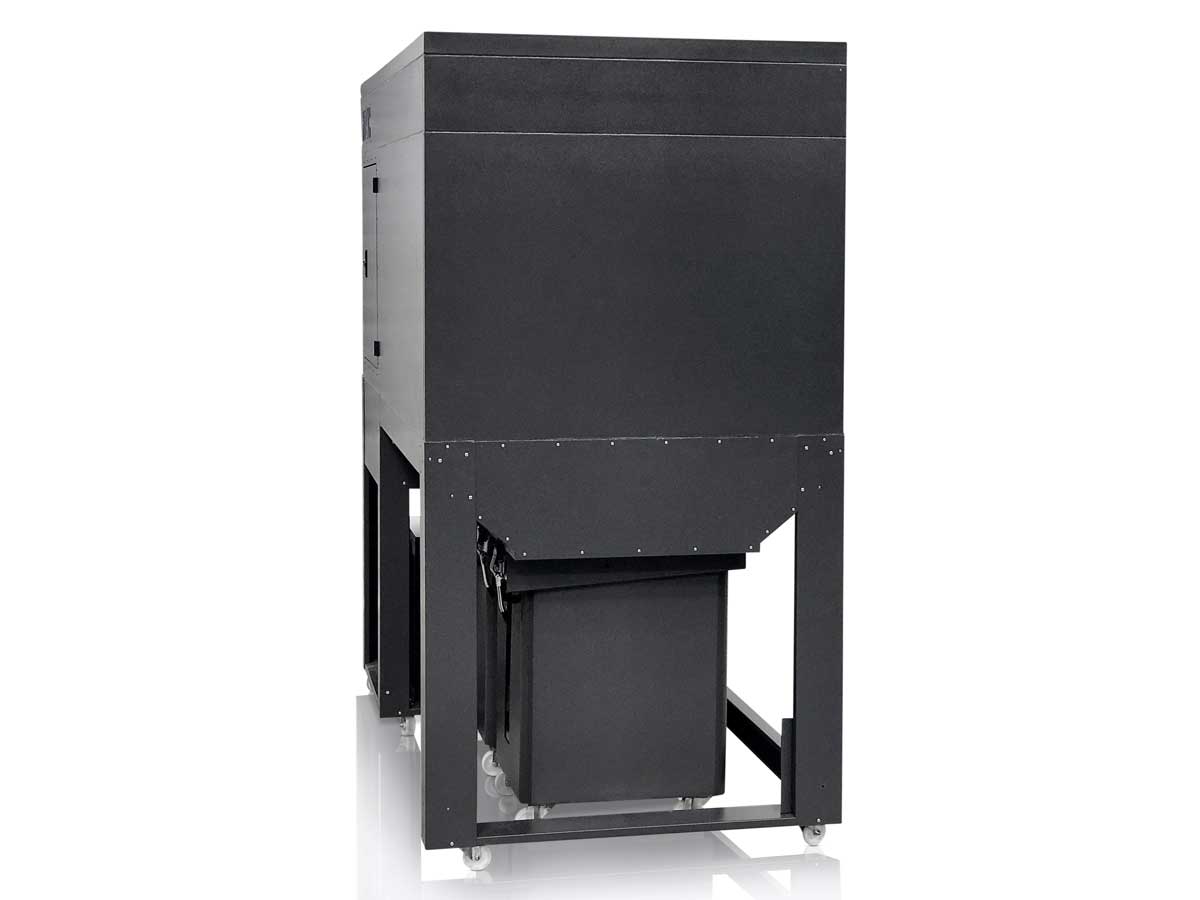

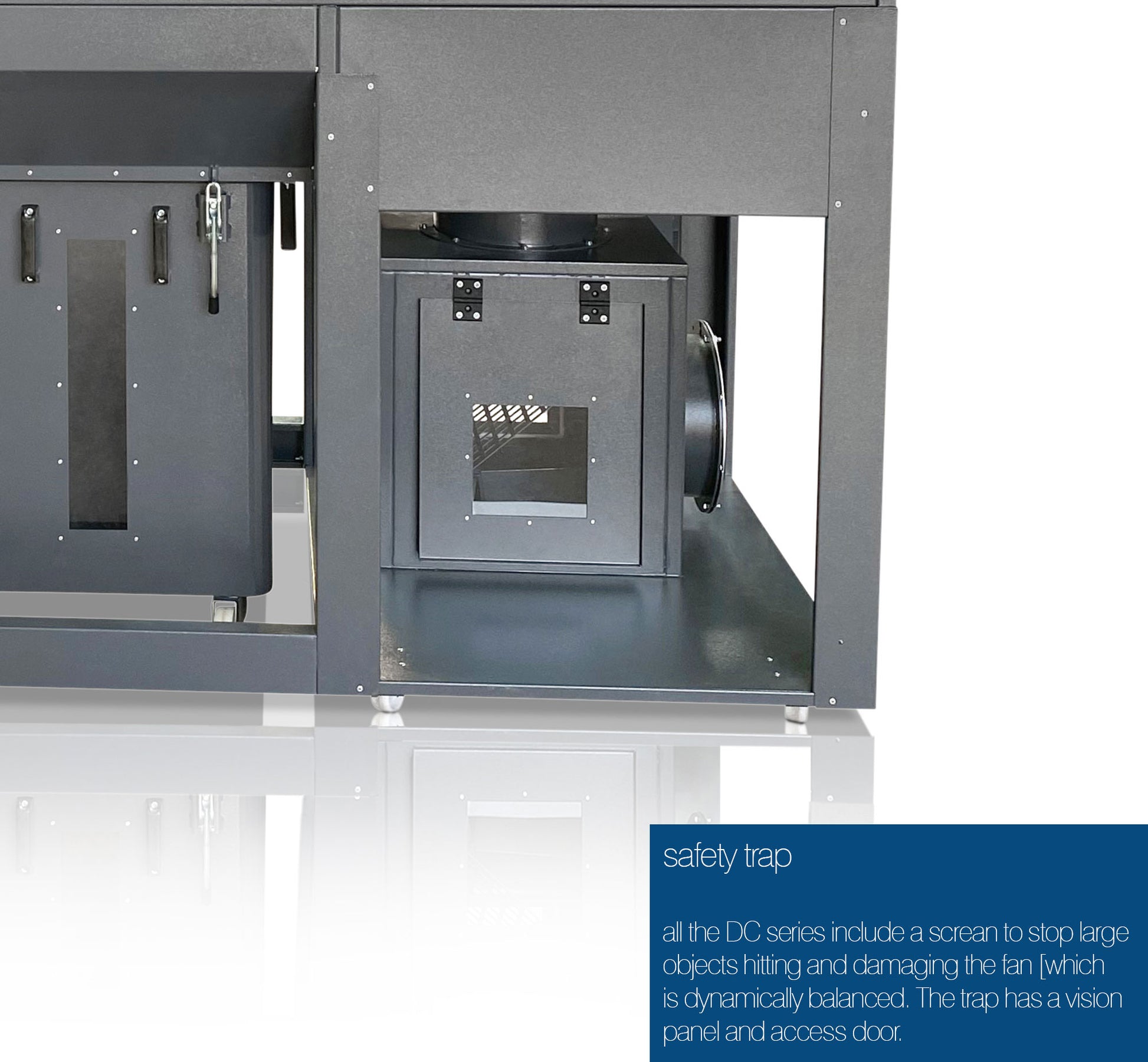

The STK6500-8900TC is a solid two bin Multi Filter Extractor for large shavings and fine dust - ideal for compact CNC Routers panel saws or sanders. It has a 300mm inlet with up to 8900 cmh airflow. The unit incorporates a trap for pieces over 25 x 25 mm entering and protecting the fan from accidental damage.

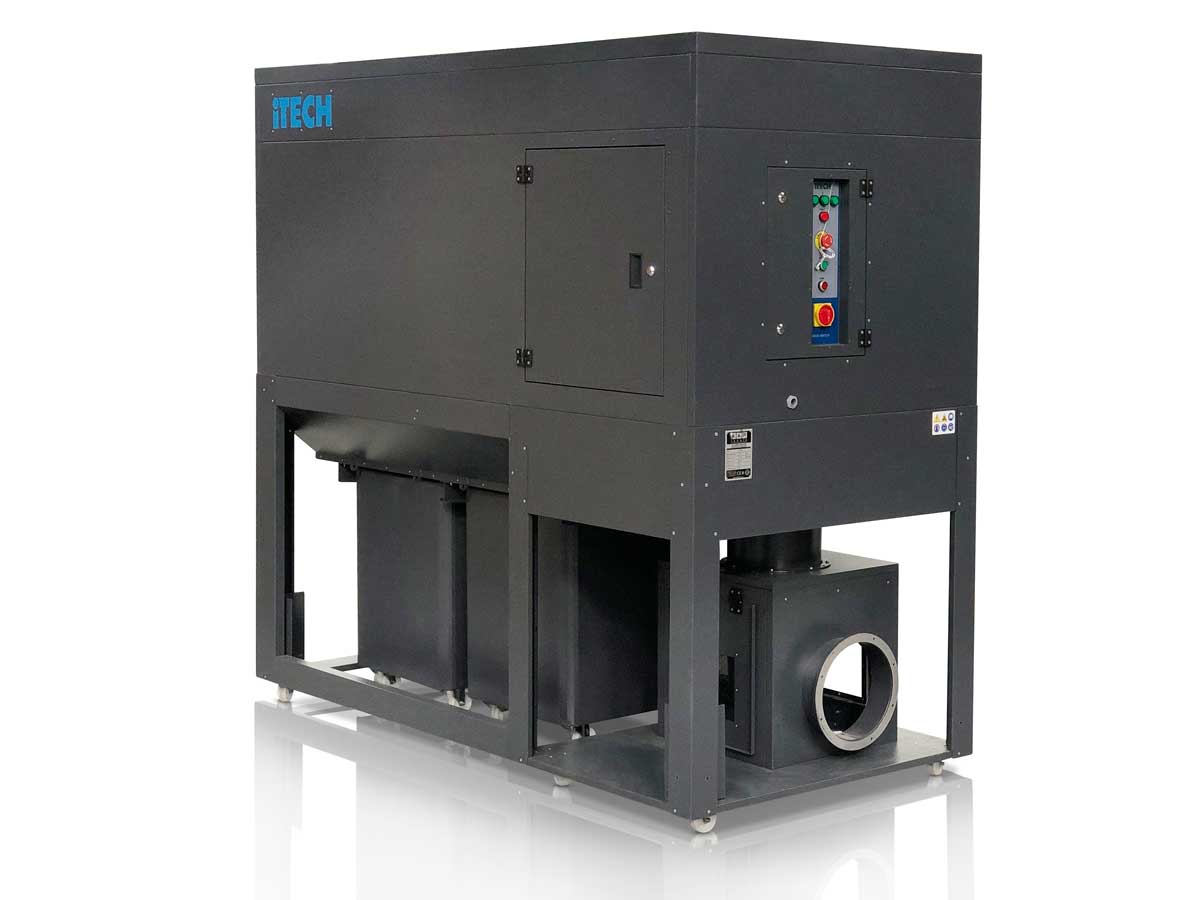

The totally enclosed body is made from 1.2 mm thick sheet steel, powder-coated and has a trouble-free system of cleaning/shaking the filters with the possibility (automatic or manual switching) on the integrated starter + control box.

The 300mm inlet makes them very suitable for a built-in system giving high airflow volume, ideal for larger systems.

Metal motor balanced dynamically to reduce the noise level.

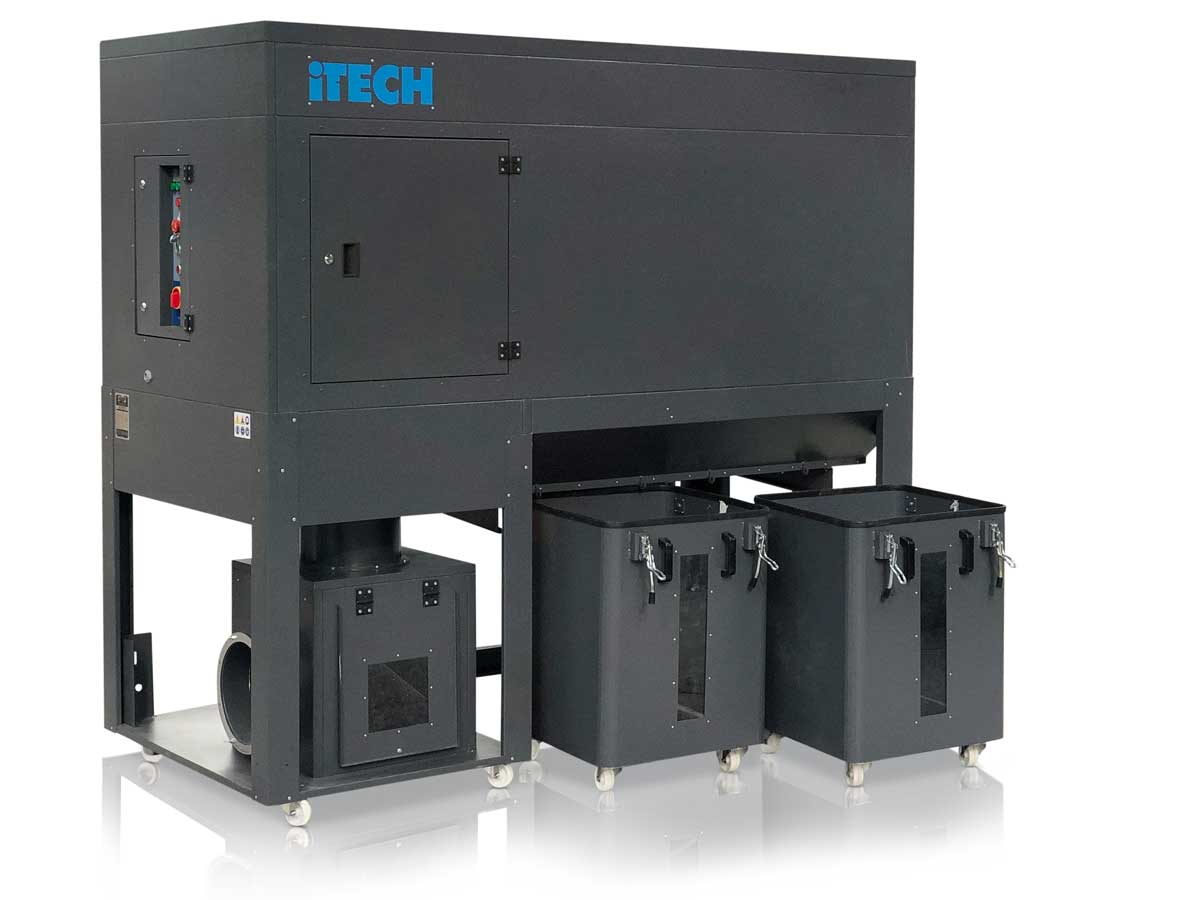

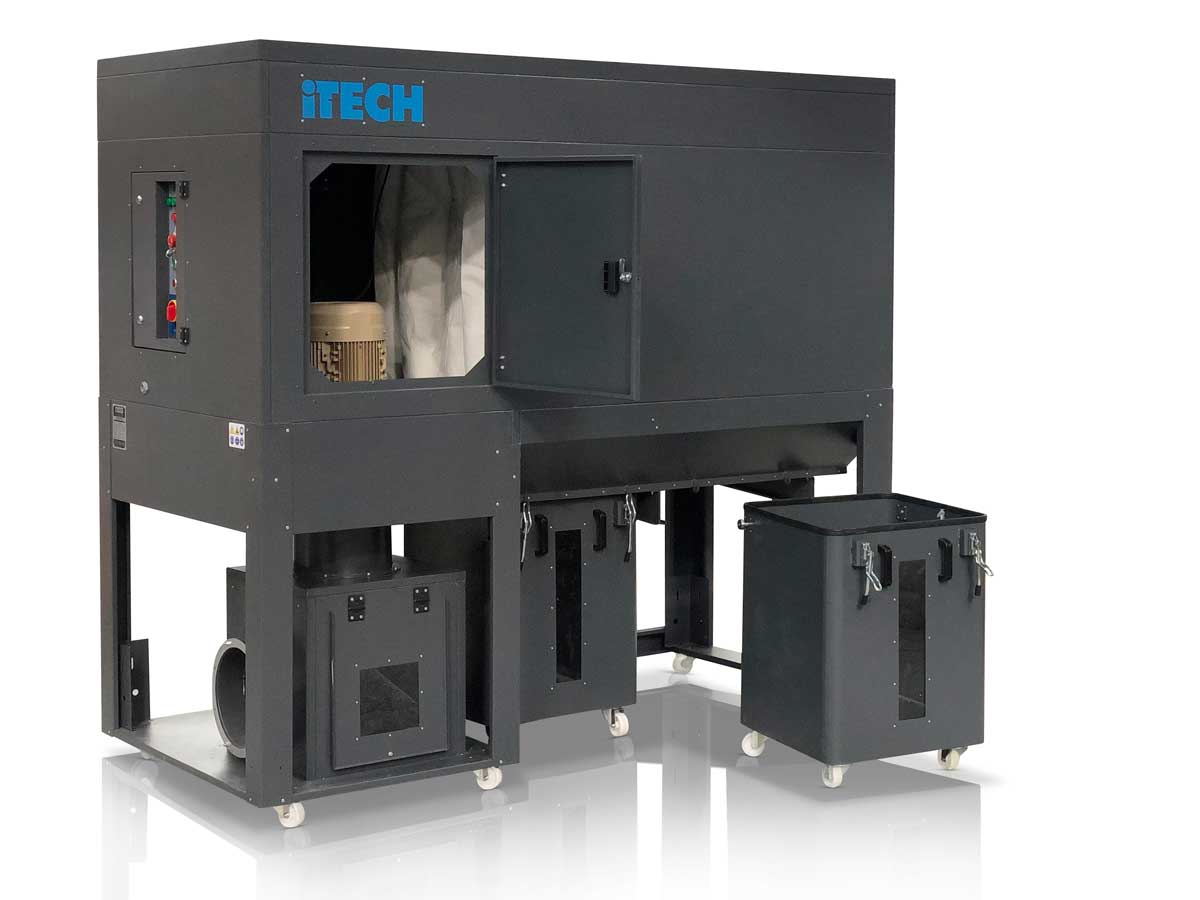

Each drum has easy-release handles for quick access and visual windows for checking dust levels.
Supplied with complete Polyester Filters (5Micron) and waste sacks.

This unit comes on a castor wheel base for easy movement and corner leg plates for location.
NB- 40 AMP 415v 3 phase supply required.

A cowl for air return can be supplied if the unit is to be sited outside, the unit is NOT waterproof.

  • Motor Power 7.5Kw / 10.0hp / 400v / 50Hz / 32A
  • Airflow 6500-8900m3/hour
  • Fan Speed 3000 rpm

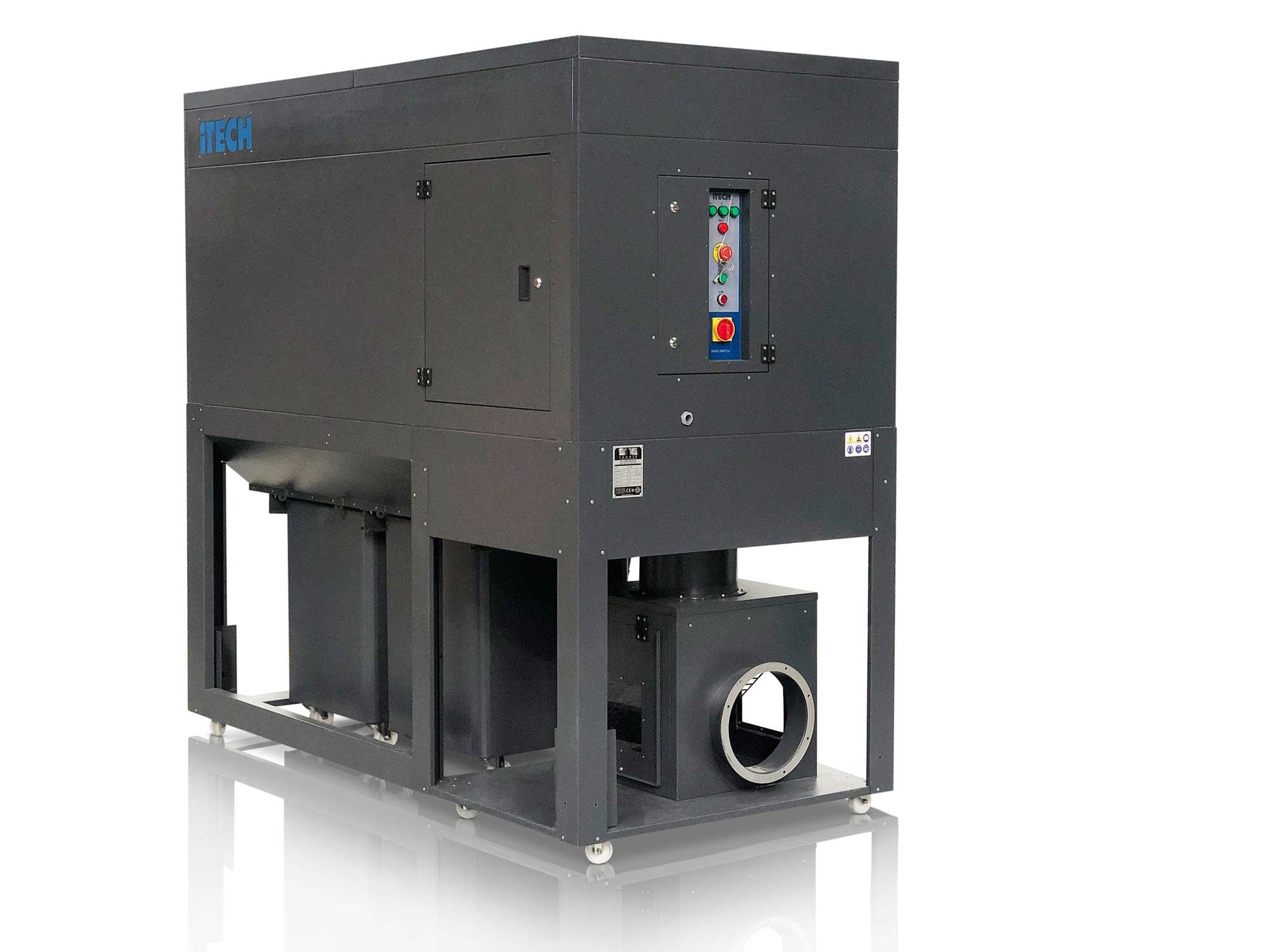

  • Inlet Diameter 300 mm
  • Suction Speed 28-32 m/s
  • Filter area 21.25 m2
  • Number of Filter 45

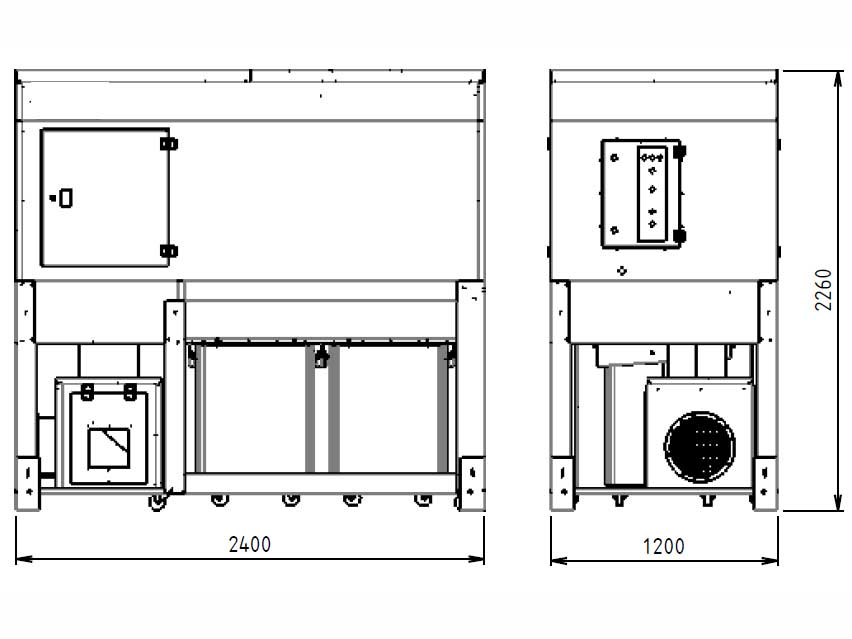

  • Dimensions L x W x H 1170 x 2400 x 2200 mm
  • Weight 460 kg
  • Bin Capacity 2x 60 x 60 x 72cm 0.51m3
  • bags ADSTKBAG
