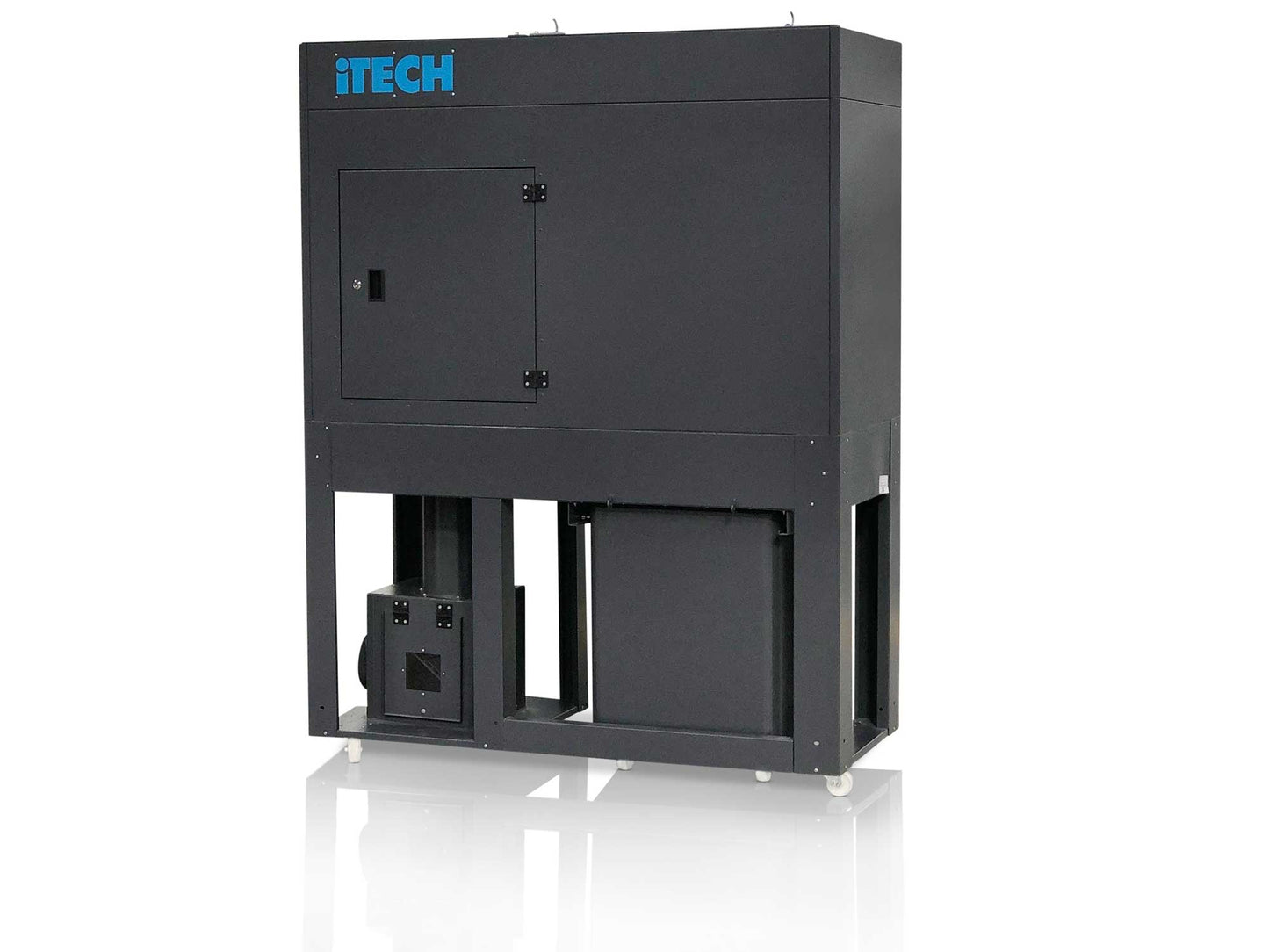

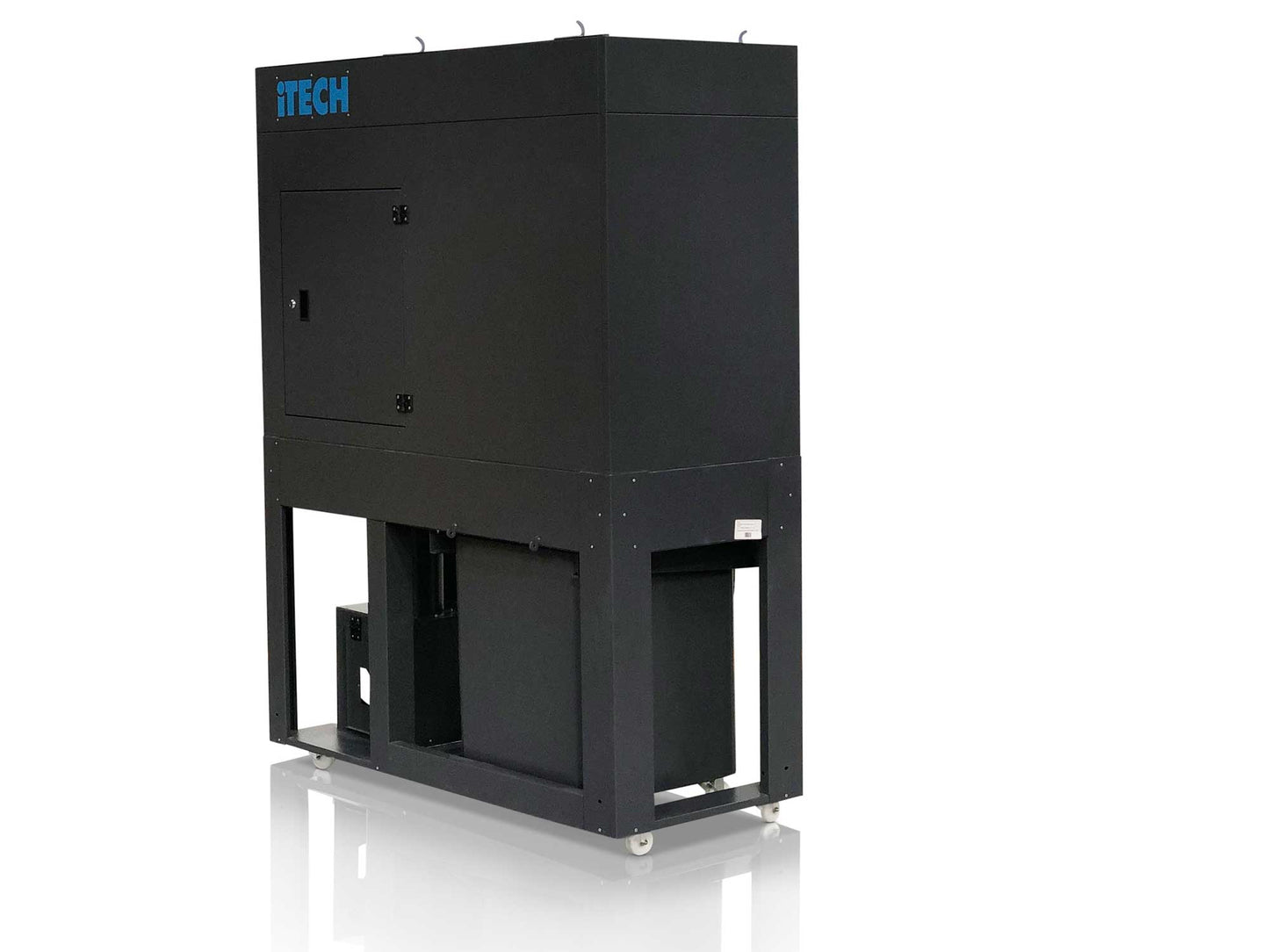

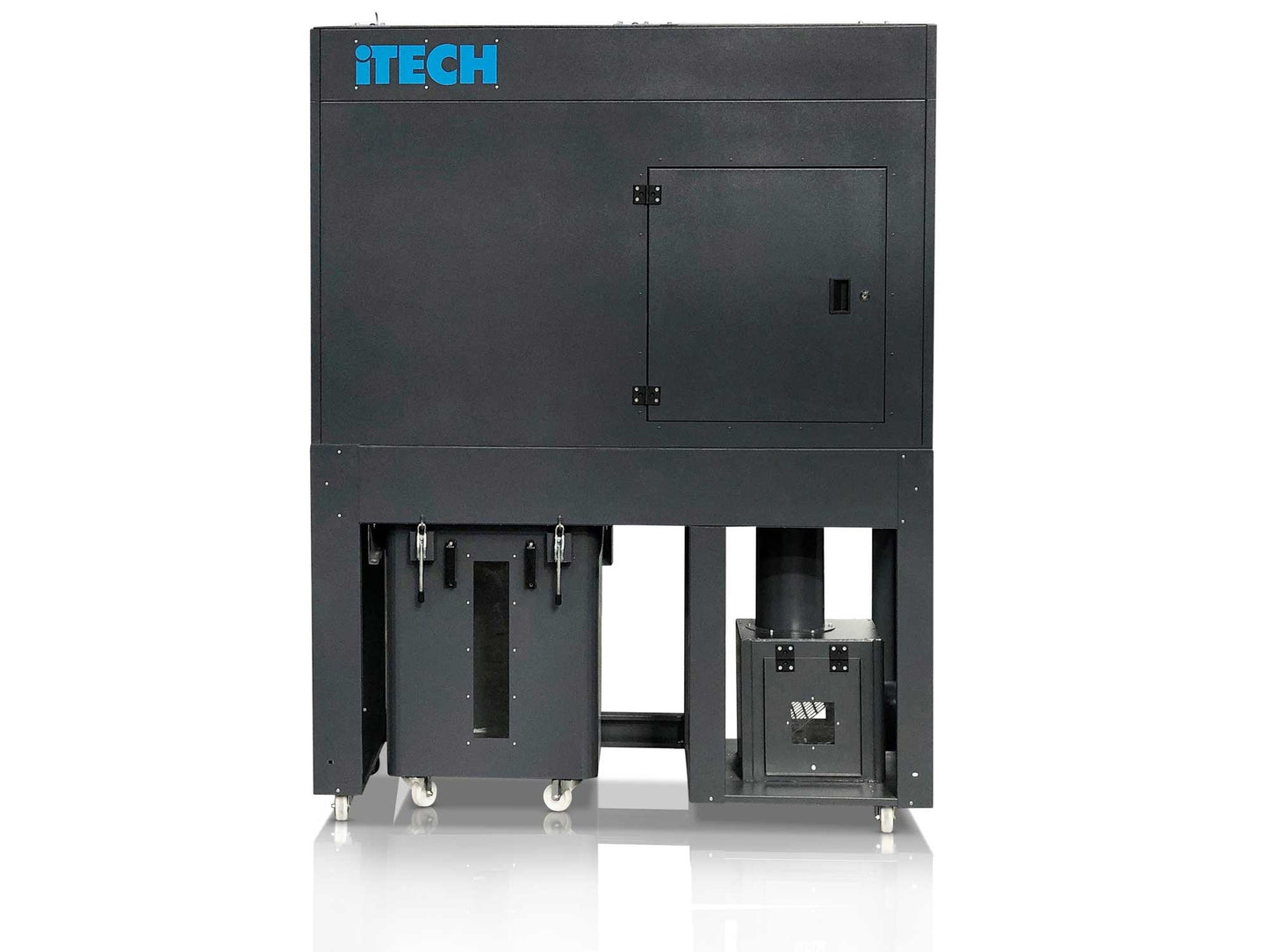

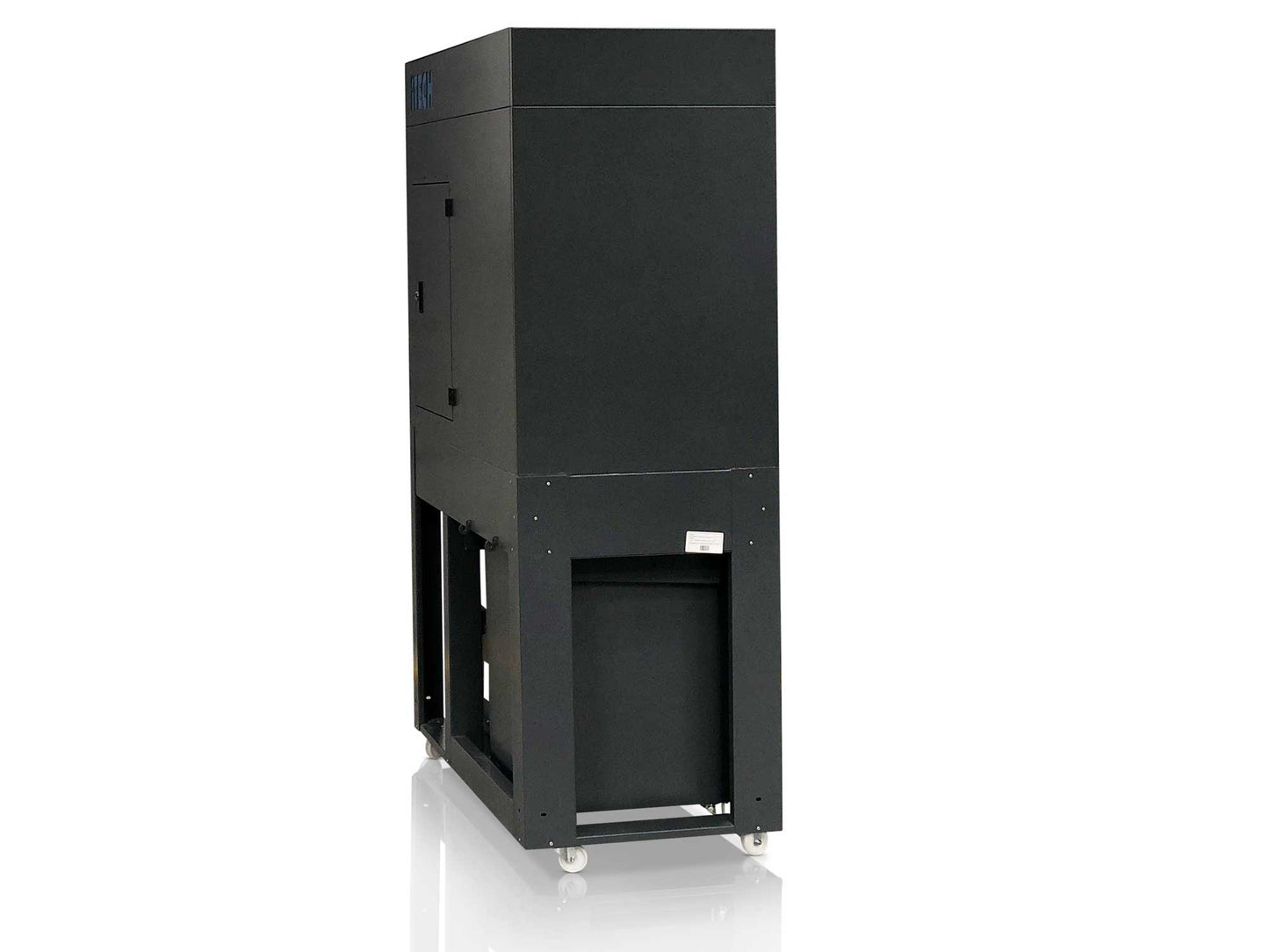

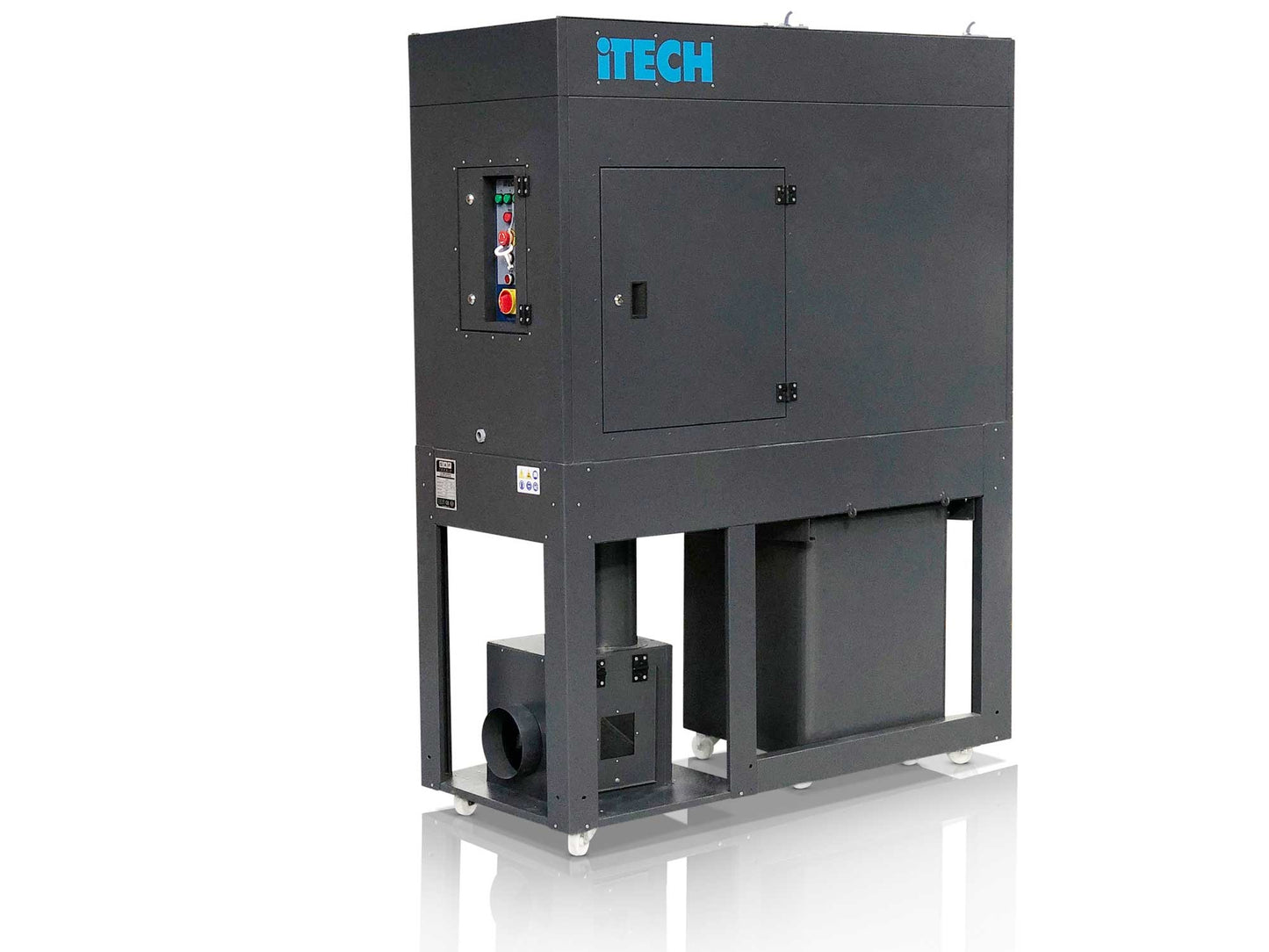

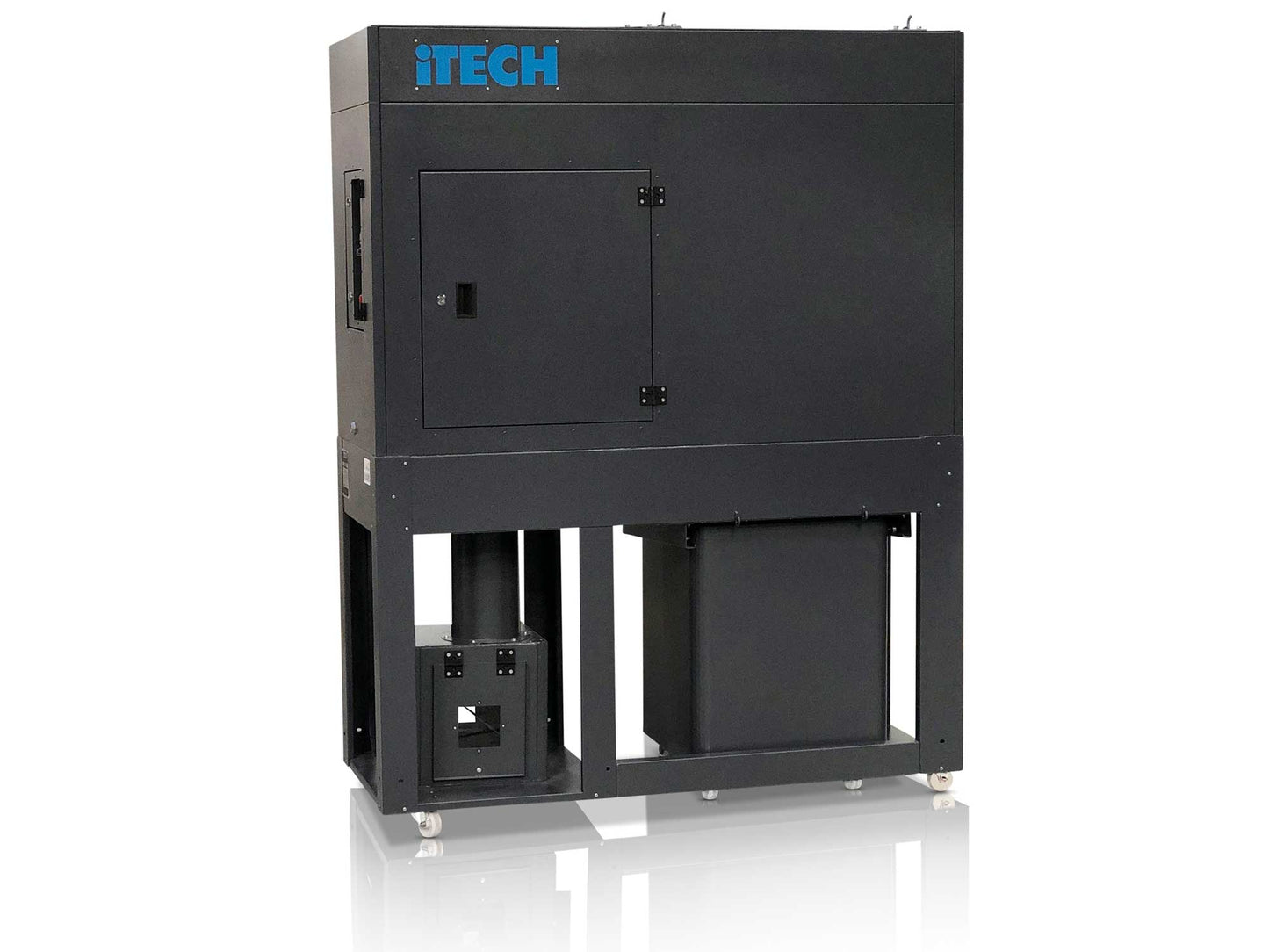

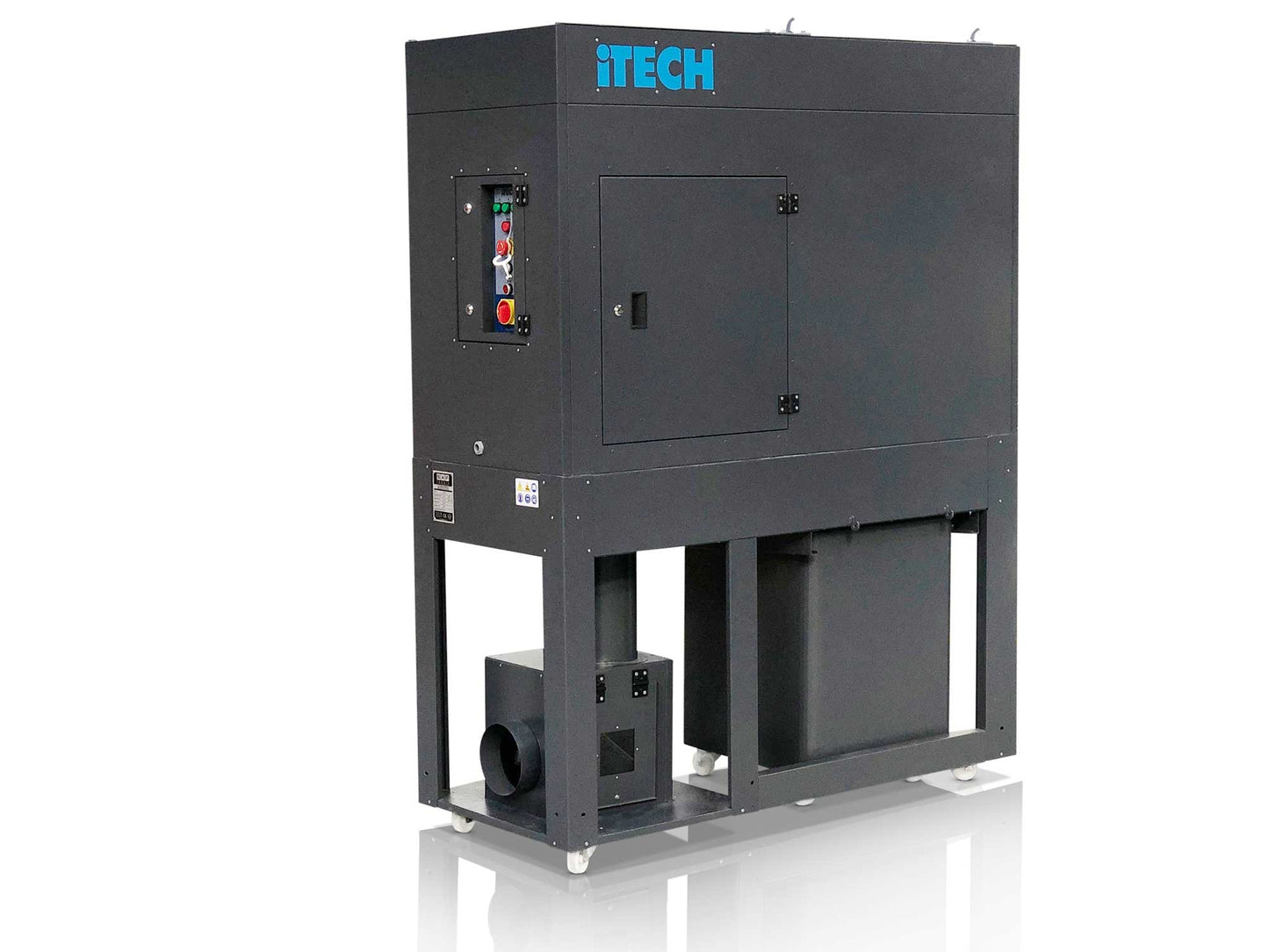

STK3500 FINE DUST EXTRACTOR

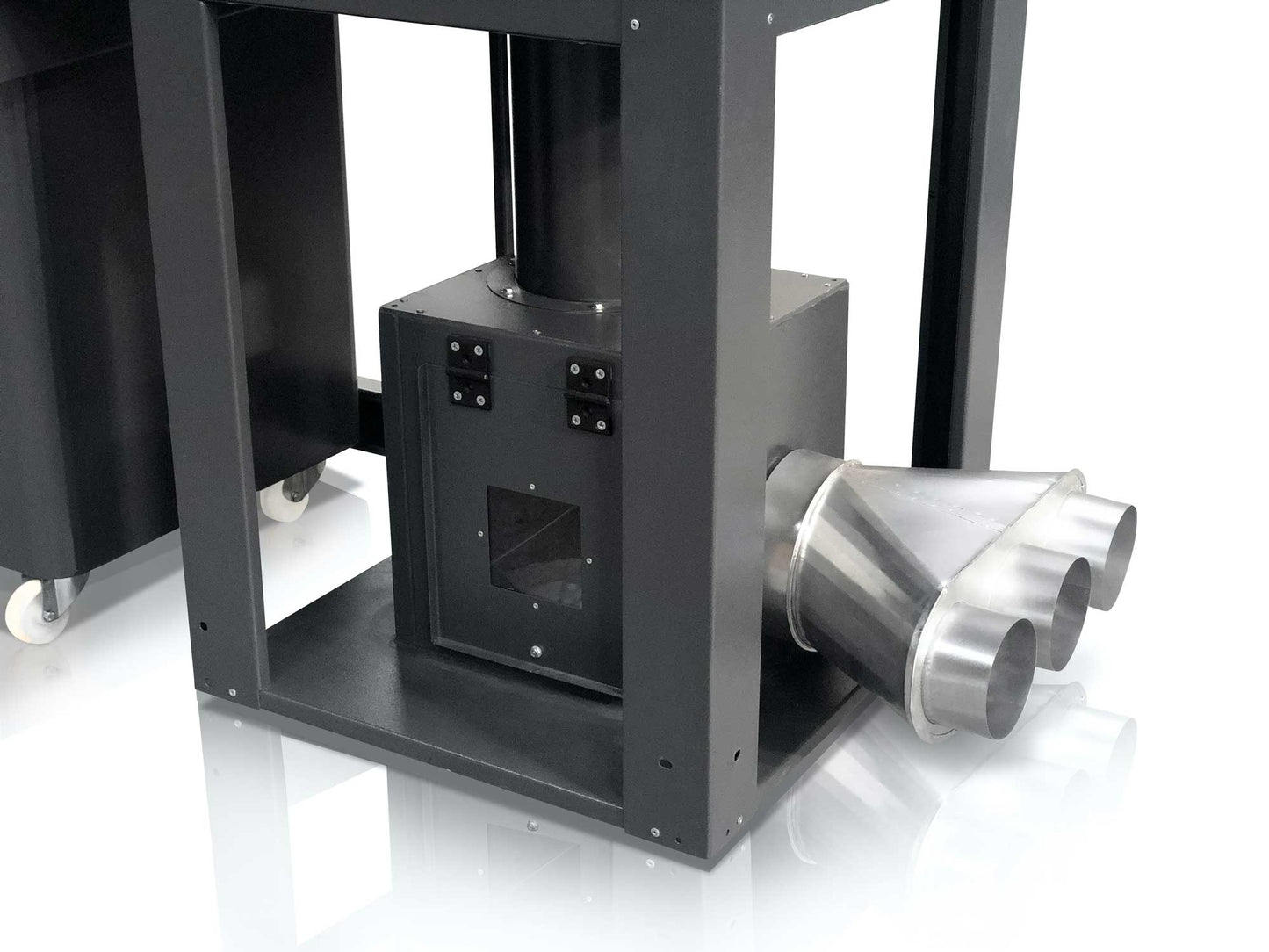

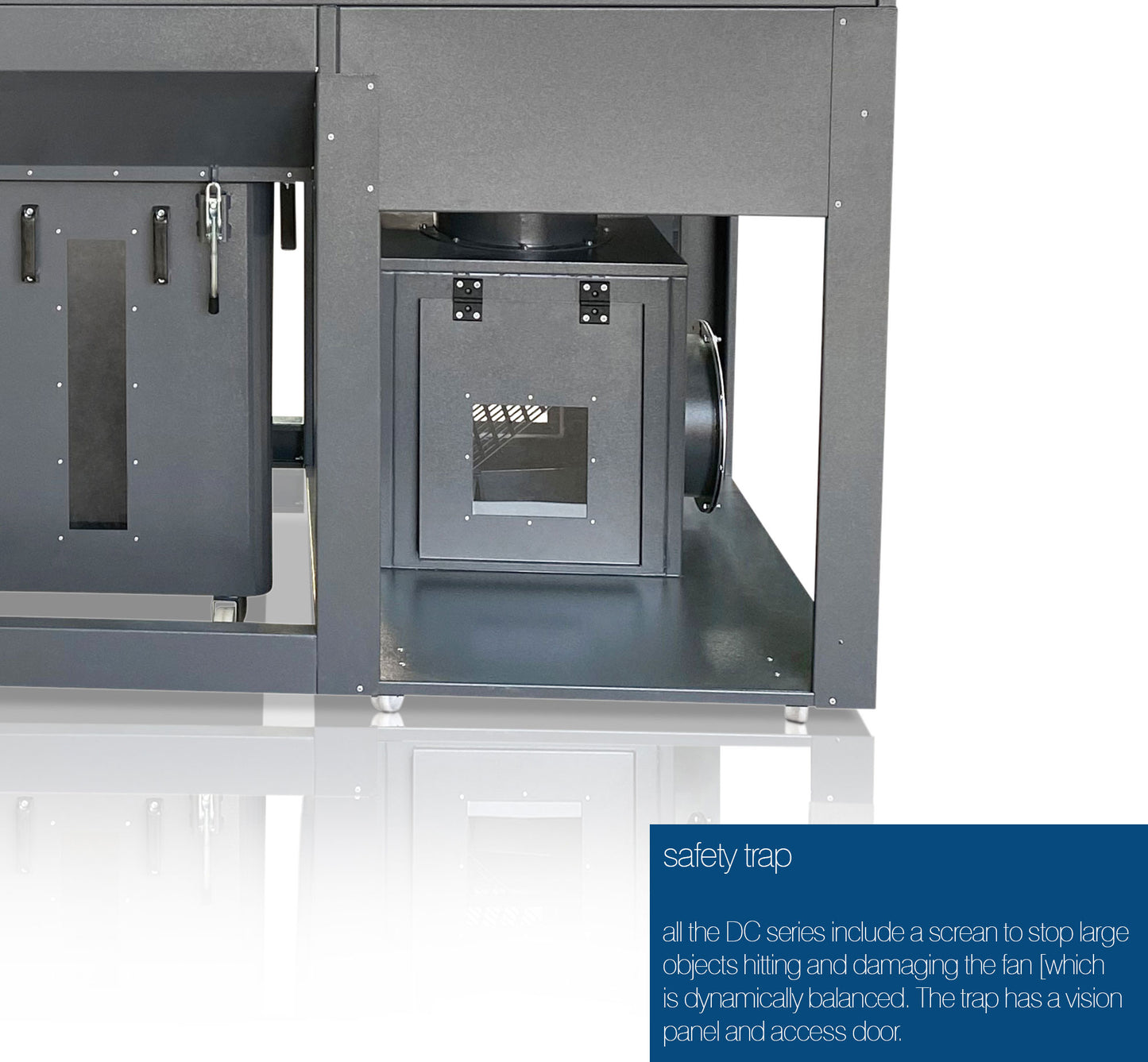

The STK3500-4500TC is a solid single bin Multi Filter Extractor for large shavings and fine dust - ideal for compact CNC Routers panel saws or sanders. It has a 200mm inlet. The unit incorporates a trap for pieces over 25 x 25 mm entering and protecting the fan from accidental damage.

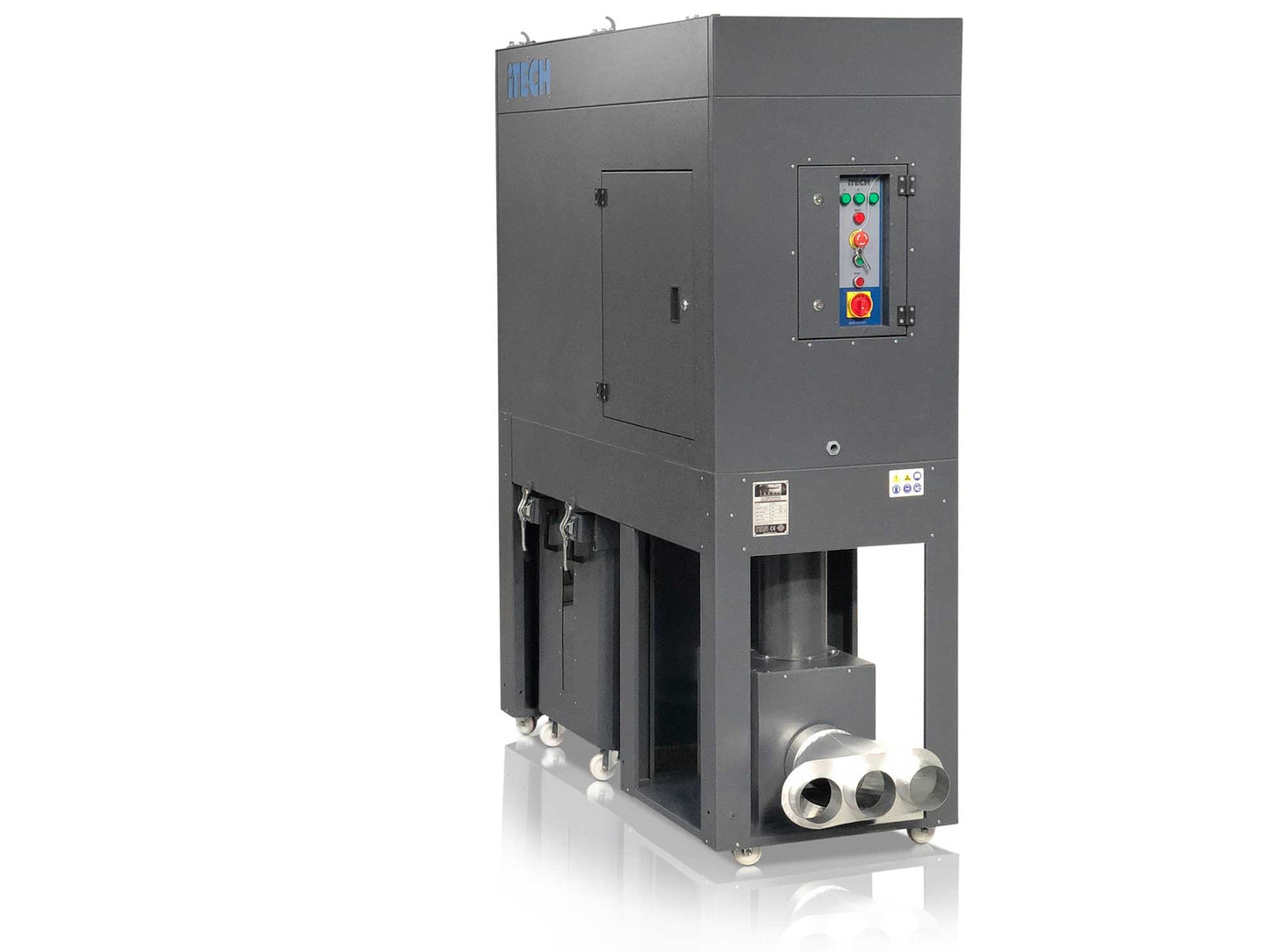

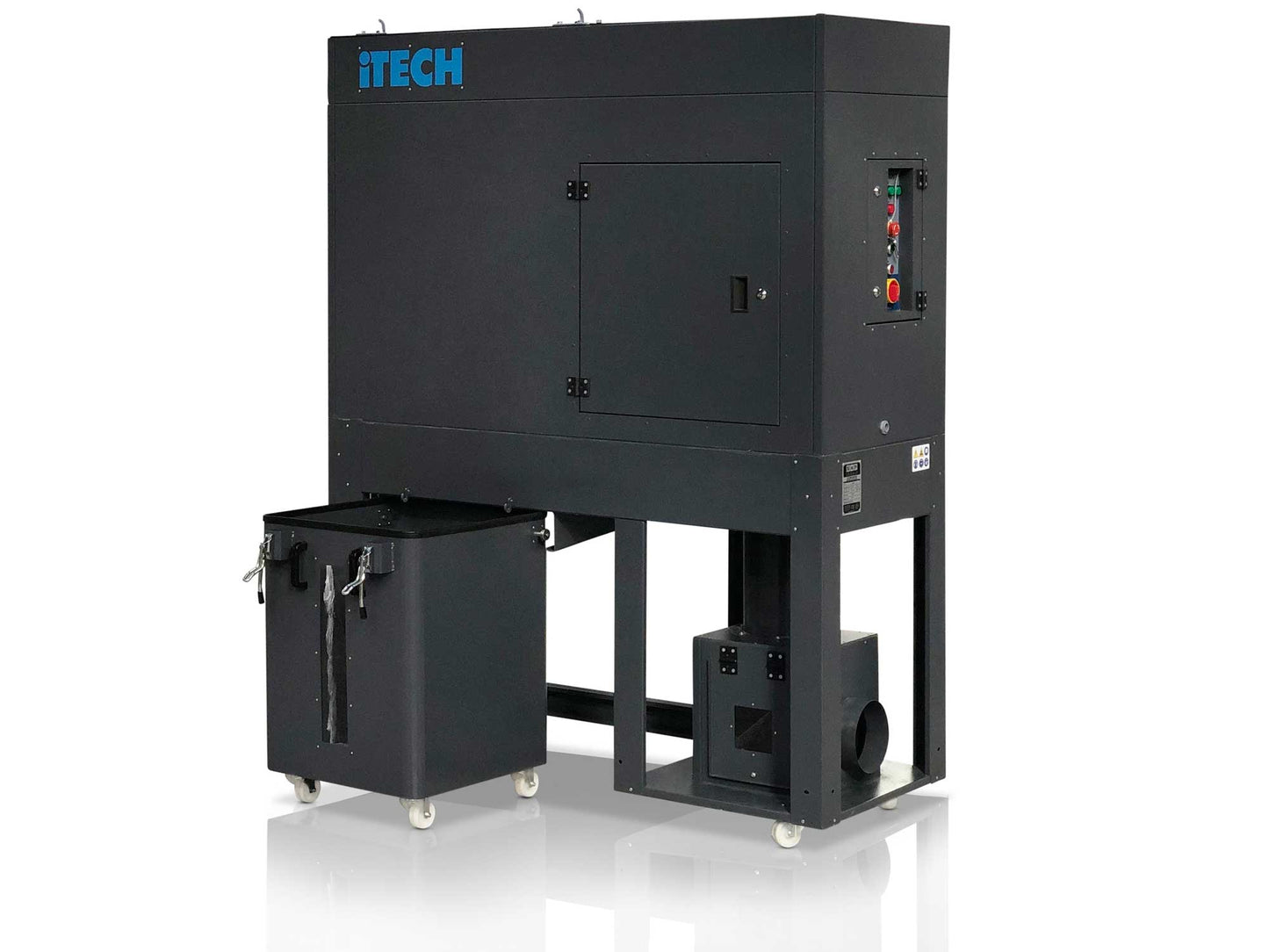

Totally enclosed body is made from 1.2 mm thick sheet steel, powder coated and has a trouble free system of cleaning/shaking the filters with the possibility (automatic or manual switching) on the integrated starter + control box. The 200mm inlet makes this very suitable for a built-in system giving high airflow volume. Metal motor balanced dynamically to reduce noise level. Each drum has easy release handles for quick access and visual windows for checking dust level and fixed only from the front as shown- exhaust to the right.

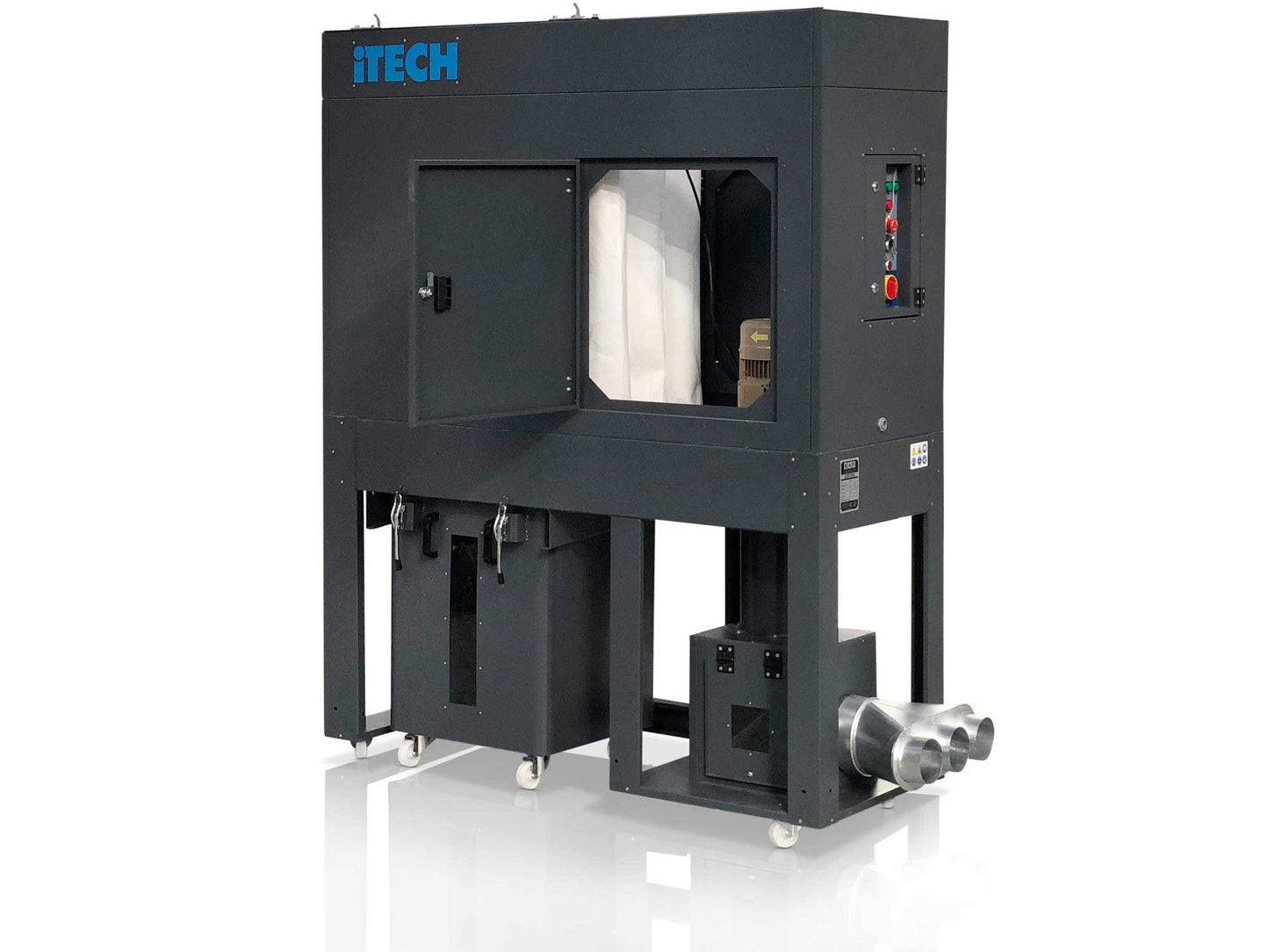

Supplied with complete Polyester Filters (5 Micron)
This unit comes on a castor wheel base for easy movement and corner plates for location.
NB: 32 AMP 415v 3phase supply required no plug fitted

• Motor Power 3.0 Kw 4.0 hp
• Airflow 3500-4500 m3/hour
• Inlet Diameter 200 mm
• Suction Speed 28-32 m/s
• Number of Filters 12
• Filter area 7.75 M2

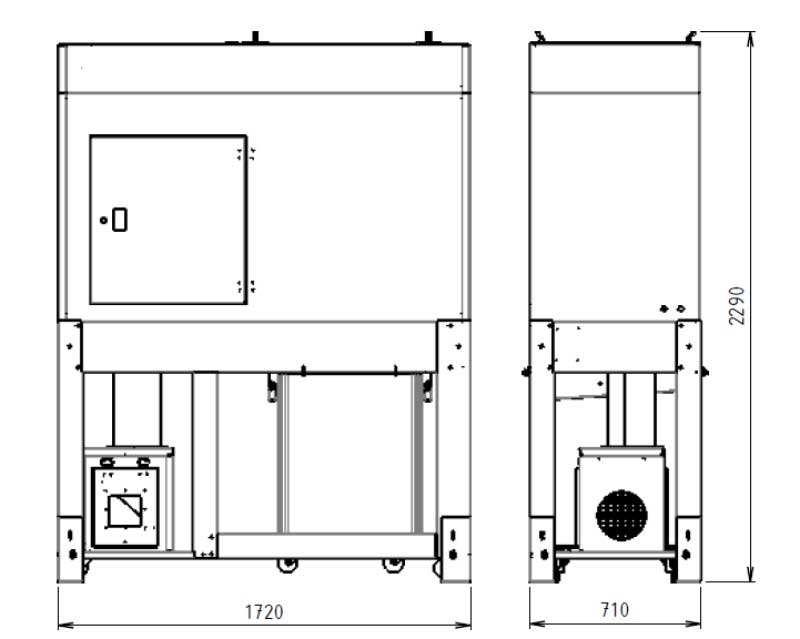

• Dimension L WH 730 x 1730 x 2280 mm
• Weight 300 kg

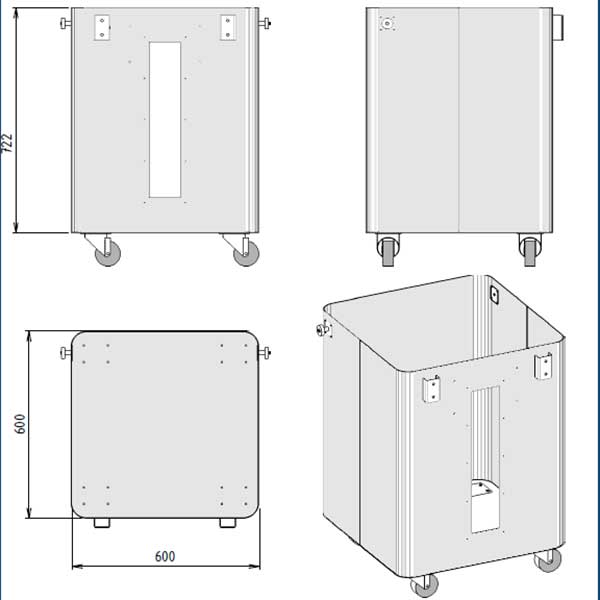

• Bin Capacity 1 x 60 x 60 x 72cm
