SP400C SPIRAL PLANER THICKNESSER

The iTECH 400C is a combined planer & thicknesser that's a proven design with heavy cast iron tables and the best planer fence system available at this price level. It includes the latest silent technology spiral cutter block as standard, this reduces noise and produces a finer finish on difficult grain and hard woods.

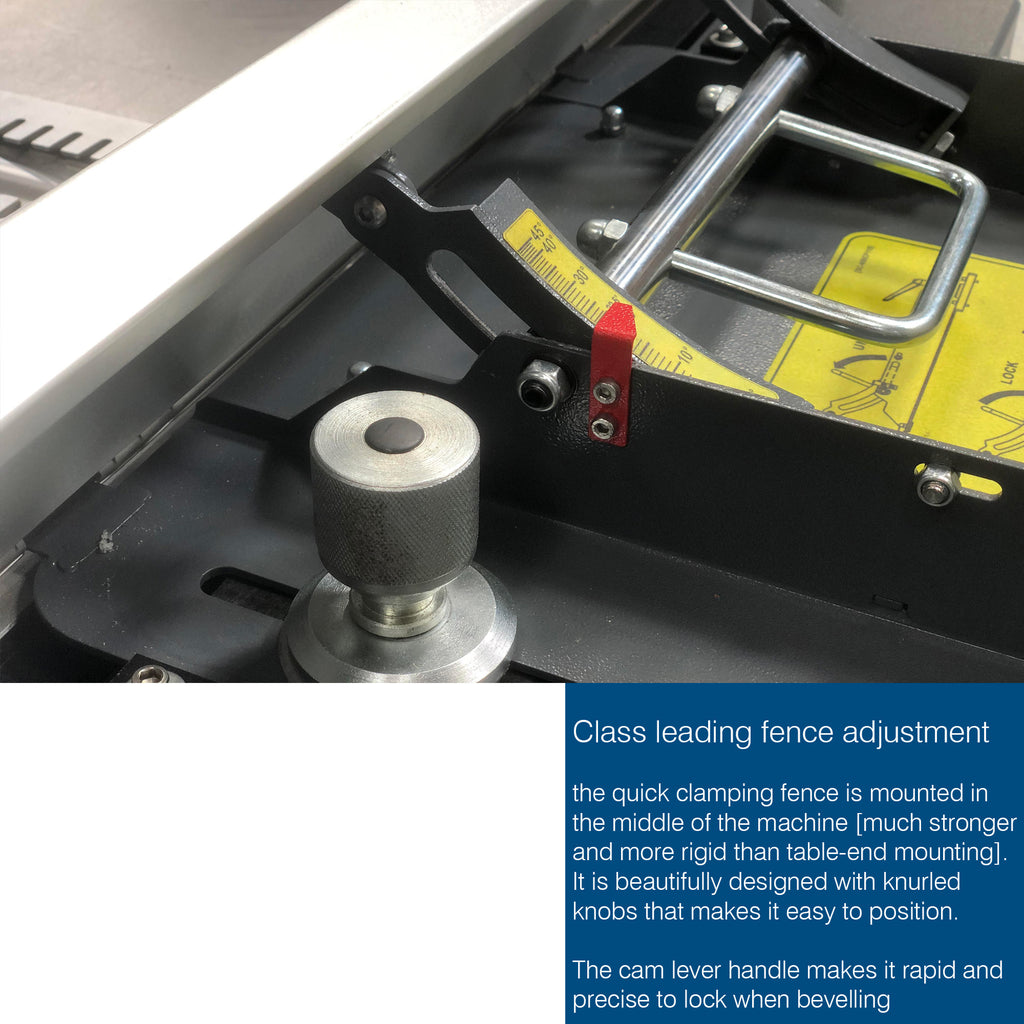

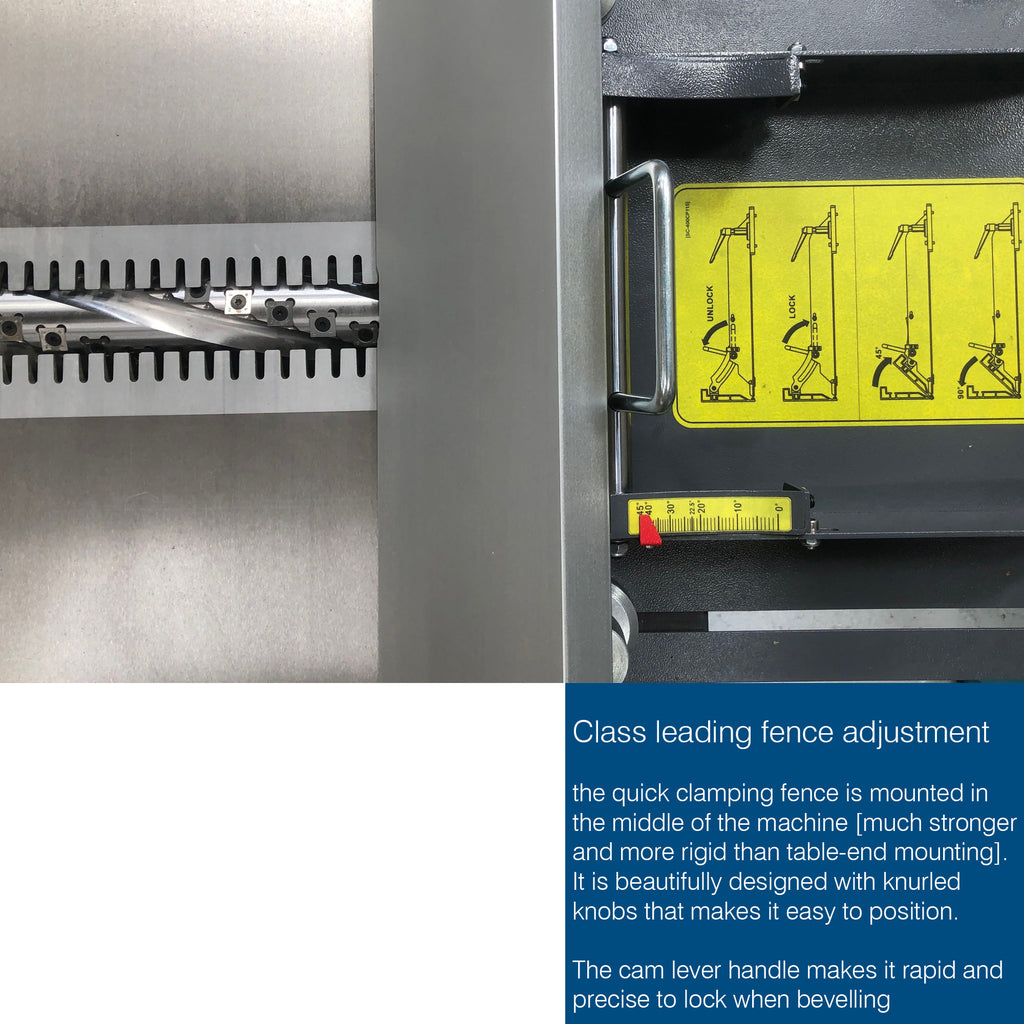

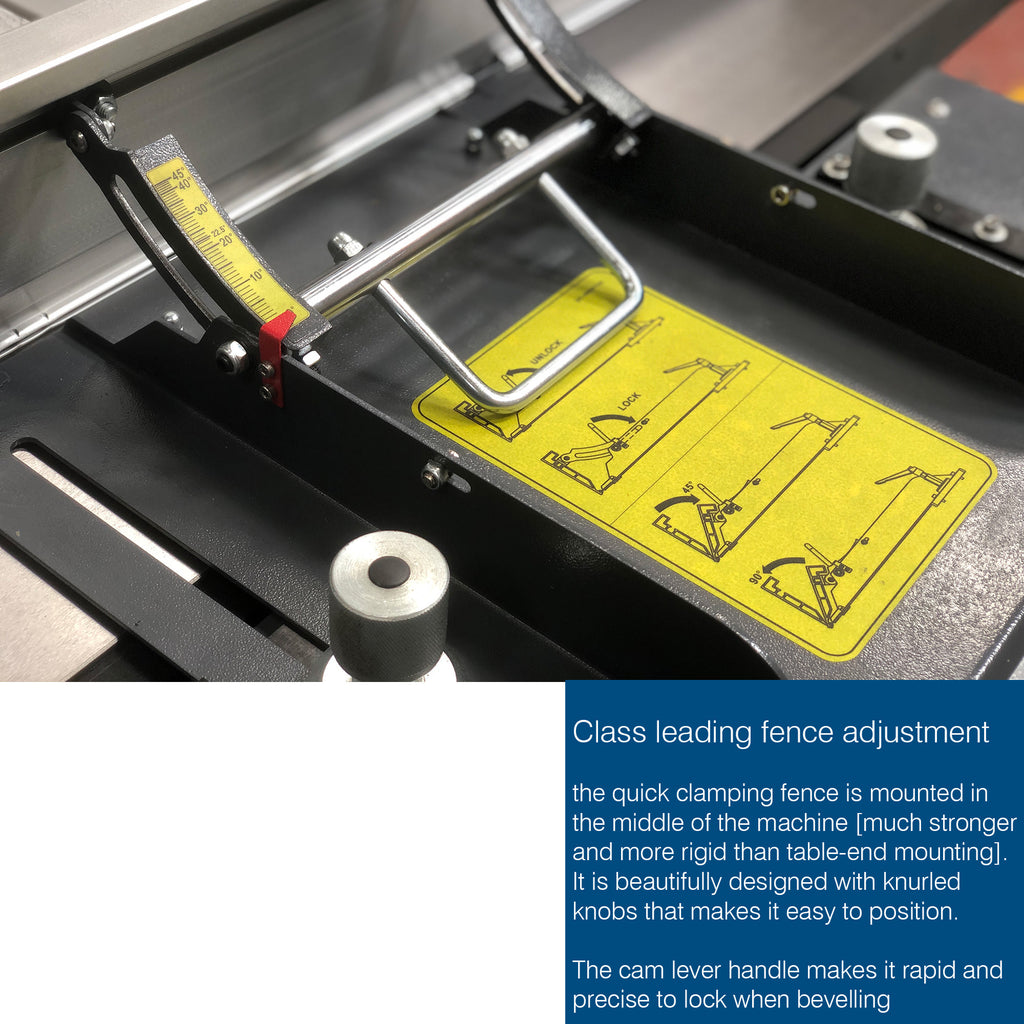

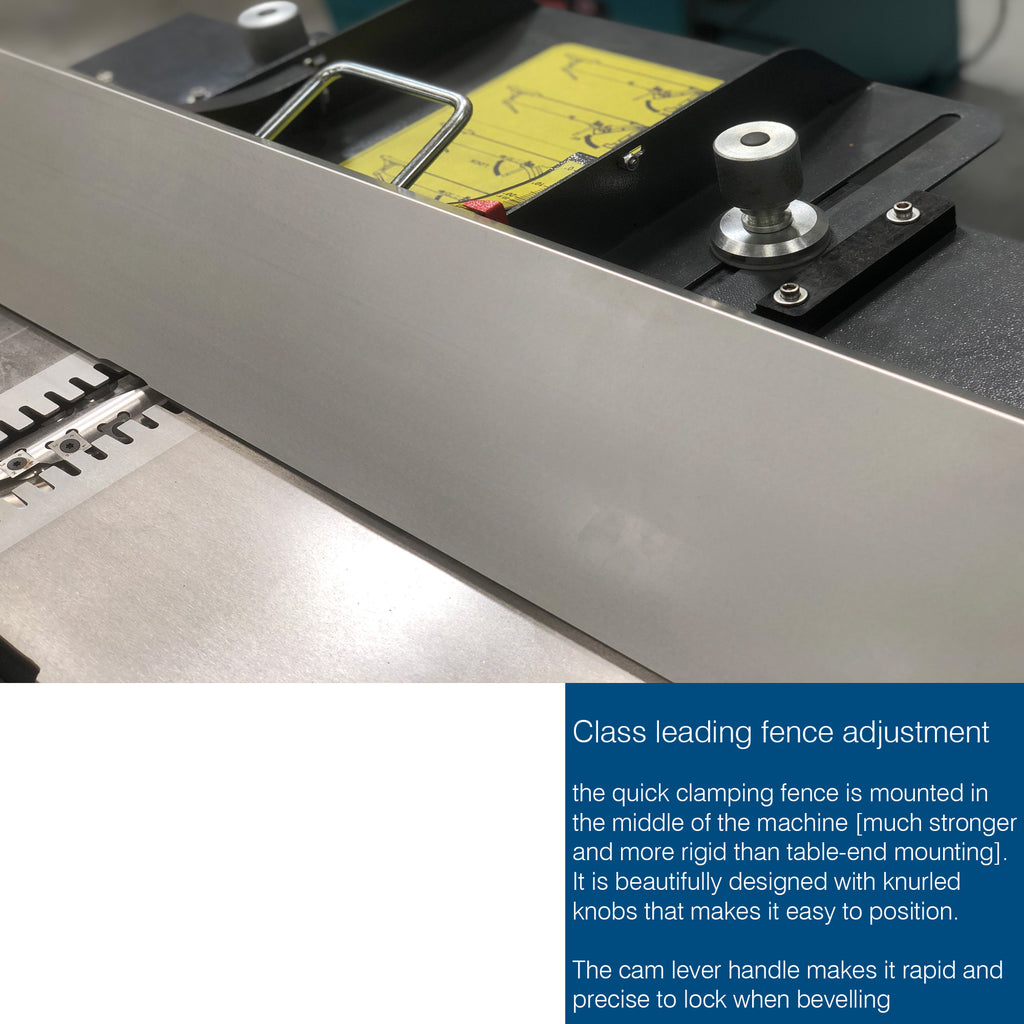

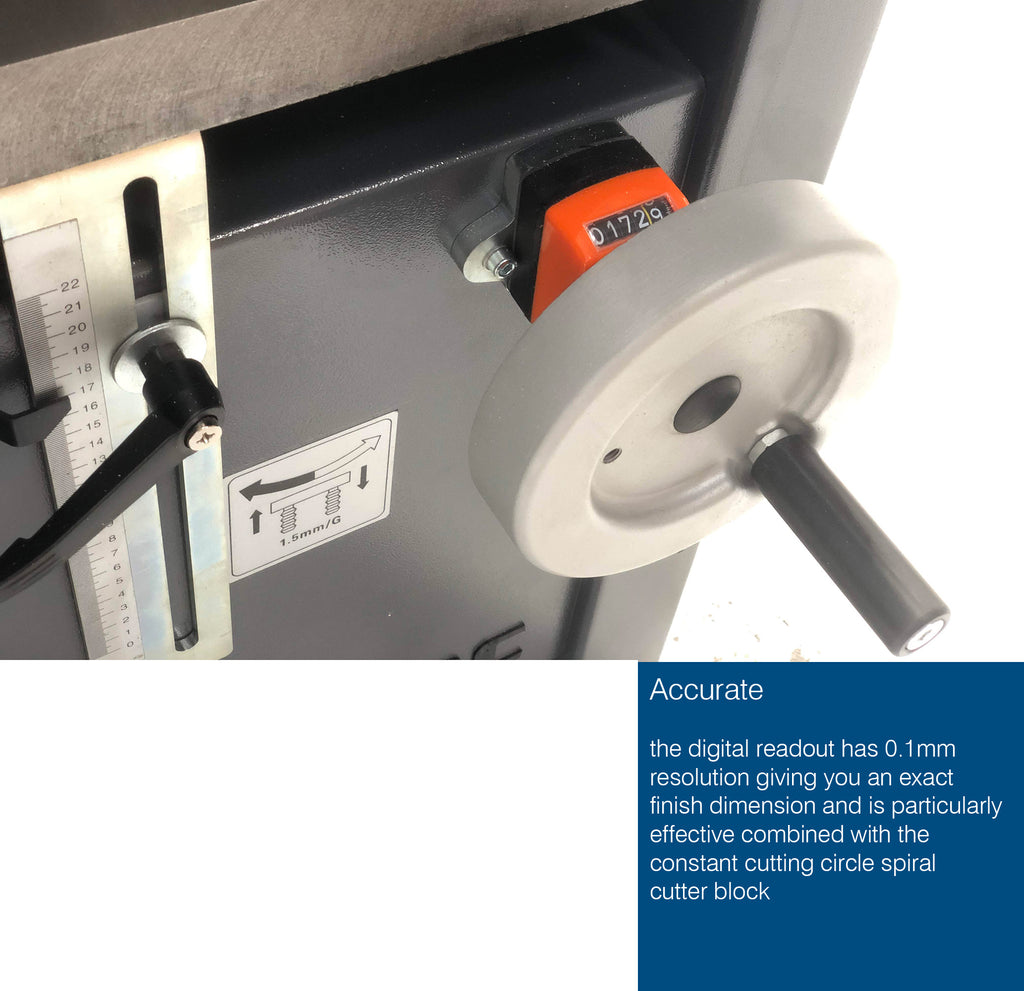

The iTECH 400C has a superb build quality putting the machine in a class of its own at this price level. It has digital read out to give precise thickness - Once set it will give you an exact finished dimension without trial, measurement and error. The new design quick action cam clamp fence is a delight compared to other planers in this price range. It is secured in the middle by the cutter block, not on the end of the table [so it is rigid where you need it to be]. Another example of Affordable Quality

• Planing width 400 mm
• Table length 1800 mm
• Thicknessing capacity 4-220 mm
• Cutter block dia 70 mm
• Cutter block type Spiral Z=72
• Cutter block speed 5700 rpm
• Feed speed 8 m/min
• Motor 4.0 kW 400v 3ph
• Fence size 1100 mm
• Dust Connection dia 120 mm
• Weight 390 kg
• Overall Dimensions 1800 x x mm
• Thickness Table dimensions: 400 x 760mm
• Dimensons for packing 1900 x 706 x 1070 mm
• Spare Blade 15x15x2.5 @30d Part No TA104118
