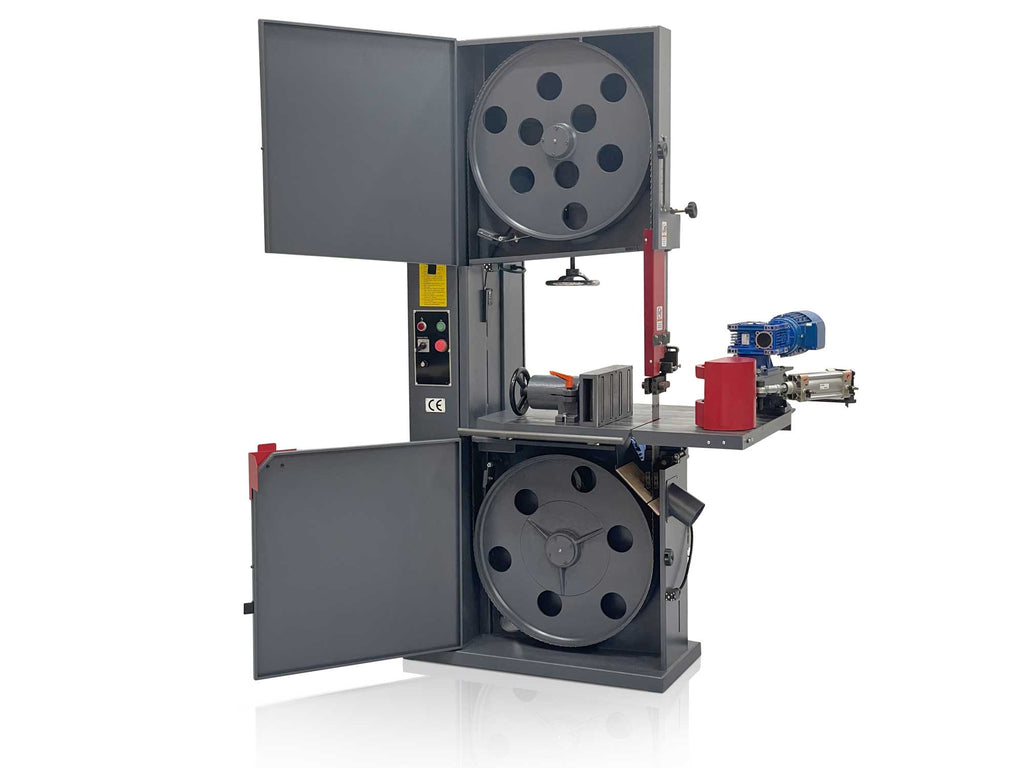

iTECH R700 Power Band Resaw with Feed - 15hp

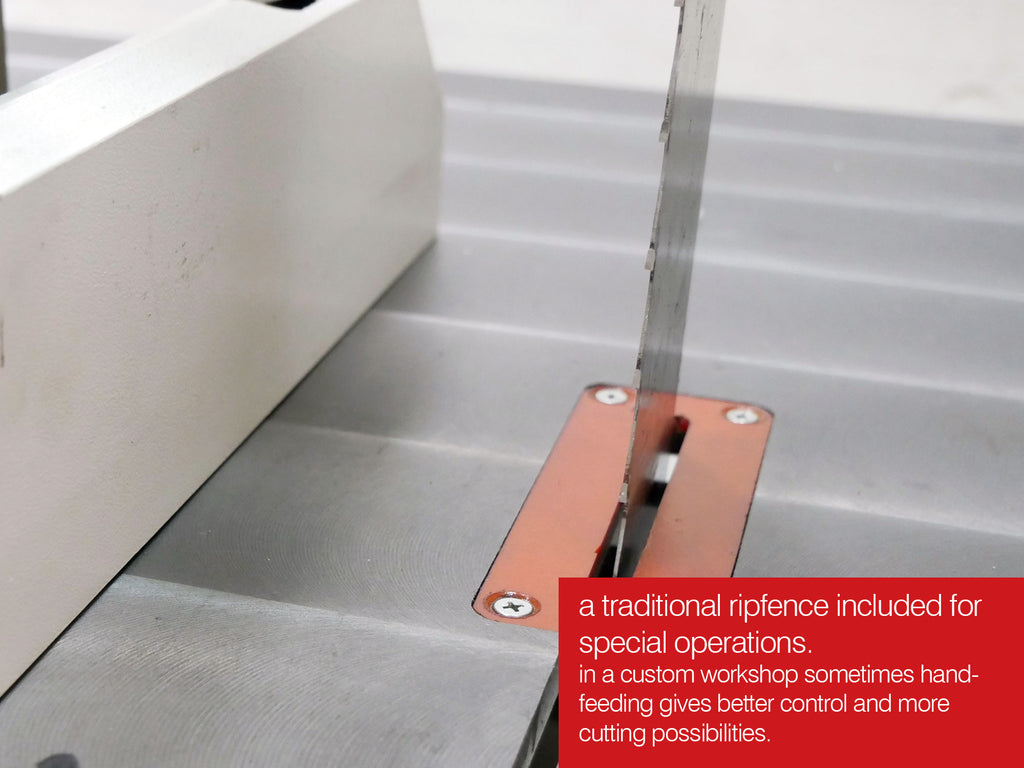

The iTECH R700 power band resaw introduces low cost resawing with good productivity and high timber recovery rates. much more efficient than a circular saw for ripping, saving material and time with the integrated feeder, multi roller fence and a traditional rip fence for special operations.

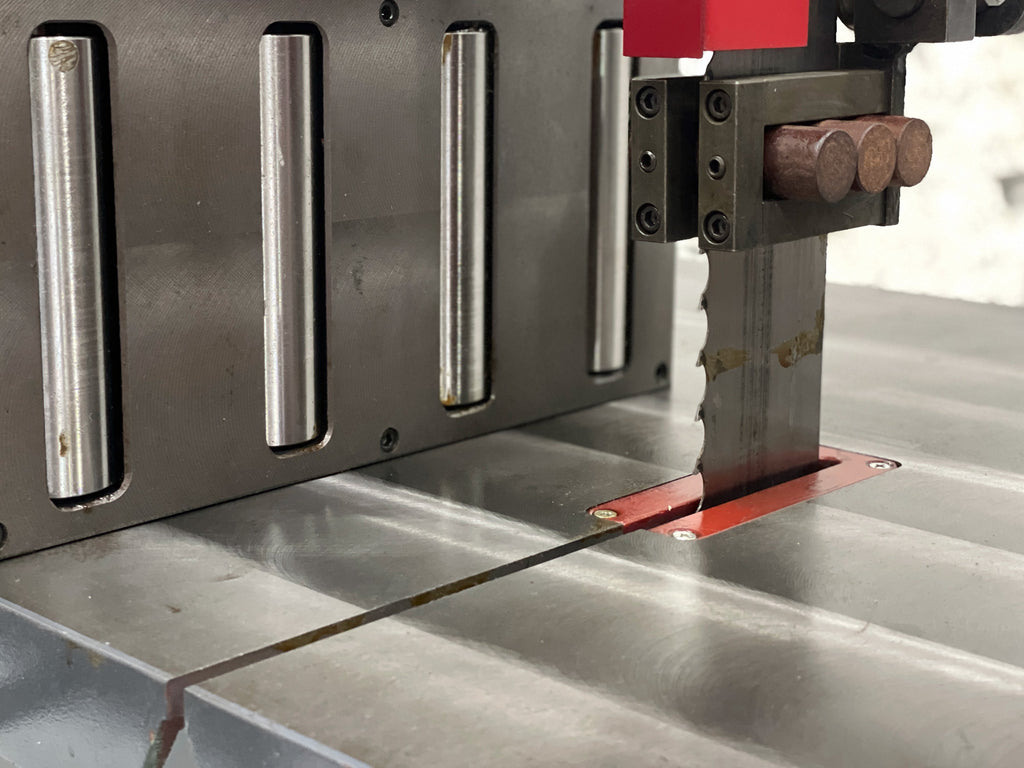

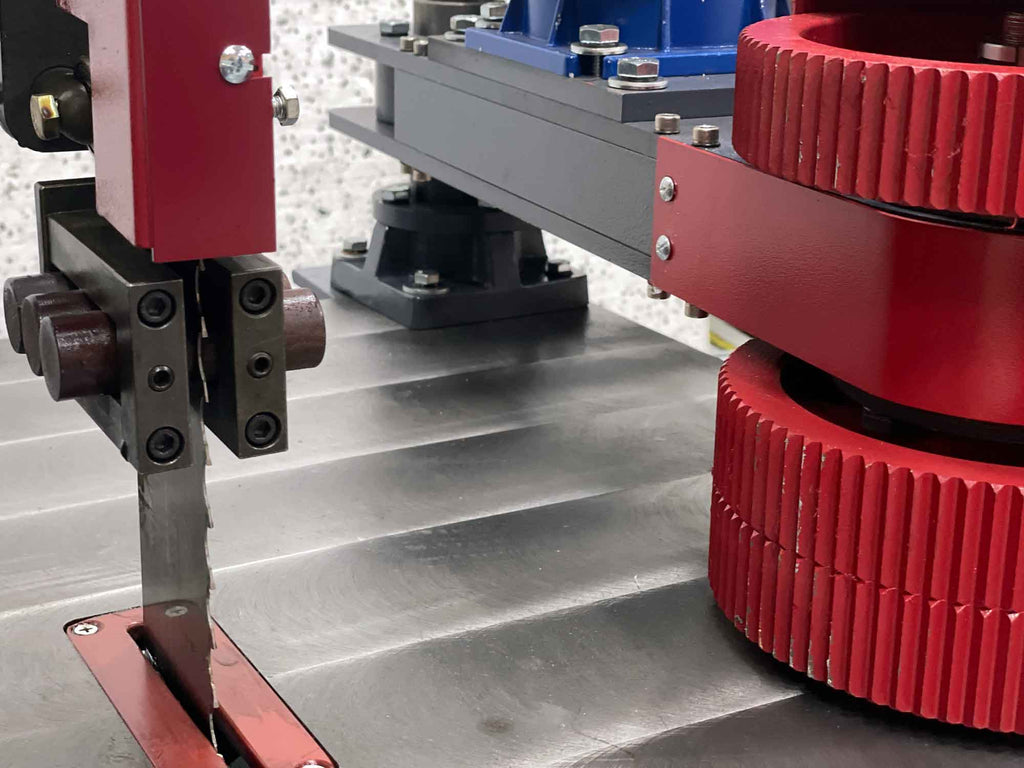

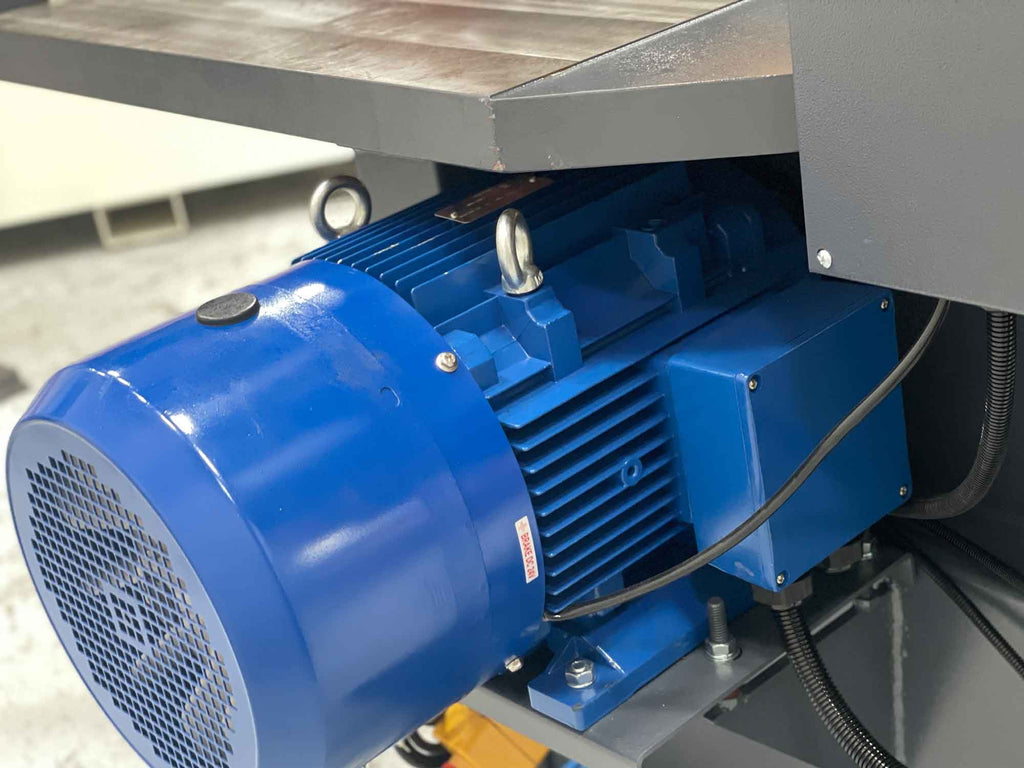

The proven design has great features with a class leading 11kw / 15hp motor, tilting table, cast iron wheels, no tyres. Top and bottom scrapers ensure the wheels are kept clean . The pneumatic feeder provides excellent control with semi automatic opening & closing operated by foot pedal. The robust frame is made of electro-welded heavy gauge steel. The heavy cast-iron disc flywheels ensure the maximum torque, inertia and efficiency - they run on dustproof ball bearings for total protection.

Technical Specification:
Wheel diameter 700 mm
Max under guides 360 mm
Max Opening Blade to Feed 150 mm
Max Opening - Blade to Fence 220 mm
Max Blade Width 75 mm
Blade Length 5100-5150 mm (16'8")
Table Size 1000 x 695 mm
Weight 630 kg
Air Pressure 6-8 Bar
Main Motor Power 11kw 15hp
Feeder Motor Power 0.75kw 1hp
Feeder Type HF200a
Height of Feed Roller 150 mm
Diameter of Roller 200 mm
Dust outlets 1 x 100mm
Feed Speed 1 - 17 m/min (inverter)
Floor dimensions W=1500 x D=940 H=2270mm
Weight 780kg

Packing dimensions 1 @ 238 x 85 x 126cm
1 @ 122 x 62 x 82cm
