iTECH Precision 1650 Digital Wallsaw with Scoring

The iTECH 1650 Panel Saw is perfect for sizing 10x5ft sheets. Offering unbeatable value and high precision component parts, accesories that would normally be classed as options come as standard.

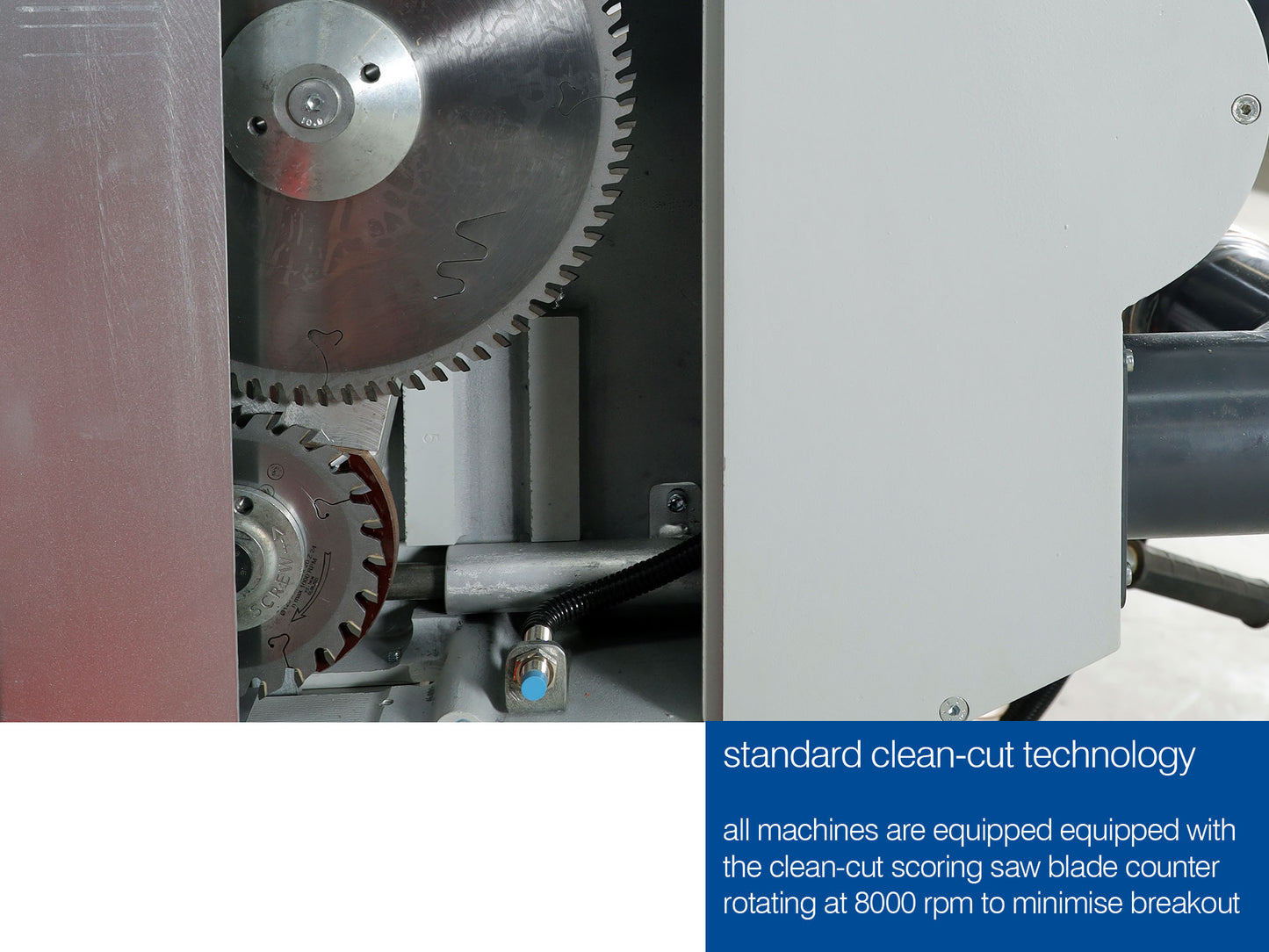

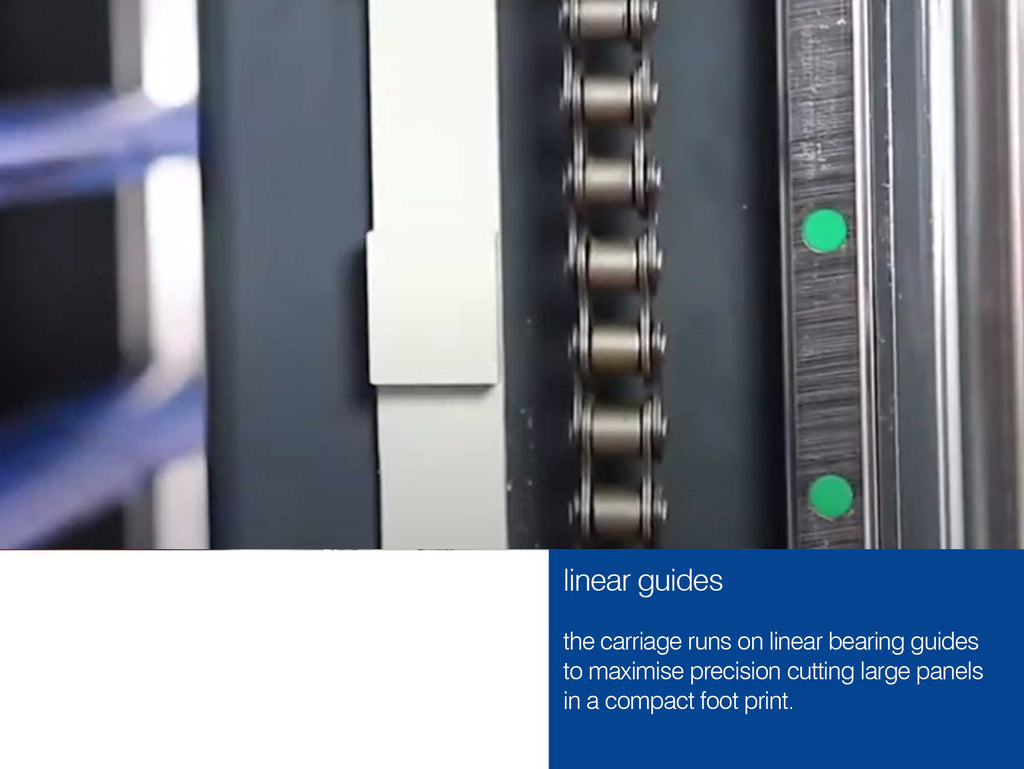

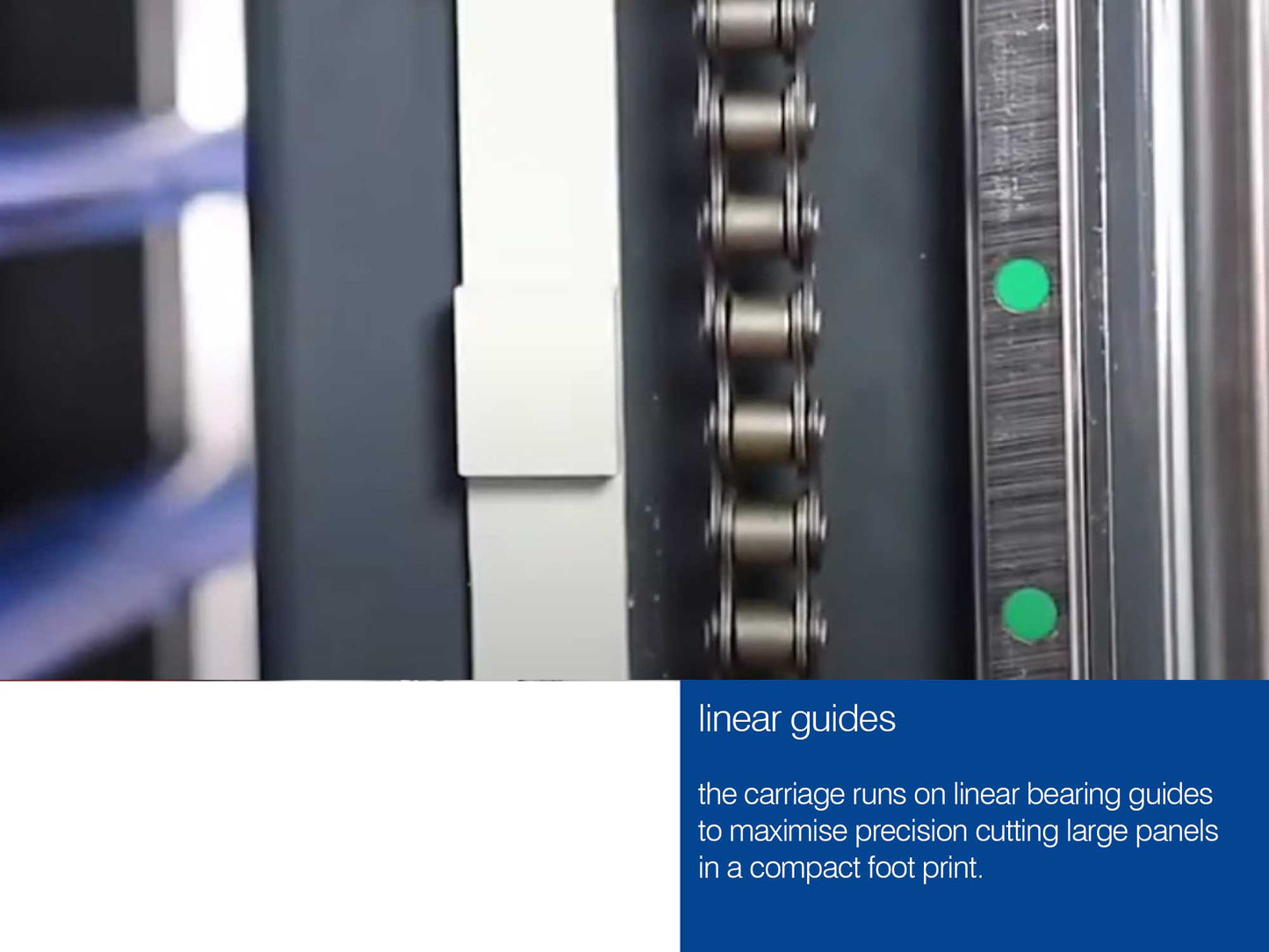

Electronic Digital Readouts for both vertical stops and horizontal stops are included. High precision Linear Rail for the Vertical stroke ensuring every cut is micron perfect and automatic up-down roller system for easy loading and offloading of the material are all standard features. Other useful features are scoring unit, automatic slat positioning and a generous middle shelf for smaller component cuts.

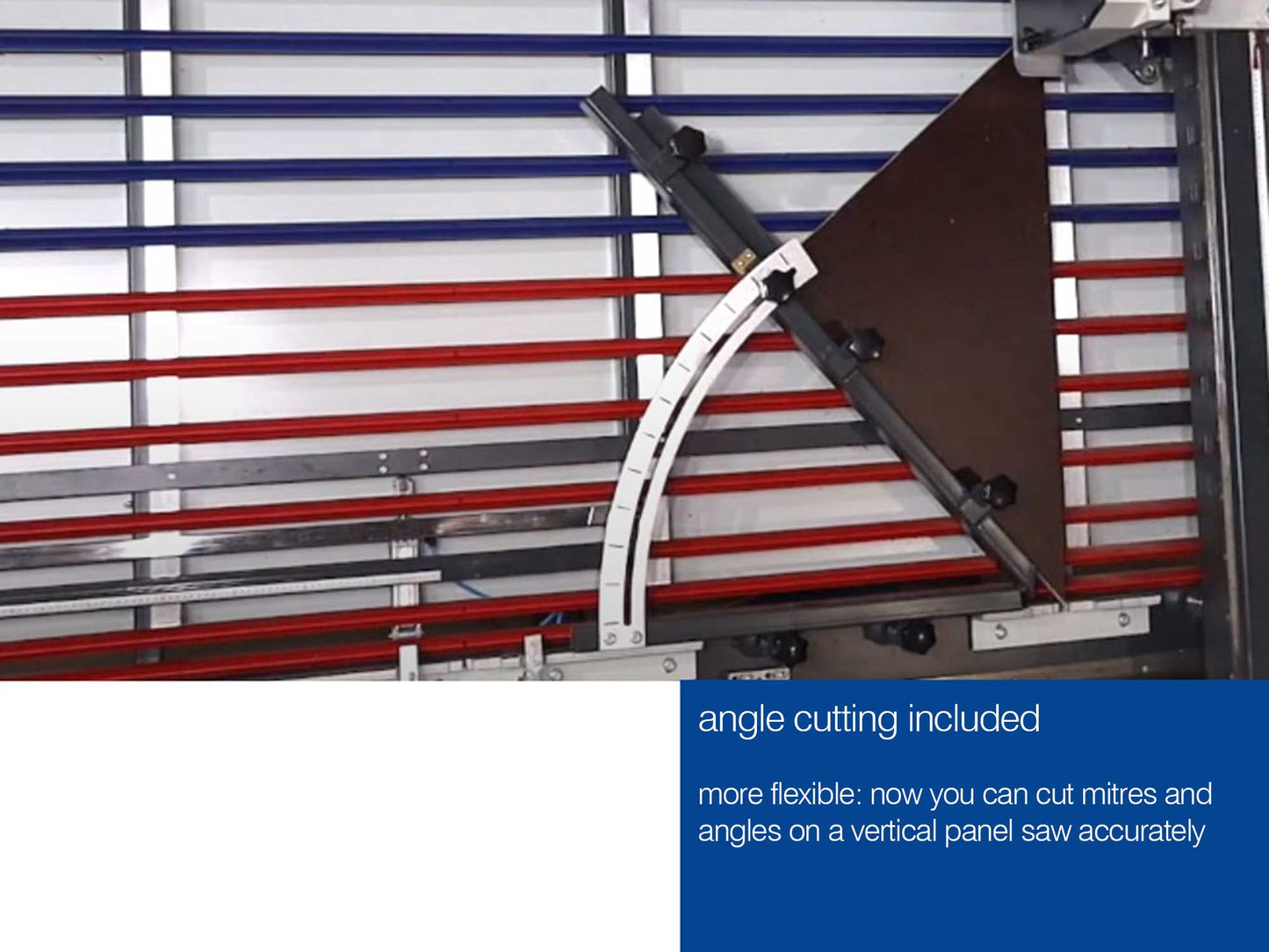

The machine gantry is precision ground by CNC milling, and meticolously calibrated, other useful optional extras you may wish to consider are the iTECH Material Loading Carts and Angled Cutting unit.

Technical specification:

Motor power 3.0 kW 3ph 50hz
Blade 6000rpm
Scoring Blade speed 8000rpm
Cutting depth with scoring 42mm
Cutting depth without scoring 55mm

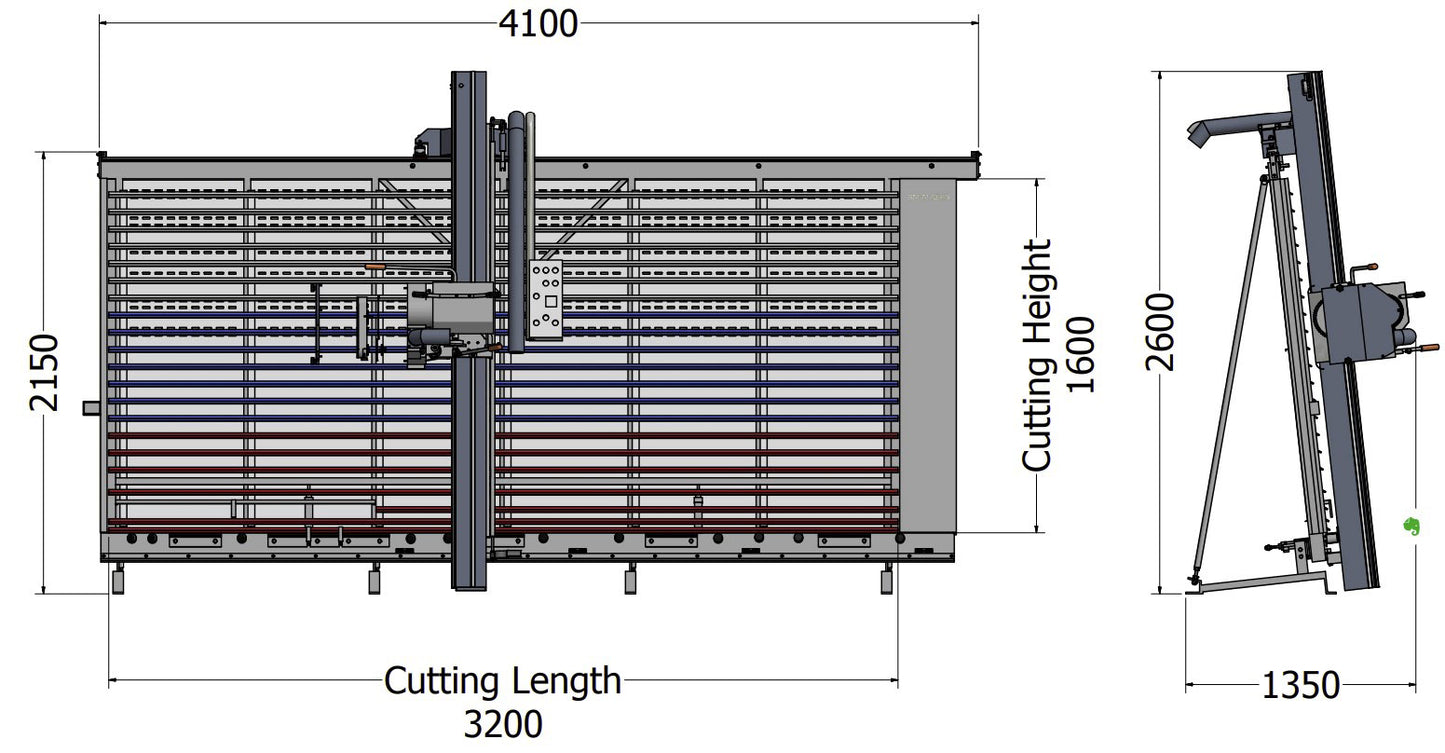

Max. vertical cut 1650mm
Max. height of horiz. cut 1600mm
Max. horizontal cut 3300mm
Pnuematic Locking system yes
Middle shelf yes
Automatic slat positioning yes
Pnuematic Air Pressure 8bar
Machine weight 610kg
Electronic slat positioning Yes
CE Yes
