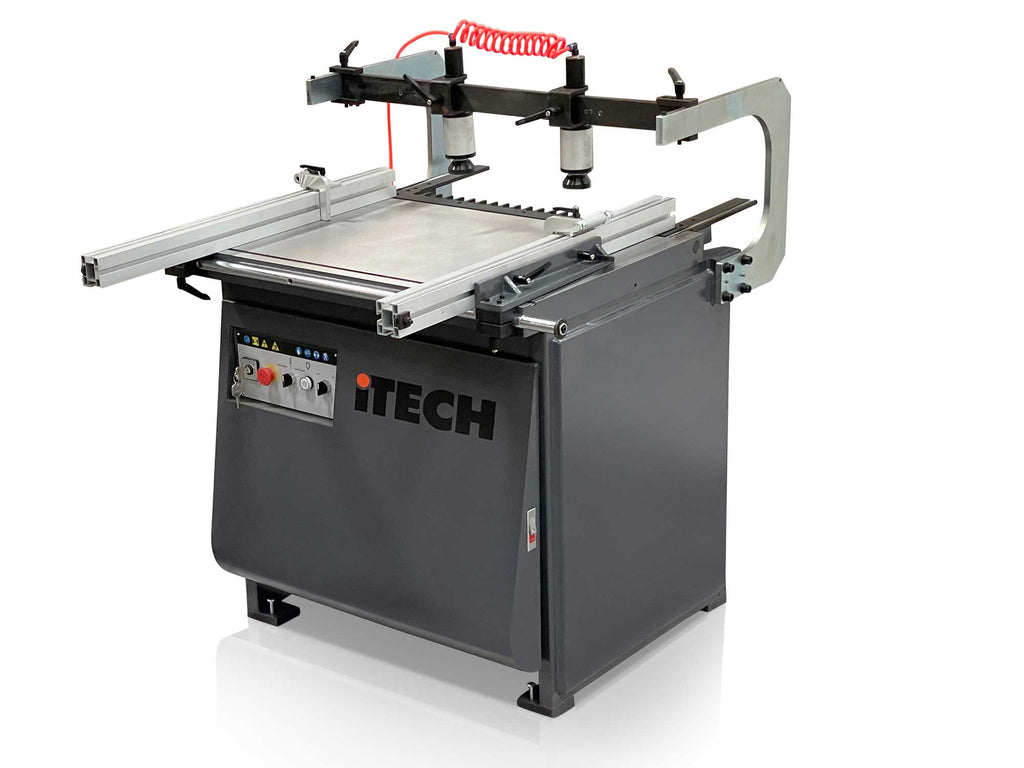

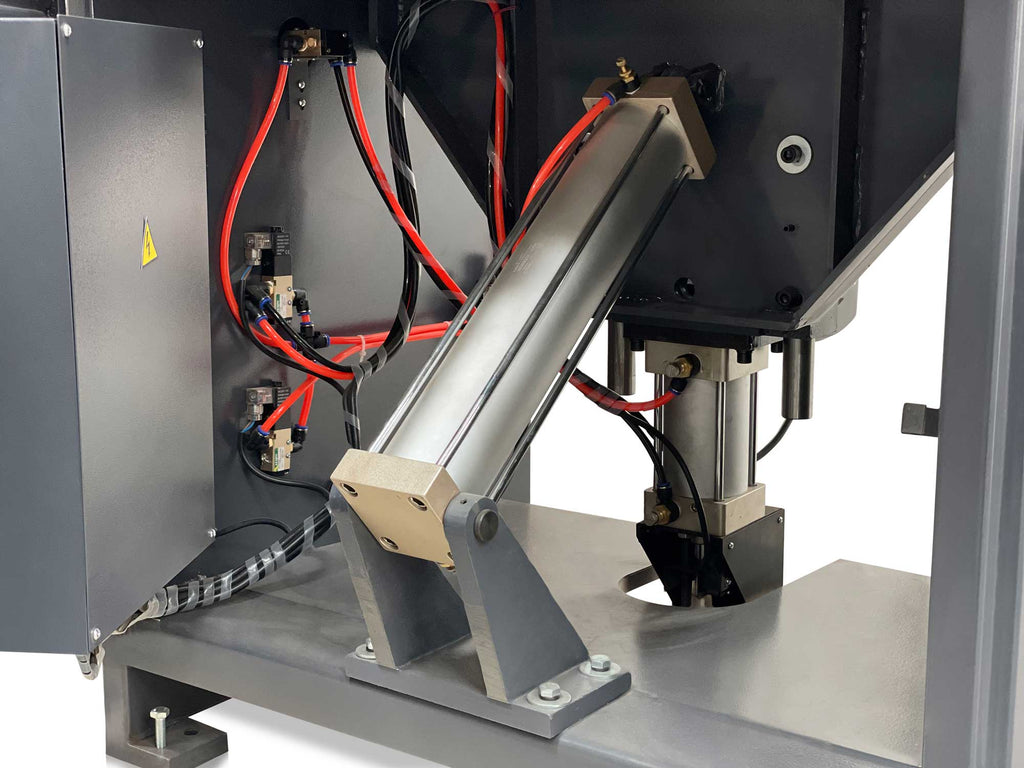

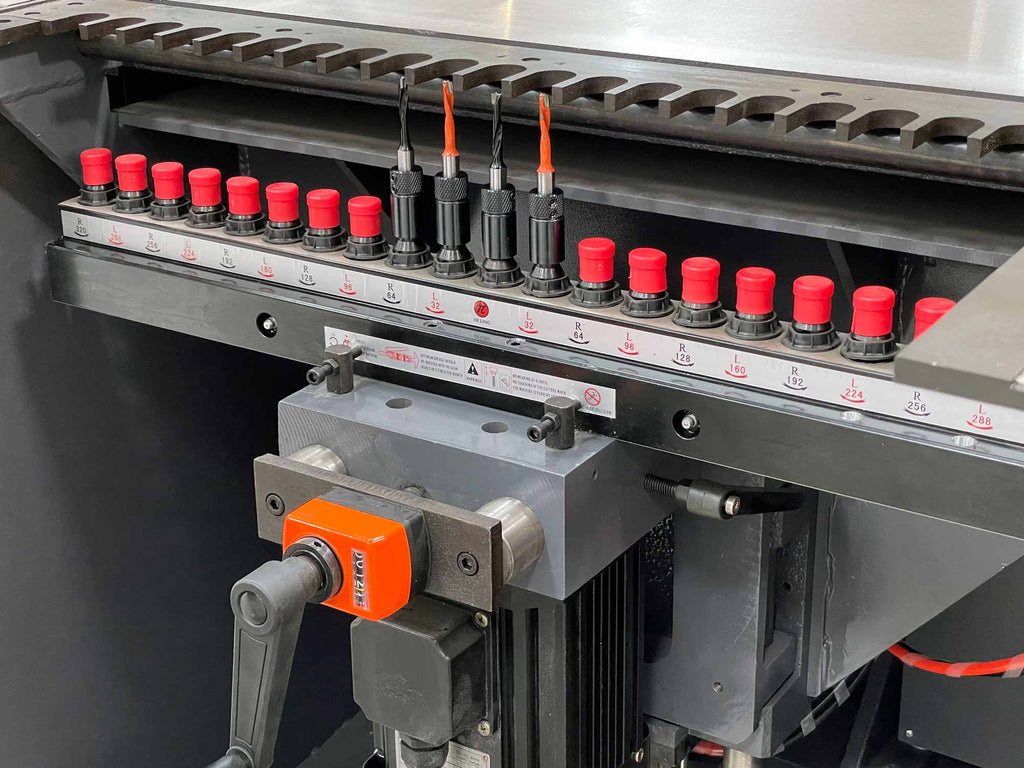

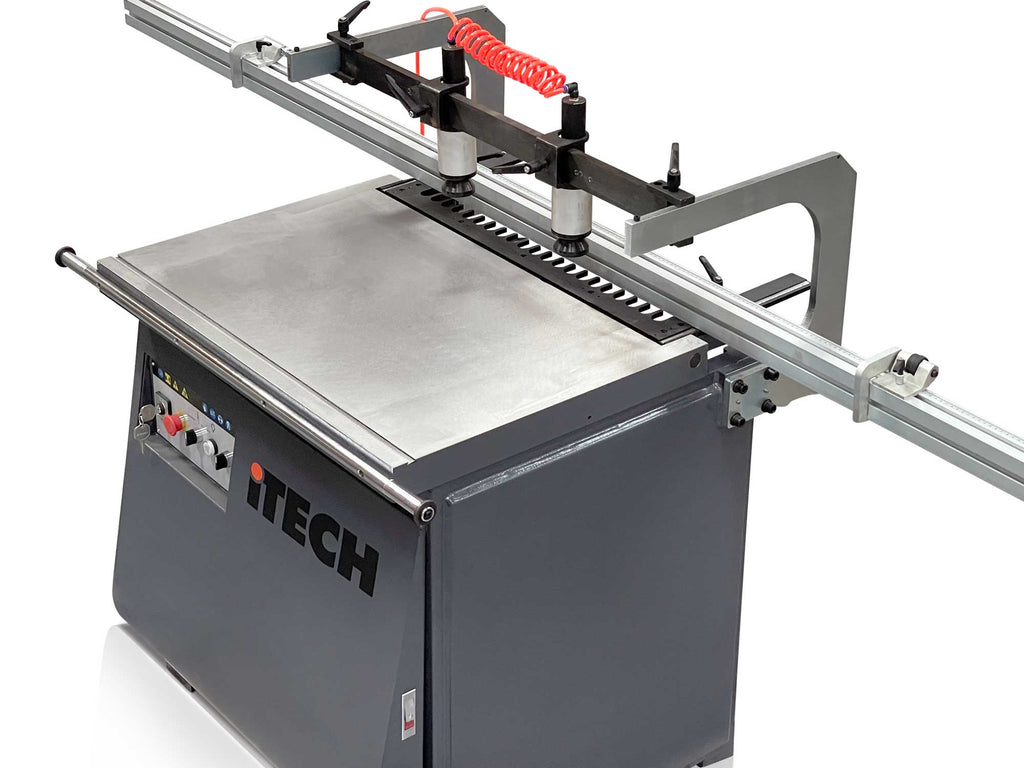

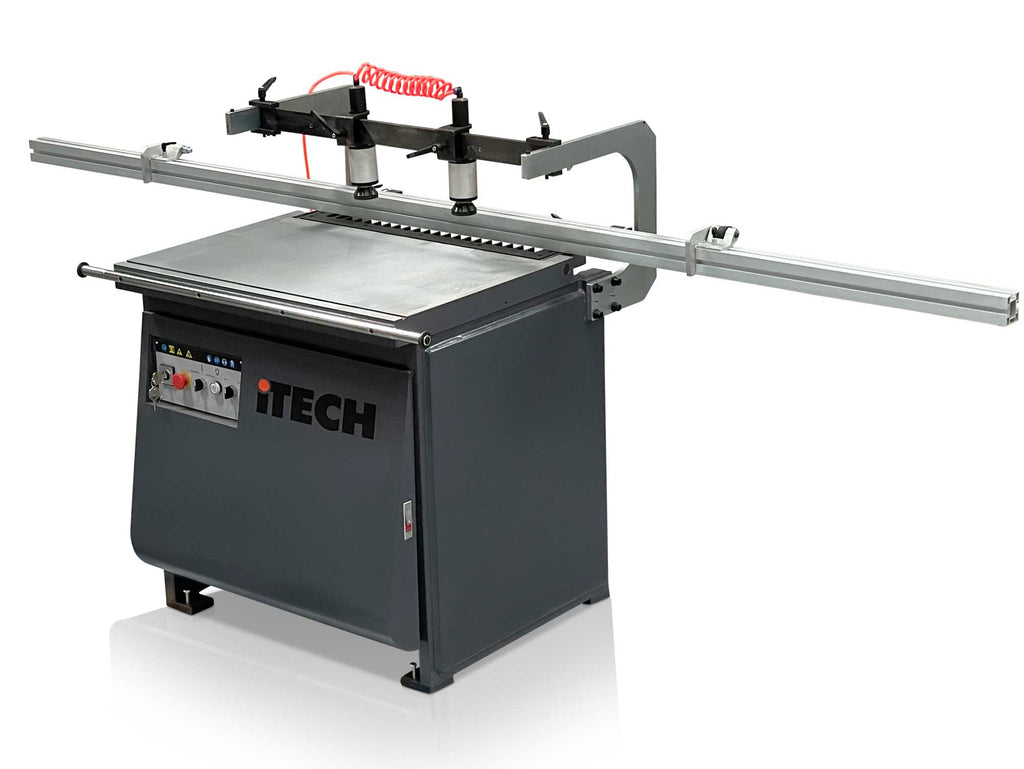

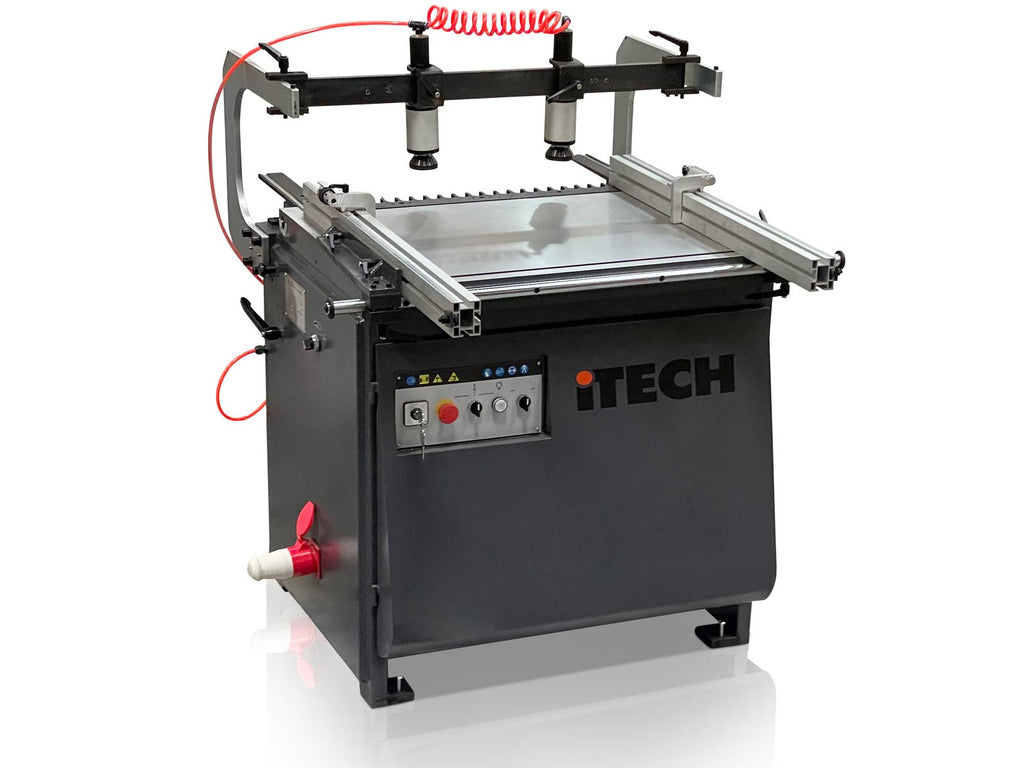

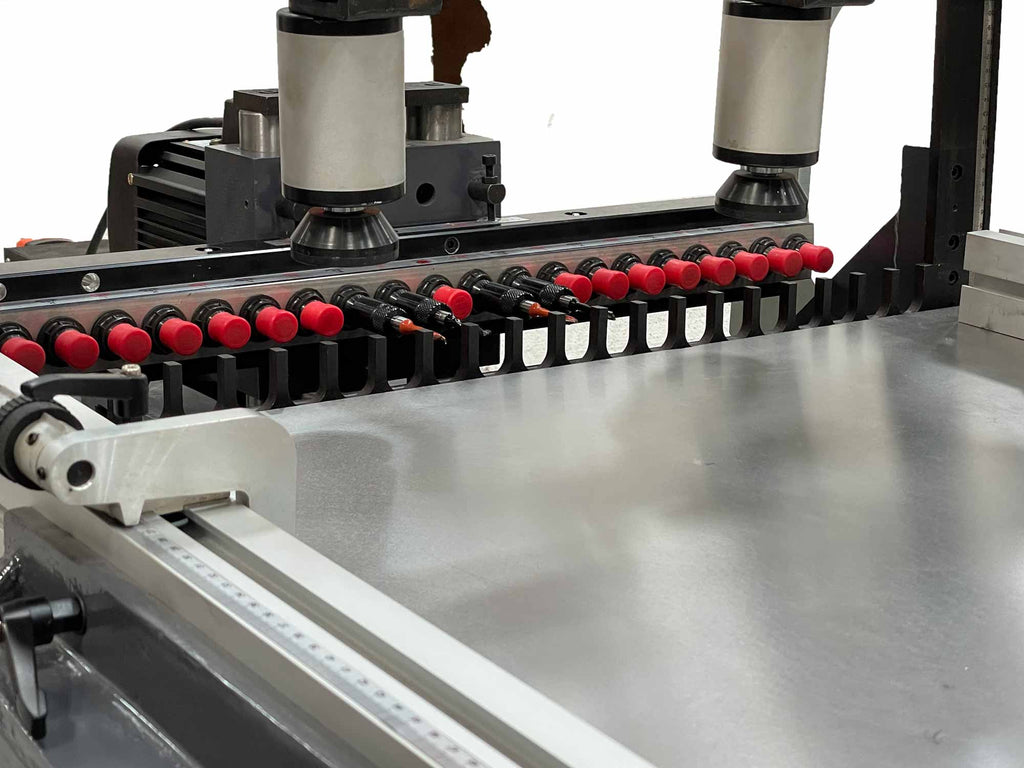

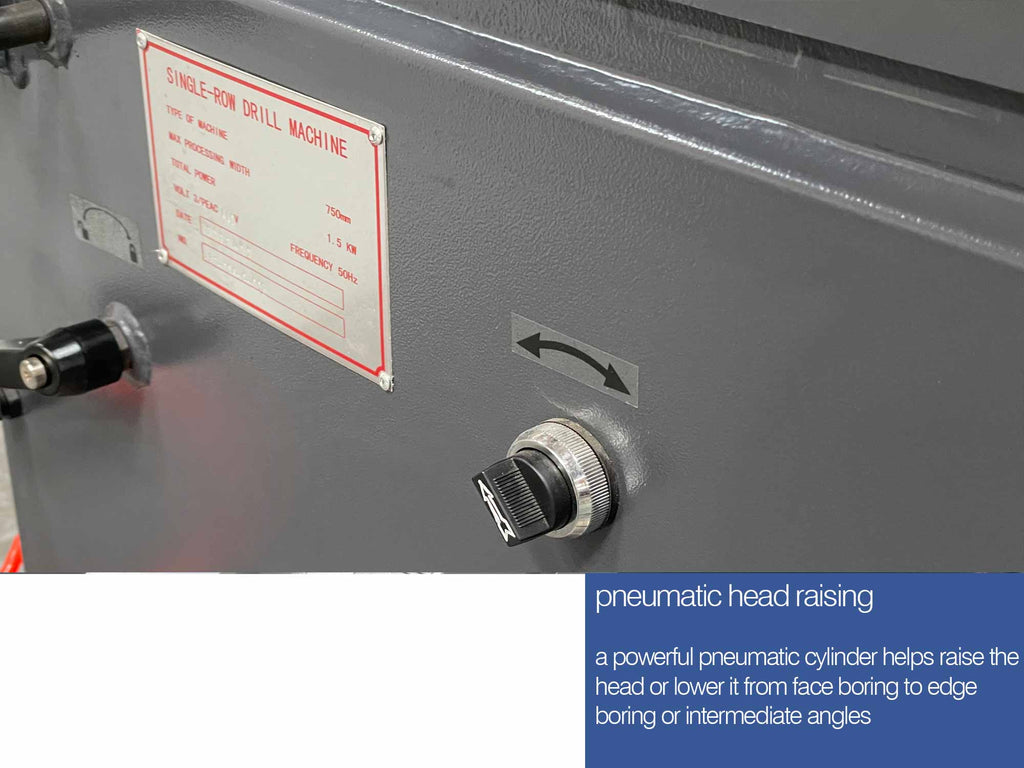

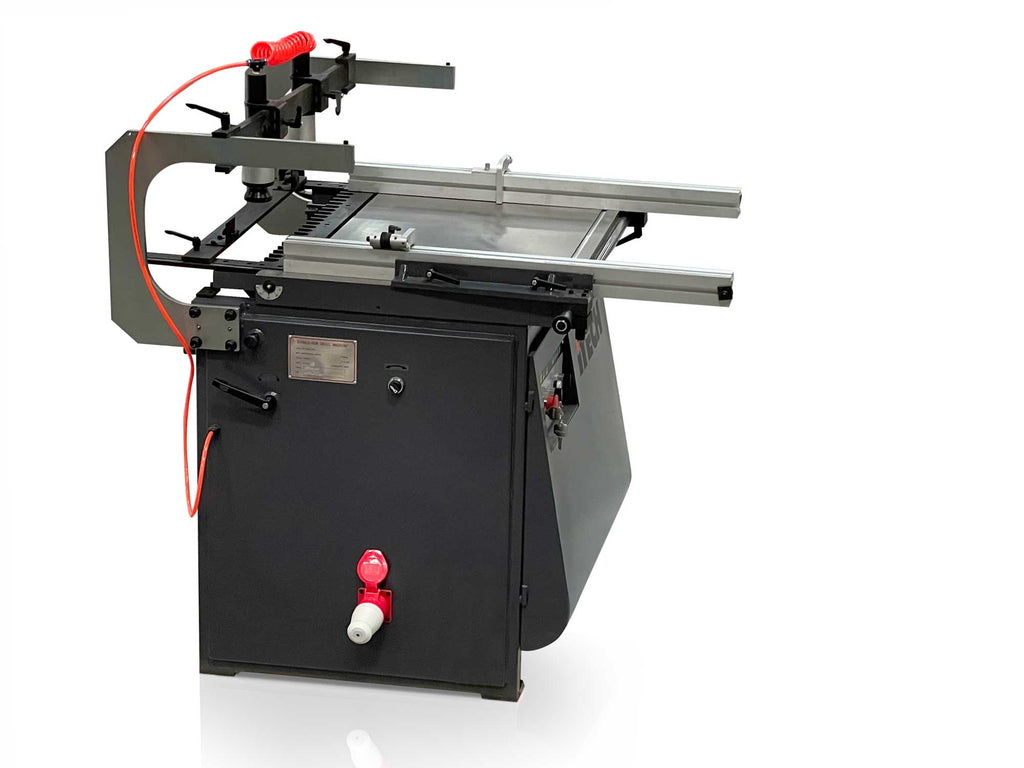

The iTECH BS21 multiboring machine is perfect for small kitchen manufacturers using the industry standard 32mm drill centers. It comes equipped with a suite of features: quick change chucks on it's 21 spindles. pneumatic assisted tilting of the head from 0 -45 -90 degrees.

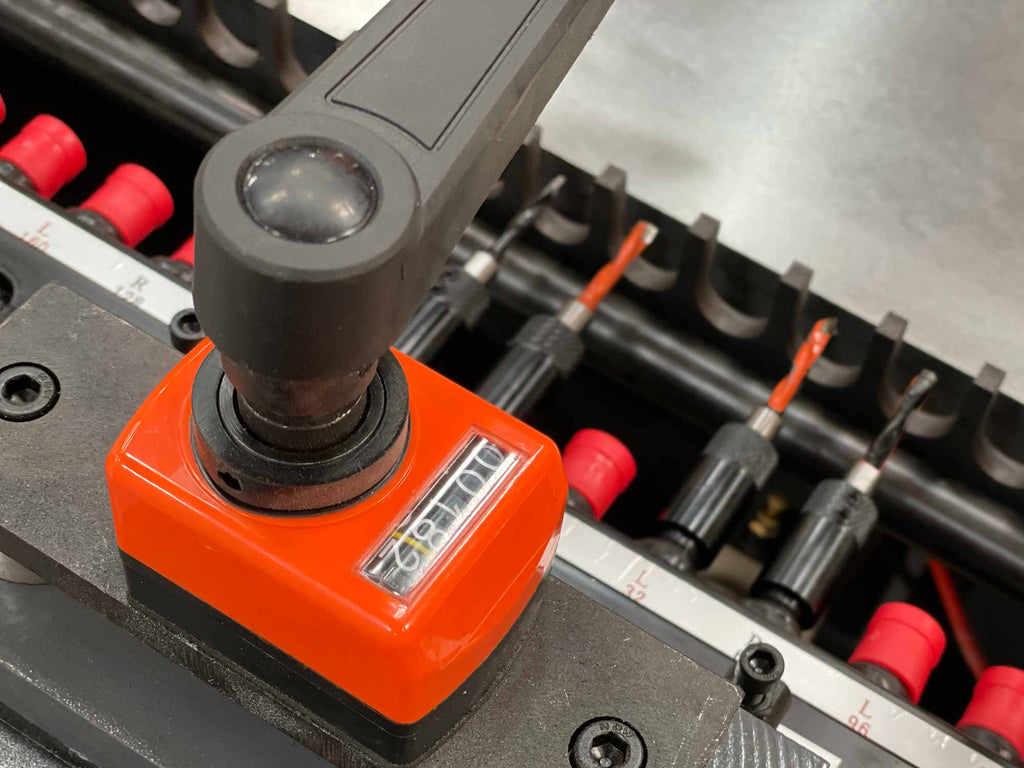

Mechanical digital readout for the drill head position and a powerful motor.
pneumatic footpedal activates cycle for both clamping and drilling

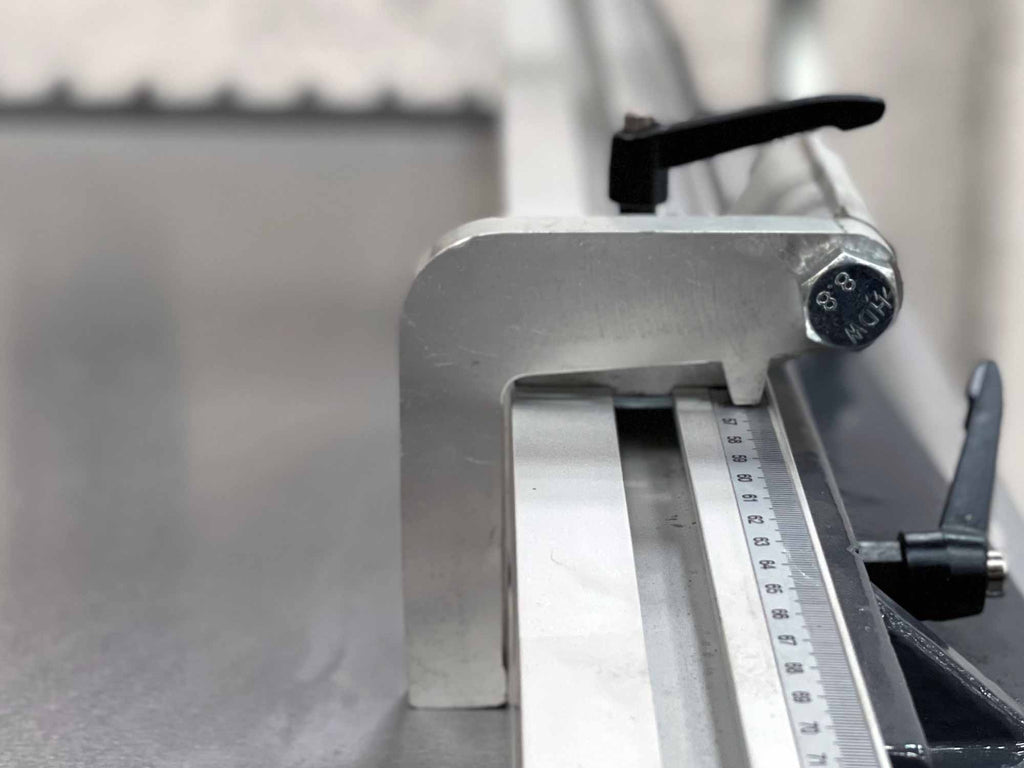

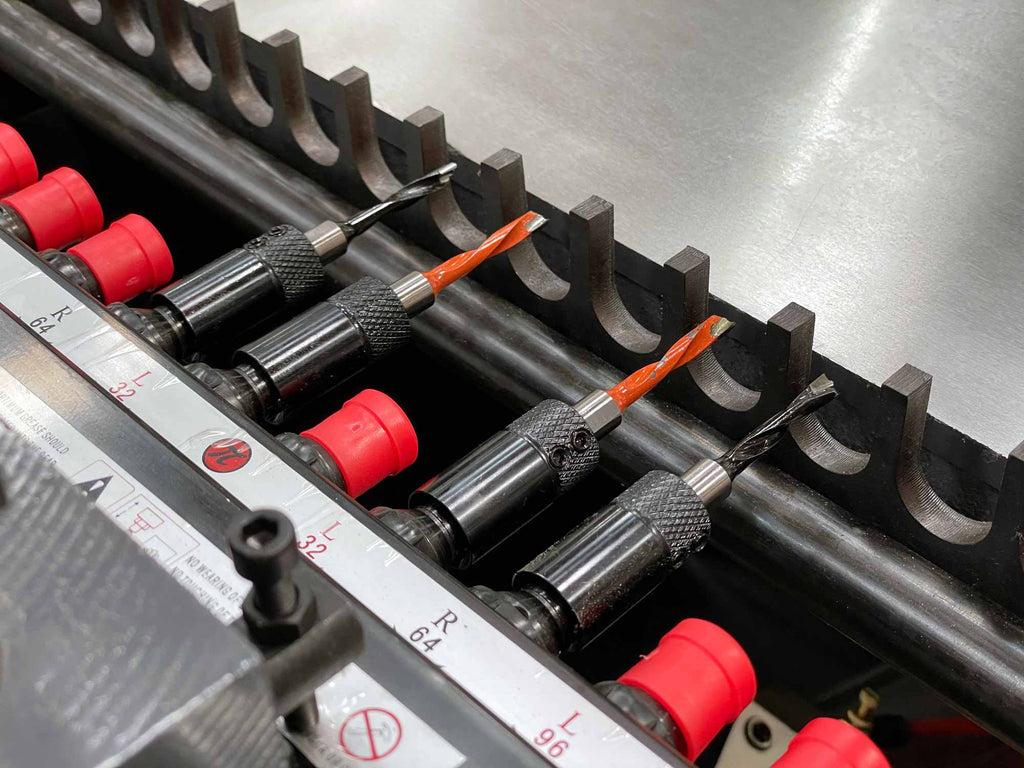

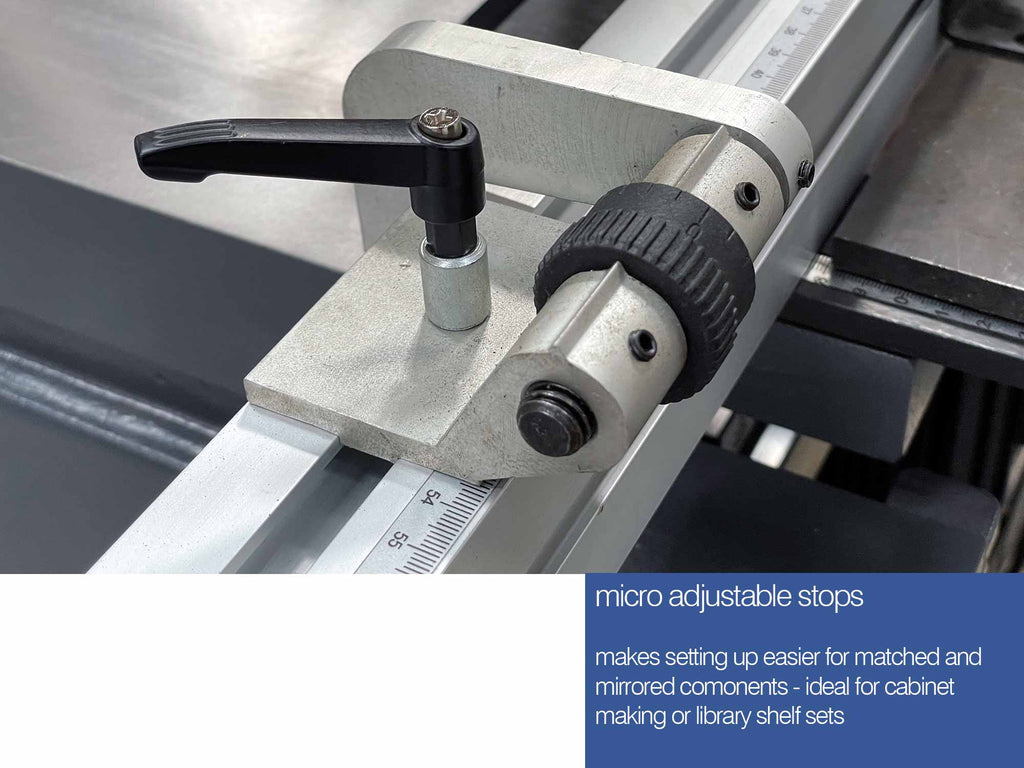

Includes long and 2 short fences with turnover stops plus 4 x quick change drill chucks
Technical Specification:
Number of Drills 21
Distance between centres of drill 32mm
Drilling Depth 50 mm
Pneumatic tilting 0 to 90 degrees
Tabe Size: 870x550mm
Drill speed 2840 rpm
Weight 380kg
Motor power 1.5kw 400v, 3ph
0.6MPA compressed air /cycle required
Packing dims 1060x1050x1100mm

iTECH MB 21 Spindle Multi Borer
£3,600.00
