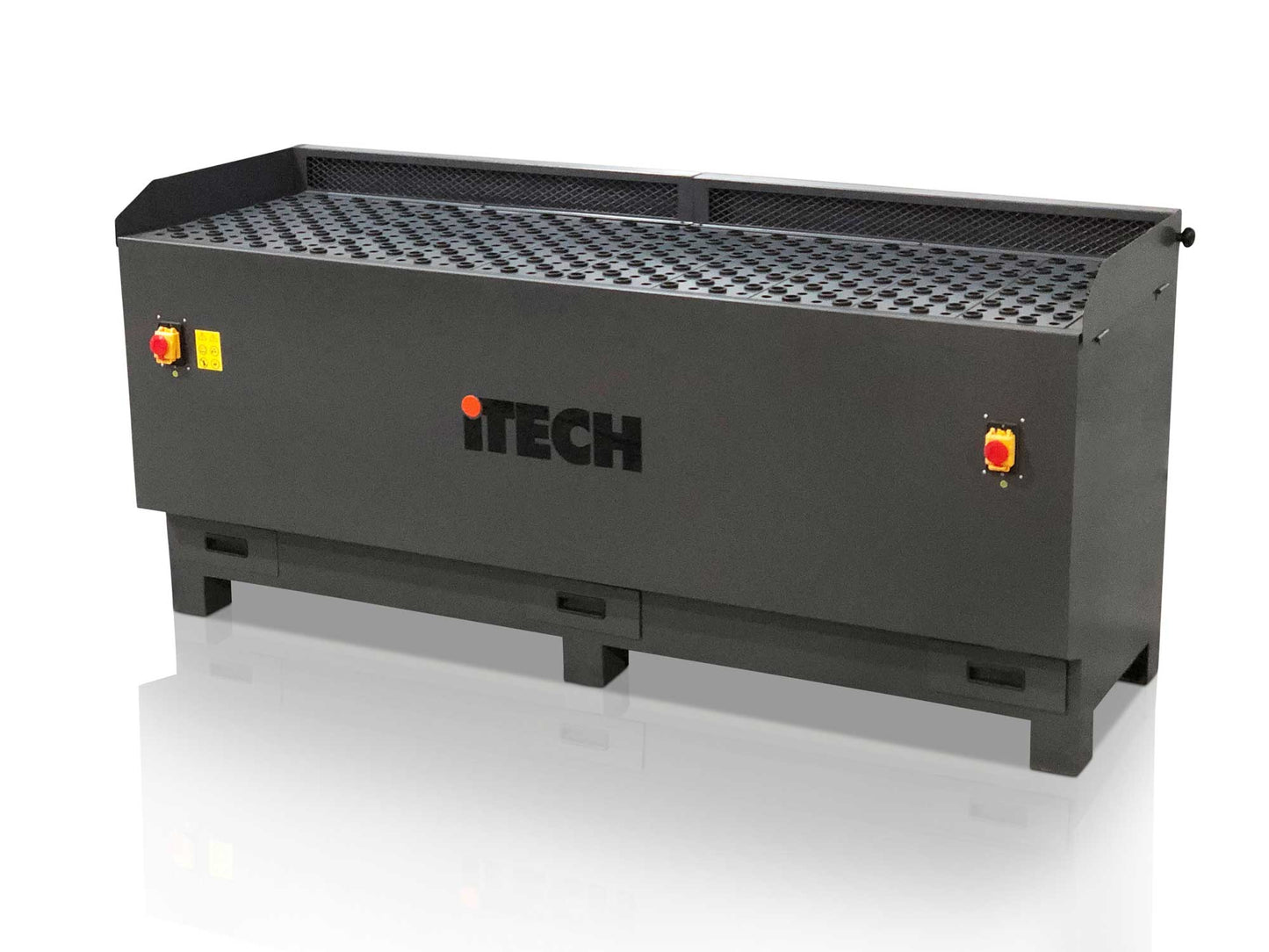

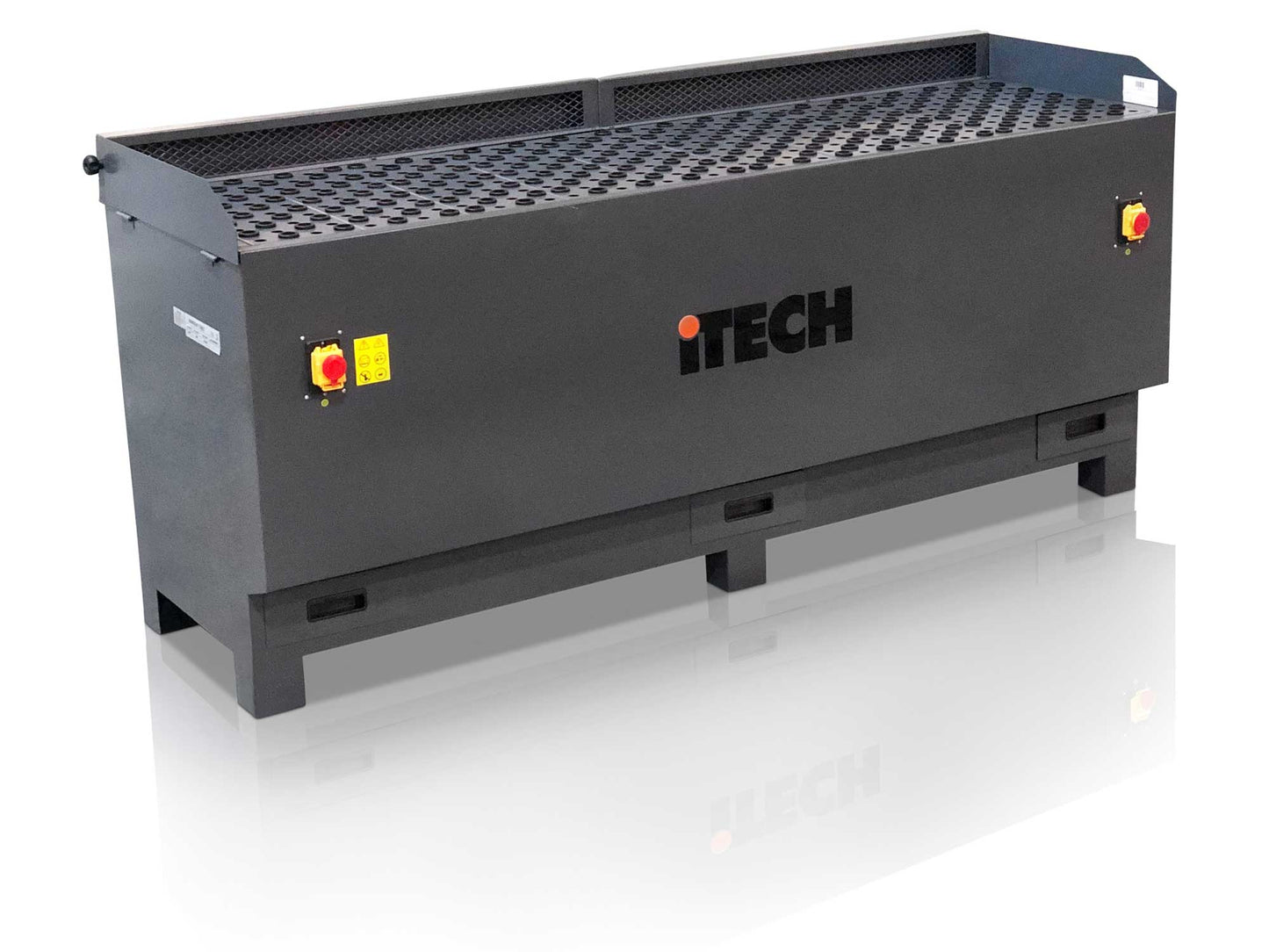

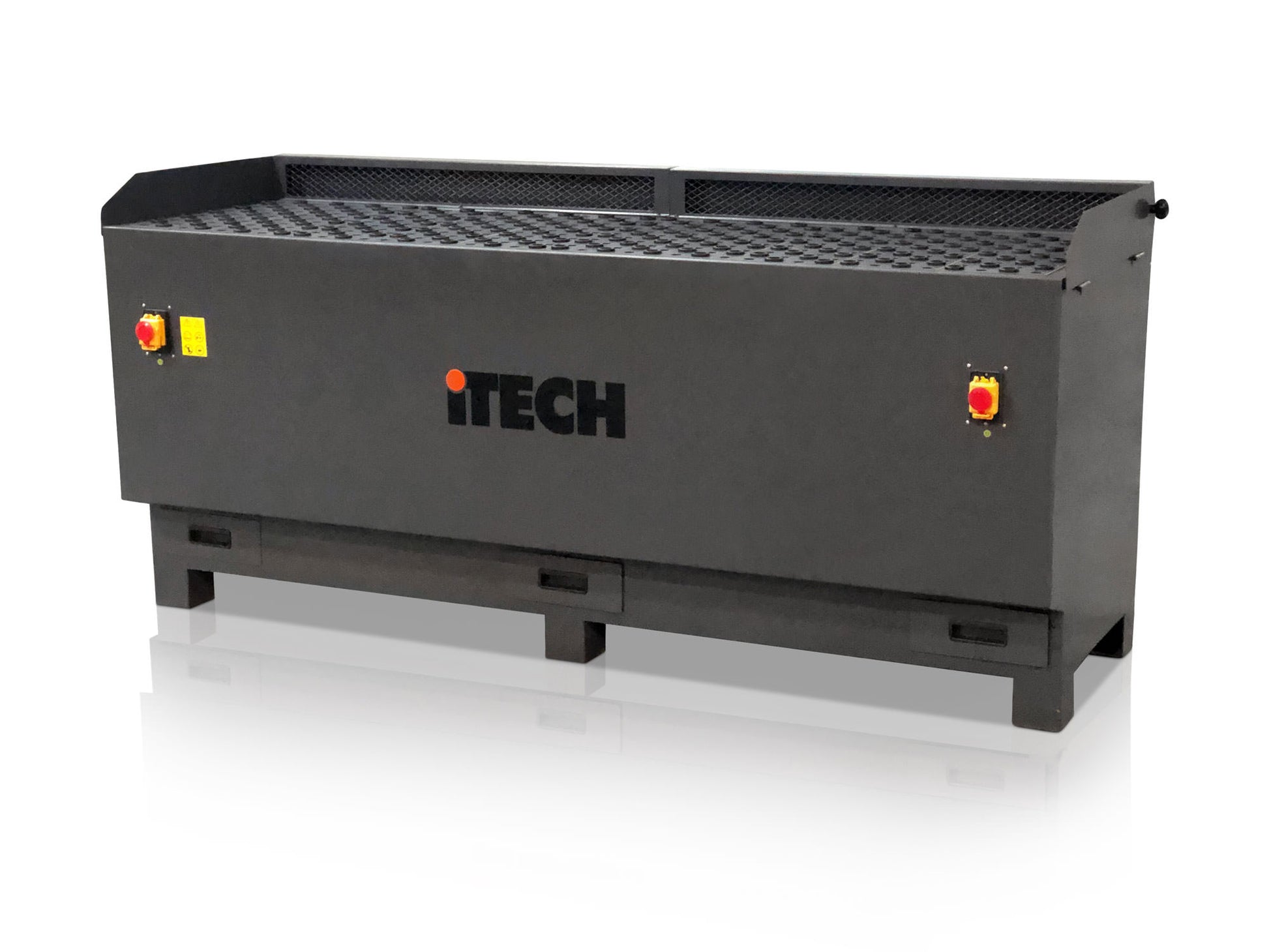

iTECH Down Draft Dust Extraction Table 2200mm 1ph

iTECH Down Draft Dust Extraction Table 2200mm 1ph

Regular price $2,580.00 USD
Regular price Sale price $2,580.00 USD
Sale Sold out
Shipping calculated at checkout.

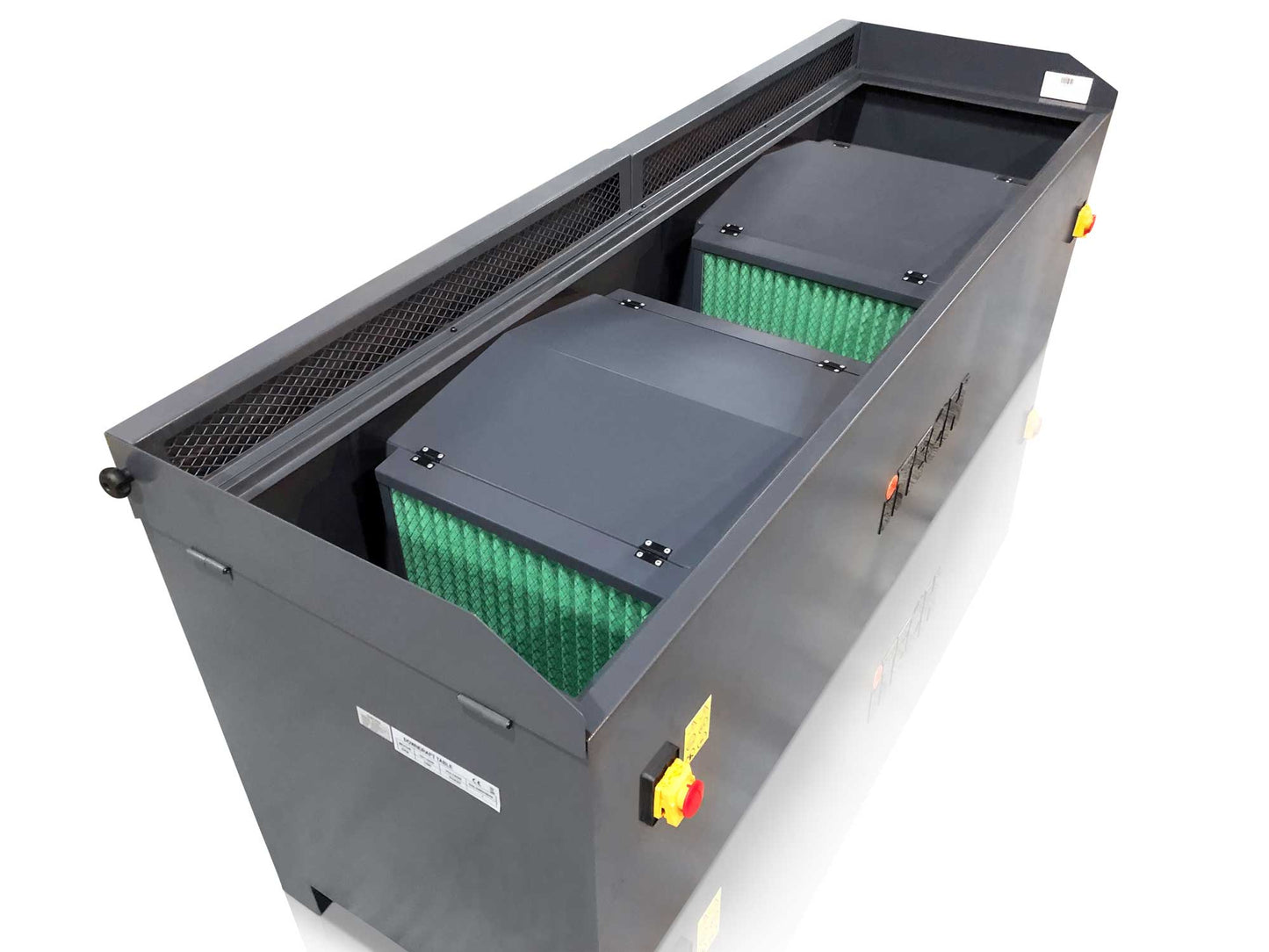

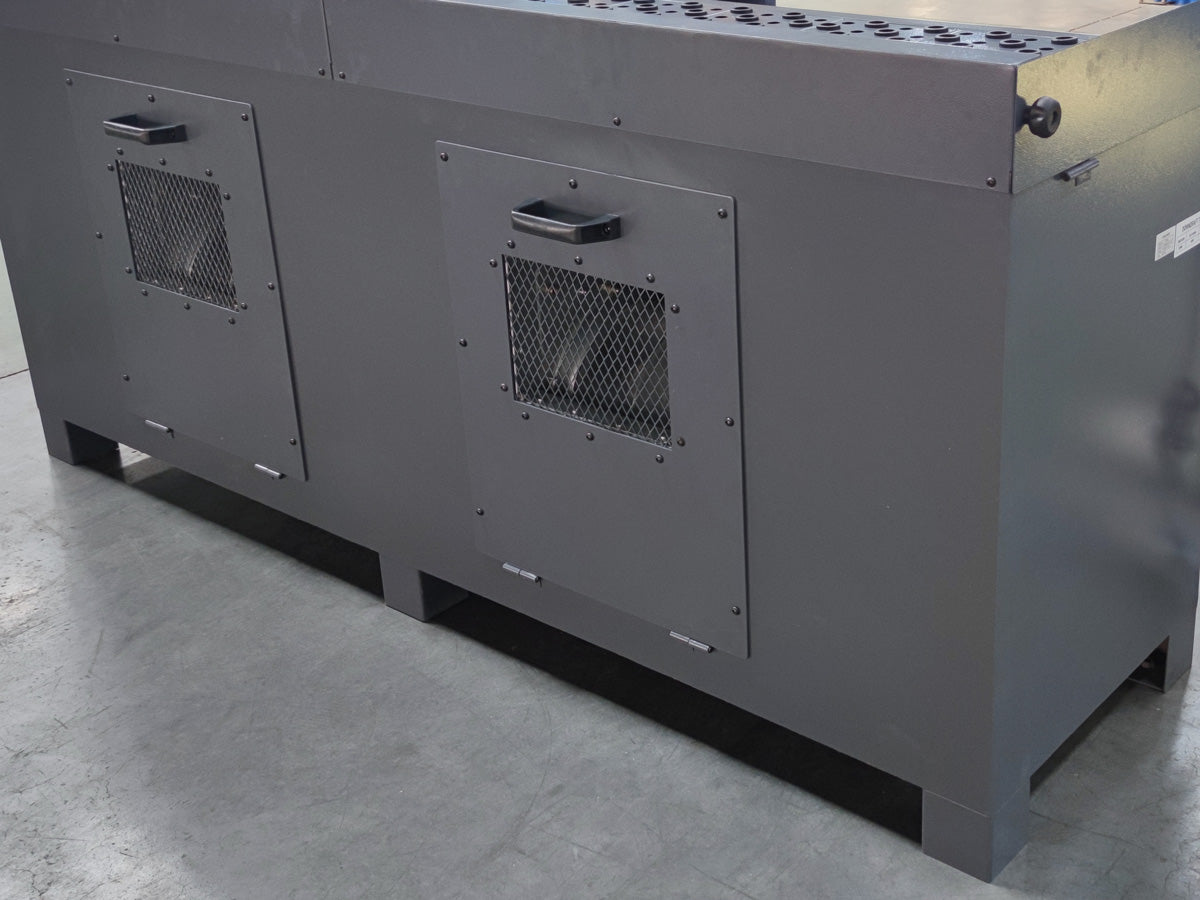

New iTECH downdraft dust extraction table with Two level superfine filter G4 and H13. Powered by 2 powerful 1.5hp independent the fans. It has large air flow from each left and right air intake.

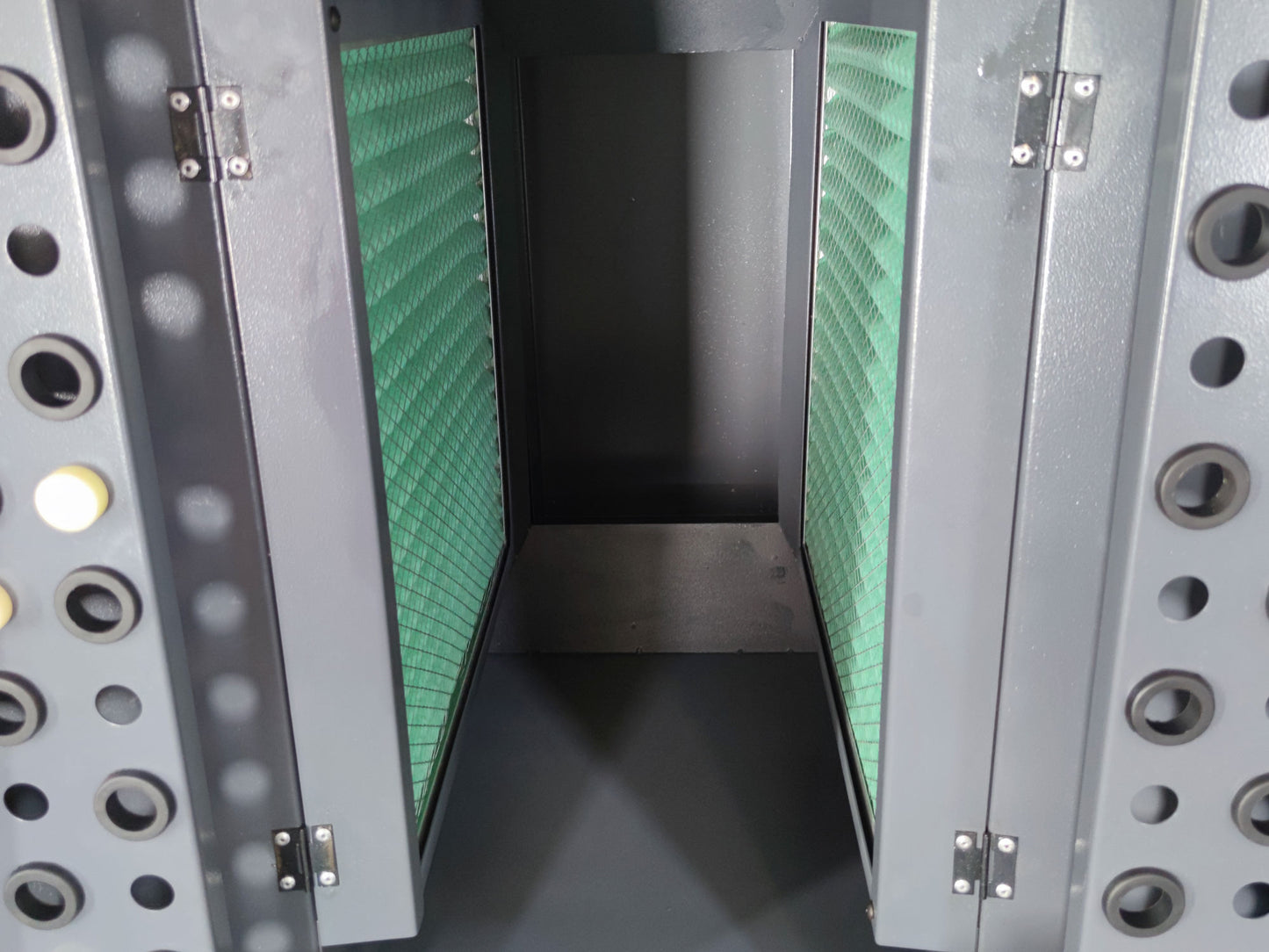

* Wood dust could be guided to the collection tray owing to the filter material perpendicular to the table and the splitter on the top of the fans.

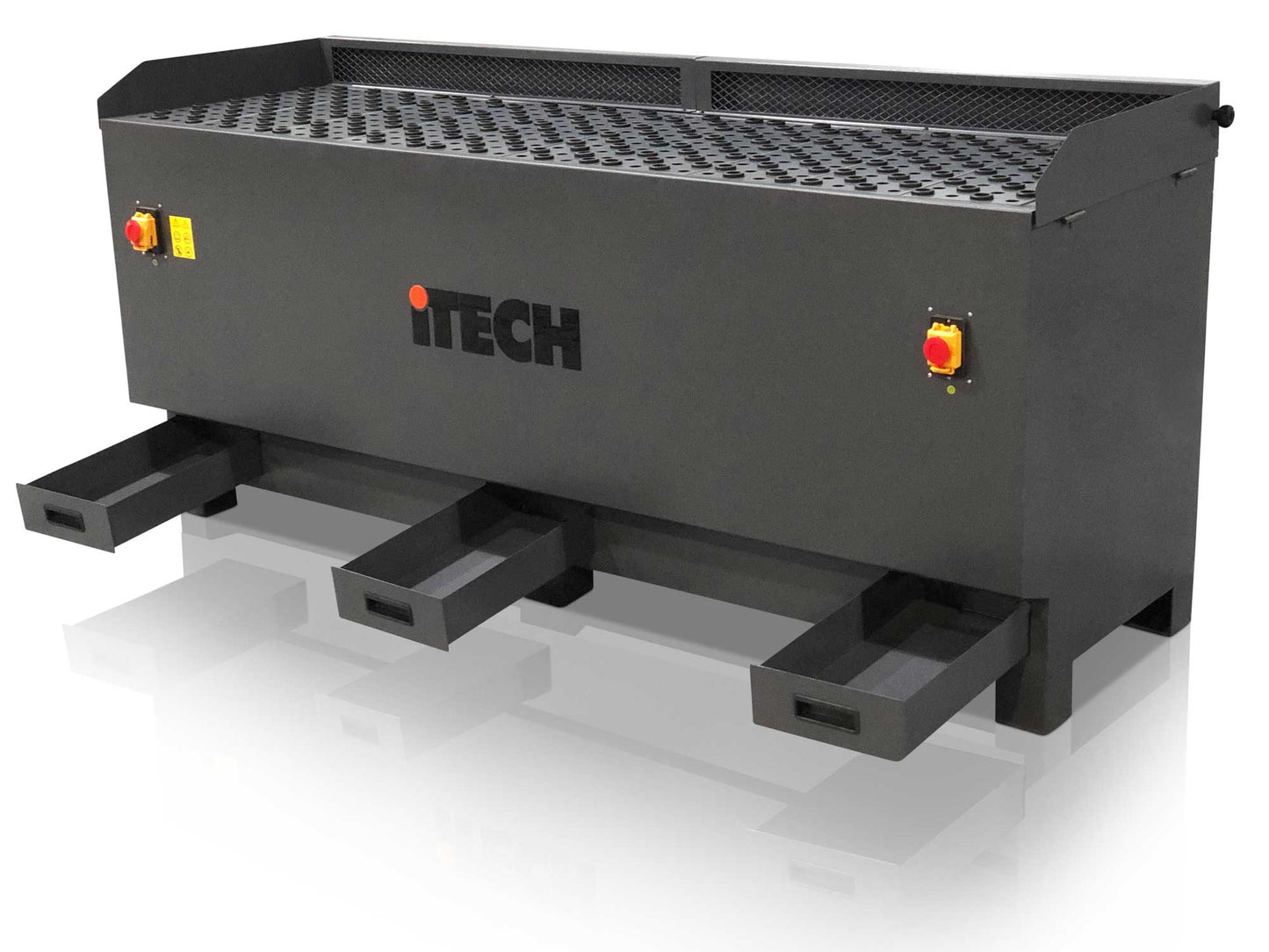

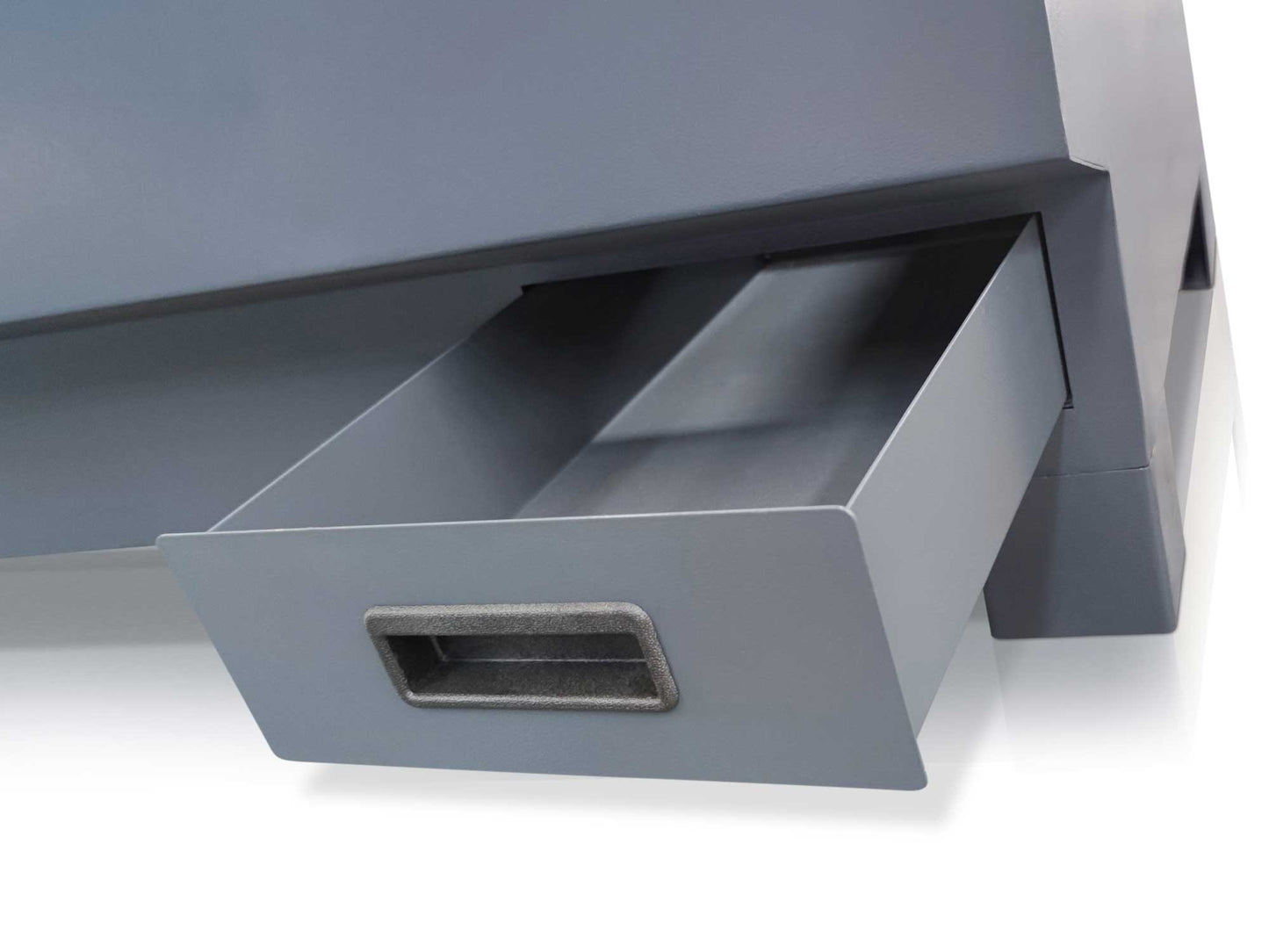

* Dust collection tray can be easily slid out for emptying.
* Three height-adjustable, retractable and quick-disassembled side baffles to improve suction.
* Enhanced sheet metal's strengthening and six feet for forklift use
* Large working table area 2010X580mm

Technical Specification:
Working table size: 2010 x 580mm
Motor: 2 x 1.5 hp 1 ph
Motor speed: 1400 rpm
Air flow: 7200m3/H (2X3600m3/H)

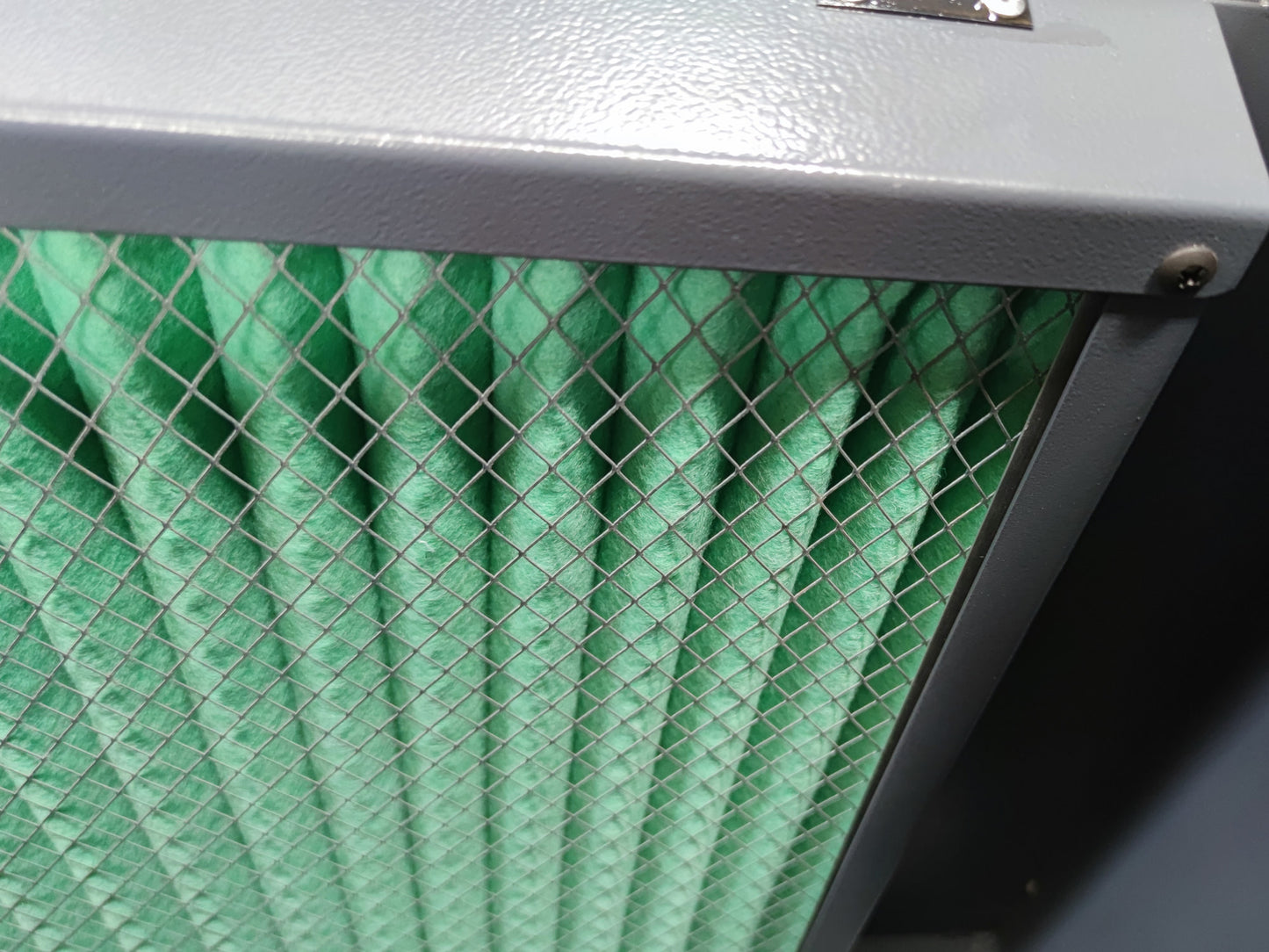

Filter level: G4+H13
Filter particles: 3um
Filter efficiency: 99.97%
Height of working table: 830mm
Machine size: 2080 x 735 x 930mm
Net weight: 183 KG
Packing size: 2070x715x950mm

For spare filters ITWMCHFTFILTER
