iTECH

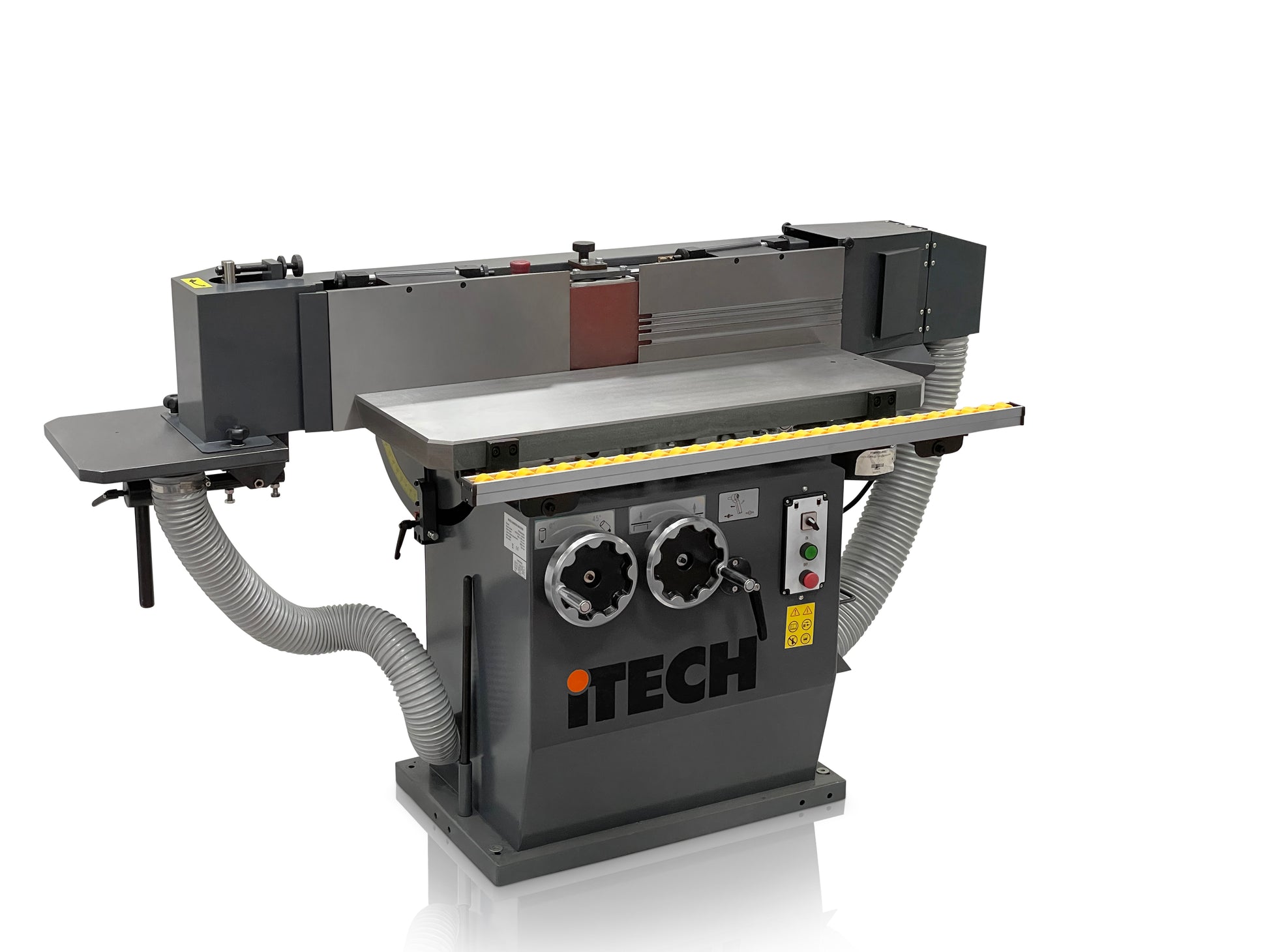

BS8 Universal Edge Sander

BS8 Universal Edge Sander

Regular price $4,067.00 USD
Regular price Sale price $4,067.00 USD
Sale Sold out
Shipping calculated at checkout.

The BS8 Multi edge sanding machine is a class leading versatile sander for workshops. Sand solid and veneered edges easily. The iTECH BS8 is a versatile and accurate edge sander for people who care about finish and affordable quality.
The large cast iron table is adjustable vertically an horizontally so you can use all the sanding belt. The head tilts from 90-45 degrees and has a large scale to make chamfer setting precise and fast. The micro adjustable plattens are slotted allowing you to sand over-veneered edges at 90 degrees, or put a micro chamfer. The sanding belt has an independent motor and gearbox for oscillation which gives you longer belt life and a better quality edge sanding.

This affordable, quality sander has many features that help with those unique finishing jobs: including adjustable platens for sanding frames, veneers, or throughfeed sanding long edges, a mitre fence stop for solid wood sanding, an adjustable end table for concave or convex edges, a removable sanding pad with graphite, 2 axis adjustable pull out support table, 45 degree tilting head, centralised integrated extraction ducting to help keep your workshop clean.
Features:
Solid frame with heavy cast iron tables
Sliding unit adjustable in height
Inclination up to 45 degrees
Drive motor 3kW S1 (4 HP)
400 Volts/50 Hz with motor overload protection
Extra motor for belt oscillation
Dust extraction at both ends with single outlet
3000mm long belt for longer life
A grooved infeed platen allows sanding edges with overlapped veneer

  • Table Length 960 x 350mm
  • Work table height adj. 220mm
  • Motor Power [S1] 3.0 kw 4.0 hp
  • Voltage 400v 3 phase
  • Oscillation Motor 0.25 kw
  • Supply required 16A [no neutral]
  • Oscillation 20 mm
  • Belt Length 3000 - 3040mm
  • Belt Speed 20m/s
  • Belt Width 150 mm
  • Head Tilts 90-45 [degrees]
  • Weight 290 kg
  • Dust Outlets 120mm / 80 mm
  • The floor plan is 1930 x 800 x 1045mm
  • Packed size 1.5 x 0.75 x 1.2m, 360kg

Shipping & Delivery

Price includes shipping on flat vehicle to UK mainland address. Crane vehicles can be booked at extra cost
