iTECH 1250 Compact Digital Vertical Wall Saw with Scoring

The iTECH Compact 1250 Panel Saw is perfect for sizing 8x4ft sheets. Offering unbeatable value and high precision component parts, accesories that would normally be classed as options come as standard.

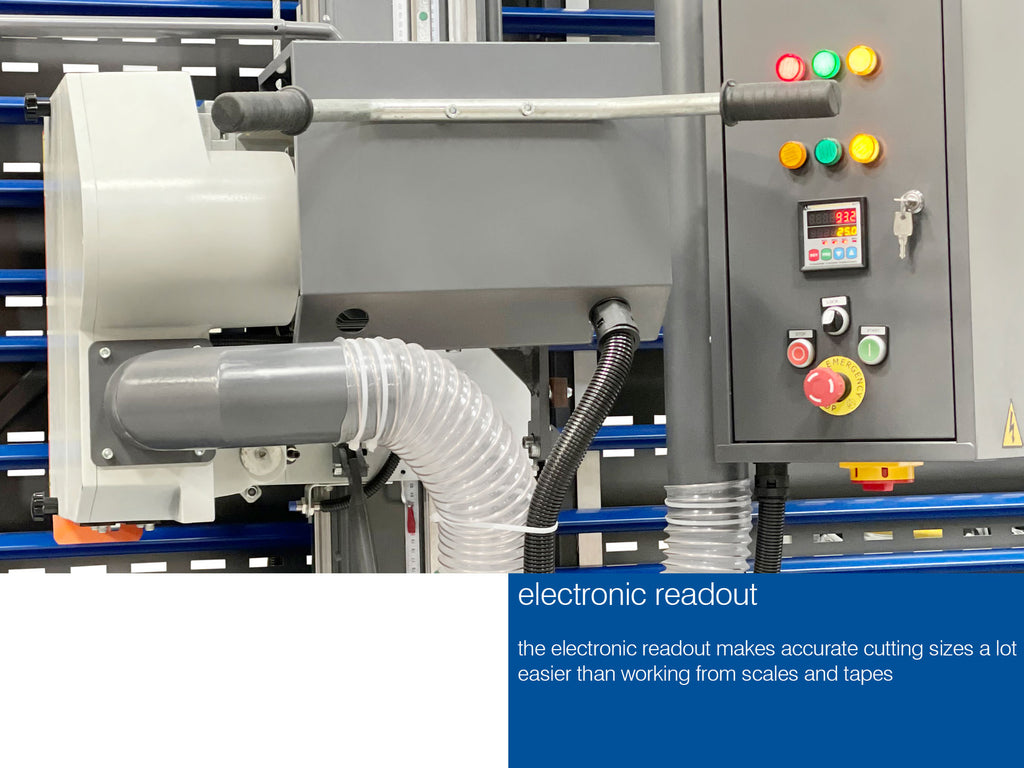

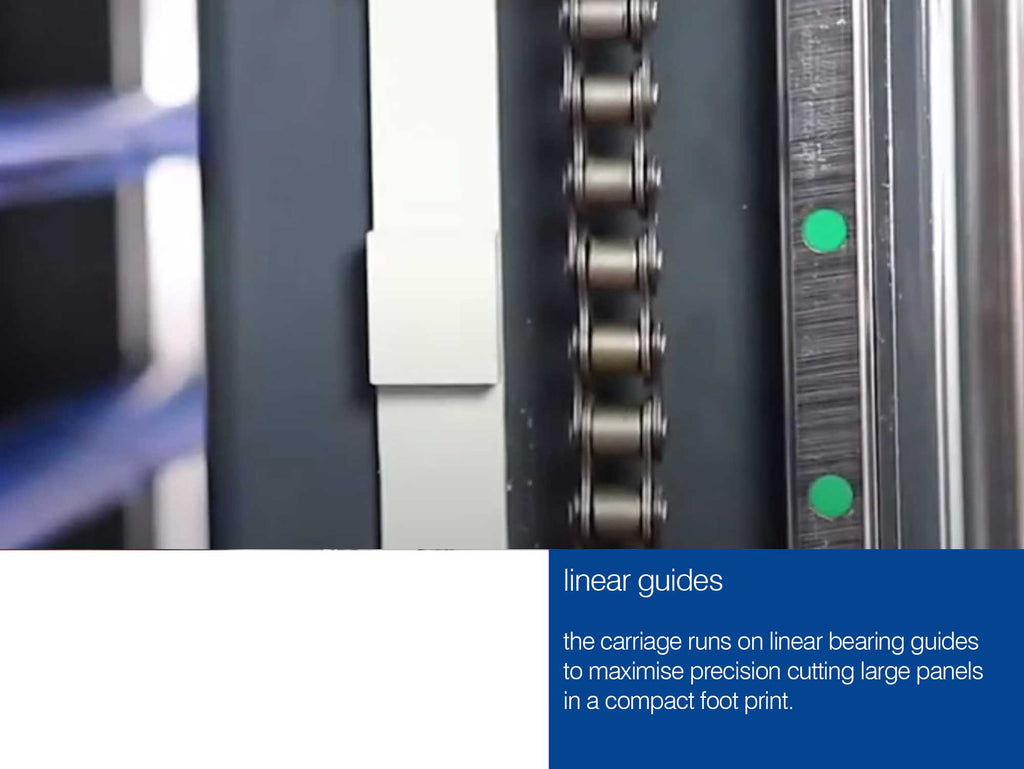

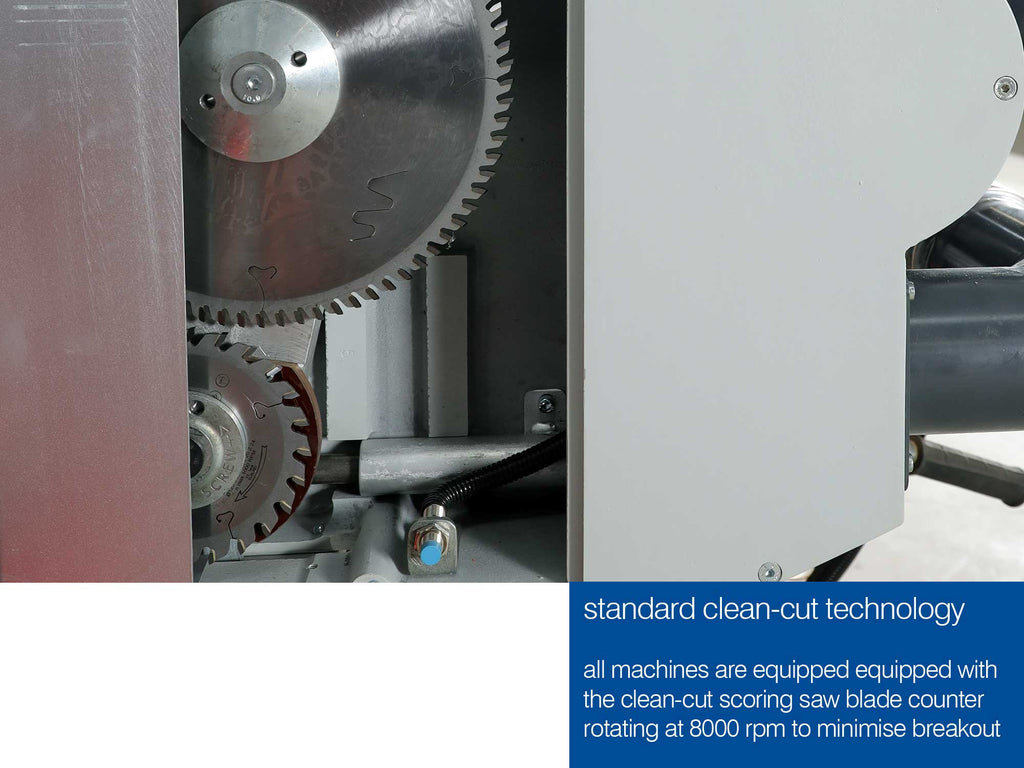

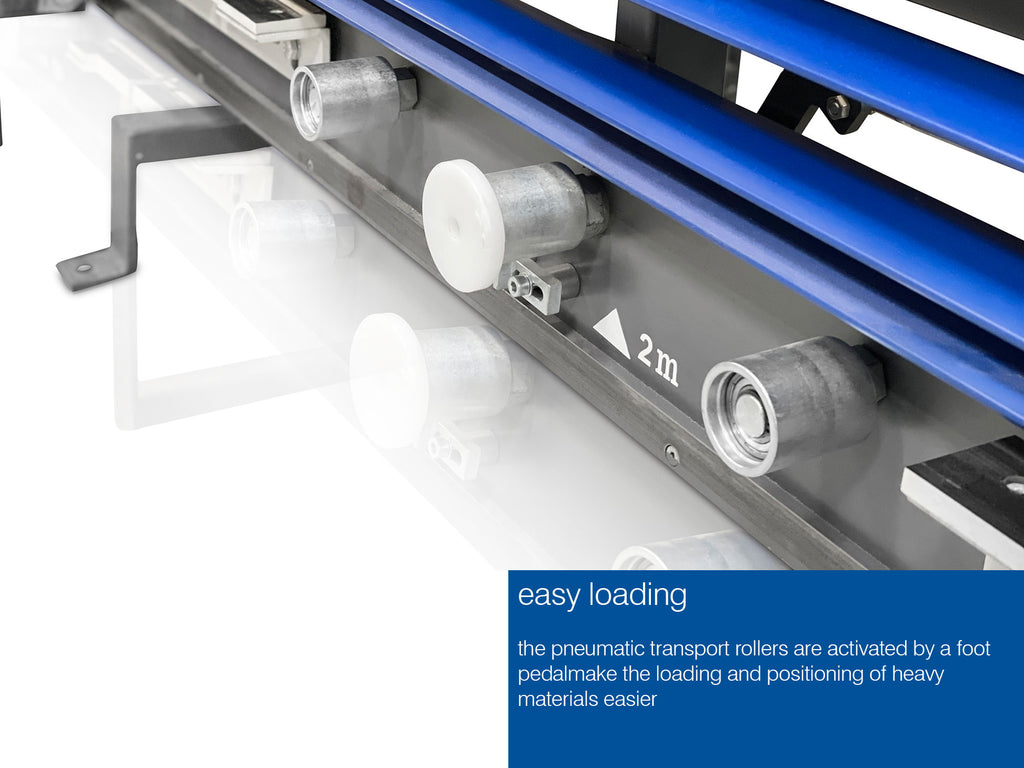

Electronic Digital Readouts for both vertical stops and horizontal stops are included. High precision Linear Rail for the Vertical stroke ensuring every cut is micron perfect and automatic up-down roller system for easy loading and offloading of the material are all standard features. Other useful features are scoring unit, automatic slat positioning and a generous middle shelf for smaller component cuts.

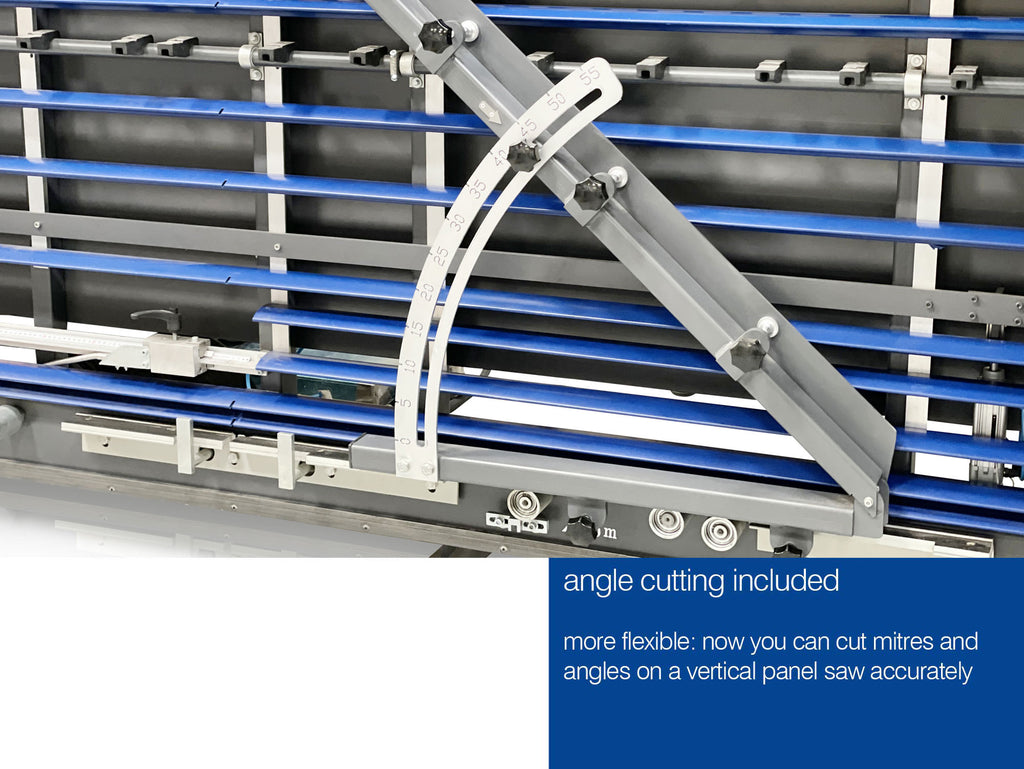

The machine gantry is precision ground by CNC milling, and meticolously calibrated, other useful optional extras you may wish to consider are the iTECH Material Loading Carts and Angled Cutting unit.

Technical specification:

Motor power 3Kw 380v/50Hz
Blade 6000rpm
Scoring Blade speed 8000rpm
Cutting depth with scoring 42mm
Cutting depth without scoring 55mm
Max. vertical cut 1300mm
Max. height of horiz. cut 1250mm
Max. horizontal cut 2500mm
Pnuematic Locking system yes
Middle shelf yes
Automatic slat positioning yes
Pnuematic Air Pressure 8bar
Electronic slat positioning Yes
CE Yes
