DC001 MOBILE EXTRACTOR 230V 1PH

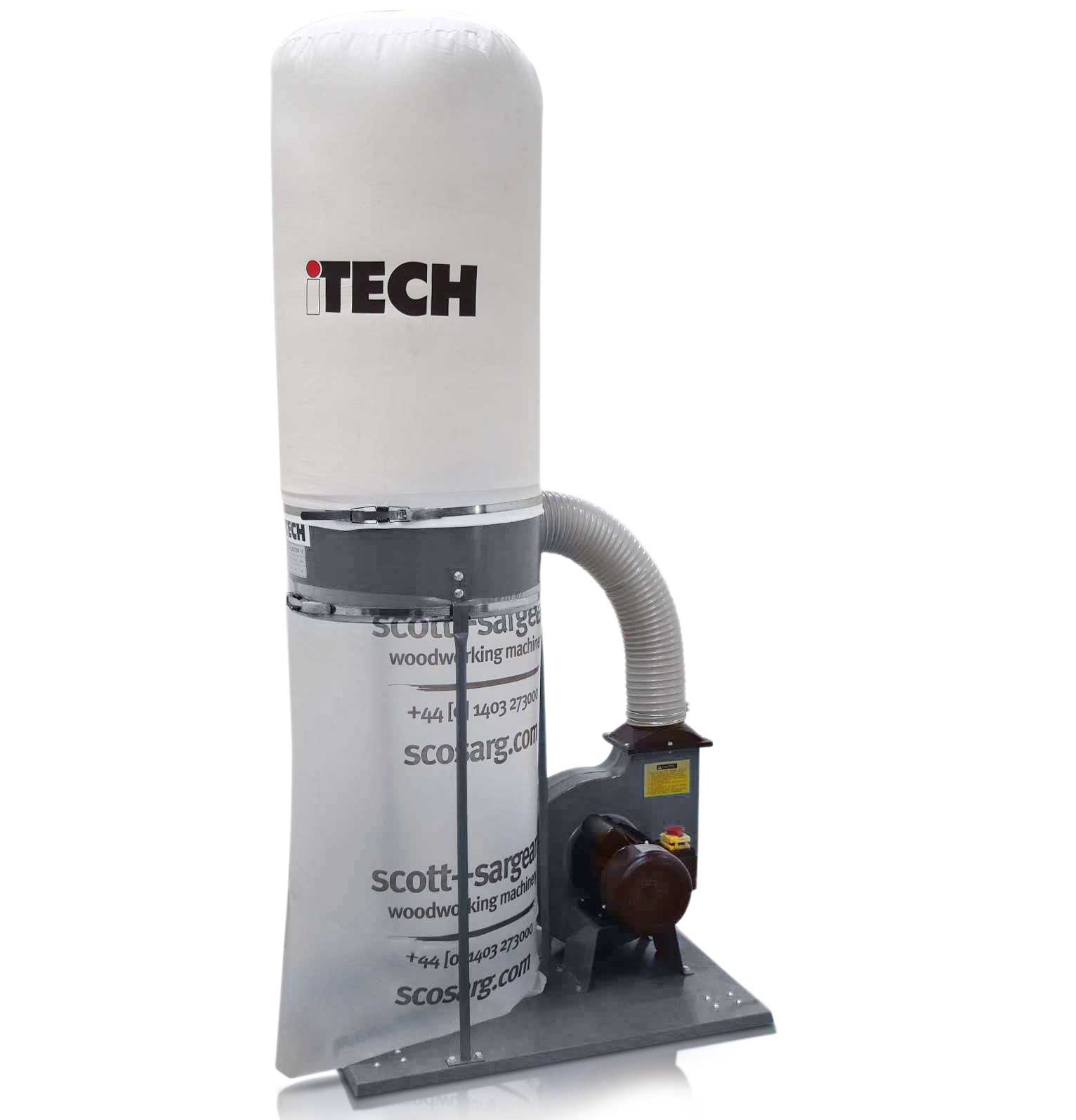

iTECH DC001S 1 Bag Dust Extractor is a rugged extractor designed for small workshops. The industrial construction and quality finish sets it apart from others. It is big enough to handle a 310mm planer or many other workshop machines. The cyclonic filtration system works by separating the waste from the airflow, diverting the waste into the plastic collecting bag whilst the filtered air passes through the bag. The machine filtration can be upgraded with cartridge fine filters part no ITWMDCCFF.

The base has castors for mobility around the workshop. The 125 mm inlet is fitted with a twin branch 100mm adaptor, allowing connection to either one or two machines. Supplied complete with 1x 3m hose 100mm diameter.

• Fan diameter 300mm
• Inlet diameter 125
• Inlet holes 2 x 100mm
• Air capacity 1490cfm
• Air flow 2533 m3/hour
• Bag diameter 500mm
• Packing size 92x58x58cm
• Motor power 2hp
• Noise level 80dB
• Voltage 240v
• Overall size 92x58xH193cm
• Machines are fitted with 13a plug but for EEC usage require connection to 16a supply
• Standard bag filtration efficiency is 30 micron
