SEGA 300 2600MM PANEL SAW 3ph

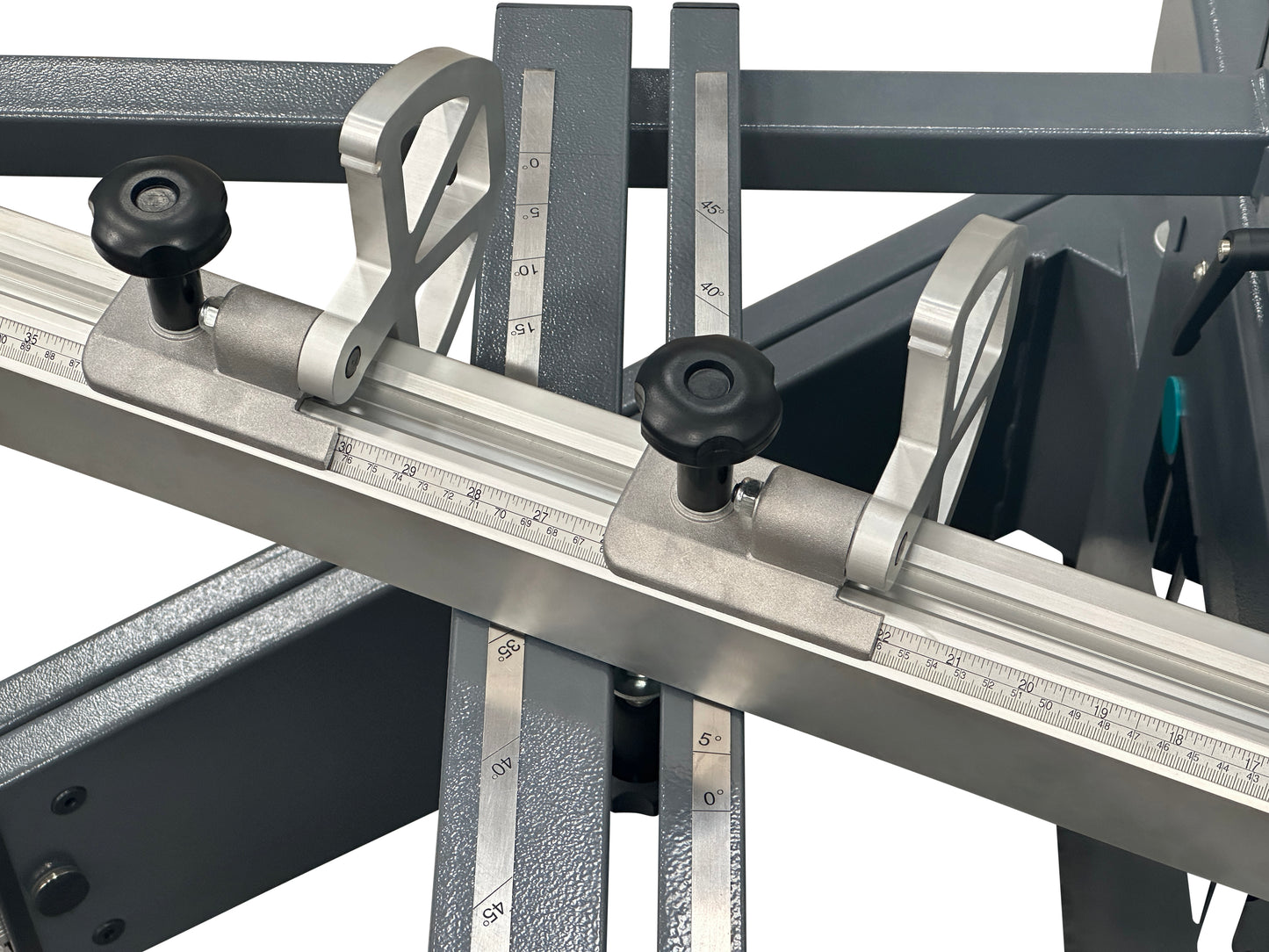

The iTECH Sega 300 is a new compact sliding table saw based on a proven design with 100mm depth of cut. The saw has a scoring unit to help you get a perfect cut on laminated and veneered panels. Coupled with the smooth sliding table, it makes for a superb value machine for smaller workshops. The machine is supplied complete with mitre cutting facility on the crosscut table, clamp for working with short pieces, and straight line edging attachment for trimming waney edge boards.

Internally the saw is supported on cast iron body which is guided on double round bars for improved accuracy and longevity. The Sega 300 is a new sliding table saw based on the proven C300 with a 100mm depth of cut. The saw has a scoring unit to help you get a perfect cut on laminated and veneered panels. Coupled with the smooth sliding table, it makes for a superb value machine for smaller workshops. The machine is supplied complete with a mitre cutting facility on the crosscut table, clamp for working with short pieces, and straight-line edging attachment for trimming waney edge boards.

Internally the saw is supported on cast iron body which is guided on double round bars for improved accuracy and longevity.

• Saw Blade diameter 300 mm
• Cutting height at 45 degrees/90 degrees 75/100 mm
• Sliding carriage dimensions 2600 x 315 mm
• Working table 800x(500+650)
• Main blade speed 4500 rpm
• Scoring blade speed 7000 rpm
• Scoring blade diameter 90x22 mm
• Cutting width parallel fence 1250 mm
• Telescopic Fence length 2400 mm
• Sliding carriage dimensions 2600 x 315 mm
• 1 phase motor power 4.0 hp 3.0kw
• Weight 370 kg
• Dust inlet size 120mm & 60mm
• Machine packing size 1676?1130?1100 mm
• Sliding table packing size 2700?380?200 mm
