C400 MULTI-FUNCTION COMBINATION MACHINE 400V 3PH WITH SPIRAL PLANER BLOCK

The C400 Universal Combination Woodworking Machine is the latest addition to the family. It has been updated to have a 2600 mm sliding table and is specifically designed be an industrial standard machine, but at a size intended for the small professional workshop or home user. This industrially rated machine features a table saw and sliding table long. A planer, thicknesser and spindle moulder unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.

Being a professional standard machine, the C400 of course is fully adjustable and the accuracy is second to none. As far as accuracy goes it will not even be bettered by full sized industrial machines. With three independent induction motors providing ample power, changing function can be done with the flick of a switch rather than the going through the laborious task of changing belts

Features:

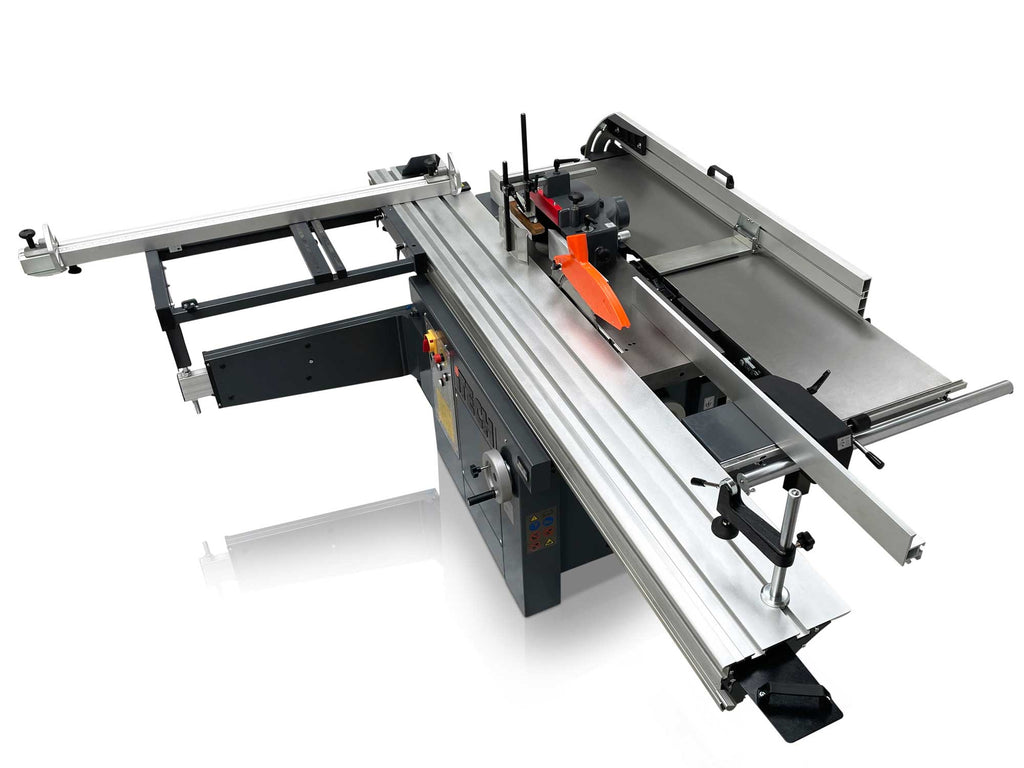

Panel saw sliding beam
Scoring for veneered boards

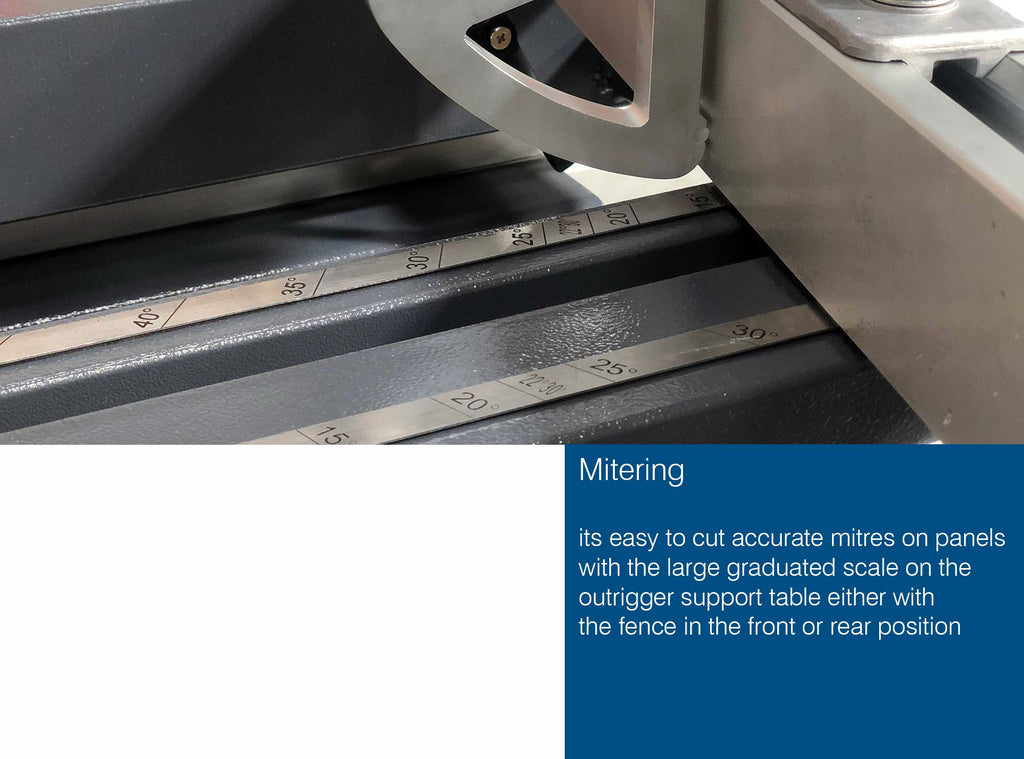

Accurate cross cut fence with flipstops
Cast iron construction
Sturdy swinging arm squaring frame

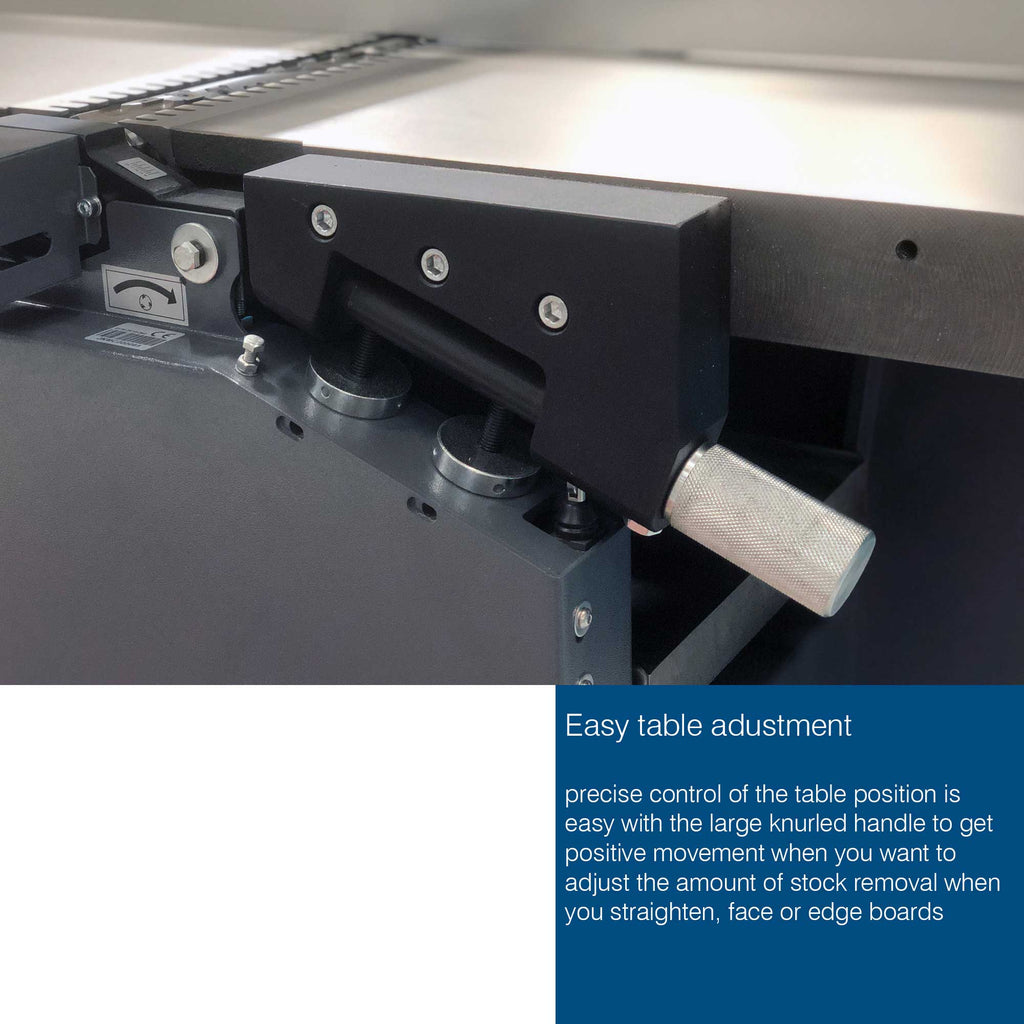

Inward parallel swing planer table
Micro adjust spindle moulder fence
3 x 4hp 3ph Induction motors

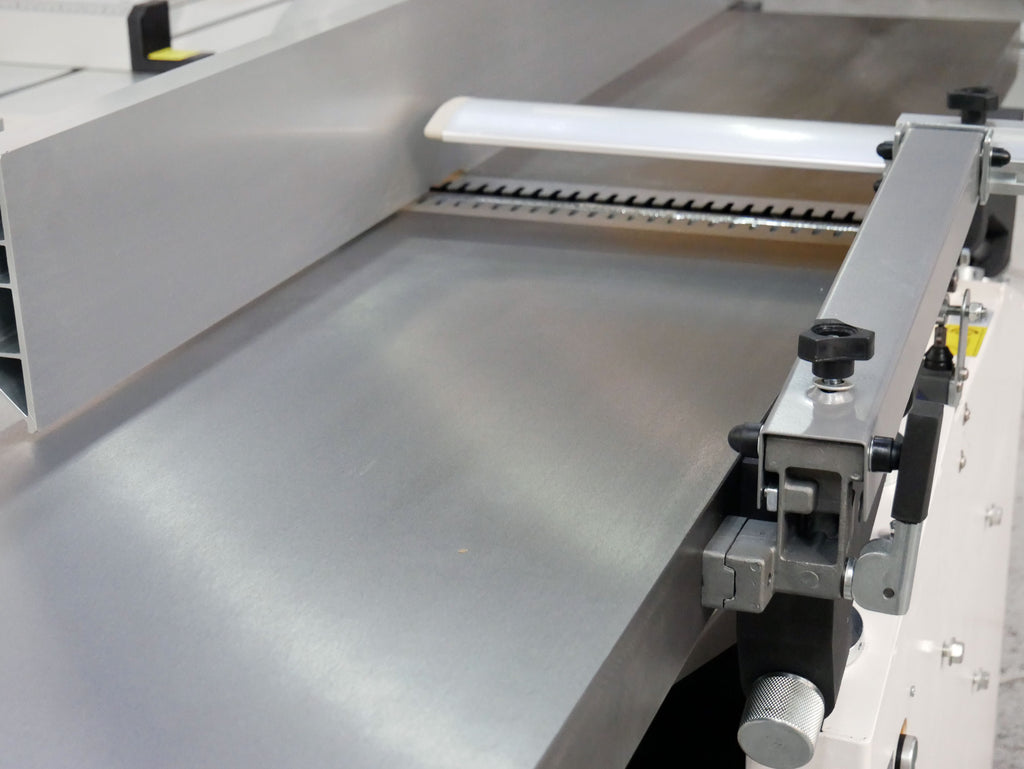

SPIRAL cutterblock

• Planer & Thicknesser
• 400x220mm
• Spiral Cutter Block

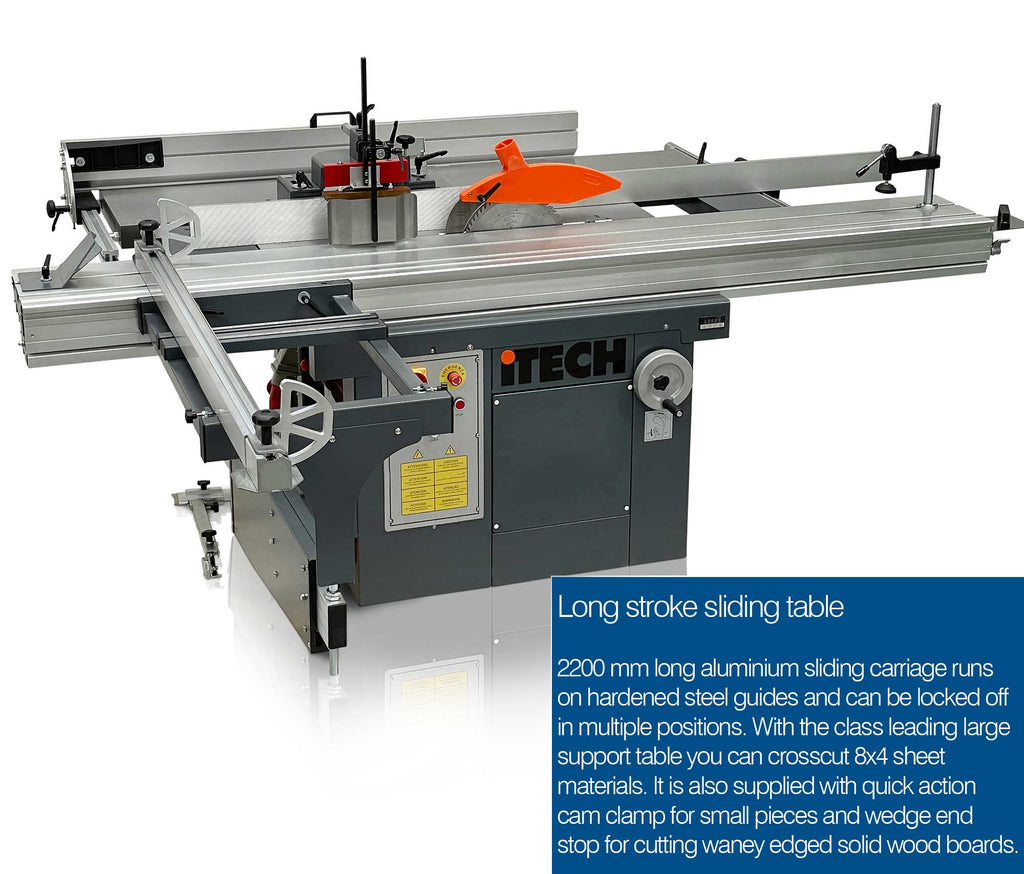

• Sliding Table Saw with Scoring 2600mm

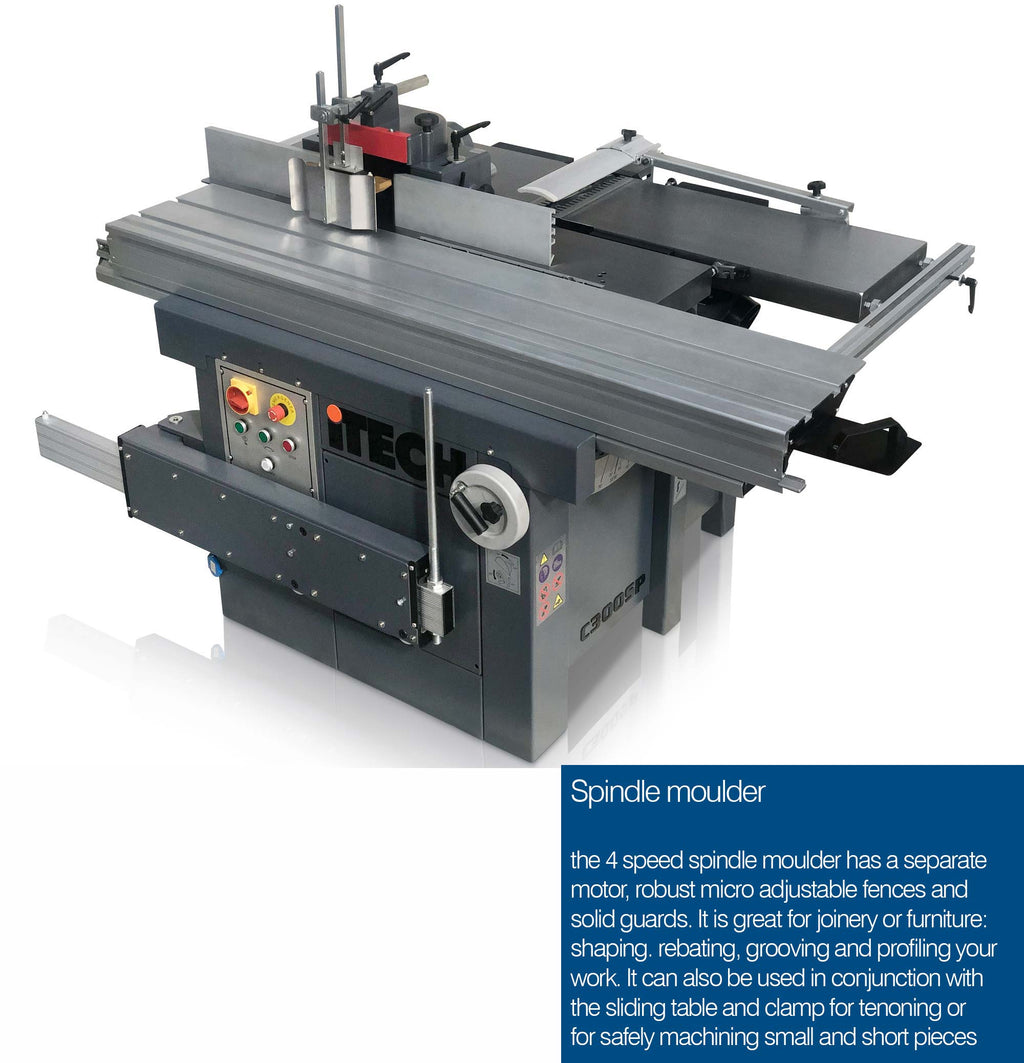

• Spindle Moulder 4 Speeds
• PLANER & THICKNESSER
• Planing width 400 mm
• Table length 1800 mm
• Thicknessing capacity 4-220 mm
• Cutter block dia 70 mm
• Cutter block type SPIRAL
• Cutter block speed 5700 rpm
• Feed speed 8 m/min
• Thicknesser Table dimensions: 400 x 760mm
• Min working height: 4 mm
• Max working height: 220mm
• Max depth cut: 5 mm
• Feed rate: 7 m/min
• Spare Blade(15 x 15 x 2.5mm With 150mm Rad tip TA100791)
• CIRCULAR SAW:
• Working table dimensions: 326 x 1112mm
• Blade tilt: 0 degrees - 45 degrees
• Blade diameter: 300mm
• Scoring Blade 90mm dia
• Scorer bore size 22mm
• Max blade height 90 degrees: 95mm
• Max blade height 45 degrees: 75mm
• Max blade to rip fence: 730mm
• Sliding carriage: 315 mm
• Carriage Stroke 2600 mm
• SPINDLE MOULDER:
• Shaft Stroke 115 mm
• Shaft Dia 30 mm
• Shaft length: 105 mm
• Speeds of rotation: 2000/3100/4400/7000 rpm
• Max dia of tool 180mm
• Voltage 3 phase
• Weight 760kg
• Dimensons for packing 260 x 130 x 110cm
• Overall dimensions 260 x 230 x 100cm
• Optional:
• OM0342092212 D=90 B3=3.1 B4=4.2 Z=12 d=22 Scoring Blade
• SLOT MORTICER (OPTIONAL EXTRA ITWMCMORT)
